Special Instructions for Tempo HD (Without Drive, Windows Version)

You Should Have (Part Number THD-W)

In addition to the parts listed on the Tempo HD quick start guide, the following

items should be included in your product package:

• 4 hard drive mounting screws

The following item is required for installation of a 2.5 inch hard drive to the

Tempo HD:

• Medium Phillips screwdriver

The following items may be required for installation of a 2.5 inch hard drive:

• Small flat blade screwdriver

• Needle-nose pliers

Installation Preparation:

Prior to installing a hard drive onto the Tempo HD, you may need to prepare the

drive by installing, moving or removing jumpers.

1. Remove your 2.5 inch hard drive from its packaging.

2. Locate the jumper block on your hard drive. Figure 1 shows the most com-

mon jumper block location.

2.5 Inch Hard Drive Installation Steps

This section covers the configuration, and the installation one 2.5 inch hard drive

onto your Tempo HD card.

1. Move, install, or remove jumpers (as necessary) on the hard drive to the

master setting.

2. Remove the Tempo HD card from its anti-static packaging, and lay it on a

flat surface with the surface-mounted connector face up.

3. Lay the 2.5 inch hard drive on the card within the rectangle imprinted on

the Tempo HD card, and align the hard drive’s pins with the Tempo HD

card’s surface-mounted connector (Figure 2). Push the hard drive’s pins into

the Tempo HD card's connector until the drive is completely seated.

4. Holding the drive against the card, flip the assembly over. Using the 4 screws

provided, secure the hard drive to the Tempo HD; be sure to use the correct

holes, and do not overtighten the screws (Figure 3).

5. Follow the instructions in the attached quick start guide to install the Tempo

HD into your system. Please note, you will need to format the drive you just

installed. Refer to the drive formatting information sections of the Quick

Start Guide for specific information.

.Support Note: Refer to the hard drive user’s manual for jumper

setting information specific to your drive. Alternately, you may find

jumper setting information printed on your hard drive’s labels. Make sure the

drive is oriented the same way as the illustration before moving jumpers.

Figure 1

Figure 2

Figure 3

screw screw

surface-

mounted

connector

screw screw

2.5 inch hard drive

hard drive’s pins

Tempo HD

jumper block

TEMPO™HD

Integrated Hard Drive/PCI Card for Windows®PCs

Quick Start Guide for Tempo HD

You Should Have

The following items should be included in your product package:

• Tempo HD Integrated Hard Drive/PCI Card

• Tempo HD Windows Driver diskette

The following items may be required for installation of the Tempo HD:

• Medium Phillips screwdriver

The following items may be required for installation of addi-

tional hard drives:

• Small flat blade screwdriver

• Needle nose pliers

Along with one or more available drive bays, the following items,

which are sold separately, may be required for installation of additional

hard drives:

• Ultra ATA cable

• Drive mounting brackets/carriers or drive mounting sleds

• Hard drive mounting screws

• One or more power cable Y-adapters

Hardware and Operating System Requirements

The Tempo HD requires the following in order to operate in your system:

• One available 2.1 PCI slot

• Pentium II (or equivalent) or higher

• Windows 98SE, Windows Me, Windows 2000, or Windows XP

Remember to register your product online at http://registration.sonnettech.com to be informed of future upgrades and product releases.

Software updates and links are available from the Sonnet web site at www.sonnettech.com.

•

Online support form available at http://supportform.sonnettech.com.

Sonnet Technologies Customer Service hours are Mon.-Fri., 7 a.m.–5 p.m. Pacific Time

•

Customer Service Phone: 1-949-472-2772 • E-mail: [email protected]

Sonnet Technologies, Inc., 15 Whatney, Irvine, California 92618-2808 USA • Tel:

949-587-3500 Fax:

949-457-6350

©2002 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, and Tempo are trademarks of Sonnet Technologies, Inc.Tempo HD includes technology by FirmTek, LLC.

Other product names are trademarks of their respective owners.All specifications subject to change without notice. Printed in the USA. QS-THD-W-XXXG-E-102402

.Support Note: We recommend that you make a backup of important

information on your system’s current hard drive(s) prior to installing new

hardware or software.

When handling computer products, you must take care to prevent components

from being damaged by static electricity. Before opening your computer or

removing parts from their packages, always ground yourself first by touching an

unpainted metal part of the computer, such as a port access cover, and work in

an area free of static electricity; avoid carpeted areas. Handle all electrical com-

ponents only by their edges, and avoid touching connector traces and compo-

nent pins.

Quick Start Guide for Tempo HD (Windows Version)

Installation Preparation

Prior to installing the Tempo HD into your system, you should read the section in

your computer’s user manual that addresses PCI card installation.

Tempo HD Installation Steps

This section covers the installation of the Tempo HD without additional hard

drives into your system. For information on attaching additional hard drives, see

page 4.

1. Shut down your computer.

2. Open your computer to access its expansion card area (PCI slots); refer to

your computer’s user manual for specific information.

3. Remove the Tempo HD card from its anti-static packaging.

4. Locate an available PCI slot inside your computer and, if present, remove its

port access cover from the rear of the computer.

5. Install the Tempo card into the PCI slot; make sure the card is firmly seated

and secured (Figure 1).

6. If you are installing additional hard drives at this time, refer to “Hard Drive

Installation Preparation” and “Hard Drive Installation Steps” on page 4.

7. Close your computer.

Windows 98SE and Windows Me Driver Installation

This section describes the installation of drivers to support the Tempo HD in sys-

tems running Windows 98SE or Windows Me. If your system is running

Windows 2000 or Windows XP, skip to the next page.

1. Turn on your computer; during Windows startup, the New Hardware Found

window will briefly appear, with PCI Mass Storage Device listed as the new

hardware type.

2. When the Add New Hardware Wizard window appears, click Next.

3. When the next window appears, select “Search for best driver for your device

(Recommended),” and then click Next.

4. Insert the Tempo HD Windows Driver diskette into your floppy drive.

4. Type A:\Win9x-me, and then click Next.

5. When the message stating “Windows is now ready to install the best

driver…” appears, click Next, and then click Finish.

6. At the next prompt, click Yes to restart your system; you must now format

the attached drive. Skip to “Drive Formatting—Windows 98SE and Windows

Me” on page 5.

Tempo HD

PCI slots

The location of your

computer’s PCI slots may

vary from this illustration.

Figure 1

Quick Start Guide for Tempo HD (Windows Version)

Windows 2000 Driver Installation

This section describes the installation of drivers to support the Tempo HD in

systems running Windows 2000. If your system is running Windows 98SE or

Windows Me, go back to “Windows 98SE and Windows Me Driver Installation”

on page 2. If your system is running Windows XP, skip to “Windows XP Driver

Installation” below.

1. Turn on your computer; during Windows startup, the New Hardware Found

window will briefly appear, with Mass Storage Device listed as the new hard-

ware type.

2. When the Found New Hardware Wizard window appears, click Next.

3. When the Install Hardware Device Drivers window appears, select “Search for a

suitable driver for my device (recommended),” and then click Next.

4. When the Locate Driver Files window appears, insert the Tempo HD Windows

Driver diskette into your floppy drive.

5. Select Floppy disk drives under Optional search locations and then click Next; a

new window will appear.

6. Type A:\Win2000, and then click OK.

7. When the Driver Files Search Results window appears, click Next.

8. When the Digital Signature Not Found window appears, click Yes; the appro-

priate driver will be installed.

9. When the Completing the Found New Hardware Wizard window appears, click

Finish; you must now format the attached drive. Skip to “Drive Formatting—

Windows 2000 and Windows XP” on page 7.

Windows XP Driver Installation

This section describes the installation of drivers to support the Tempo HD in

systems running Windows XP. If your system is running Windows 98SE or

Windows Me, go back to “Windows 98SE and Windows Me Driver Installation”

on page 2. If your system is running Windows 2000, go back to “Windows 2000

Driver Installation” above.

1. Turn on your computer; during Windows startup, a New Hardware Found

pop-up will briefly appear, with Mass Storage Device listed as the new hard-

ware type.

2. When the Found New Hardware Wizard window appears, insert the Tempo

HD Driver diskette into your floppy drive. Select “Install from a specific loca-

tion (Advanced),” and then click Next.

3. When the next window appears asking you to choose your search and instal-

lation options, select “Search for the best drivers in these locations,” and

“Search removable media (floppy, CD-ROM…,” and then click Next.

4. When the next window appears, select “WinXP Promise…,” and then click

Next.

Quick Start Guide for Tempo HD (Windows Version)

5. When the Hardware Installation window appears, click Continue Anyway; the

appropriate driver will be installed.

6. When the Completing the Found New Hardware Wizard window appears, click

Finish; you must now format the attached drive. Skip to “Drive Formatting:

Windows 2000 and Windows XP” on page 9.

Hard Drive Installation Preparation:

Prior to installing additional hard drives into your system, you should familiarize

yourself with the parts to be installed. We also strongly recommend that you read

the section in your computer’s user manual that addresses hard drive installation.

1. Identify the connectors on an Ultra ATA cable (sold separately) as shown in

Figure 2; the host connector plugs into the Tempo HD controller card, while

the master and slave connectors plug into the hard drives.

2. Remove the hard drive from its anti-static packaging.

3. Locate the jumper block on the hard drive. Figure 3 shows the two most

common jumper block locations.

Hard Drive Installation Steps

This section covers the installation and configuration one or two hard drives into

your system.

1. Shut down your computer.

2. Open your computer to access the expansion card area (PCI slots) and drive

bay(s); refer to your computer’s user manual for specific information.

3. Configure the hard drives’ jumpers as follows:

• When installing one drive, you must set its jumpers to the single setting

when available, or the master setting when not.

• When connecting two drives, you must set the jumpers on one drive to

the master setting, and to the slave setting on the other.

4. Install the hard drives into your computer’s expansion bays. (Depending on

your computer model, drive mounting brackets/carriers or drive mounting

sleds may be required to install your hard drives. Refer to your computer’s

user manual.)

er block

jumper block

Figure 3

host

connector

(blue)

connects to

Tempo HD

slave

connector

(gray)

master

connector

(black)

40-pin/80-wire Ultra ATA cable

Figure 2

.Support Note: Refer to the hard drive’s user manual for jumper

setting information specific to your drives. Alternately, you may find

jumper setting information printed on your hard drives’ labels. Make sure the

drives are oriented the same way as the illustration before moving jumpers.

Support Note: Technical knowledge may be required to gain access to

the drive expansion bays in certain computer models. We recommend

you first consult your computer’s user manual. If you feel you are unable to

install the computer hardware, contact a qualified technician.

Support Note: Most new hard drives are factory preset for use as a sin-

gle or master drive. To change the setting, you will need to reconfigure

the hard drives’ jumpers. Be sure the jumpers are configured properly, otherwise,

your computer may not boot, or your new drives may not be recognized.

Quick Start Guide for Tempo HD (Windows Version)

5. Connect the drive(s) to the Ultra ATA cable (sold separately) as follows:

• When connecting one drive, plug in the Ultra ATA cable’s master (black)

connector to it. Verify the connector is plugged in securely (Figure 4).

• When connecting two drives, connect the Ultra ATA cable’s master (black)

connector to the drive with jumpers set in the master setting; connect the

slave (gray) connector to the drive with jumpers configured in the slave

setting. Verify the connectors are plugged in securely (Figure 4).

6. Locate the 4-pin power connector plugged into your computer’s existing

hard drive. You should find at least one extra power connector near the exist-

ing drive; if you have installed only one new drive, plug the extra power con-

nector into it. If you have installed two new drives, or there are no additional

power connectors, you must use a power cable Y-adapter (sold separately).

Verify the connectors are plugged in securely.

7. Route the Ultra ATA cable to the Tempo HD card; avoid heat sinks and make

sure the cable will not get crushed or pinched by any part of the case when

you reassemble your computer.

8. Attach the Ultra ATA cable’s host (blue) connector to the Tempo HD card.

Verify the connector is plugged in securely (Figure 4).

9. Check the cable connections; make sure the cable is properly connected to

the Tempo HD and the hard drives.

10. Close your computer and carefully replace its cover; be very careful not to

crimp the cables.

Drive Formatting—Windows 98SE and Windows Me

Formatting prepares a hard drive for use by dividing the data area into tracks and

sectors, enabling your computer to store and retrieve data from the drive. This

section describes the process of formatting hard drives connected to the Tempo

HD, using FDISK on systems running Windows 98SE or Windows Me. The fol-

lowing instructions detail the procedure to create a simple volume (single parti-

tion); if you need to format a drive with multiple partitions, refer to Windows

Help for details. As an alternative, you may choose to format and partition your

hard drive(s) with any software that was included with the drive, following the

included instructions.

1. Turn on your computer and start Windows.

2. From the taskbar, click on Start > Programs > MS-DOS Prompt.

3. At the C:\WINDOWS > prompt, type FDISK.

4. A message will appear stating, “Your computer has a disk larger than 512

MB;” press Enter (Figure 5).

5. From the FDISK Options screen, press 5, and then press Enter.

Tempo HD Integrated

Hard Drive/PCI Card

Ultra ATA cable

slave

single (or master*)

- jumpers

ers must be set to the master settin

when two drives connected

Figure 4

WARNING: Hard drives attached to the Tempo HD will not appear under

My Computer, and can’t be used until they have been formatted; this

also applies to drives with data on them, previously used in other computers.

Please be aware that formatting a drive erases any data present.Figure 5

Quick Start Guide for Tempo HD (Windows Version)

Figure 8

6. From the Change Current Fixed Disk Drive screen, select the last disk listed

(assuming you’ve connected only one drive at this time), and then press

Enter. Do not unintentionally choose an existing formatted drive.

7. When the FDISK Options screen appears again, select “Create DOS Partition

or Logical DOS Drive,” and then press Enter.

8. From the Create DOS Partition or Logical DOS Drive screen, select “Create

Primary DOS Partition,” and then press Enter.

9. As the primary DOS partition is created, the progress will be displayed. When

drive integrity verification is complete, press Enter.

10. The progress will be displayed again, followed by the message “Primary DOS

Partition created, drive letters changed or added;” press Esc to continue.

11. When the next screen appears instructing you to restart your system, press

Esc two times.

12. At the DOS prompt, type EXIT, and then press Enter.

13. From the taskbar, select Start > Shut Down… When the Shut Down window

appears, select Restart, and then click OK.

14. After your computer restarts, double-click My Computer.

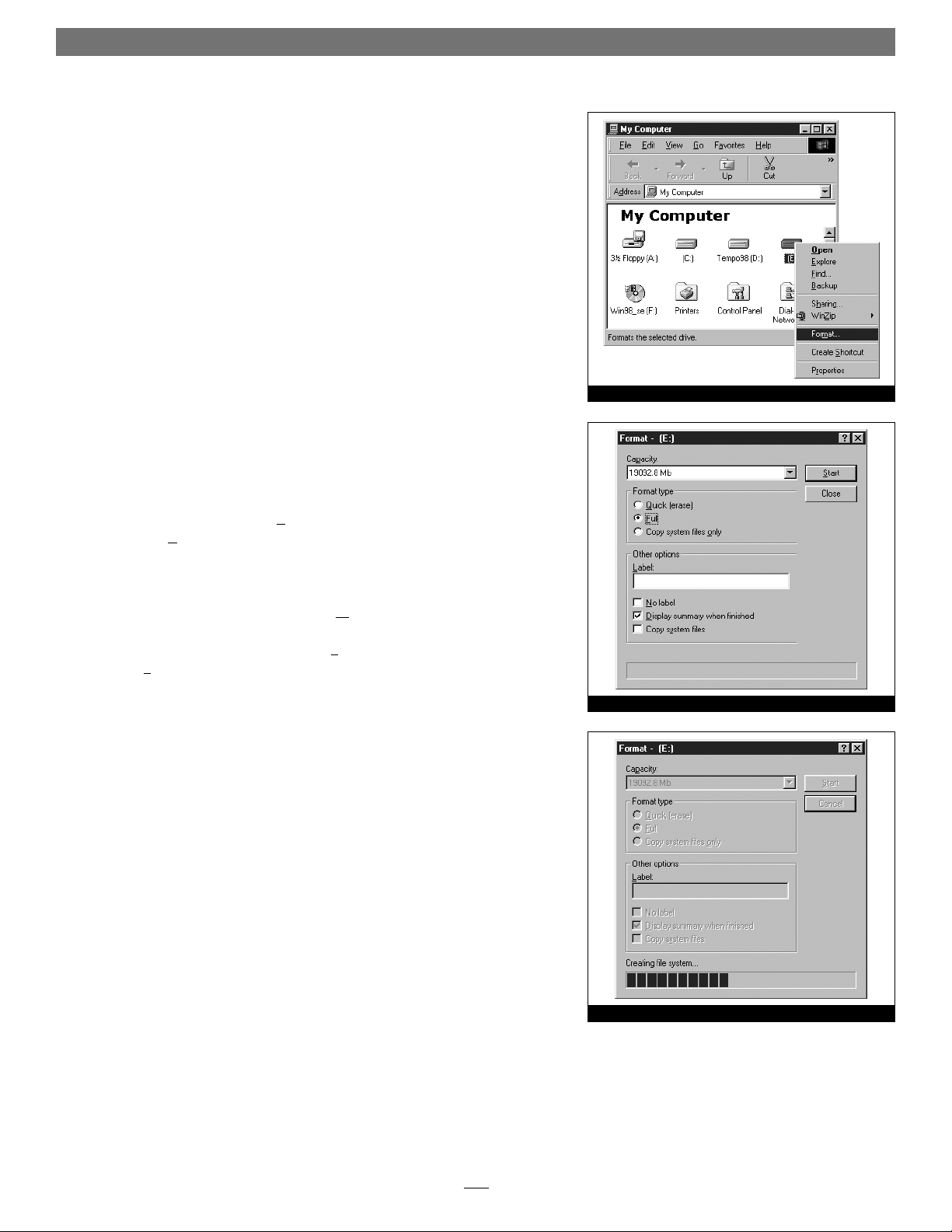

15. Right click on the new drive and select “Format…” (Figure 6).

16. When the Format window appears, select “Full” under Format Type, and

then click Start (Figure 7).

17. When the warning window appears, click OK.

18. While the format process continues, a progress bar will appear at the bottom

of the Format window (Figure 8).

19. When the drive formatting process is complete, a Format Results window will

appear; press Enter.

20. When the dialogue appears suggesting you run ScanDisk; press Enter.

21. A Windows Help window will appear; follow the instructions to run ScanDisk.

Once ScanDisk is finished, your installation is complete; you may access your

newly-formatted drive through your applications, as well as My Computer.

Figure 6

Figure 7

Quick Start Guide for Tempo HD (Windows Version)

Drive Formatting—Windows 2000 and Windows XP

Formatting prepares a hard drive for use by dividing the data area into tracks and

sectors, enabling your computer to store and retrieve data from the drive. This

section describes the process of formatting hard drives connected to the Tempo

HD, using the Disk Management Administrative Tool on systems running

Windows 2000 or Windows XP. The following instructions detail the procedure

to create a simple volume (single partition); if you need to format a drive with

multiple partitions, refer to Windows Help for details. As an alternative, you may

choose to format and partition your hard drive(s) with any software that was

included with the drive, following the included instructions.

1. Turn on your computer and start Windows.

2. From the taskbar, click on Start > Settings > Control Panel.

3. In the Control Panel window, double-click Administrative Tools.

4. In the Administrative Tools window, double-click Computer Management.

5. In the Computer Management window, double-click Storage in the right win-

dow pane (Figure 9).

6. In the right pane of the Computer Management window, double-click Disk

Management (Local); the Write Signature and Upgrade Disk Wizard will appear

(Figure 10). Click Next to continue.

7. In the Select Disk to Write Signature window, select the new disk (which

should be your only option), and then click Next to continue.

8. In the Select Disk to Upgrade window, select the new disk again (which should

be your only option), and then click Next to continue.

9. When the next window appears (indicating the write signature was complet-

ed successfully), click Finish to close the window (Figure 11).

WARNING: Hard drives attached to the Tempo HD will not appear under

My Computer, and can’t be used until they have been formatted; this

also applies to drives with data on them, previously used in other computers.

Please be aware that formatting a drive erases any data present.

Figure 9

Figure 10

Figure 11

Quick Start Guide for Tempo HD (Windows Version)

Figure 12

Figure 13

Figure 14

10. Back in the Computer Management window, scroll down to locate the new

drive (listed as “unallocated”) in the lower right window pane, right-click on

it, and then select “Create Volume…” (Figure 12).

11. When the Create New Volume Wizard appears, click Next.

12. When the Select Volume Type window appears, select “Simple Volume,” and

then click Next (Figure 13).

13. When the Select Disks window appears, click Next.

14. When the Assign Drive Letter or Path window appears, select either the default

letter or choose a new one, and then click Next.

15. When the Format Volume screen appears, select “Perform a Quick Format,”

and then click Next (Figure 14).

16. When the Completing the Create Volume Wizard screen appears, click Finish

to complete the formatting procedure. Once the formatting procedure is fin-

ished, your installation is complete; you may access your newly-formatted

drive through your applications, as well as My Computer. Please note,

depending on the capacity of the drive you are working with, the formatting

procedure may take anywhere from a few seconds to a few minutes to

complete.

WARNING: By default, NTFS will be selected as the file system to use

when you format drives. Unless you need to move the Tempo HD

and hard drive(s) to another computer running Windows 98SE or Windows

Me, you should use the default (NTFS) file system choice. Windows 98SE and

Windows Me are incapable of using NTFS-formatted drives; those operating sys-

tems require FAT32-formatted drives.

If you choose to change the default setting to FAT32, you should do so only

when formatting hard drives with a capacity of less than35GB. Windows 2000

and Windows XP cannot “see” more than 35GB of a FAT32-formatted drive,

regardless the capacity.

Autres manuels pour TEMPO HD

Table des matières

Autres manuels Sonnet Stockage

Sonnet

Sonnet FUSION F3 Manuel utilisateur

Sonnet

Sonnet Fusion R400 Manuel utilisateur

Sonnet

Sonnet Fusion R400P Manuel utilisateur

Sonnet

Sonnet Fusion RAID Storage Systems Manuel utilisateur

Sonnet

Sonnet Fusion RAID Storage Systems Manuel utilisateur

Sonnet

Sonnet Fusion Thunderbolt 3 PCIe Manuel utilisateur

Sonnet

Sonnet Fusion D800P2 Manuel utilisateur

Sonnet

Sonnet FUSION R400Q Manuel utilisateur

Sonnet

Sonnet Fusion R400S Manuel utilisateur

Sonnet

Sonnet Tempo SSD Pro Plus Manuel utilisateur

Sonnet

Sonnet Fusion RAID Storage Systems Manuel utilisateur

Sonnet

Sonnet FUSION F2 Manuel utilisateur

Sonnet

Sonnet PICCOLO Manuel utilisateur

Sonnet

Sonnet FUSION FIBRE-FOR-4 Manuel utilisateur

Sonnet

Sonnet FUSION F2QR Manuel utilisateur

Sonnet

Sonnet FUS-F2-1000M5 Manuel utilisateur

Sonnet

Sonnet Fusion RAID Storage Systems Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
