Sonifex Redbox Series Manuel de référence

www.sonifex.co.ukwww.sonifex.co.uk

The Redbox Range of Products

Features

•All are equipped with IEC mains lead and instruction manual.

•In-house design and manufacture ensures high quality control standards.

•All units are 115V 60Hz or 230V 50Hz switchable, or universal and all have a

front panel LED power indicator.

•Manufactured within ISO9000 standards and guaranteed CE compliant.

•Housed in eye catching red anodised aluminium cases.

Redbox are a range of audio and video interfaces designed for use in critical

broadcast applications where the product needs to be powered 24 hours a day, 365

days a year. Manufactured to the highest standards in our UK offices, utilisation of

the finest components and critical quality control techniques ensure that your

Redboxes work every time, for years to come. They are “fit and forget” products - you

can set them up, fit them in your installation and then forget about them.

www.sonifex.co.uk 1

Redbox Introduction

www.sonifex.co.ukwww.sonifex.co.uk

RB-ADDA Combined A/D and D/A Converter

Uses:

•To connect an analogue line level

audio signal into a digital mixer.

•To connect a digital recorder to an

analogue mixer in both directions.

•To convert an analogue amplifier

signal to an S/PDIF or AES/EBU input

on a mixer.

The RB-ADDA A/D and D/A converter is a 1U rack-mount which produces an

AES/EBU or S/PDIF level digital audio output from a balanced XLR or unbalanced

phono stereo audio input. It also produces a stereo balanced XLR or unbalanced

phono output from an incoming AES/EBU or S/PDIF digital input signal.

www.sonifex.co.uk 2

Digital Audio Converters

www.sonifex.co.ukwww.sonifex.co.uk

Features:

•Front panel control.

•Operation up to 192kHz.

•AES/EBU & wordclock synchronising

inputs, so that the A/D and D/A

sections can operate independently.

The RB-ADDA2 A/D and D/A converter is a 1U rack-mount which produces an

AES/EBU, S/PDIF or TOSlink optical level digital audio output from a balanced XLR

or unbalanced phono stereo audio input. It also produces a stereo balanced XLR or

unbalanced phono output from an incoming AES/EBU, S/PDIF or TOSlink optical

digital input signal.

www.sonifex.co.uk 3

Digital Audio Converters

RB-ADDA2 Combined A/D & D/A Converter

www.sonifex.co.ukwww.sonifex.co.uk

RB-SC1 Sample Rate Converter

Features:

•Superb conversion quality.

•AES/EBU and S/PDIF inputs and

outputs.

•AES/EBU,S/PDIF and TTL wordclock

synchronizing inputs.

•Sample rates up to 24bit 96kHz.

Ideal for the transfer of digital audio between different digital equipment, the

RB-SC1 sample rate converter standardises the sample rate of a digital audio

signal to one of 32kHz, 44.1kHz, 48kHz or 96kHz, or to a synchronising input. Both

audio inputs and outputs have push-button switches to select either AES/EBU or

S/PDIF. The synchronising input can be selected from one of AES/EBU, S/PDIF or

TTL word clock.

www.sonifex.co.uk 4

Digital Audio Converters

www.sonifex.co.ukwww.sonifex.co.uk

RB-SC2 Dual Sample Rate Converter

Features:

•Supports sample frequencies up to

176.4kHz & 192kHz.

•Output sample rate set by internal

clock or external sync.

•Has 2 independent sample rate

converter circuits & can function as a

full bi-directional sample rate

converter.

The RB-SC2 sample rate converter is a 1U rack-mount which produces AES/EBU,

S/PDIF and TOSlink optical level digital audio outputs from a balanced AES/EBU,

S/PDIF and TOSlink optical level digital audio inputs. The sample rate of the outputs

can be set by an internal clock or from various external synchroniser sources.

www.sonifex.co.uk 5

Digital Audio Converters

www.sonifex.co.ukwww.sonifex.co.uk

RB-DAC1 Digital to Analogue Converter

Features:

•Superb quality and pristine audio

clarity with 24 bit, 96kHz operation.

•AES/EBU and S/PDIF digital inputs.

•Both balanced XLR and unbalanced

phono outputs.

•Front panel headphone output with

volume control.

Using 24 bit, 96kHz capable devices, the RB-DAC1 D/A Converter is a 1U rack-

mount which produces a stereo balanced XLR or unbalanced phono output from an

incoming AES/EBU or S/PDIF digital input signal. There is also a headphone output

with volume control for monitoring purposes.

www.sonifex.co.uk 6

Digital Audio Converters

www.sonifex.co.ukwww.sonifex.co.uk

RB-SP1 Digital Splitter and Combiner

Features:

•Can be used for interfacing stereo

and mono signals to digital mixing

desks, e.g. can split a digital stereo

signal into 2 digital mono signals.

•Can handle sample rates up to

96kHz and sample sizes of 16, 20

and 24 bit.

The RB-SP1 digital splitter & combiner is used to interface stereo and

mono AES/EBU & S/PDIF signals to digital mixing desks by splitting the left

and right signals of a stereo XLR to two separate XLR’s, and vice versa by

combining them.

www.sonifex.co.uk 7

Digital Audio Converters

www.sonifex.co.ukwww.sonifex.co.uk

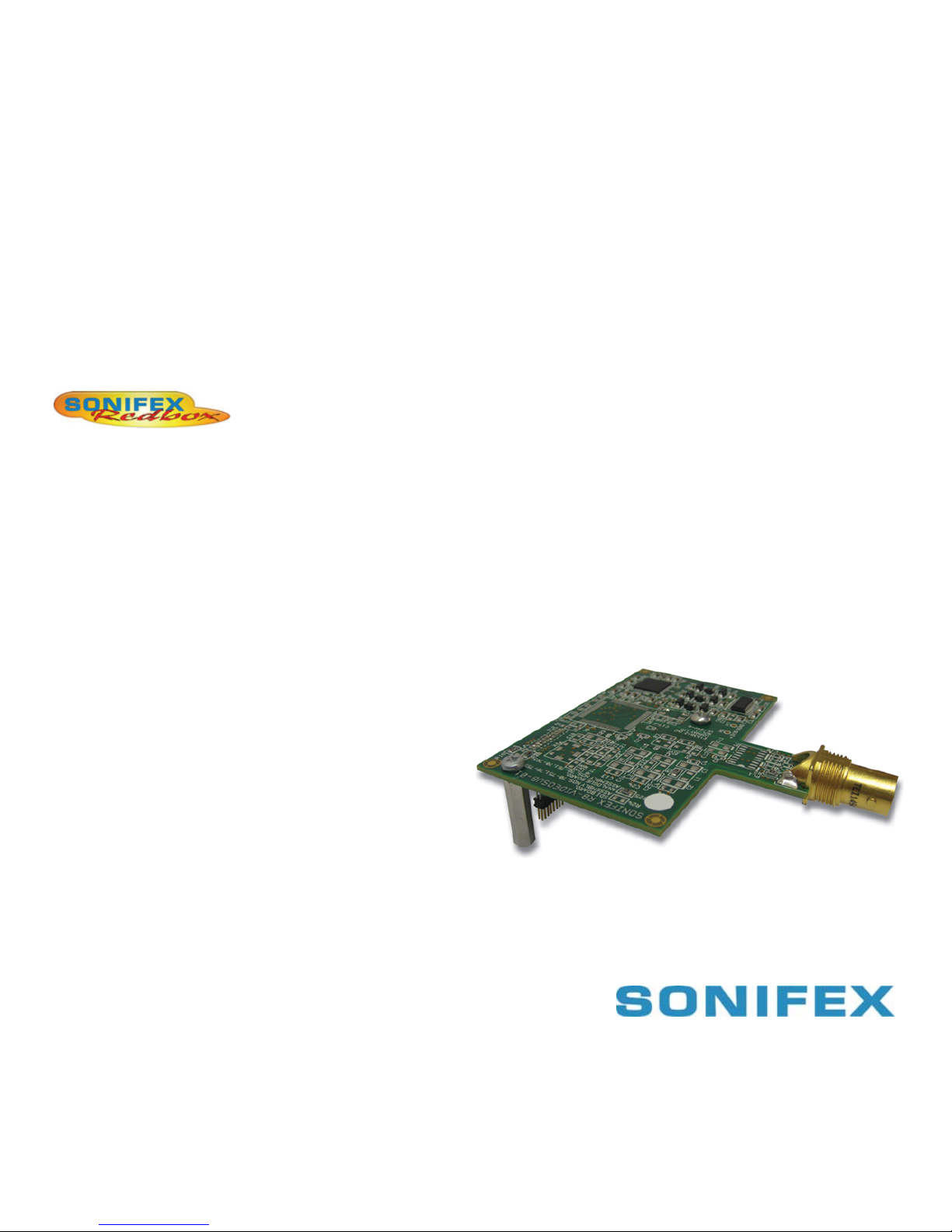

RB-SYA Analogue Video Sync Board

for RB-SC2

Uses:

•Used to synchronise the outputs of

the RB-SC2 to a 48kHz sample rate.

•Used to synchronise the outputs of

the RB-TGHD(B & X).

The Analogue video sync board will accept a composite signal of NTSC (525), PAL

(625) & SECAM (625) signals covered by SMPTE-170-M (NTSC) and ITU-R BT.470-6

(PAL & SECAM.

www.sonifex.co.uk 8

Synchronisation Add-On Boards

www.sonifex.co.ukwww.sonifex.co.uk

RB-SYD Digital Video Sync Board

for RB-SC2

•Used to synchronise the outputs of

the RB-SC2 to a 48kHz sample rate.

•Used to synchronise the outputs of

the RB-TGHD(B & X).

The Digital video sync board will accept 270Mbps SD-SDI and HD-SDI signals

covered by SMPTE-259-M-C (SD) and SMPTE-292M (HD).

www.sonifex.co.uk 9

Synchronisation Add-On Boards

www.sonifex.co.ukwww.sonifex.co.uk

RB-SYE Sync Board

Uses:

•Used to synchronise the outputs of

the RB-TGHD(B & X).

The AES/EBU sync board will accept a digital audio input signal with a sample

frequency between 32kHz and 192 kHz. When using the RB-SYE sync board, the

Channel Status information that is encoded in the input data signal is copied to all

digital output channels.

www.sonifex.co.uk 10

Synchronisation Add-On Boards
