Sonance BPS6 TL Manuel utilisateur

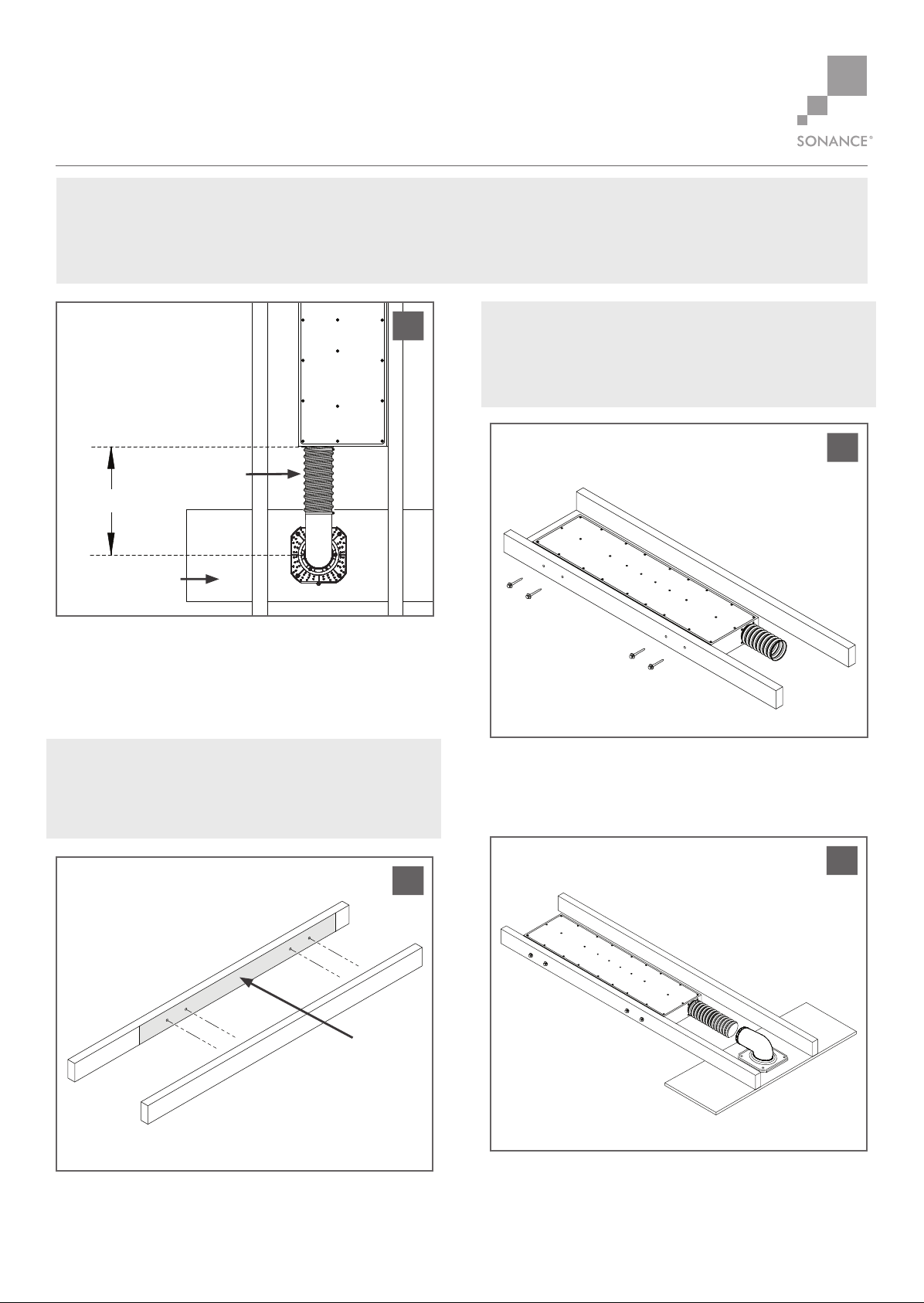

Determine the location of the mounting platform

and subwoofer. Ensure there is adequate space to

accommodate the subwoofer and port tube within the

2 x 4 stud bay or joist, allowing 15” from the front edge

of the BPS6 TL to the center of connector. (See Figure 1).

Box Contents

(1) Quickstart Guide

(1) Bandpass Subwoofer with port tube

(1) Cardboard mounting template

MOUNTING SCREWS & WASHERS:

(4) 5/16” x 3” lag screws

(4) 5/16” washers

BPS6 TL QUICKSTART GUIDE FOR USE WITH

ARCHITECTURAL SERIES BANDPASS CONNECTORS

BANDPASS SUBWOOFER THINLINE (AS)

Place the subwoofer mounting template on the side of a

2 x 4 stud or joist and drill four 1/4” (6mm) holes through

the stud at the locations shown on the mounting template.

(See Figure 2).

Hold the side of the BPS6 TL Subwoofer with the rubber

damping pad up against the side of the stud or joist and

install the four lag screws and washers to secure the

BPS6 TL Subwoofer in place. (See Figure 3).

15” (381mm)

BPS6 TL

Architectural Series

mounting platform

Port Tube

NOTE: IF IT IS NOT POSSIBLE TO LOCATE THE BPS6 TL SUBWOOFER

15” AWAY FROM THE 90 DEGREE CONNECTOR OF THE MOUNTING

PLATFORM, EXTRA HOSE MATERIAL (UP TO 3”) MAY BE REMOVED.

WHILE IT IS OKAY TO SHORTEN THE HOSE, NEVER EXTEND THE

HOSE LENGTH.

NOTE: DRILLING FROM THE INSIDE OF THE STUD BAY IS

RECOMMENDED TO ENSURE THAT THE HOLE LOCATIONS

MATCH THE SUBWOOFER SCREW LOCATIONS. (SEE FIGURE 2)

NOTE: BE SURE THAT THE SUBWOOFER TEMPLATE IS FLUSH

WITH THE EDGE OF THE STUD OR SLIGHTLY RECESSED.

Prepare to attach the mounting platform to the stud

or joist. Position the platform with the 90 degree

connector pointed in the direction of the BPS6 TL

port tube. (See Figure 4).

Figure 1

Figure 2

Figure 3

Figure 4

Template

all features and specications are subject to change without notice. For the latest Sonance product specication information visit our website: www.sonance.com

SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777 10.24.17

The BPS6 TL ships with a foam plug and tether inserted

into the end of the port tube; remove and discard.

Guide the port tube onto the 90 degree connector so

the tube is positioned snugly in place. Tighten the clamp

ring to secure the port tube.

(See Figure 5).

Attach the mounting platform to the stud or joist.

For mounting platform installation details visit

www.sonance.com/in-wall-in-ceiling/

architectural-series/bps6-tl.

BPS6 TL QUICKSTART GUIDE FOR USE WITH ARCHITECTURAL SERIES BANDPASS CONNECTORS

Attach the four conductor speaker wire to the input

terminals; positive wires to red terminals and negative

wires to black terminals. Run a signal test using an

amplied program material for at least 60 seconds.

Secure the speaker wire to the zip tie attached to the

subwoofer cabinet to prevent accidental removal.

(See Figure 6).

For more eManuals and diagrams visit

www.sonance.com/in-wall-in-ceiling/bps6-tl

33-7939

LEFT

BPS6TL

RIGHT

MADE IN CHINA

Included

zip tie

for wire

Figure 5

Figure 6
