Situo®5 Soliris®RTS
Introduction
Part Number:
1870579
The Situo 5 Soliris RTS remote control operates up to five individual
or five groups of window coverings. Situo 5 Soliris RTS remote
control also activates or deactivates the automatic sunlight
setting for window coverings, awnings, screens, pergolas
and rolling shutters.

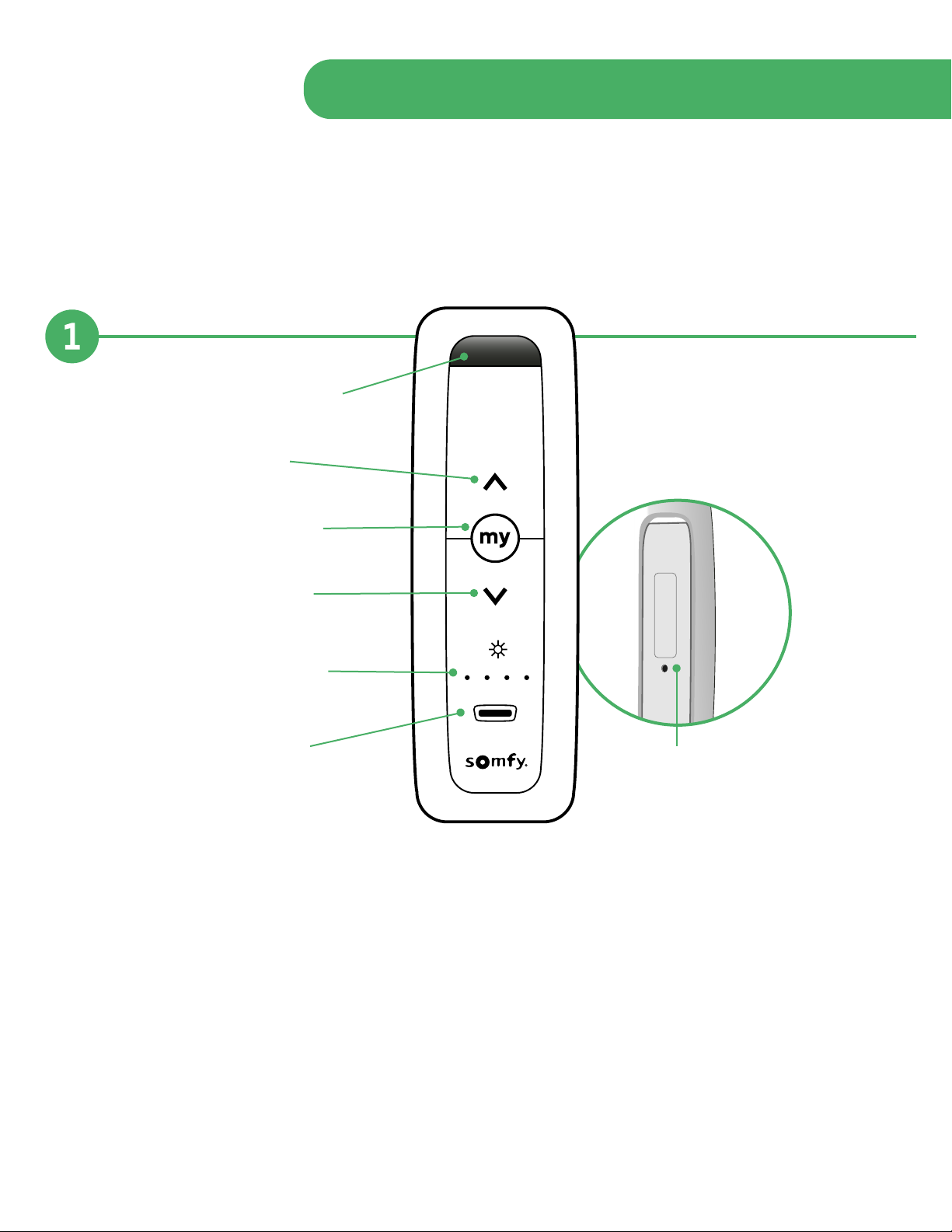

Situo 5 Soliris RTS
A. Wall mounting recess
B. Up/On/Open
C. STOP/”my” button
D. Down/O/Close
E. Channel/Activation
indicator lights
F. Channel selector G.
Programming
(PROG)
button on back
o on
Programming & Pairing
Before operating, ensure that the remote control included with the original
motorized window covering/application is programmed before adding the
Soliris remote control. If this is the original remote, you will need to follow the
initial programming instructions in section titled Original Remote
Programming below.
To program the automatic sunlight feature, window coverings must be
paired with the Situo 5 Soliris RTS group 5.
The Situo 5 Soliris RTS controls five individual or five groups of window coverings.
To select a window covering or group, press the Channel Selector Button.
LED lights designate each channel. All LEDs are lit when channel 5 is chosen.
Original Remote Programming
• Please ensure motorized shades are connected to power.
• On the transmitter, PRESS & HOLD both the UP and DOWN
buttons simultaneously until the motorized window covering
moves slightly.
• Next, PRESS & HOLD the DOWN button. The motorized
window covering should go down.
SETTING the UPPER LIMIT:
Bring the window covering to desired UPPER limit position.
SETTING the UPPER LIMIT:
PRESS & HOLD both MY/STOP and DOWN simultaneously until
the application starts to move, then release. If the window covering
stops when the buttons are released, take it back to the UPPER limit and repeat.
SETTING the UPPER LIMIT:
Stop the motorized window covering when desired LOWER limit is reached.
Adjust by pressing UP or DOWN if necessary.
SETTING the LOWER LIMIT:
PRESS & HOLD both MY/STOP and UP simultaneously until the window covering starts to move,
then release. The window covering will stop at the previously set UPPER limit.
CONFIRMING LIMIT SETTINGS:
PRESS & HOLD MY/STOP until the motorized window covering moves slightly, confirming the limit settings.
• COMPLETE PROGRAMMING:
BRIEFLY PRESS the PROGRAMMING BUTTON (G) on the back of the transmitter.
The window covering moves and is now in USER MODE. In user mode, the motorized window
covering will operate by briefly pressing the UP or DOWN (maintained fashion).
Continued On Next Page
Note: While programming, the motor should not be inactive
for more than 2 minutes or it will exit programming mode.
G
o on
F

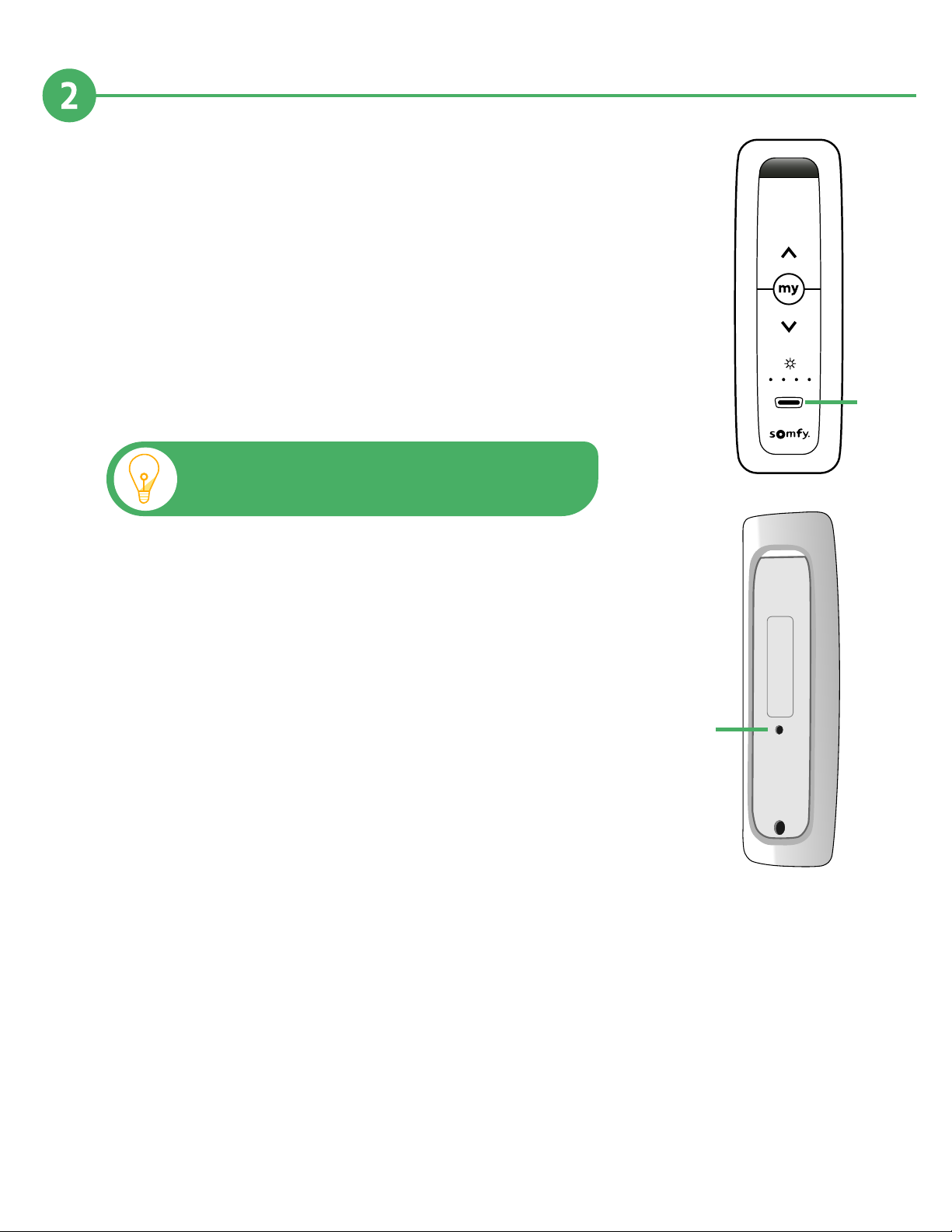

Adding/Deleting a Situo 5 Soliris RTS
To add or delete from a window covering:
• Press and hold the (G) Programming Button (PROG) on back of
previously programmed remote control
until window covering briefly extends and retracts.
• Using the Situo 5 Soliris RTS remote, select the desired channel
using the (F) Channel Selector Button. (Press the channel button
repeatedly until the LED light designates the desired channel)
• Press the (G) Programming Button (PROG) on the Situo 5 Soliris
RTS II remote until the motorized window covering briefly extends
and retracts. The RTS motorized window covering is now assigned
to a group on the new remote. To add more window coverings to
this group, repeat this process.

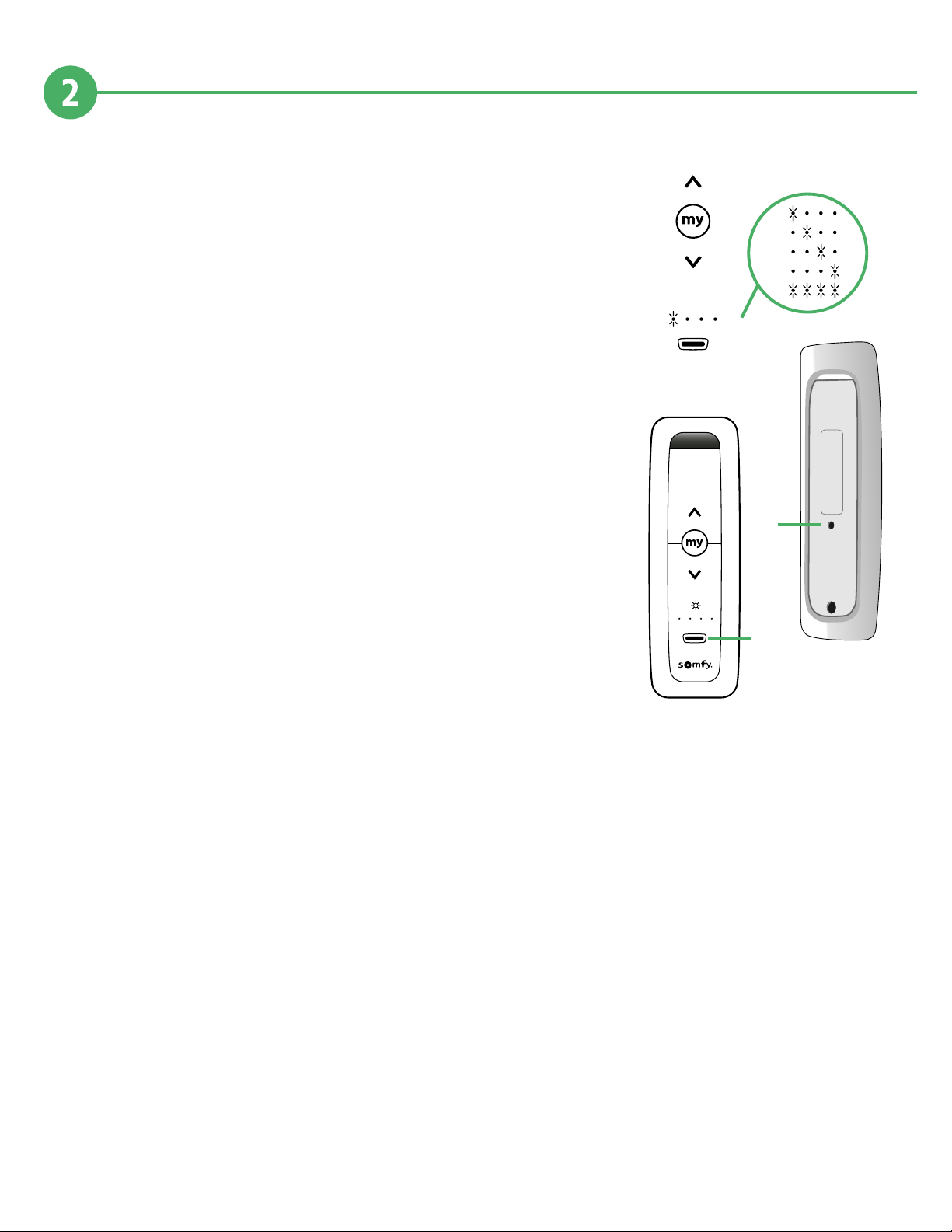

Selecting groups on Situo 5 Soliris RTS
• Before using the Situo 5 Soliris RTS remote control, check that
the correct channel has been selected.
• Briefly press the channel selector (F): selected channel displayed.
Press several times to change the selected channel.
• The indicator light (E) for each channel from 1 to 4 is lit individually.
Channel 5 is designated when all indicator lights glow simultaneously.
Programming & Pairing
1
2
3
4
5
E
F
Soliris 5 RTS
G
o on
F
Continued On Next Page
Before using the Situo 5 Soliris RTS, check that the correct channel has been selected.

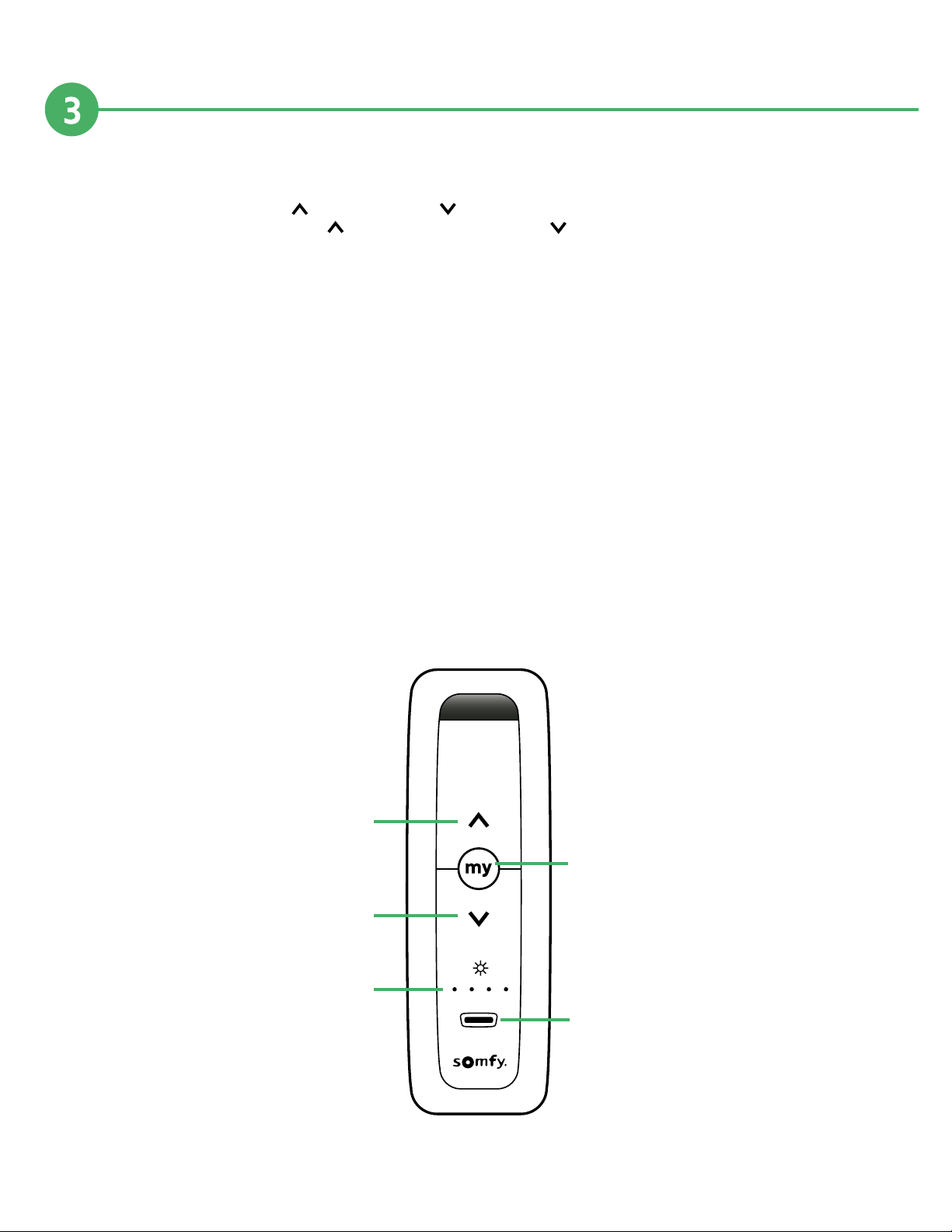

Arrow Buttons (B & D)
Depending on the type of window covering controlled by the remote:
• Briefly pressing ( ) to raise/open or ( ) to lower/close
• Pressing and holding ( ) to Increase light intensity or ( ) to Reduce light intensity
Stop button/“my” (C)
• Briefly press the “my” button to stop the operation of the window covering.
• If the window covering is o, briefly press my to activate it until it reaches the programmed position “my”.
Programming, modifying or deleting a preset position “my”
• Place the window covering in a desired position then press “my” up to five times to program the
preferred position “my”.
• To delete a programmed position, place the window covering in the programmed position “my” and
press “my” up to five time to delete it.
Activating/Deactivating the automatic sunlight device
For Situo 5 Soliris RTS, select channel 5.
• To find out whether the automatic sunlight device is activated or deactivated, press the (F) button until
the (E) indicators lights are displayed.
On indicator light = activated
O indicator light = deactivated.
• To activate or deactivate the automatic device, press and hold the (F) button until
the (E) indicator light change status.
Operation
Continued On Next Page
o on
F
E
C
B
D
This product is intended for indoor use only. Please keep out of reach of children. Avoid damaging product by
dropping or using undo force. Do not expose product to open flame, heat, or moisture.
Battery Replacement
Battery
compartment
located on back
• Remove rear panel from remote control with Phillips screwdriver.
• Insert new CR2032 battery as specified.
• Replace rear panel on remote control.

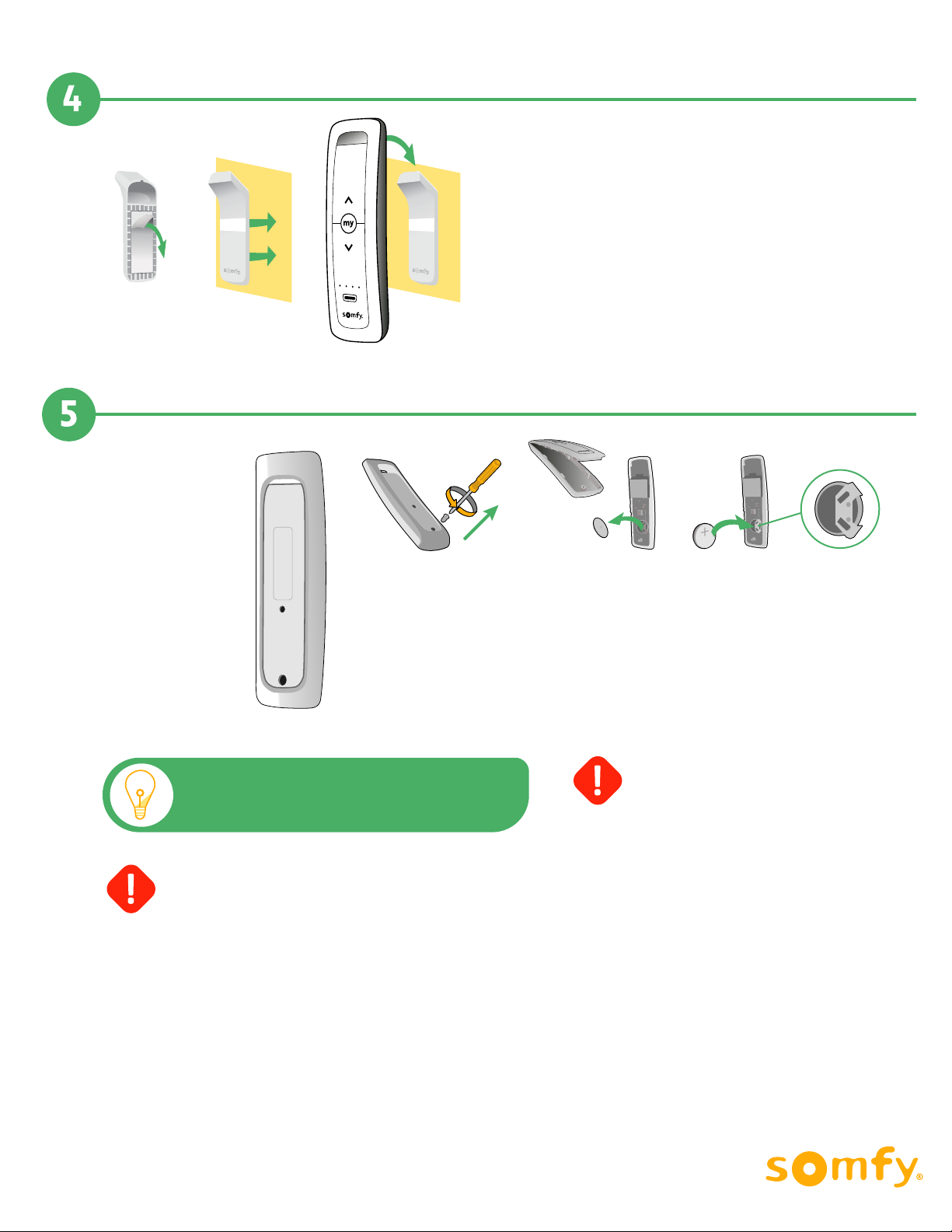

Wall Mounting
Using the included Mounting Bracket:
• Peel the protective film from the adhesive on the back
of the mounting bracket.
• Stick the wall mounting to a flat, clean,
and dry surface (press firmly).
• Hang the Situo 5 on the mounting bracket.
This device is FCC certified and complies with part 15 of the FCC rules. RTS compatibility: RTS transmitters are capable of operating any RTS motor.
• Peel • Stick • Hang
Note: Visit https://store.somfysystems.com/ to
purchase an additional or replacement product.
C-0051 10/2021
BATTERY RECYCLING OR DISPOSAL
Discard batteries and electrical components
following local codes or regulations. Recycle
batteries and electrical components with
designated electronic recycle centers.
