1. 1. PREREQUISITE INFORMATION

The Sonesse ULTRA 50 DC RTS motor has been developed for interior use.

Its ultra quiet operation ensures user comfort and well-being.

For more information, and to optimise the acoustic performance of your interior application, please contact a Somfy adviser.

These instructions apply to all Sonesse ULTRA 50 DC RTS irrespective of torque and speed variations.

1.1 FIELDS OF APPLICATION

The Sonesse ULTRA 50 DC motor is designed to operate interior Roller blinds applications.

The Sonesse ULTRA 50 DC motor is designed to operate multiple roller blinds simultaneously (multi-banding), where these are interconnected by an

intermediate bracket.

The Sonesse ULTRA 50 DC motor is not designed to be used with a compensating spring.

Any use outside the ﬁelds of application is prohibited, in particular:

The Sonesse ULTRA 50 DC motor is not designed for outdoor applications (e.g. outdoor vertical blinds, roller shutters, etc.)

Images not contractually binding

1.2 LIABILITY

Before installing and using the motor, please read operating and installation guide carefully. In addition to following the instructions

given in this guide, the instructions detailed in the attached Safety instructions document must also be observed.

The motor must be installed by a motor and home automation professional, according to instructions from Somfy and the

regulations applicable in the country in which it is commissioned.

It is prohibited to use the motor outside the ﬁelds of application described above. Such use, and any failure to comply with the instructions

given in this guide and in the attached Safety instructions document, absolves Somfy from any liability and invalidates the warranty.

The installer must inform its customers of the operating and maintenance conditions for the motor and must provide them with the

instructions for use and maintenance, and the attached Safety instructions document, aer installing the motor. Any Aer-Sales Service

operation on the motor must be performed by a motor and home automation professional.

If in doubt when installing the motor, or to obtain additional information, contact a Somfy adviser or go to the website www.somfy.com.

1. 2. INSTALLATION

Instructions which must be followed by the motor and home automation professional installing the motor.

Never drop, knock, drill or submerge the motor.

Install a separate control point for each motor.

To optimize ultra quiet operation, the mechanical plays between motor, accessories, tube and end of tube must be decreased to the

maximum.

2.1. INSTALLATION

2.1.1. Preparing the motor

Check that the inner diameter of the tube greater than 47mm.

1) Fit the accessories required to integrate the motor in the roller tube:

• Fit the crown a, the motor wheel b and the stop wheel c on the motor.

The stop wheel must be screwed with a torque ranging between 1.5 and 1.8 Nm.

2) Measure the length (L1) between the inner edge of the motor head and the edge of

the motor wheel.

3) Screw the bracket interface on the motor head.



Safety warning! Information

Caution!



L1 = …

Ø > 47 mm

Images not contractually binding

2.1.2. Tube preparation

1) Cut the roller tube to the required length, depending on the motorised product.

2) Deburr the roller tube and remove the swarf.

2.1.3. Motor/tube assembly

1) Slide the motor into the roller tube.

2) The motor wheel must be locked in place to prevent movement inside the roller

tube:

• This can be done either by ﬁxing the roller tube to the motor wheel using 4 x Ø 5

mm self-tapping screws, or by using 4 x Ø 4.8 mm steel pop rivets placed 5 mm

to 15 mm from the outer edge of the motor wheel, regardless of the roller tube.

The screws or pop rivets must only be attached to the motor wheel and not to

the motor.

3) Slide the end cap into the roller tube and locked it if necessary.

2.1.4. Installing the motor/tube assembly

The motorised product must not be compressed between the brackets

1) Install and ﬁx the motor/tube assembly onto the end bracket fand onto the motor

bracket g:

Ensure that the motor/tube assembly is secured onto the end bracket. This

operation prevents the motor/tube assembly from coming out of the end

bracket mounting when the roller blind reaches the lower end limit position.

2) For star head motors, ensure the stop ring hin place.

2.2. WIRING

Cables which pass through a metal wall must be protected and isolated using a grommet or sleeve.

Attach cables to prevent any contact with moving parts.

The cable on the Sonesse ULTRA 50 can be removed. If it is damaged, replace it with an identical cable.

Leave the motor power supply cable accessible: it must be possible to replace it easily.

- Switch oﬀ the power supply.

- Connect the cable to the motor head.



15 mm

5 mm

20 mm

1) 2)



V+

V-

V+

V-



Images not contractually binding

2.3. COMMISSIONING

2.3.1. Start the commissioning process

1) Switch on the power supply.

The Led switches ON.

2) Press the Up and Down buttons on the RTS control point / Motor head at

the same time: The motorised product moves up and down (fast raising and

lowering), and the commissioning process beging.

The RTS control point is pre-programmed in the motor.

2.3.2. Checking the direction of rotation

1) Press the Up button on the RTS control point / Motor head :

a) If the motorised product rises (a), the direction of rotation is correct:

Move onto the section entitled “Setting the end limits”.

b) If the motorised product lowers (b), the direction of rotation is

incorrect: Move onto the next step.

2) Press the my / stop button on the RTS control point / Motor head until

the motorised product moves up and down: The direction of rotation has

been modiﬁed.

3) Press the Up button on the RTS control point / Motor head to check the

direction of rotation.

2.3.3. Setting the end limits

The end limits can be set in any order.

1) Raise the motorised product to the desired position by pressing the Up

button.

2) Press the my / stop and Down buttons at the same time until the

motorised product moves.

The upper end limit is memorised.

3) Press the my / stop button when the motorised product reaches the

desired lowered position. If necessary, adjust the position of the motorised

product using the Up and Down buttons.

4) Press the my / stop and Up buttons at the same time until the motorised

product moves.

The lower end limit is memorised. The motorised product rises and stops in the raised position.

2.3.4. Validation of the setting

To conﬁrm the end limits, press the my / stop button until the motorised

product moves up and down.

The end limits are programmed and the Led switches OFF.

UP STOP DWN

UP STOP DWN UP STOP DWN

UP STOP DWN

UP STOP DWN UP STOP DWN

UP STOP DWN

UP STOP DWN UP STOP DWN

UP STOP DWN

2) 3)

1) 2)

3) 4)

UP STOP DWN

Images not contractually binding

2.3.5. Recording the RTS control point

The motorisation is in programming mode:

-- Quickly press the PROG button on the RTS control point to be programmed:

→The motorised product moves up and down: this RTS control point is

programmed in the motorisation.

If the motorisation is no longer in programming mode, repeat Step 2.3.1 then perform Step 2.3.4.

2.3.6. Adjusting the roller speed

1) Press the Up, my and Down buttons simultaneously, until the motorised

product moves up and down once. The motorised product moves up and

down automatically, in 5 second cyles.

2) While the motorised product is moving, brieﬂy press the Up button, to

increase the speed, or Down button, to decrease the speed.

3) To conﬁrm the new speed, press and hold the my button until the

motorised product moves up and down.

PROG.

5s 5s

Images not contractually binding

2.3.7. Adding/Deleting Somfy control points and sensors

With local control point:

Refer to the corresponding guide

With the Motor head buttons

Press and hold all the three buttons on the motor head until the motorised

product moves up and down. Then press on the prog button of the control

points or sensor to add or delete.

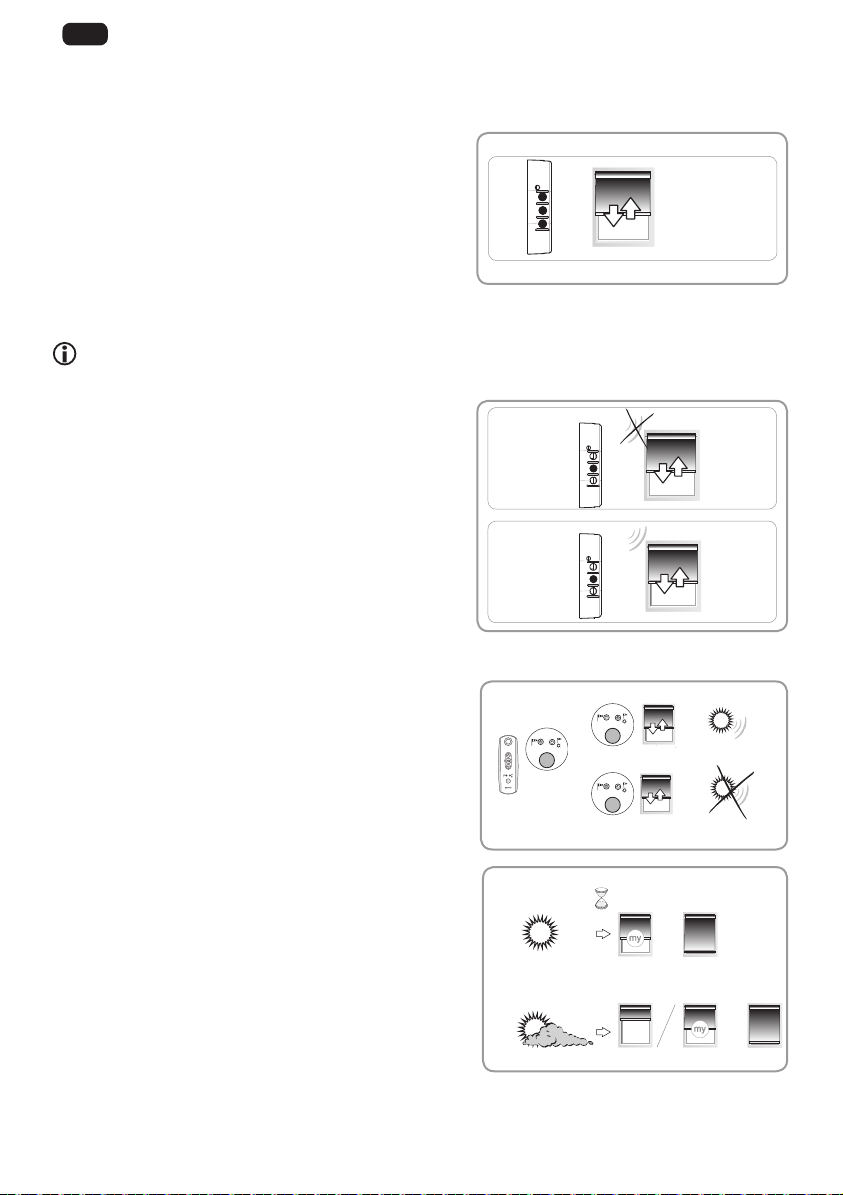

2.3.8. Sonesse ULTRA 50 DC RTS «sleeping» mode

This function allows to lock any transmitters orders during 5mn. Motor won’t react to any transmitters commands.

The «sleeping» mode is only possible if the motor is already set.

1) To put the motor into the «sleeping» mode, breaﬂy press 2 times the Stop

button of the motor head.

The motorised product moves up and down and the motor head LED blink 2

times during 5 min.

2) To put the motor out of the «sleeping» mode, breaﬂy press 2 times the

Stop button of the motor head.

The motorised product moves up and down and the motor head LED turns oﬀ.

The transmitters orders wil be executed.

2.3.9. Sun function

For this function, you need a Telis Soliris transmitter.

By default, the Sun function is not active.

1) To activate the Sun function, press the SELECT button on the Telis Soliris

transmitter, until the shade makes an Up and Down movement.

2) To deactivate the Sun function, press the SELECT button on the Telis Soliris

transmitter, until the shade an Up and Down movement.

When the intensity of the daylight exceeds the threshold set by the Soliris

sensor RTS, a CLOSURE order is sent to the shade aer 2 min.

The shade goes to the My position or to its down limit, if no My position has

been memorized.

When the intensity of the daylight falls below the threshold set by the Soliris

sensor RTS, the shade goes to the Sun disappearing position or stays at its

position (My or down limit), if no Sun disappearing position has been memorized.

The Wind function is not compatible with this motor.

UP STOP DWN

5 min

UP STOP DWN

5 min

Images not contractually binding

Sun disappearing position

A favourite position (my) must be already recorded before

recording the Sun disappearing position (see 3.3)

2.3.10. Recording Sun disappearing position

1) Press the my and Down buttons, until the motorised product moves.

2) Move the motorised product to the desired position with the Up and

Down buttons.

3) Press the my button, until the motorised product moves.

The Sun disappearing position is recorded.

2.3.11. Changing the Sun disappearing position

1) Press the my and Down buttons, until the motorised product moves.

2) Move the motorised product to the new desired position with the Up and

Down buttons.

3) Press the my button, until the motorised product moves.

The Sun disappearing position is changed.

2.3.12. Delete the Sun disappearing position

1) Press the my and Down buttons, until the motorised product moves.

2) Press the my button, until the motorised product moves.

The Sun disappearing position is deleted.



Images not contractually binding

Observations Possible causes Solutions

The motorised product does not

operate.

The wiring is incorrect. Check the wiring and modify it if necessary.

The Motor is in thermal protection. Wait until the motor cools down.

The control point battery is weak. Check whether the battery is weak and replace it if necessary.

The control point is not

compatible. Check for compatibility and replace the control point if necessary.

The control point used has not been programmed into

the motor. Use a programmed control point or program this control point.

The motorised

product is noisy:

The motor wheel and the crown are not suitable

for the tube. Replace the motor wheel and the crown

The motorised product is compressed between

the brackets Increase the play between the brackets

The tube contains swarf and screws. Clean the roller tube.

The motorised product stop to

soon or to late. The end-limits of the motorised product dri. Readjust the end-limits

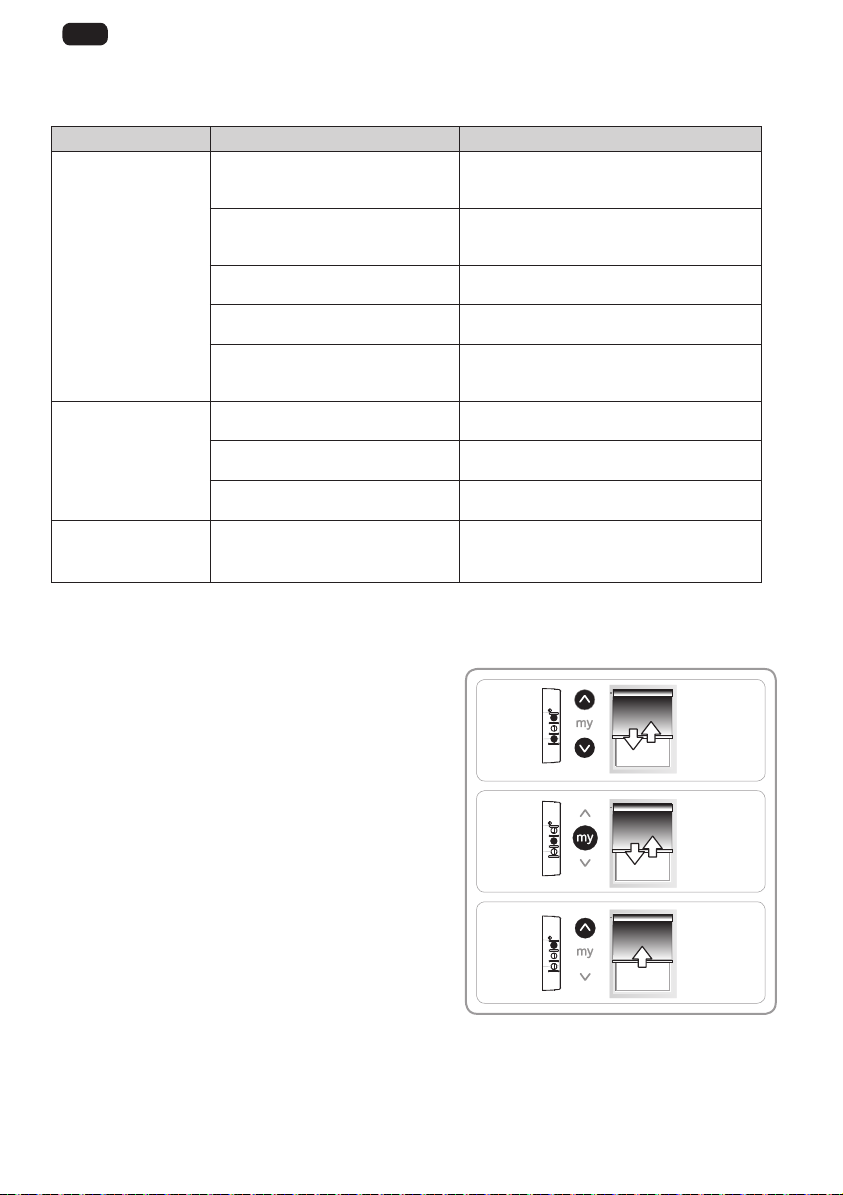

2.4.2. Readjusting the direction of rotation

Move the motorised product away from the end limits.

1) Press the Up and Down buttons simultaneously, until the motorised

product moves up and down.

2) Press the my button, until the motorised product moves up and down,

to reverse the rotation direction.

3) Press the Up button to check the new direction of rotation.

2.4. TIPS AND RECOMMENDATIONS FOR INSTALLATION

2.4.1. Questions about the Sonesse ULTRA 50 DC RTS?

UP STOP DWN

UP STOP DWN UP STOP DWN

UP STOP DWN

UP STOP DWN UP STOP DWN

UP STOP DWN

Table des matières

Autres manuels SOMFY Moteur

SOMFY

SOMFY Sonesse 40 PA Manuel utilisateur

SOMFY

SOMFY Tilt Only 50 WF RTS Manuel utilisateur

SOMFY

SOMFY LIGHTING OUTDOOR RTS Mode d'emploi

SOMFY

SOMFY RS-485 SDN 2.0 Guide de configuration rapide

SOMFY

SOMFY sonesse 30 rts Manuel utilisateur

SOMFY

SOMFY SUNEA CSI RTS Manuel utilisateur

SOMFY

SOMFY J4 RTS Instructions de montage

SOMFY

SOMFY SGH io Instructions de montage

SOMFY

SOMFY Roll Up 28 WireFree RTS Manuel utilisateur

SOMFY

SOMFY ilmo 50 S WT Manuel utilisateur

SOMFY

SOMFY Maestria WT Manuel utilisateur

SOMFY

SOMFY LOGGIA RTS Manuel utilisateur

SOMFY

SOMFY LS 40 Manuel utilisateur

SOMFY

SOMFY Tilt & Lift 25 RTS Central Manuel utilisateur

SOMFY

SOMFY Orea 60 WT Instructions de montage

SOMFY

SOMFY ELIXO 2000 230V RTS Manuel utilisateur

SOMFY

SOMFY Sonesse Ultra 50 RTS Manuel utilisateur

SOMFY

SOMFY IXENGO JS 230V Manuel utilisateur

SOMFY

SOMFY Sonesse ULTRA 30 WireFree RTS Li-ion Mode d'emploi

SOMFY

SOMFY LS40 404R2 Manuel utilisateur

SOMFY

SOMFY LT50 CMO Instructions d'utilisation

SOMFY

SOMFY Centreo RTS Manuel utilisateur

SOMFY

SOMFY RDO 50 CSI Manuel utilisateur

SOMFY

SOMFY J4 1TN Manuel utilisateur

Manuels Moteur populaires d'autres marques

Rotax

Rotax 125 senior MAX evo Manuel utilisateur

Kohler

Kohler K361 Manuel utilisateur

MTD

MTD OHV Series Manuel utilisateur

Kohler

Kohler COMMAND CH18-745 Manuel utilisateur

Mercury

Mercury D4.2L D-Tronic Manuel utilisateur

Selve

Selve SE Plus-RC Series Manuel utilisateur

Perkins

Perkins 1206E-E66TA Manuel utilisateur

Skov

Skov DA 174 Manuel

Rossi

Rossi TX11 Series Manuel utilisateur

Siemens

Siemens SIMOTICS T-1FW3 Feuille d'instructions

AL-KO

AL-KO PRO 350 Manuel utilisateur

MTU

MTU 12 V 4000 Lx4 Manuel utilisateur

Nanni

Nanni N3.30 Manuel d'instructions

Nanni

Nanni N5.160 CR2 Manuel utilisateur

KSB

KSB SuPreme Series Instructions d'installation

Hiwin

Hiwin EM1 Series Manuel utilisateur

Rotax

Rotax 912 i series Mode d'emploi

Siemens

Siemens SIMOTICS XP 1MB1 Manuel utilisateur
