Sonesse®30 DCT
Installation instructions
Ref :5051080A
1Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
SAFETY
• This Somfy product must be installed by a professional motorization and home automation installer,
for whom these instructions are intended.
• Before installation, check that this product is compatible with the associated equipment and acces-
sories.
• These instructions describe how to install, commission and use this product.
• Moreover, the installer must comply with current standards and legislation in the country in which
the product is being installed, and inform his customers of the operating and maintenance conditions
for the product.
• Any use outside the sphere of application specied by Somfy is not approved. Such use, or any
failure to comply with the instructions given herein will invalidate the warranty, and Somfy refuses to
accept liability.
COMPATIBLE BLINDS
Venetian blinds Roman shades Roller blinds
COMPATIBLE CONTROL
GENERAL SAFETY INSTRUCTION
The safety instructions that must be observed, besides the usual rules, are
explained in these instructions and in the attached «Safety Instructions» document.
Never immerse the
motor in liquid!
Never drill holes in the
motor!
Avoid impacts!
Do not drop it!
ST OP
Setting Tool Centralis IB Wall Switch
2Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
INSTALLATION
Motor preparation
1) Fit the crown (a) and drive wheel (b)
to the motor.
2) Measure the length (L) between
the middle of the drive wheel and the
head end.
Tube preparation
Cut the tube to the required length.
Deburr the tube and remove the
debris.
Motor/tube assembly
1) Slide the motor into the tube.
2) Fix the tube to the motor with self-
tapping screws or steel pop rivets
depending on the dimension (L).
Mounting the motorized tube on the
brackets
If necessary, screw the bracket inter-
face on the motor head.
Mount the motorized tube on the end
bracket (C ).
Mount the motorized tube on the
motor bracket (D).
L
1
2
ab
1
2
c
d
3Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
Wiring
Sonesse® 30 DCT is Dry
contact motor.It can’t be
controlled with power going
through the setting tool cable.
1) Connect the power cable to the
motor.
2 ) Connect the setting tool cable to
the motor.
3) Control wiring
Setting Tool
1 UP (White/Blue)
2 STOP (Blue)
3 DOWN (White/Orange)
4 GND (Orange)
Centralis IB
1 UP or DOWN (White/Blue or White/
Orange)
2 UP or DOWN (White/Blue or White/
Orange)
3 GND (Orange)
Wall Switch
1 UP or DOWN (White/Blue or White/
Orange)
2 UP or DOWN (White/Blue or White/
Orange)
3 GND (Orange)
4) Correspondence
+
C
+
-
-
1
2
C
ST OP
1
2
3
1
2
3
4
+
-
1
2
ST OP
ST OP
ST OP
3
4
4Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
COMMISSIONING
Checking the direction of rotation
Press the setting tool UP button:
a) If the shade is raised, the direction
of rotation is correct. Move to the sec-
tion entitled «Adjusting the end limits».
b) If the shade is lowered, the direction
of rotation is incorrect. Move to the
next step.
Press the setting tool STOP button
until the shade jogs: the direction of
rotation has been modied.
Press the setting tool UP button to
check the direction of rotation.
Adjusting the end limits
The limits can be set in any sequence.
1) Press and hold the UP button to
move the shade to the desired up
position.
2) Press simultaneously the STOP and
DOWN buttons and release them once
the shade begins to move.
The up limit is memorized.
3) Press the STOP button when it
reaches the desired down position.
If necessary adjust the down position,
using the UP or DOWN buttons.
4) Press simultaneously the STOP and
UP buttons and release them when
the shade begins to move.
The down limit is memorized.
The shade moves up and will stop at
its upper limit.
5) To conrm the end limits press and
hold the STOP button until the shade
jogs.
The end limits are recorded.
a
b
1 2
3 4
5
5Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
USE
MY position
1) Recording MY position
To set the MY position, move the
shade to the desired position with the
UP and DOWN buttons then press the
STOP button until the shade jogs.
2) Changing the MY position
To change the MY position go to the
new desired MY position with the UP
and DOWN buttons then press the
STOP button until the shade jogs.
3) Delete the MY position
To delete the MY position, move to this
position and press the STOP button
until the shade jogs.
Mode Selection
By factory default, the motor is in
Roller mode but you can change from
a mode to another.
To change from a Roller mode to a
Tilting mode, press the UP, STOP and
DOWN buttons simultaneously until
the shade jogs.
1
2
3
6Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
With the setting tool, it is possible
to cancel and exit the speed or limit
adjustment mode by simultaneously
pressing the UP, STOP, and DOWN
buttons. These modes will also be
cancelled with inactivity of 2 minutes.
Adjusting the roller speed
1) Press and hold the STOP button
until the shade jogs twice.
The shade moves up and down auto-
matically in 10 second cycles.
2) While the shade is moving, briey
press the UP button to increase the
speed or DOWN button to decrease
the speed.
3) To conrm the new speed, press
and hold the STOP button until the
shade jogs.
Adjusting the Tilting speed
1) Press and hold the STOP button
until the shade jogs 3 times.
The shade moves up and down auto-
matically in 10 second cycles.
2) While the shade is moving, briey
press the UP button to increase the
speed or DOWN button to decrease
the speed.
3) To conrm the new speed, press
and hold the STOP button until the
shade jogs.
x2
10s 10s
1
2
3
10s 10s
x3
1
2
3
7Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008

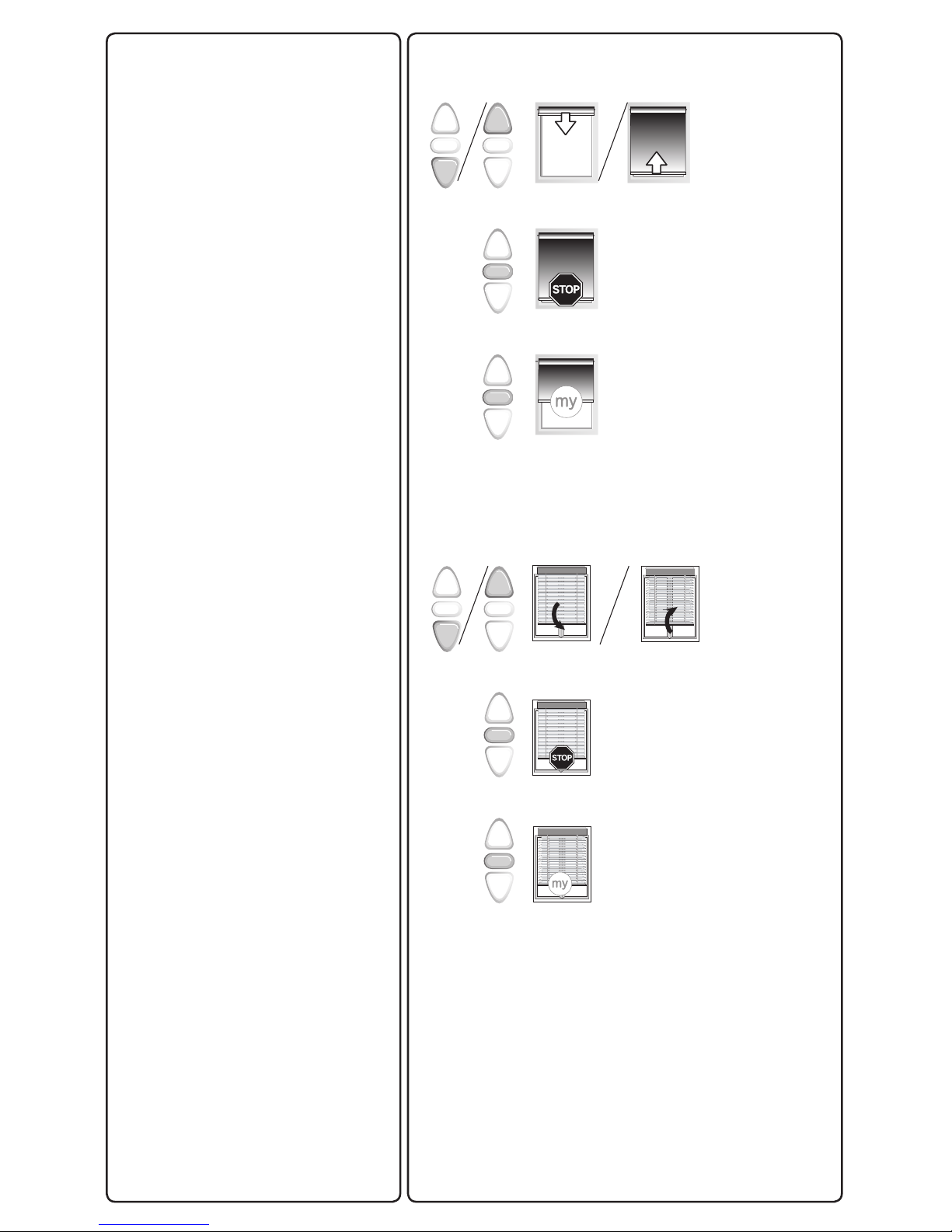

UP, DOWN and MY
In roller mode
1) To move the shade from a limit to
the other limit, press briey the UP or
DOWN button.
2) To stop the shade, press the STOP
button.
3) To move the shade to the MY posi-
tion, press briey the STOP button.
In tilting mode
1) To move the shade from a limit to
the other limit, press briey (less than
0,5s) the UP or DOWN button.
2) To stop the shade, press the STOP
button.
3) To move the shade to the MY posi-
tion, press briey the STOP button.
The Venetian blind goes rst to the
down end-limit, then to the MY posi-
tion.
4) To tilt the slats, press and hold the
UP or DOWN button until the slats
reach the desired position.
1
2
3
1
2
3
8Copyright © 2008 Somfy SAS. All rights reserved - V0 - 11/2008
End limit re-adjustement
UP LIMIT
1) Press the UP button, to move the
shade to the limit to be readjusted.
2) Press and hold the DOWN and
STOP buttons simultaneously until the
shade jogs.
3) Press and hold the UP or DOWN
button to move the shade to the new
desired position.
4) To conrm the new limit press and
hold the STOP button until the shade
jogs.
DOWN LIMIT
1) Press the DOWN button, to move
the shade to the limit to be readjusted.
2) Press and hold the STOP and UP
buttons simultaneously until the shade
jogs.
3) Press and hold the UP or DOWN
button to move the shade to the new
desired position.
4) To conrm the new limit press and
hold the STOP button until the shade
jogs.
1
2
3
4
1
2
3
4
