SOMFY Sonesse 30 RS485 Manuel utilisateur

www.somfy.com

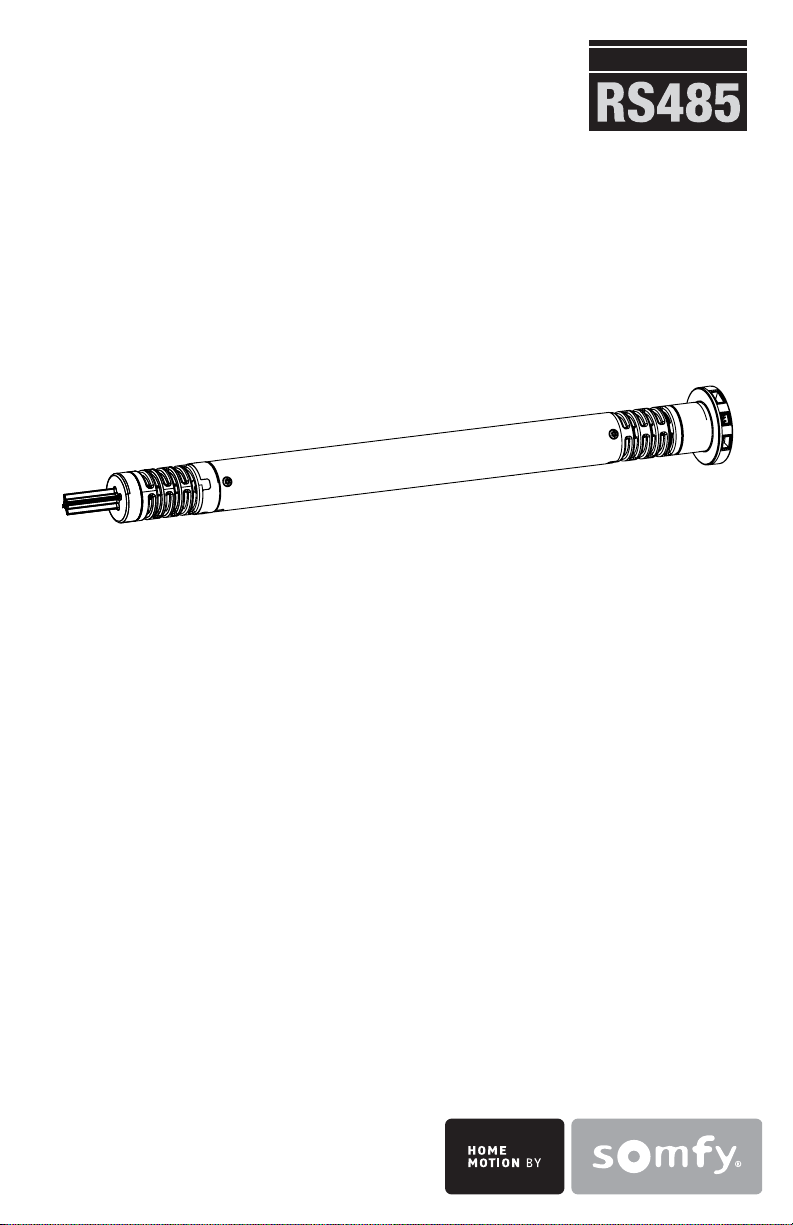

Sonesse®30 RS485

Ref :5057808B

DIGITAL TECHNOLOGY SOMFY

Installation instructions page 2

SOMFY hereby declares that this product complies with the essential requirements and other relevant provisions of

Directive 1999/5/EC. A Declaration of Conformity is available at the web address www.somfy.com/CE. Suitable for

use in EU, CH and NO

Notice d’installation page 10

Par la présente, Somfy déclare que l’appareil est conforme aux exigences essentielles et aux autres dispositions

pertinentes de la directive 1999/5/CE. Une déclaration de conformité est mise à disposition à l’adresse internet www.

somfy.com/ce. Utilisable en UE CH et NO.

Guía de instalación página 18

Por la presente, Somfy declara que el aparato cumple las exigencias esenciales y el resto de disposiciones pertinen-

tes de la directiva 1999/5/CE. Podrá encontrar una declaración de conformidad en la página web www.somfy.com/ce.

Aplicable para la UE, Suiza y Noruega.

Gebrauchsanleitung Seite 26

Hiermit erklärt SOMFY, dass sich dieses Produkt in Übereinstimmung mit den grundlegenden Anforderungen und



Internetadresse www.somfy.com/ce verfügbar.

Verwendbar in der EU, der Schweiz und Norwegen.

Guia de instalação página 34

Pelo presente documento, a Somfy declara que o aparelho está conforme às exigências fundamentais e às outras

disposições pertinentes da directiva 1999/5/CE. Encontra-se disponível, no sítio web www.somfy.com/ce, uma decla-

ração de conformidade.

Utilizável na UE, Suíça e Noruega.

ZH 42

 

1999/5/EC

www.somfy.com/CE

SAFETY



these instructions are intended.







being installed, and inform his customers of the operating and maintenance conditions for the product.



with the instructions given herein will invalidate the warranty, and Somfy refuses to accept liability.

COMPATIBLE BLINDS & CONTROLS

Roller blinds

-

ted behavior. Use of one controller at a time is recommended.

GENERAL SAFETY INSTRUCTIONS

Never immerse the

motor in liquid!

Never drill holes in the

motor!

Avoid impacts!

Do not drop it!

ST OP

Setting Tool Centralis IB Wall Switch

Dry Contact ControlsRS485 Controls

PROG

INSTALLATION

Remove Network ID

labels before installing

the crown.

Motor preparation

1) Fit the crown (a) and drive wheel (b)

to the motor.

2) Measure the length (L) between

the middle of the drive wheel and the

head end.

Tube preparation

Cut the tube to the required length.

Deburr the tube and remove the

debris.

Motor/tube assembly

1) Slide the motor into the tube.

2) Fix the tube to the motor with self-

tapping screws or steel pop rivets

depending on the dimension (L).

Mounting the motorized tube on the

brackets

If necessary, screw the bracket inter-

face on the motor head.

Mount the motorized tube on the end

bracket (C ).

Mount the motorized tube on the

motor bracket (D).

Wiring

1) Connect the power cable to the







3) If you want to use the Dry

contact features of the motor,

connect the Dry contact cable



cable).

Do not apply any

voltage to Dry Contact

connector.



a) Setting Tool or 4 wires switch

1 UP (White/Blue)



3 DOWN (White/Orange)



b) Centralis IB

1 UP or DOWN (White/Blue or White/

Orange)

2 UP or DOWN (White/Blue or White/

Orange)

3 GND (Orange)

c) Wall Switch

1 UP or DOWN (White/Blue or White/

Orange)

2 UP or DOWN (White/Blue or White/

Orange)

3 GND (Orange)

5) Correspondence

ST OP



COMMISSIONING

1) RS485 :

See page 58

2) DRY CONTACT

Checking the direction of rotation

Press the setting tool UP button:

a) If the shade is raised, the direction

of rotation is correct. Move to the sec-

tion entitled «Adjusting the end limits».

b) If the shade is lowered, the direction

of rotation is incorrect. Move to the

next step.



until the shade jogs: the direction of



Press the setting tool UP button to

check the direction of rotation.

Adjusting the end limits



1) Press and hold the UP button to

move the shade to the desired up

position.



DOWN buttons and release them once

the shade begins to move.





reaches the desired down position.

If necessary adjust the down position,

using the UP or DOWN buttons.



UP buttons and release them when

the shade begins to move.





its upper limit.





jogs.



3

USE

MY position

1) Recording MY position



shade to the desired position with the

UP and DOWN buttons then press



once.

2) Changing the MY position



new desired MY position with the UP

and DOWN buttons then press the



once.

3) Delete the MY position





until the shade jogs once.

With the setting tool, it is possible

to cancel and exit the speed or limit

adjustment mode by simultaneously





cancelled with inactivity of 2 minutes.

Adjusting the rolling speed



until the shade jogs twice.

-

matically in 10 second cycles.



press the UP button to increase the

speed or DOWN button to decrease

the speed.





shade jogs.

UP, DOWN and MY





DOWN button.



button.

-



10s 10s

End limit re-adjustement



1) Press the UP button, to move the

shade to the limit to be readjusted.

2) Press and hold the DOWN and



shade jogs.

3) Press and hold the UP or DOWN

button to move the shade to the new

desired position.





jogs.



1) Press the DOWN button, to move

the shade to the limit to be readjusted.



buttons simultaneously until the shade

jogs.

3) Press and hold the UP or DOWN

button to move the shade to the new

desired position.





jogs.

Modifying the direction of rotation



and hold all the three buttons simulta-

neously until the shade jogs twice.

Erasing the memory of the motor.

Press and hold all the three buttons

simultaneously until the shade jogs 3

times.

All the settings are erased.


