SOMFY Sonesse 30 PoE Manuel utilisateur

Sonesse 30 PoE

EN Instructions

FR Notice

ES Instrucciones

Sonesse 30 PoE EN

ORIGINAL INSTRUCTIONS

These instructions apply to all Sonesse 30 PoE drives, the different versions of which

are available in the current catalogue.

PoE = Power Over Ethernet.

CONTENTS

Prior information...........................................................................................

1.1.

Field of application............................................................................

1.2.

Liability ...............................................................................................

Installation......................................................................................................

2.1.

Assembly ............................................................................................

2.2.

Wiring .................................................................................................

2.3.

Commissioning ..................................................................................

2.4.

Tips and advice on installation.........................................................

Use and maintenance ....................................................................................

3.1.

Operation ...........................................................................................

3.2.

PROG button.....................................................................................

3.3.

LED feedback .....................................................................................

3.4.

Tips and advice on operation...........................................................

Technical data ................................................................................................

EN Sonesse 30 PoE

GENERAL INFORMATION

Safety instructions

DANGER

Indicates a danger which may result in immediate death or

serious injury.

WARNING

Indicates a danger which may result in death or serious

injury.

PRECAUTION

Indicates a danger which may result in minor or moderate

injury.

CAUTION

Indicates a danger which may result in damage to or

destruction of the product.

Sonesse 30 PoE EN

1.PRIOR INFORMATION

1.1.Field of application

The Sonesse 30/24 drives are designed to motorise all types of:

▪

Interior vertical blinds which front rail moves solely by gravity with a mass less

than 15kg.

1.2.Liability

Before installing and using the drive, please read these instructions carefully.

In addition to the instructions provided in this guide, please also comply with the

instructions provided in the attached Safety instructions document.

The drive must be installed by a home motorisation and automation

professional, in accordance with Somfy’s instructions and the applicable

regulations in the country of installation.

Any operation of the drive outside the field of application described above is

prohibited. Such use, and any failure to comply with the instructions given in this guide

and in the attached Safety instructions document, absolves Somfy of any liability and

invalidates the warranty.

After installing the drive, the installer must inform his customers of the operating and

maintenance conditions for the drive and must provide them with the operating and

maintenance instructions, and the attached Safety instructions document. Any After-

Sales Service operation on the drive must be performed by a home motorisation and

automation professional.

Never begin installing without first checking the compatibility of this product with the

associated equipment and accessories. If in doubt when installing this product and/or

to obtain additional information, contact a Somfy representative or visit the website

www.somfy.com.

2.INSTALLATION

WARNING

•

These instructions are mandatory for the home motorisation and

automation professional installing the drive.

•

Comply with current standards and legislation in the country of installation.

EN Sonesse 30 PoE

CAUTION

•

Never drop, knock or puncture the drive or immerse it in liquid.

•

Install an individual control point for each drive.

•

To insure optimized silent operation, the gaps between the drive, the

accessories, the tube and the tube end piece must be minimized.

•

Never cut or remove the cable label.

2.1.Assembly

2.1.1.Replace the head cover with a different color (Optional)

NOTICE

Head has interchangeable covers to fit with the fabric.

1] Unclip the cover.

2] Clip the new cover on the head.

2.1.2.Preparing the drive

CAUTION

•

Sonesse 30 PoE : interior diameter of the tube has to be Ø28,8 mm or

greater.

•

The crown is mandatory.

1] Fit the accessories required to integrate

the drive into the tube:

Fit the crown (a) and the wheel (b) to

the drive.

2] Measure the length (L) between the inner

edge of the drive head and the rim of the

wheel.

Sonesse 30 PoE EN

2.1.3.Preparing the tube

1] Cut the tube to the required length.

2] Deburr the tube and remove the debris.

1] 2]

2.1.4.Assembling the drive-tube

1] Slide the drive into the tube. For tubes

with a smooth interior, position the cut

notch on the crown.

2] The wheel must be locked in place to

prevent any movement in the tube.

▪

This can be achieved by fastening the tube to the wheel using self-tapping

screws, or steel pop rivets, placed between 5mm and 15mm from the outer

edge of the wheel, regardless of the tube.

▪

or by using a wheel lock, for non-smooth tubes.

CAUTION

The screws or pop rivets must only be fastened on the wheel and not on the

drive.

2.1.5.Installing the drive-tube assembly

CAUTION

•

The motorised product must not be compressed between the brackets.

•

Do not use the plastic cross without the metal bracket adapter.

▪

The drive can be fixed directly onto the drive bracket (the screw holes are

spaced 29mm apart). Use 2screws (3.5 x 9mm). A manual tightening torque of

1Nm is recommended.

▪

Drive plates are also available in the current

catalogue (Select the correct drive plate

adapted to the bracket and check the

torque requirements in the system). Use

EN Sonesse 30 PoE

the 2 screws (3 x 6mm) delivered with the

motor plate. A manual tightening torque of

0,6Nm is recommended.

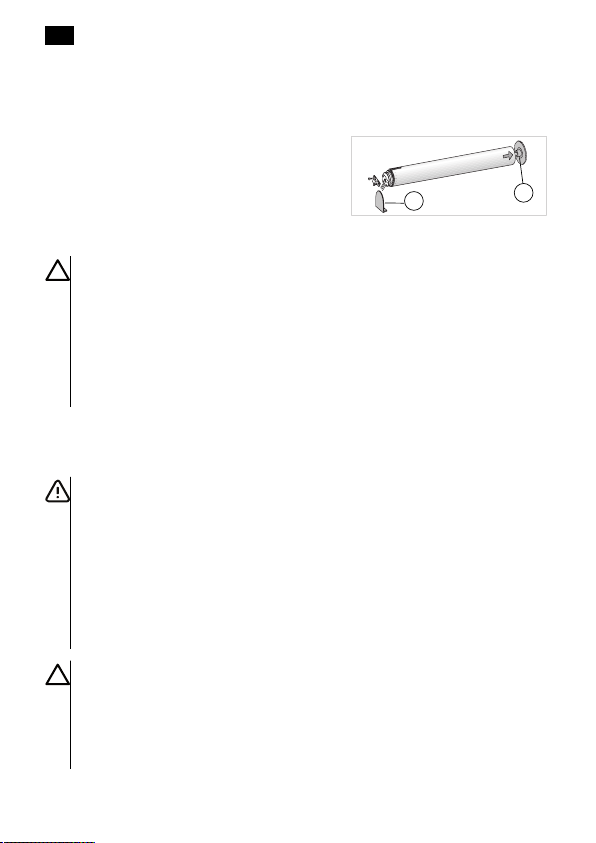

1] Screw the bracket adapter to the drive

head.

2] Install and fix the drive-tube assembly

onto the end bracket (c) and onto the

drive bracket (d).

CAUTION

•

Do not let the tube hanging by the head side only.

•

Ensure that the drive-tube assembly is secured onto the end bracket. This

operation prevents the tube-drive assembly from coming out of the end

bracket attachment.

•

Light gap reduced: Do not pinch cable or be careful they are not in contact

with moving parts.

2.2.Wiring

PRECAUTION

•

Cables routed through a metal wall must be protected and insulated by

sleeving or sheathing.

•

Secure the cables to prevent any contact with moving parts.

•

If the drive is used outdoors and if the power supply cable is of the H05-VVF

type, run the cable in a UV-resistant duct, e.g. trunking.

•

The drive cable cannot be removed. If it is damaged, return the drive to the

After-Sales department.

CAUTION

•

Leave the drive power supply cable accessible: the product must be easily

replaceable.

•

Always make a loop in the power supply cable to prevent water from

entering the drive.

Sonesse 30 PoE EN

Connect the PoE drive to the PoE switch.

NOTICE

•

Only use a compatible switch to connect the PoE drive: refer to the

corresponding switch guide.

•

Take care on the power delivered by the switch.

•

Female to female connector (provided with the drive) and extension cable

Cat 5e (mini) could be used if needed.

•

Length between switch and motor is 100 m (330 feet) maximum.

2.3.Commissioning

The commissioning is done by WebGUI:

▪

Thanks to a web browser on a computer connected to the network, enter the

drive’s Hostname (present on the label) in the address field.

▪

And follow instructions.

To control the drive, refer to “PoE Integration guide” on Somfy project website:

https://www.somfy.com/projects/downloads.

2.4.Tips and advice on installation

2.4.1.Questions about the product?

Observations Possible causes Solutions

The motorised product

does not work.

Wiring is incorrect. Check the wiring and

modify it if necessary.

The drive is in thermal

protection mode. LED Red

= ON then lights OFF.

Wait for the drive to cool

down. Notice that the drive

will be hot. Do not touch it.

An incorrect extension

cable has been used

Check the extension cable

(Cat 5e mini).

End-limits are not properly

adjusted.

Adjust the end-limits.

EN Sonesse 30 PoE

Observations Possible causes Solutions

The motorised product is

noisy.

The wheel and the crown

are not adapted to the used

tube.

Change the wheel and the

crown.

The mechanical plays

between drive, accessories,

tube and end of tube are

too high.

The mechanical plays

between drive, accessories,

tube and end of tube must

be decreased to the

minimum.

The wheel is not properly

fixed to the tube.

Fix the wheel properly to

the tube.

The equipment is

constrained between the

brackets.

Decrease the constraint

between the brackets.

The length of the notch is

not adapted to the drive

hook or to the used crown.

Adapt the length of the

notch to the drive hook or

to the used crown.

Debris, screws or other are

in the tube.

Empty the tube.

The temperature of the

environment is not in

conformity with the

operating temperature.

Change the environment

temperature.

The motorised product

stops too soon or too late.

The end limits of the

motorised product slip.

Re-set the end limits.

The motorised product

does not fall within the

recommended weight

limits.

Check the compatibility of

the motorised product.

Consult a Somfy contact or

visit www.somfy.com.
