SOMFY ILT 2 Manuel utilisateur

www.somfy.com

Installation instructions

Guía de instalación

Guida di installazione

Notice d’installation et d’utilisation

Ref : 5057173A

ILT 2

Installation instructions page 2

SOMFY hereby declares that this product complies with the essential requirements and other rele-

vant provisions of Directive 1999/5/EC. A Declaration of Conformity is available at the web address

www.somfy.com/CE. Suitable for use in EU, CH and NO

Guía de instalación página 10

Por la presente, Somfy declara que el aparato cumple las exigencias esenciales y el resto de dis-

posiciones pertinentes de la directiva 1999/5/CE. Podrá encontrar una declaración de conformidad

en la página web www.somfy.com/ce.

Aplicable para la UE, Suiza y Noruega.

Guida di installazione pag. 18

Somfy dichiara che questo dispositivo è conforme ai requisiti essenziali e alle altre disposizioni per-

tinenti della Direttiva 1999/5/CE. Una dichiarazione di conformità è disponibile all'indirizzo Internet

www.somfy.com/ce.

Valida in UE, CH e NO.

Notice d’installation page 26.

Par la présente, Somfy déclare que l’appareil est conforme aux exigences essentielles et aux

autres dispositions pertinentes de la directive 1999/5/CE. Une déclaration de conformité est mise à

disposition à l’adresse internet www.somfy.com/ce. Utilisable en UE CH et NO.

General informations

• This Somfy product must be installed by a professional motorisation and

home automation installer, for whom these instructions are intended.

• Before installation, check that this product is compatible with the associa-

ted equipment and accessories.

• These instructions describe how to install, commission and use this

product.

• Moreover, the installer must comply with current standards and legisla-

tion in the country in which the product is being installed, and inform his

customers of the operating and maintenance conditions for the product.

• Any use outside the sphere of application specied by Somfy is not

approved. Such use, or any failure to comply with the instructions given

herein will invalidate the warranty, and Somfy refuses to accept liability.

General safety instructions

The safety instructions that must be observed, besides the usual rules, are

explained in these instructions and in the attached «Safety Instructions»

document.

Avoid impacts!

Never drill holes in

the motor!

Do not drop it!

Never immerse the

motor in liquid!

Product description

The ILT motor is a Wired tubular motor with multiple control features:

- dry contact for basic individual control

- infra red port for remote, in line of sight control

- bus control through specic gateways (RS485, IP, EIB, LON, Somfy IB)

Do not dispose of your scrapped appliances, nor your used

batteries with household waste. You are liable to dispose of all

your electronic or electrical equipment waste by relocating over

to a dedicated collection point for recycling.

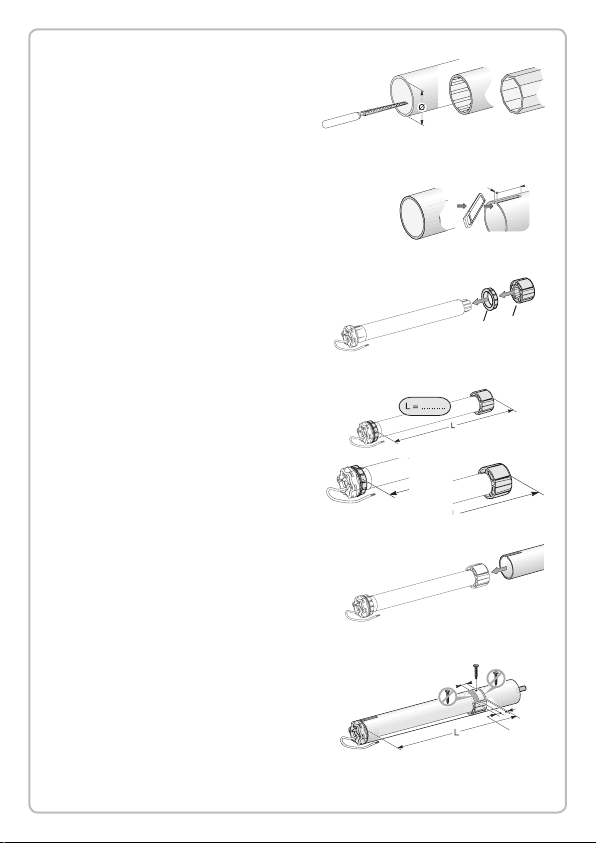

Installation

Tube preparation

Cut the tube to the required length.

Deburr the tube and remove the swarf.

For smooth tubes, cut a notch with the

exact measurements given in gure [2].

Motor preparation

Fit the crown (a) and drive wheel (b) to

the motor.

Measure the length (L) between the

drive wheel (b) and the head end (c).

Motor/tube assembly

Slide the motor into the tube.

For smooth tubes, position the notch on

the crown.

Fix the tube to the motor with 4 x Ø 5

mm self-tapping screws or 4 steel pop

rivets of Ø 4.8 mm depending on the

dimension (L).

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

[2]

[1]

[3]

[4]

[5]

[6]

Wiring

Motor Wiring:

Phone connector wiring:

Mounting the motorized tube

Mount the motorized tube on the end

bracket (e).

Mount the motorized tube on the motor

bracket (f).

Fit the stop ring (g).

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Ø>47mm

4 mm 28mm

5 mm

20 mm

15 mm

Neutral (N)

Phase

Earth (W)

White

Black

Green

Blue

Brown

Yellow/

Green

120V/60Hz 230V/50Hz

220V/60Hz

3 x 0.75 mm2

3 x 1,5 mm2

Dry Contact

IR Contact

Digital Network

GND

+5V

DOWN

DATA

2 1

[8]

[7]

Commissioning

The ILT actuator is delivered without pre set end limit. A specic setting tool is

needed to adjust the end limit.

Check polarity

Connect the setting tool to the actuator

with the phone cable.

The LED lights on.

Put the selector upward.

Press the UP or DOWN push button of

the setting tool to check polarity.

If the direction is wrong, press the STOP

button more than 2 seconds.

10m 10m 10m

10m 10m

10m

1.5m

BIU- 2ILT

1.5m

Wiring with

dry contact

Wiring with

IR contact

Wiring with

Digital

Network

Up end limit adjustment.

Slide the selector on the UP position.

Adjust the screen to the required position

with the help of the DOWN and UP

buttons.

Put the selector on its central position,

the UP end limit is recorded.

Down end limit adjustment.

Slide the selector on the DOWN position.

Adjust the screen to the required position

with the help of the DOWN and UP

buttons.

Put the selector on its central position,

the DOWN end limit is recorded.

Check the setting

Check with the UP and DOWN buttons

that the motor stops at the UP and

DOWN limits just set.

Use

Press the UP button:

The blind stops to the Up end limit

Press the DOWN button:

The blind stops to the Down end limit

Intermediate position setting

You can set the intermediate position with the setting tool, a dry contact switch or an

IR remote control.

Put the selector on its central

position to set the intermediate

position.

Move the screen to the required

position, with the UP or DOWN

button.

Press the StOP button more than

4 seconds to recorde the position.
