Solos SO-MS001-BK Manuel utilisateur
E
D
C
L
10-88mm
G
J
M
K
C
J
10-88mm
Step2
Step1
Insert three flat head screws(K) to attach
desk clamp(C) to the center pole(D)
After adding the rubber pads to the grommet
top plate(G) and use the pre-installed screw to
combine the center pole(D) to it
B: Arm(x1)
D: Center pole(x1) F: Hex key
holder (x1)
G: Grommet top
plate (x1)
H: Screw cap
(x2)
K:Flat head
screw (x3)
L:Grommet
plate(x1)
M4x12(x8)
M-A
M4x16(x8)
M-B
M5x12(x8)
M-C
M5x16(x8)
M-D
D(x8)
M-E
M-C(x8)
A: VESA monitor
mount(x2)
C : Desk clamp
(x1)
N: 6mm(x1)
J: Rubber
pads(x5)
M: 4mm(x1)
Hex key
I:Round head
screw (x2)
Option A-clamp mounting Option B-through hole mounting
E: Pole cap
(x1)
Insert cap(E) to center pole(D)
Parts List
SO-MS001-BK 75x75
100x100
32’’
MAX 8Kgx2
(17.6lbsx2)
RATED
Spring Arm Installation
Monitor Stand-Basic
Installation Manual
F B
N
I
H
1
N
2

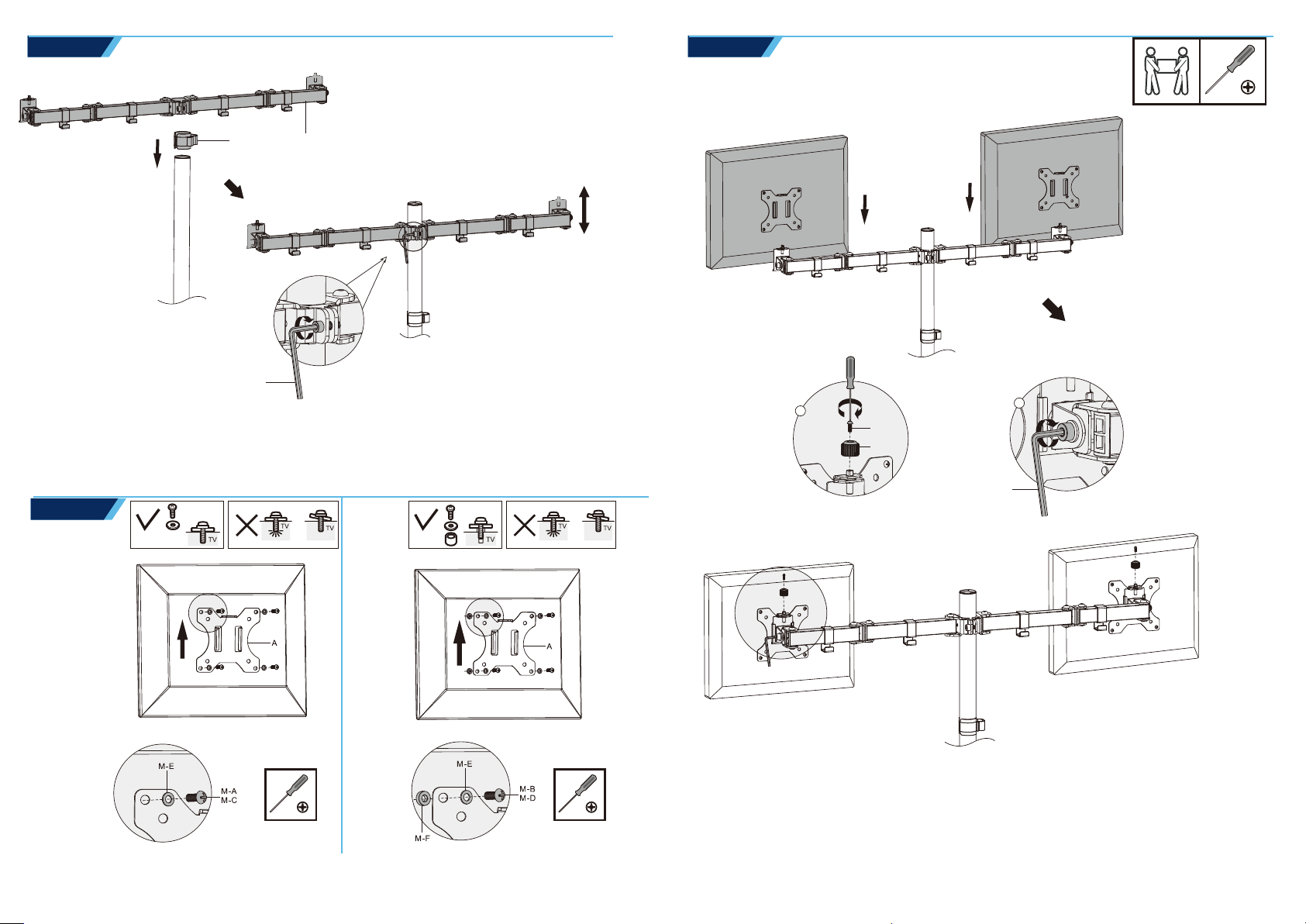

Step3
Step4
Step5
VESA Installation
Attach the arm(B) to center pole(D) by using the 6mm hex alley to tighten
the pre-installed screw
Use different set of screw according to your monitor size
AB
Tip：Attaching a monitor is a two-person
job. Do not attempt to complete this task
by yourself.
Snap monitors onto the arm and insert the round head screws(I) to tighten it
M
N
Step6 Step7
Ensure that you have received all parts according to the parts list prior to installation. If any parts are
missing or faulty, please contact our website for a replacement.
Use with products heavier than the rated weights indicated may result in instability, causing possible injury.
• Mounts must be attached as demonstrated in assembly instructions. Improper installation may result in
damage or serious personal injury.
• Safety gear and proper tools must be used. This product should only be installed by professionals.
• Make sure that your supporting surface will safely support the combined weight of the equipment and all
attached hardware and components.
• Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
• This product contains small items that could be a choking hazard if swallowed. Keep these items away
from children
• This procuct is intended for indoor use only. Using this product outdoors could lead to product failure
and personal injury.
CAUTION:
IMPORTANT:
+1 510 651 2205
www.solos-it.com
You can adjust SOLOS Monitor Stand-Basic in the following ways:
Please avoid the following adjustment
After managing your cables,store the hex keys(N/M) in the hex
key holder(F) for future adjustment
