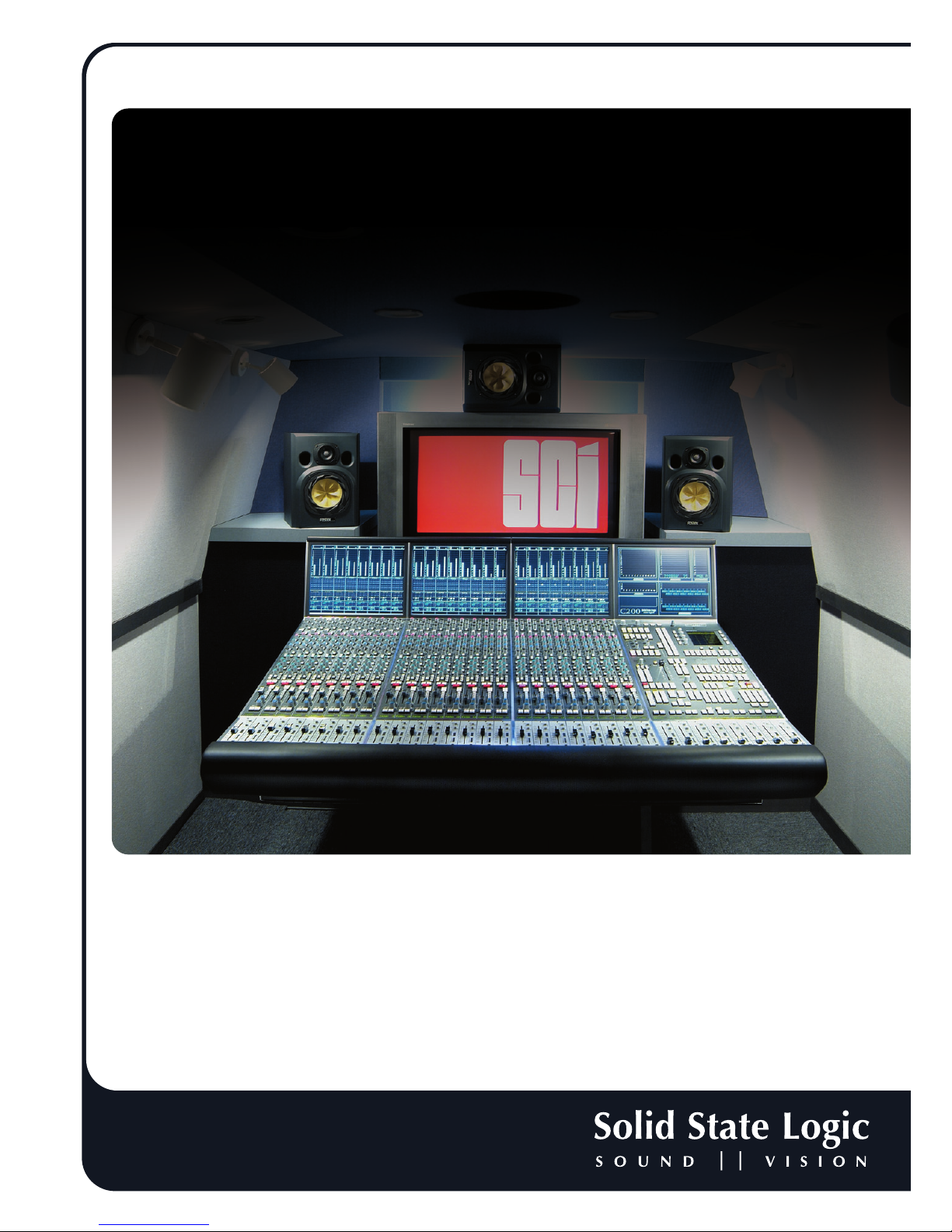

C200 HD. This is SSL.

C200 HD. Broadcast.

The in-line digital production

console for broadcast

www.solid-state-logic.com

C200 HD. This is SSL.

Broadcast/live production

C200 HD builds on the broadcast benefits of SSL’s award-winning

C-Series technology. It adds a range of broadcast-specific features, and

components designed with scalability, reliability and fault tolerance in

mind. C200 HD is the latest in a long line of successful digital production

consoles, which are in daily use for Mono, Stereo and 5.1 HDTV

productions with internationally renowned networks such as CBS,

Radio France and NTV Tokyo.

Audio quality

As with all Solid State Logic consoles, audio quality is a primary

consideration. The C200 HD benefits from SSL’s proprietary Centuri

processing platform which is optimised for DVD Audio performance.

48kHz and (optionally) 96kHz operation are available.

Each channel provides digital equalisers, filters and dynamics. Unlike

some other systems, these are available at all times and not allocated

from a pool.

Scalable, future-proof solutions

The C200 HD provides flexible channel configurations; with

up to 256 control surface faders. Huge I/O capacity allows

up to 512 analogue, AES or MADI I/O and 60 GPIs all from

SSL’s Centuri core.

The C200 HD delivers large amounts of mixing capacity whilst saving on

rack space and reducing installation costs.

Remote microphone sources may be handled using compact and

lightweight remote controlled mic amps, connected via interference-free

fibre links. For some customers this technology has provided enormous

cost efficiencies allowing a single studio to support productions from

multiple venues. Channel DSP and I/O configurations are easily

expandable for dealing with changes in future production requirements.

Resilience

• Secure SSL proprietary design provides freedom from reliance

upon third party systems and complete control over all elements of

the system.

• Self-healing DSP automatically recovers from fault conditions,

with internal confidence monitoring alerting users to a potential

problem immediately.

• Redundant power supply, DSP and fibre-link options, provide proven

line production security.

• Fast recovery times, with a complete re-initialisation of software and

hardware occurring in seconds, and control surface reset without

audio interruption.

• Fault-tolerant and self diagnostic front panel design.

The C200 HD is an advanced digital production console that

delivers SSL sonic excellence and all of the operational

advantages of a digital console with a familiar in-line control

surface and mix system.

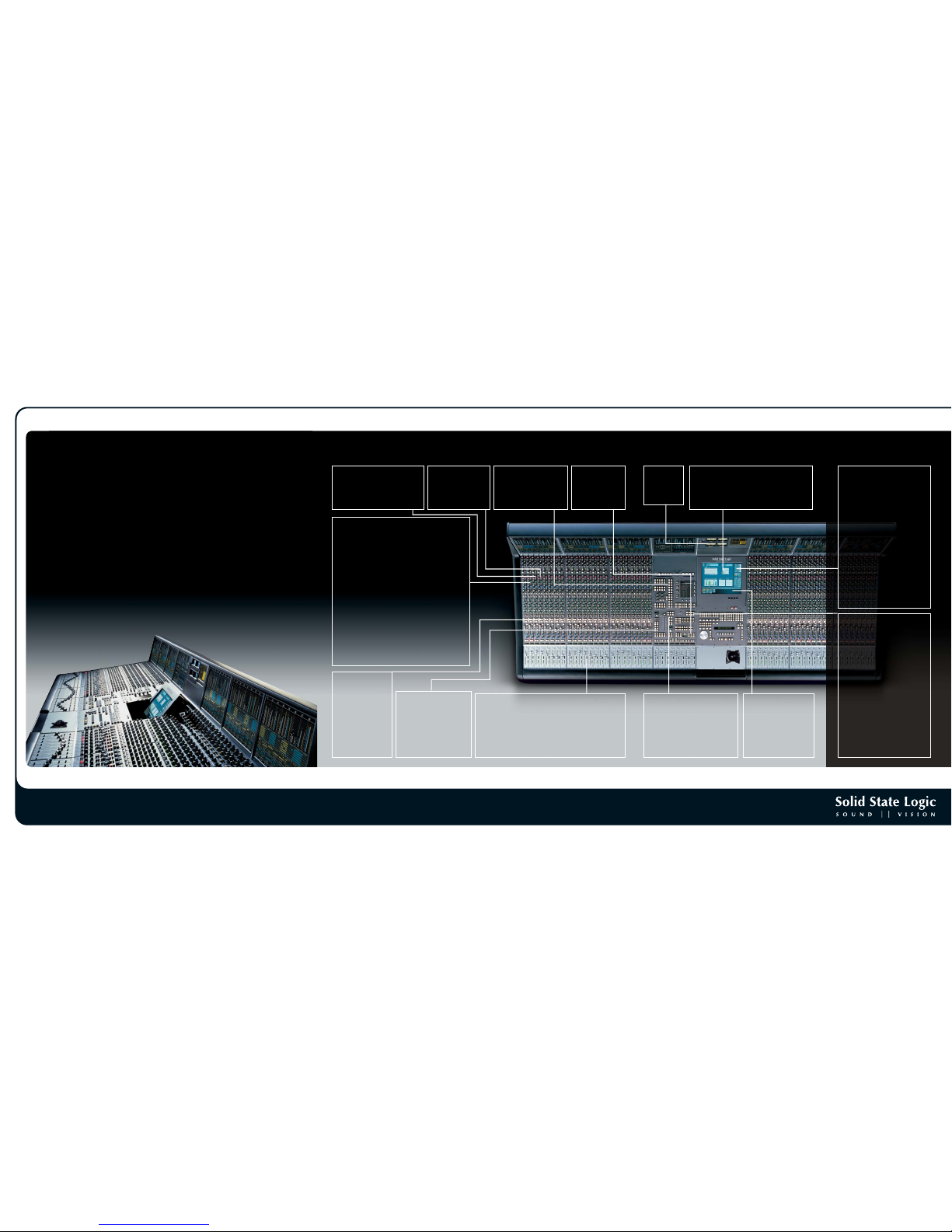

Console Overview Advanced Hardware Control Surface

Integrated Digital Routing Control

• Routing to channel inputs, setting mic input

parameters and assigning mix busses, is handled

centrally for speed and convenience.

• Routes may be made individually or in arrays,

providing fast setup tools for changing inputs, or

for assigning ranges of channels to bus outputs.

Resource Rich

• 48 Multitrack plus 12 Main busses are available

for generating groups and mix minus feeds.

• Independent pre and post fader direct outputs

per channel provide additional send capacity.

• 2 simultaneous final mix outputs

(5.1 and Stereo).

• 24 x 12 Effects return/Stem returns matrix.

• 12 Auxiliary busses with the option of re-

purposing multitrack busses 25-48 as

additional aux busses with full control from

the channel strip.

Flexible In-line Architecture

• Classic in-line signal flow, ideal for handling live

productions with simultaneous recording.

• Both small and large faders may feed the main

busses simultaneously, to double the input

capacity of the mix.

• Feed main and/or multitrack busses

independently from small and large fader paths

to generate multichannel groups and/or mix

minus outputs.

Custom

Metering

• Options include

analogue VU or

PPM and digital

phasescopes.

Comprehensive 5.1 and

Stereo Monitoring

• Two 5.1 Main, two stereo mini and separate PFL

monitor outputs provide a number of options for

studio monitoring.

• Simultaneous Mains and Minis may be enabled to

provide constant monitoring of main programme

plus additional sources (e.g. the PFL bus).

• Two 12-way external monitor selectors may be

linked to provide 24 monitor inputs, each with

input level trim.

• Monitor inserts are provided for surround

encoder/decoder returns.

Status Lock for

‘On Air’ Security

• Status Lock disables

potentially destructive

console functions such as

Solo-in-place, Dynamic

Automation and console

status changes.

Flexible Mono and

Stereo Channels

• Any channel strip may be

configured for mono or

stereo operation providing

flexible console layouts

stored and recalled on a

production basis.

• Mono L and Mono R buttons

for dealing with unexpected

changes to a stereo source.

• Stereo channels also feature

input balance, independent

mic gain and panning width

control.

• M/S Decode is also available

on stereo channels with

variable mix.

Comprehensive

Communications

• Built-in Oscillator and Talkback

microphone with level and frequency

controls.

• 3 stereo Foldback and Studio

Loudspeaker feeds with individual or

global talkback switching.

• Red light switching.

• Any large fader, channel RECORD

button or centre section macro may be

programmed to fire GPI functions such

as machine starts, cue lights, etc.

Central Control Screen and

Trackball/Keyboard Interface

• Console setup and information

displays appear on the central

control screen.

• The trackball and console keyboard

(wireless) are used to enter

information and control features

such as UltiPanTM.

• The screen may be switched to a

second input, for example to view a

workstation when running a live

show and recording.

Audio Master Controls

• Master AFL, level and routing control

for audio master such as auxes and

groups are handled centrally from

the Master Audio Control Panel.

• Aux Masters and FX Returns may be

assigned to and from outboard

effects devices in one operation.

Dedicated Processing and Control

Dedicated channel strips provide fast ‘hands on’ mixing, a clear overview

of all console settings, and a familiar operational interface. Dedicated DSP

is available for all channels at all times and not allocated from a pool.

Channel strip features include:

• Input gain control

• Compressor/Limiter and Gate/Expander - featuring dedicated metering

and sidechain keying

• High and low pass filters - available for the main channel path or

dynamics sidechain

• 4-band Equaliser section - featuring a choice of EQ profiles

including SSL’s 4000 ‘G’and ‘E’ Series and notch filter for dealing

with problem sources

• Copy and Presets - for fast copying of settings between channels, and

recalling favourite settings

• Insert Point - with ‘Mix Align’ for automatic latency compensation

• 12 Auxiliary sends - feature odd/even stereo linking and ‘Aux to Fader’

control, for setting up fast foldback mixes or effects sends

• Channel banking - fast access to more channels of processing

• GROUP/TAPE monitor path selection

• RECORD button - for track arming or may fire external GPI functions such

as machine starts

• Small and large faders - provide flexible in-line routing and control

• Panning - stereo or surround panning with dedicated large and small

fader or front/rear surround panning controls

• AFL and PFL - solos default to AFL, switchable to PFL operation (stereo).

Status Lock protects the console from Solo-in-place operation

• Large fader cassette - featuring motorised fader, snapshot reset

protection controls, 4-character grouping display, input signal meter and

backstop PFL overpress

Clear Visual Feedback

• The Channel Information Displays provide metering for all large and

small fader signal paths on both channel layers across the console.

• The Master Metering Display provides dedicated metering for all

primary console outputs, plus

24 user-programmable meters.

• Neutral colour schemes are designed for comfortable viewing over

long working periods.

Master Sweet Spot Bay

• Bay Swapping allows any bay of 8 channels to

be swapped with a designated central master

bay, giving access to all channels from the

optimum listening position.

• For smaller control surface configurations,

‘virtual bays’ may be swapped with the master

to access all available processing channels.

Servo or VCA-style Fader Grouping Modes

• Operators may choose between ‘Servo’ (moving fader) or ‘VCA style’ fader grouping

modes, according to the type of control they are most comfortable with.

• SSL’s Servo grouping is a true moving fader grouping system, with the ability to

update slave positions as the master fader is moved.

• VCA-style operation, ideal for live operation, allows the engineer to view the

balance and make adjustments to slave faders whilst the group master is closed.

Audio Follow Video (AFV)

• Any of the 32 VCA masters may be externally controlled via GPI inputs.

• Faders are moved between off and previous mix level according to external trigger.

• Fader glide time and grouping are user configurable.

• Global override function inhibits all AFV control.

5.1 ‘Master Compressor’

• In addition to master fader and

insert point, the console’s

programme output features a

5.1 compressor with a choice

of dynamics profiles including

SSL’s 4000 Series ‘Quad Bus’

compressor.

Dynamic Automation

and Machine Control

• Up to four SD & HD machines may be controlled

without an external synchroniser.

• Familiar mix statuses such as Abs, Trim, Snap

and Autotakeover.

• Powerful tools include MIDI parameter

automation, allowing outboard effects settings

to be automated from the console.

Comprehensive Console Reset

• 62 Snapshot memories, with selective recall,

provide balance reset while production is live to

air. For example, to handle an entertainment

show with multiple acts.

• Snapshot sequencing is also provided with

automatic timed transitions between snapshots,

or manual control from a designated fader.

• Projects not only recall channel and centre

section parameters, but input and output

assignments, monitoring formats, automation

modes, etc. This enables the entire console to be

re-configured for different production types in

seconds. For example, to recall a daily

production template.

• Offline setup on an external PC allows

pre-configuration of the C200 HD without

requiring access to the console.

www.solid-state-logic.com

C200 HD. This is SSL.

Broadcast Features

Service and support

• Hot-swap fader cassettes for transparent servicing.

• Front panel design allows access to all serviceable parts from the

front of the console.

• Quick-release component mechanisms for simple maintenance.

• Local and remote diagnostics for real-time monitoring and

troubleshooting tools from any location.

• SSL service and support.

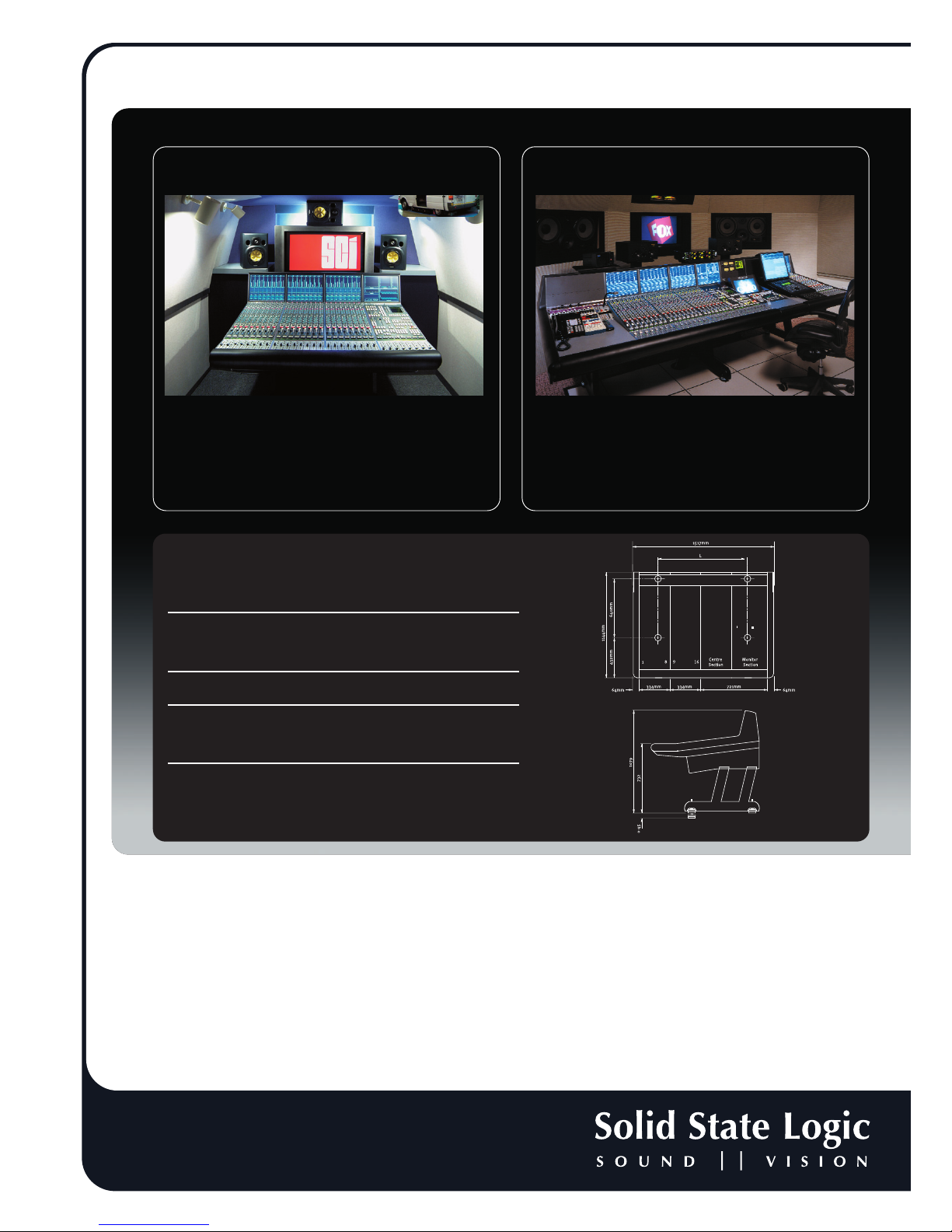

Mobile configurations

Fit 48 channel strips (105 faders) across 2.34m (92")

with the C200 HD Mobile

For easy installation into remote vehicles, the C200 HD ‘Mobile’

console reduces the overall width of the desk by 387mm, and enables

48 channel strips to fit across the width of any standard truck. To

achieve this, the standard dual width centre section is reduced to

single width.

The TFT display, trackball, keyboard and custom metering are mounted

externally, and key control functions condensed into the single width

section. Each bay of the C200 HD Mobile is 334mm wide, bringing the

total width for 48 faders plus mobile centre section to 2341mm

including 3mm for thin end trim.

Broadcast specific operation includes:

• Simultaneous Mains, Minis and PFL monitoring for complex

production management.

• Status Lock for disabling potentially destructive console functions

such as Solo-in-place, Dynamic Automation and console

status changes.

• In-line architecture provides large amounts of channel, mix minus,

clean feed and multi-track send flexibility.

• Integrated digital routing for fast and efficient source handling, and

selective reset control provides the ability to handle complex

production requirements.

• Freely assignable mono and stereo channels for flexible

console layouts.

• Mono Left and Mono Right enable the operator to react quickly to

unexpected changes in a stereo feed.

• Backstop PFL enables the operator to pre-fade listen any input by

simply pulling back on the channel fader.

• Dedicated signal level meter on every large fader for clear visibility

of signal presence.

Weight and rack space savings

Weight savings are made through careful front panel construction and

the opportunity to remove the console’s legs and use mounting beams

for support. All Channel and Mix DSP, I/O and GPI options are

contained within a single 15U rack-mounted Centuri core. Remote

controlled stageboxes handle either 24 or 48 mic inputs per unit, with

interference-free multimode fibre optic connections to the truck.

Essential Production Features

Flexible frame configurations provide extensive mixing capacity from a

compact control surface

•Virtual Bays access all processing channels by swapping ‘hidden’

channels into the sweet spot master bay.

•Frame customisation options enable DAWs to be housed within the

console frame for an ergonomic mixing/editing solution.

Integrated machine control removes the need for an external

synchroniser system

•4-port SD & HD machine control system with advanced control and offset

options.

•Dedicated timecode memories provide fast autolocation to any point in

the scene.

•Trackball, keyboard and video switching from console to DAW enables

the operator to move seamlessly between mixing and editing operations.

Scene-based automation, designed for mixing to picture

•Non-linear dynamic automation enables the operator to write moves at

any speed.

•Join allows you to easily rehearse and write settings for a scene.

•Off-line editing functions provide tools for dealing with scene

re-ordering or removal.

•Project re-configuration enables mixes to be switched in seconds.

Multi-format channels, bussing and monitoring for

multi-stem applications

•Parameter linking across multiple channels allows processing to be

applied simultaneously across all legs of a multi-channel source,

e.g. 5.1 stem.

•Unique PanPoint™operation provides precise surround panning control.

•5.1 and stereo monitoring system, with external source summing to

combine Music, Dialogue and Effects stems.

Variable sample rate support provides operation at pull-up or

pull-down frequencies

•Operate at 44.1kHz, 48kHz, 88.2kHz or 96kHz, or any 0.1% pull-up/

pull-down derivative.

•All digital I/O are fitted with 24-bit sample rate conversion to handle

multiple sample rates.

www.solid-state-logic.com

Solid State Logic

International HQ: Begbroke, Oxford, England OX5 1RU · Tel +44 (0)1865 842300 · Email [email protected]

France: 7 bis de la Victoire, 93150 Le Blanc Mesnil, France · Tel +33 (0)1 48 67 84 85 · Email [email protected]

Italy: Via Timavo 34, 20124 Milano, Italy · Tel +39 0392 328094 · Email [email protected]

New York: 320 West 46th Street, New York, NY 10036 · Tel +1 212 315 1111 · Email [email protected]

Los Angeles: 5757 Wilshire Boulevard Suite 401, LA, CA 90036 · Tel +1 323 549 9090 · Email [email protected]

Japan: 3-55-14 Sendagaya, Shibuya-Ku, Tokyo 151-0051 · Tel +81 (0)3 5474 1144 · Email [email protected]

All other trademarks are the property of their respective owners. No part of this publication may be reproduced in any form or by any means, whether mechanical or electronic,

without the written permission of Solid State Logic, Oxford, England. Solid State Logic has a policy of continual product enhancement and reserves the right to alter

specifications without notice. E&OE. 01.03.08

C200 HD. This is SSL.

Sound Creators Inc, Japan Fox, USA

With demand for television programmes and DVD content on the

increase, SCi felt it was time to upgrade its main vehicle so that

it was better placed to cope with 5.1 surround sound

productions. The C200 HD was an ideal console choice because

it is very compact and can be tailored to fit into small spaces

such as a mobile studio.

The Fox on-air promotion department is a high-volume

production group that creates hundreds of promos per week.

Their C200s are integrated with hard disk editing systems to

provide a truly re-settable random access environment.

Reliability and efficiency are essential to producing this volume

of production output.

Physical and Environmental Specification

Max Height 1124mm (44.25")

Max Width (see diagram)

Each channel bay adds 334mm (13.15")

End trim adds 128mm (5.04")

Max Depth 1144mm (45.04")

Height Adjustment ±22.5mm (±0.9")

Weight (48 channels) ~354kg (~780lbs)

Each (inc. centre) adds ~40kg (~88lbs)

Legs add ~33kg (~73lbs)

Power (40ch with 100-240V AC) <1.2kW

Continuous (dependent on frame size)

Cooling Method Convection (silent)

Autres manuels Solid State Logic Mixeur musical

Solid State Logic

Solid State Logic C100 HDS Manuel utilisateur

Solid State Logic

Solid State Logic AWS 924 Manuel utilisateur

Solid State Logic

Solid State Logic Matrix Manuel utilisateur

Solid State Logic

Solid State Logic ORIGIN Manuel utilisateur

Solid State Logic

Solid State Logic Sigma Delta Manuel utilisateur

Solid State Logic

Solid State Logic SL 9000 J SERIES Manuel utilisateur

Solid State Logic

Solid State Logic SL 4000 G Series Manuel utilisateur

Solid State Logic

Solid State Logic C100 HDS Manuel utilisateur

Solid State Logic

Solid State Logic Live L100 Manuel utilisateur

Solid State Logic

Solid State Logic Sigma Manuel utilisateur

Solid State Logic

Solid State Logic Matrix2 Delta Manuel utilisateur

Solid State Logic

Solid State Logic BiG SiX Manuel utilisateur

Solid State Logic

Solid State Logic Duality Fuse Instructions de montage

Solid State Logic

Solid State Logic C300 HD Manuel utilisateur

Solid State Logic

Solid State Logic X-PANDA 82BXEM01A Manuel utilisateur

Solid State Logic

Solid State Logic Duality Manuel utilisateur

Solid State Logic

Solid State Logic AWS 900+ Manuel utilisateur

Solid State Logic

Solid State Logic Duality 82S6DUA20C Manuel utilisateur

Solid State Logic

Solid State Logic C100HDSS Manuel utilisateur

Solid State Logic

Solid State Logic XL-Desk Manuel utilisateur

Solid State Logic

Solid State Logic AWS V4 Logictivity Manuel utilisateur

Solid State Logic

Solid State Logic Sigma Manuel utilisateur

Solid State Logic

Solid State Logic Duality SE Manuel utilisateur

Solid State Logic

Solid State Logic SiX Manuel utilisateur

Manuels Mixeur musical populaires d'autres marques

Neve

Neve 8816 Manuel utilisateur

Mackie

Mackie Onyx Analogue Mixer Manuel utilisateur

Behringer

Behringer EUROPOWER PMP518M Manuel utilisateur

Peavey

Peavey S-32 Sanctuary Series Manuel utilisateur

Rane

Rane MP 4 Manuel utilisateur

True

True T9 Touchscreen Console Manuel utilisateur

Studiomaster

Studiomaster Air Pro 24 Manuel utilisateur

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Manuel utilisateur

Roland

Roland M-160 Manuel utilisateur

Yamaha

Yamaha MR1642 Manuel utilisateur

Ecler

Ecler MAC40v Manuel utilisateur

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Manuel utilisateur

Veeder-Root

Veeder-Root TLS-350 Series Manuel utilisateur

Alto

Alto APM80.QUAD Manuel utilisateur

Omnitronic

Omnitronic PM-211 Manuel utilisateur

SoundCraft

SoundCraft B400 Manuel utilisateur

Roland

Roland SoundCanvas SC-8820 Manuel utilisateur

CARVIN

CARVIN RX 1200 Manuel utilisateur
