Solfex DS-SB Manuel utilisateur
The SOLFEX DS-SB provides the option to work with a remote temperature sensor.
When a compatible remote sensor is connected, the thermostat will automatically switch from
using it’s internal sensor to use the remote sensor instead. This function is ideal for controlling
being measured and controlled.
function automatically reduces the set temperature by 4°C when no time clock signal is detected.
The DS-SB thermostat has been designed to work in conjunction with the Heatmiser UH3 wiring
centre and TM4 Programmer, but can also be used as a standalone dial thermostat.

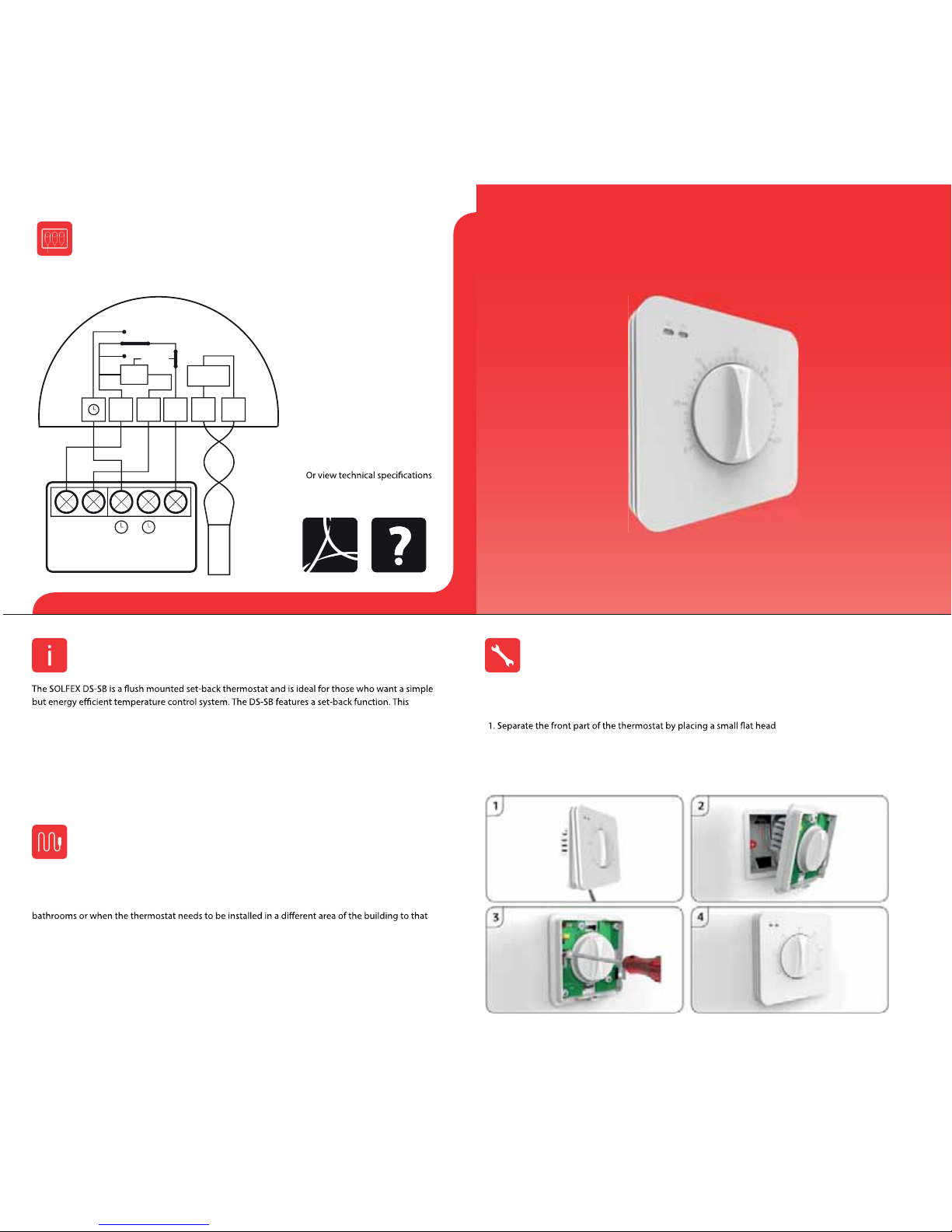

Wiring Diagram
DS-SB
Want More Information?
Call our support team on:
+44 (0)
directly on our website:
www.solfexVGI.co.uk
PDF FAQ
Rev 2.0
Introduction
Remote Sensor
Model: DS-SB
Installation
UH3
L N
1 2
SL
SL RT+ RT-
N
L
Remote Air
Sensor
ON
OFF
TIMER
IN ORDER TO AVOID ANY RISK OF ELECTRIC SHOCK, TURN OFF THE POWER TO THE HEATING
SYSTEM BEFORE COMMENCING INSTALLATION.
terminal driver into the slots on the bottom face of the thermostat.
2. Terminate the thermostat as shown in the wiring diagram.
3. Screw the back plate securely back onto the wall.
4. Clip the front part of the thermostat onto the back plate and turn the power back on.

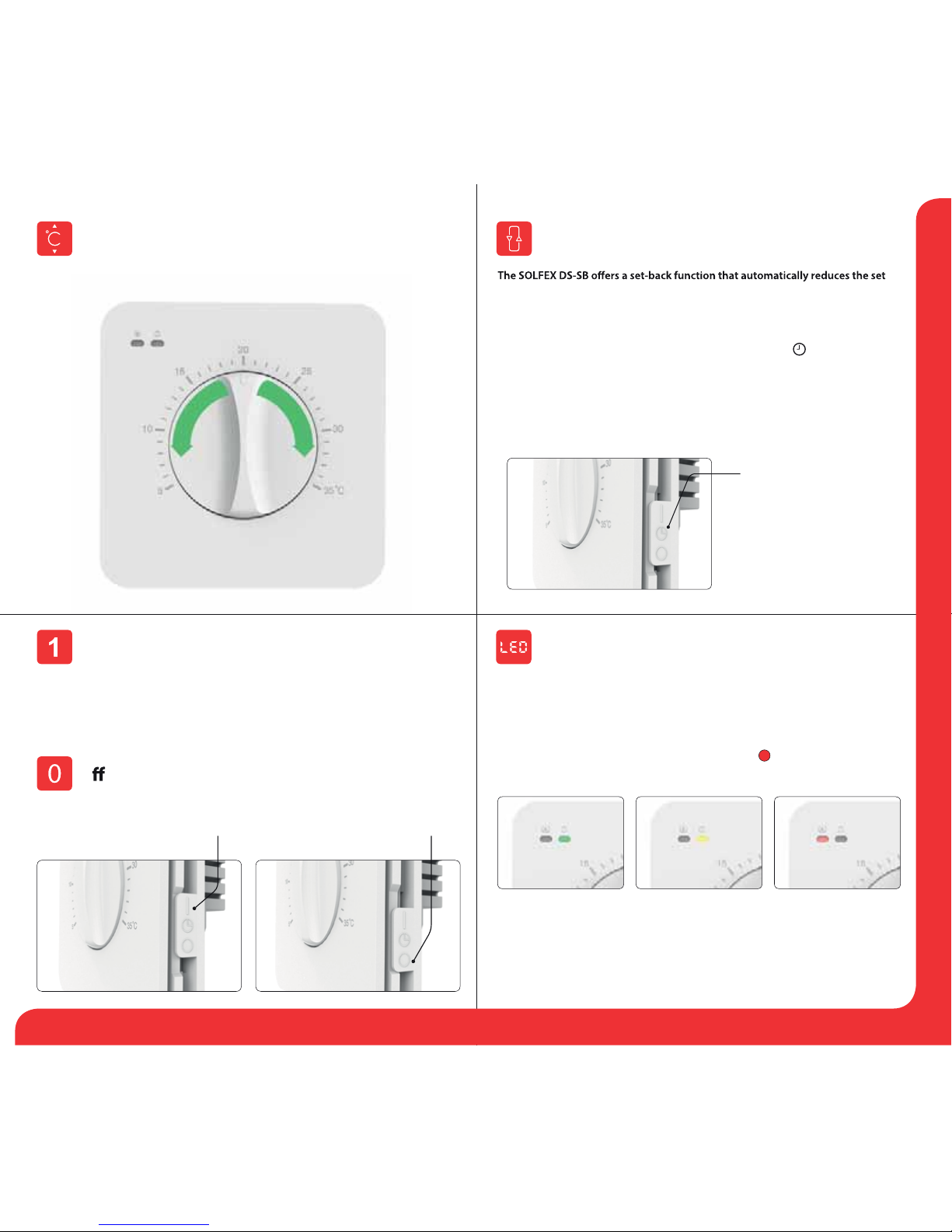

Setting The Temperature
Set-back Mode Position
LED Indication
Placing the thermostat switch into position 0 will turn OFF the heating completely.
Constant Mode
OMode
Constant Mode Position OFF Mode Position
Heat OnSet-back ModeNormal Mode
Set-back Operation
To change the set point, rotate the dial until it points to the desired temperature.
temperature by 4°C.
To make use of the set-back function, a 230v time clock is also required on the system.
Place the thermostat slide switch into the time clock position.
When the thermostat receives a 230v signal from the time clock it will control the
temperature according to the dial setting.
When no 230v signal is received from the time clock, the thermostat will operate in
setback mode and automatically reducing the set temperature by 4°C
Right LED
The right LED is the power LED. It is a two colour LED and is used to indicate the
time clock / set-back status.
Left LED
The left LED indicates the heating status. It illuminates when the thermostat is
calling for heat.
The time clock can be bypassed by placing the switch into position 1.
In this position, the thermostat will ignore the time clock input and will continuously
control to the set temperature. This feature can be used to extend the heating period
without the need to adjust the time clock program.
