Solenco Purification Pal

Air Purifier

User Manual

READ AND SAVE THESE INSTRUCTIONS

WARNINGS

Failure to comply with the warnings listed below may

result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other

than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric

shock and injury to persons.

• Read all instructions before using the appliance.

• To avoid fire or shock hazard, plug the appliance directly into a AC electrical outlet.

• Keep the cord out of heavy traffic areas. To avoid fire hazard, NEVER put the cord under rugs, near heat registers,

radiator, stoves or heaters.

• To protect against electrical hazards, DO NOT immerse in water or other liquids. Do not use near water.

• Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always

supervise children when they are near the unit.

• Always unplug the air purifier before moving it, opening the grill, changing filters, cleaning or whenever the air

purifier is not in use. Be sure to pull by the plug and not the cord.

• NEVER drop or insert any object into any openings.

• DO NOT run cord under carpeting.

• DO NOT cover cord with throw rugs, runners, or similar coverings.

• DO NOT route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be

tripped over.

• DO NOT operate any appliance with a damaged cord or plug, if motor fan fails to rotate, after the appliance

malfunctions, or if it has been dropped or damaged in any manner. Send to Customer Service for assistance.

• Use appliance only for intended household use as described in this manual. Any other use not recommended by

the manufacturer may cause fie, electric shock or injury to persons.

• DO NOT use outdoors.

• DO NOT place anything on top of unit.

• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa, as this could cause the

unit to tip over, blocking the air intake or outtake opening.

• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your

warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified

personnel only.

• This device contains a UV lamp. If the device is used incorrectly or the casing is damaged, it may cause dangerous

UV radiation to overflow. Even a small dose of UV radiation may damage glasses and skin.

• WARNING: To reduce the risk of fire or electric shock, do not use this fan with any

solid-state speed control device.

INTRODUCTION

Thank you for purchasing our product. This 3-in-1 HEPA air purifier is designed to capture dust, pollen, pet

dander, smoke, mould spores, and household odors so you can breathe easily.

PRODUCT FEATURES

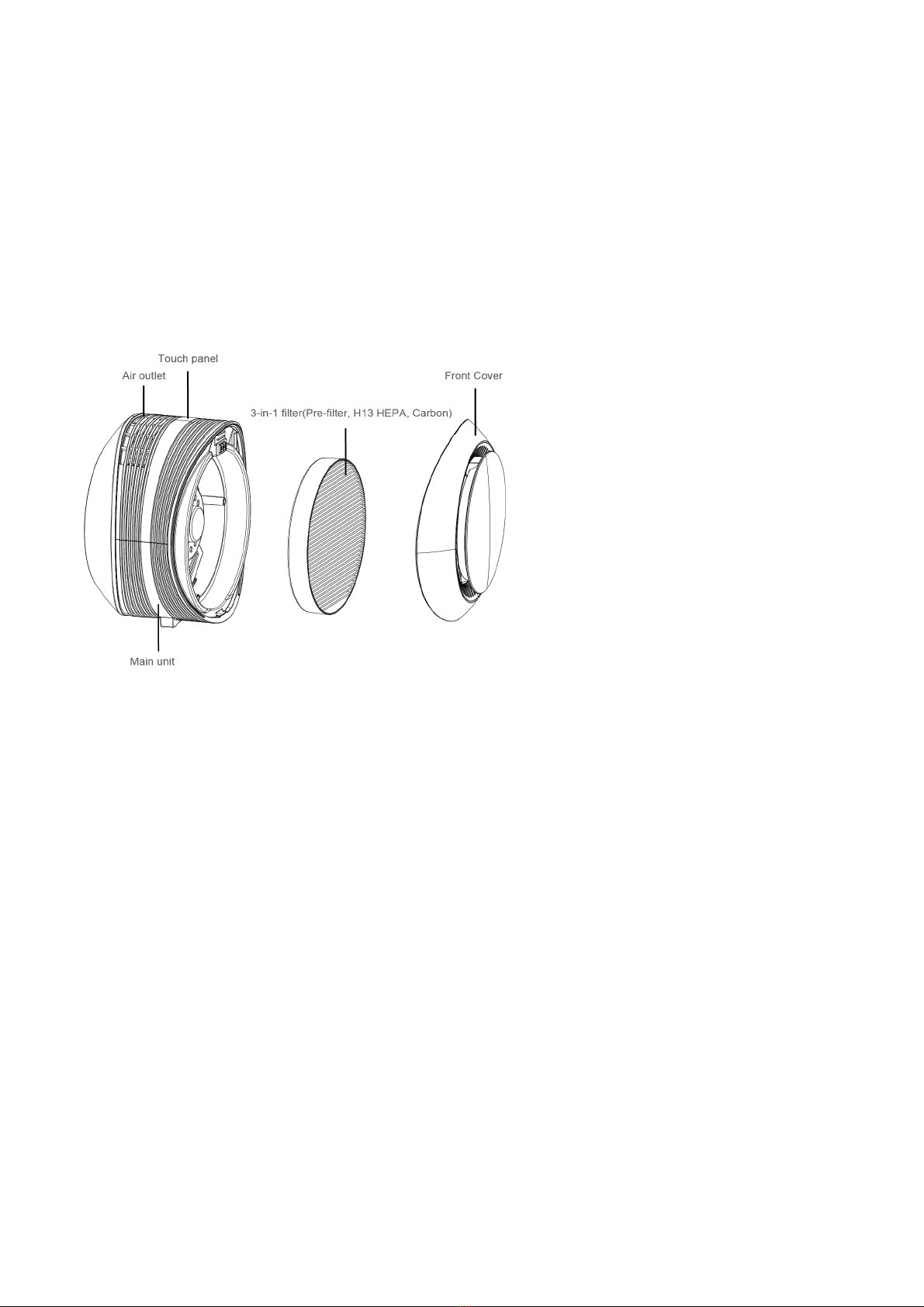

The diagram below highlights all the important features of the unit.

3-IN-1 FILTER TECHNOLOGY

Pre-filter:

Captures initial dust and allergen particles.

H13 HEPA Filter:

Captures dust, smoke, pollen, and other allergens.

Active carbon filter:

Absorbs odor and other noxious gases.

PRE-OPERATING INSTRUCTIONS

1. Carefully remove the unit from the box and plastic bag.

2. Select a firm, level, and flat location to position the unit.

NOTE: For proper air flow, place the unit at least 1 meter away from any wall or furniture.

Make sure none of the vents are blocked.

3. Before using, remove the filter from the plastic packaging.

4. Plug the unit into an AC electrical outlet.

IMPORTANT: When moving the air purifier, always lift unit firmly with your hands.

OPERATING INSTRUCTIONS

1. POWER BUTTON

Press this button to turn unit on or switch unit off.

Note: When RESET FILTER light turns on, it’s time to replace the filters. After replacing filters, press and hold the

power button for 5 seconds to reset the filter change indicator.

2. SLEEP AND UV-C BUTTON

A.) Press this button to turn on or turn off the UVC lamp and sleep mode.

B.) When sleep mode is on, the sleep indicator will flash for 5s, then all the indicators will turn off automatically

and the fan speed will change to the low setting automatically (Press this button again within 5s to avoid entering

sleep mode).

C.) If any other button (except for the power button) is pressed when sleep mode is on, the unit will come back on to

low speed and then you can choose your setting.

3. SPEED BUTTON

The fan speed of the unit can be adjusted when the unit is in operation (L/M/H/Turbo).

4. TIMER BUTTON

By pressing this button, the purifier can be timed to operate for intervals of 2 hours, 4 hours, and 8 hours, stopping

automatically when the selected operating time has elapsed.

NOTE: When the unit is not in use, switch it off and unplug it.

UV Lamp replacement

Note: Ultraviolet radiation is dangerous to eyes and skin, please do not use UVC emitter outside the device. Please

contact the after-sales service center to replace the UV lamp and do not look into the UV lamp when it is ON.

INSTALLING & REMOVING FILTERS

FILTER REPLACE INDICATOR

When the RESET FILTER is on, it is time to replace filters and reset the program.

Replace the filter according to the directions below then press the POWER button holding for 5 seconds to

restart the program system. The light will turn off.

NOTE: The 3-in1 filter will last approximately 6-12 months depending on your air quality and environmental

conditions.

1. Open the front cover from the top.

2. Find the strips at both sides of the filter. Remove the filter by pulling the strips.

3. Insert the new filter into the unit. Make sure the strips are installed outwards and the black pre-filter is facing the

front cover for correct installation direction.

4. Reattach the front cover of the unit and securely latch into place.

5. Press and hold the Power button for 5 seconds to reset Filter Change indicator.

CLEANING & MAINTAINING THE FILTER

For optimal performance, the 3-in-1 filter should be cleaned at least once every month. More frequent cleaning may

be required depending on the environmental conditions where you live. Use the brush attachment on your vacuum

cleaner to remove lint and dirt from the filter.

NOTE: The 3-in1 filter is not washable. DO NOT wet the filter when cleaning.

Front (Pre-Filter+H13 HEPA) Back (Active Carbon Filter)

MAINTENANCE CAUTION

Use a clean, dry, soft cloth to wipe the external surface of the unit.

NOTE: Do NOT stick any foreign objects or your fingers inside the unit.

CAUTION: Do NOT use gasoline, benzine, thinners, harsh cleaners, etc. on and/or in

the unit while cleaning as they will damage the product.

NEVER use alcohol or other solvents.

Warranty: 2 years as from the date of purchase

FOR ANY WARRANTY CLAIMS, PLEASE CONTACT US DIRECTLY.

SOLENCO SOUTH AFRICA

086 138 8878

INFO@SOLENCOSA.CO.ZA

Label for recording the filter replacement date

ENTER THE INSTALLATION DATE OF THE NEW FILTER

____________ ___________ ___________

Day Month Year

Place this label inside the unit.
