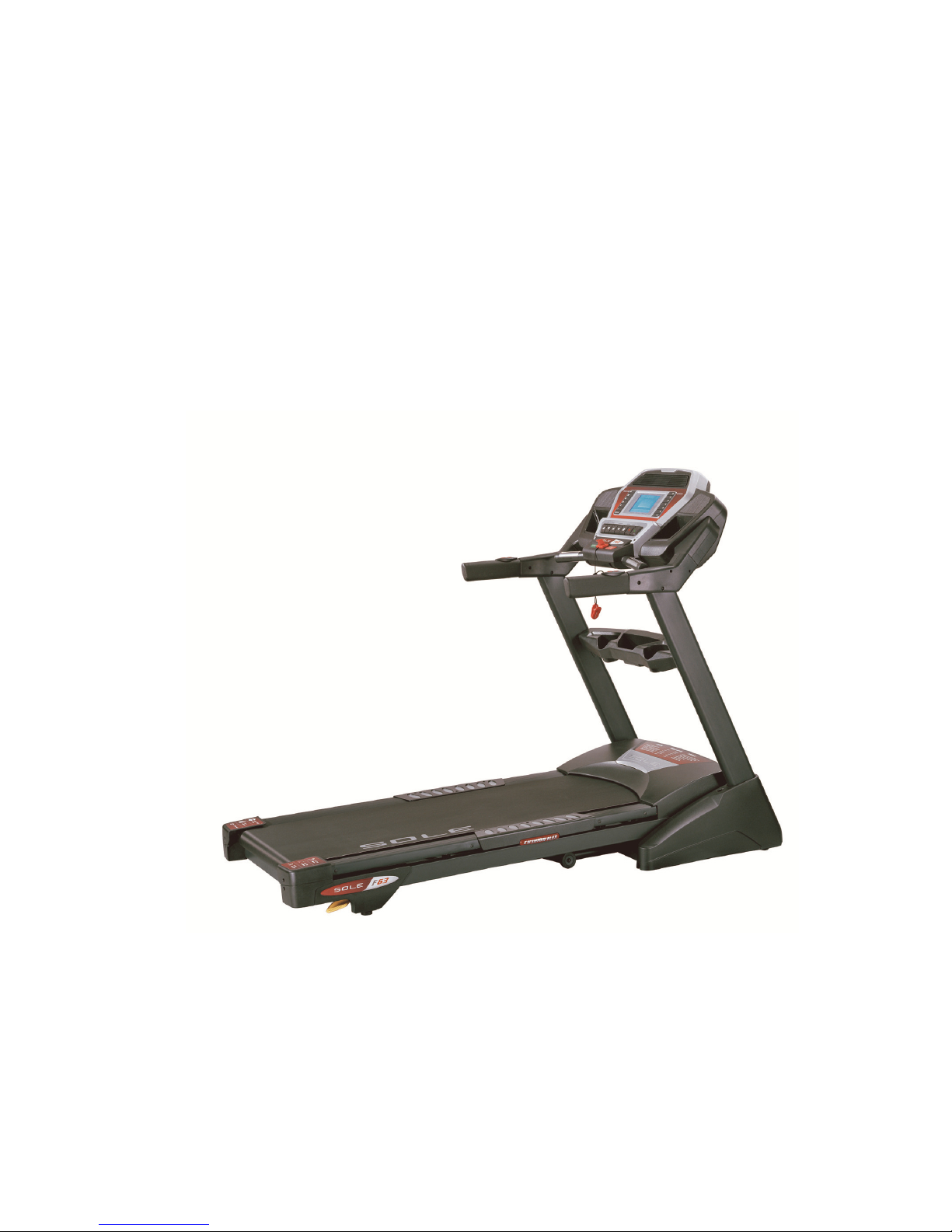

SOLE ST100-YT33 Manuel utilisateur

-Y

WARNING:

ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL

OUTLET BEFORE SERVICING THE UNIT.

TABLE OF CONTENTS

Table of Contents...................................................................... 1

Table of Figures ........................................................................ 3

Description................................................................................ 4

LECTRICAL

ONFIGURATION

....................................... 4

1. ST100-YT33 Treadmill components ........................ 4

1. Console ...................................................................... 5

2. Main controller.......................................................... 5

3. Treadmill motor ........................................................ 5

4. Incline motor............................................................. 5

Operation................................................................................... 7

INDOW

ISPLAY

ODE

............................................... 7

1. OFF Mode................................................................. 7

2. READY Mode .......................................................... 7

3. RUN Mode................................................................ 7

4. SLEEP MODE .......................................................... 7

UNCTION

........................................................................ 8

1. SPEED ...................................................................... 8

2. Incline ....................................................................... 8

3. TIME......................................................................... 8

4. DISTANCE............................................................... 8

5. CALORIES ............................................................... 9

6. PULSE ...................................................................... 9

7. LAPS......................................................................... 9

UNCTION

UTTON

AIN

ODE

............................... 9

1. READY MODE ...................................................... 10

2. RUN MODE ........................................................... 10

ALIBRATION

ROCEDURE ................................. 11

1. Calibration............................................................... 11

Troubleshooting ...................................................................... 13

1. General.................................................................... 13

2. Troubleshooting Matrix .......................................... 14

3. controller debugging form ...................................... 21

Diagrams and Schematics ....................................................... 22

APPENDIX A......................................................................... 25

1. TREADBELT ADJUSTMENT.............................. 25

APPENDIX B ......................................................................... 27

1. TREADMILL LUBRICATION ............................. 27

APPENDIX C ......................................................................... 28

1. RESET SWITCH RESETTING ............................. 28

APPENDIX D......................................................................... 29

APPENDIX E ......................................................................... 30

1. SPEED SENSOR ADJUSTMENT......................... 30

2. SERVICE QUESTIONS......................................... 30

TABLE OF FIGURES

Figure 1 Operational Flowchart ............................................... 6

Figure 2 Console Layout........................................................ 22

Figure 3 Mechanical Layout .................................................. 22

Figure 4 Main Controller information & voltages................. 23

Figure 5 Function JK1 connector on Main Controller........... 23

Figure 6 Wiring Diagram........................................................ 24

Figure 8 If Treadbelt slips...................................................... 25

Figure 9 If tread belt shifts too far to the Right ..................... 25

Figure 10 If tread belt shifts too far to the Left...................... 26

Figure 11 Resetting Reset switch........................................... 28

DESCRIPTION

A E

LECTRICAL

ONFIGURATION

Note: Electrical servicing of this treadmill is limited to board

level replacement.

1. ST100-YT33 TREADMILL COMPONENTS

a) Safety key:

To fits on the Console that activate all functions. If no safety

key, console can not be controlled.

b)Console:

Interface that controls all functions of the treadmill.

c) Main controller:

The circuit board consist of the DC power supply for

consol

e、

incline drive

and DC motor driver, link the

console to output appropriate voltages for motor that

control the treadmill functions.

d)Treadmill motor:

This is a variable speed for DC motor. To control the 0 –90

voltages on the main controller, it can to increase or

decrease speed of running belt.

e) Incline motor:

This is an ac motor. User can to control variable

elevation by console within main controller.

ENERAL

NFORMATION

1. CONSOLE

a) Contains LCD windows which are twenty rows of "dots"

(8high) indicate each segment of a workout. DISTANCRE

，

CALORIES

，

PULSE

，

TIME

，

SPEED

，

INCLINE.

2. MAIN CONTROLLER

a) Include power supply

、

motor driver control circuit and incline control

circuit.

3. TREADMILL MOTOR

a) It’s a variable speed on 0-90 volt DC motor.

b)Have three wires red, black and green.

c) If there is DC voltage on the Red wire (M+) the treadmill motor will turn

clockwise.

d)If there is DC voltage on the Black wire (M-) the treadmill motor will turn

counter-clockwise.

e) The higher the voltage the faster the motor turns.

f) The green wire is ground.

4. INCLINE MOTOR

a) This is a 110 volt AC motor.

b)Have four wires, red, black, white and green.

c) Has one 3 pins cable of position sensor.

d) If there is AC voltage on the Red wire (UP) the incline motor will increase the

incline.

e) If there is AC voltage on the Black wire (DOWN) the incline motor will

decrease the incline.

f) The White wire (COM) is neutral.

Figure 1 Operational Flowchart

OPERATION

A W

INDOW

ISPLAY

ODE

1. OFF MODE

a) When user doesn’t insert the SAFETY KEY on the console, the treadmill

enters the OFF Mode and all windows will appear blank.

2. READY MODE

a) When the treadmill is ON and the sfasekey is in released status in console,

( LCD windows and twenty rows "dots" (8high)) 7 SEGMENT LED display

"0:00", MANUAL LED will be bright, the LAP light s run a circle each

second.

b)TIME, DISTANCE and CALORIES Values will all be saved when RUN

Mode enters READY Mode.

c) In READY Mode, if user doesn't press any button for 30 minutes it will

automatically turn off (blank out).

d)Console will display current software version in MESSAGE window;

DISTANCE window displays total accumulated working distance; TIME

window displays total accumulated working time.

e) Incline will be calibrated to zero automatically. If incline is faulty, INCLINE

window will display ERR (At this time, incline is non-function but other

functions are normal.

3. RUN MODE

a) In RUN Mode, pressing the “STOP” button and removing the SAFETY

KEY will cause the treadmill stop instantly and enter OFF Mode.

b)Display will automatically shift every 5 seconds.

c) Press "Display" button to exchange the displaying of LED which includes

laps of Track, Incline profile and Speed profile.

4. SLEEP MODE

a) In SLEEP Mode, if any buttons are pressed then the treadmill

enters READY Mode.

B F

UNCTION

1. SPEED

a) Display the current speed in Kilometer per hour.

b)DISPLAY range is 0.0 to 99.9 mph.

c) WORK range is 1 to 18 km(0.5/12MPH).

d)Press Speed

↑

“FAST” or Speed

↓

”SLOW” to adjust speed, each increment

and decrement is 0.1 mph.

2. INCLINE

a) Display the incline position from 0 to 15.

b)DISPLAY range is 0 to 999.

c) WORK range is 0 to 15.

d)INCLINE preset value is 0 to 15.

e) Press “UP” or ”DOWN” to adjust incline, each increment and decrement is 1.

3. TIME

a) TIME is either COUNT UP or COUNT DOWN. System preset is COUNT

UP; if user sets the time then timer is COUNT DOWN.

b)DISPLAY range is 0:00 to 99:59.

c) WORK range is 0:00 to 99:59.

d)COUNT DOWN setup range is 10:00 to 99:00.

e) When TIME is set, the count will go to zero.

f) In RUN Mode, press “START” button to save value of time and enter “RUN

Mode” again that value will continue count up time.

4. DISTANCE
