Solax BUGGY PLUS Manuel utilisateur
Please read this Owner’s Manual before operating your scooter for the first time.

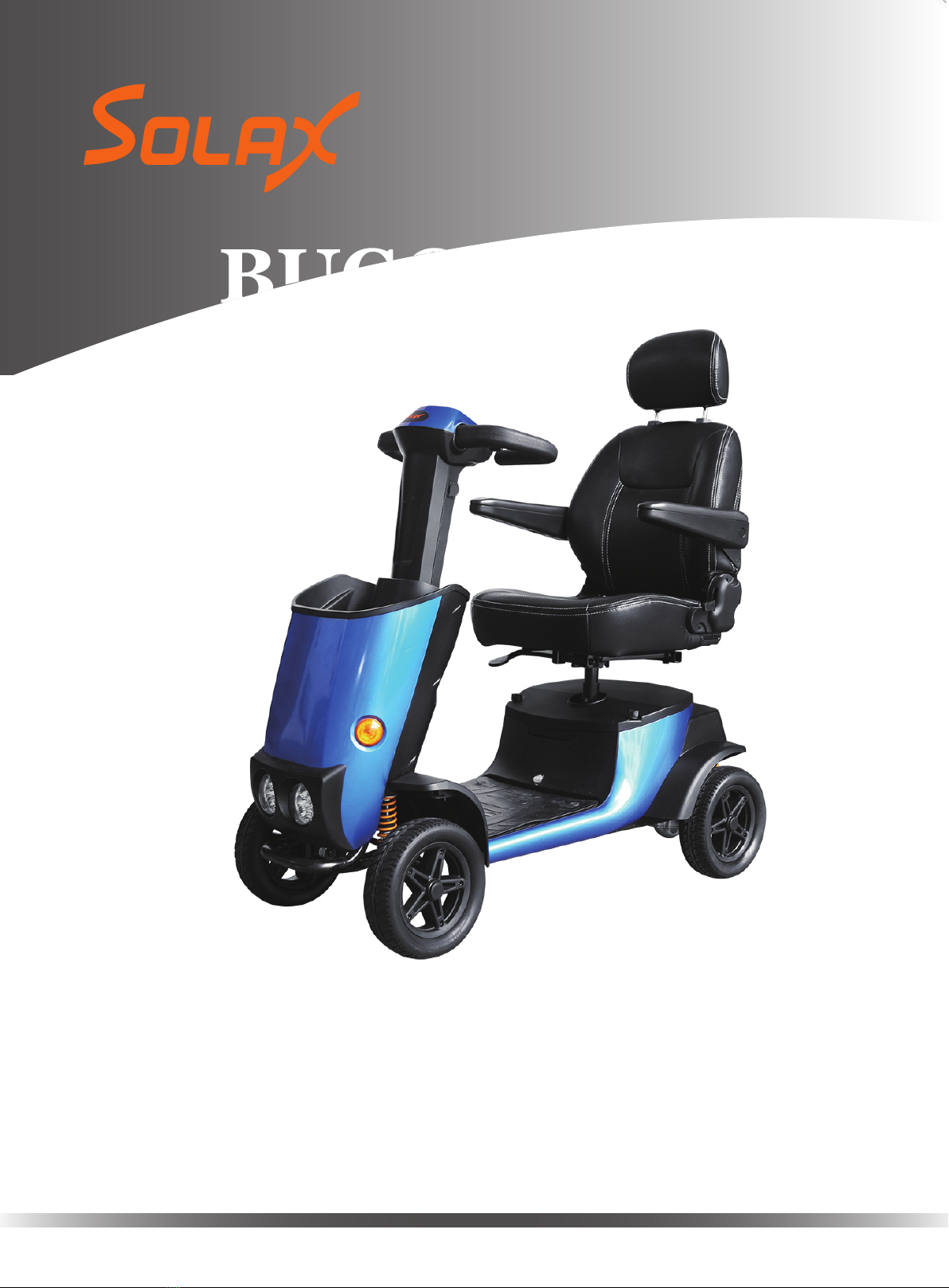

BUGGY PLUS
Four-Wheel Outdoor
Rear Wheel Drive Scooter
Product images may vary and will be subject to real products received.
2
OWNER’S MANUAL
CONTENTS
1.Outline----------------------------------------------------------------------------------3
2.Product Introduction----------------------------------------------------------------4
2.1 Parts------------------------------------------------------------------------------4
2.2 Technical Specifications-----------------------------------------------------5
3.Safety Guideline---------------------------------------------------------------------6
3.1 Safety Notices------------------------------------------------------------------6
3.2 EMI & RFI Information------------------------------------------------------12
3.3 Labeling Instruction---------------------------------------------------------13
4.Operation Instruction--------------------------------------------------------------14
5.Batteries & Charging--------------------------------------------------------------18
6.Operation Procedure--------------------------------------------------------------20
7.Driving Instruction------------------------------------------------------------------21
8.Maintenance, Repair and Storage--------------------------------------------22
9.Warranty Card----------------------------------------------------------------------25
Product images may vary and will be subject to real products received.
3
OWNER’S MANUAL
1.OUTLINE
Dear Customers:
Thank you very much for choosing Solax electric scooter!
Please read this manual carefully before operating the scooter for the first
time. This manual is applicable tothe Four-Wheel Outdoor Rear Wheel Drive
Scooter- Buggy Plus. If you do not understand all of the content completely or
you need further assistance, pleasecontact your scooter supplier: Dongguan
Prestige Sporting Goods Company Limited.
Calls tothe following number are not free, Incase of emergency, you may
contact dealers nearby for assistance.
TEL: +86-0769-85922501
Do not modify your scooter in any way; doing so will void the warranty.
4
1
2
3
4
5
6
7
8
9
10
11
12
13 16
17
18
20
21
19
1
2
3
4
5
78
6
910
11
12
13
14
15
16
20
21
17
18
19
Ｓ５０２３ OWNER’S MANUAL
2. PRODUCT INTRODUCTION
2.1 Parts
Handle Group
Storage Bucket
Front Signal Indictor
Front Shroud
Headlight
Front Wheel
Rear Shroud
Tail Shroud
Charging Port
Gas Spring Switch
Release Lever
Rear Wheel
Anti-Tip Wheel
Rear Bumper
Rear Signal Indicator
Seat Assembly
Control Panel
Delta Handle
5
Ｓ５０２３ OWNER’S MANUAL
2.2 Technical Specifications
Model S5023
Weight Capacity 150kg
Tyres 10inches of front wheel and rear wheel
Speed 0-8 km/h
Range Up To 30km
Battery 12V/33Ah x 2pcs
Charger 24V/5A
Controller 24V/70A
Motor 350W
Brake System Electromagnetic Brake
Drive System Rear Wheels Drive
Weight (with battery) 77.5kg
Weight（without battery）57.5kg
Turning Circle 1500mm
Length 1215mm
Wide 582mm
Height 1160mm
Handle Delta
Ground Clearance Minimum 60mm
Max. Climbing Angle 12°
Color Red/Black; Blue/Black；White/Black
Note: Final confirmation of the specifications, please subject to real products received.
6
Ｓ５０２３ OWNER’S MANUAL
3.SAFETY GUIDELINE
3.1 Safety Notices
1. Please read this manual carefully before operating the scooter for the first time.
2. Please assess the personal health of the user before driving. The following
conditions are not suitable for driving: sick or physically unwell and visually
impaired, especially those with impaired upper limbs; those with acute cancer;
those with heart disease; ;woman who is pregnant or in menstruation; children
(under 12 years); Inconvenience or slowness of consciousness; patients who are
unconscious, comatose, and have poor blood circulation or severely sensitive skin;
consult a physician if they have concerns about their own health before using;
consult a physician before using a heart rate adjuster.
3. Do not operate your scooter when you are tired, or after consuming alcohol.
4. Do not drive your scooter at night without proper lighting.
5. Always make sure the power is turned off when getting in and out of the scooter.
1.Failure to heed the warnings in this manual can result in personal injury.
2.Failure to pay attention to the precautions in this manual may result in damage to
your electric scooter.
3.Do not turn on the power or try to drive the scooter while sitting unsteadily.
4.Please turn off the power when stop or leave to avoid danger of touching the
starting lever by mistake.
5.Keep your center of gravity stable when riding in a vehicle. Avoid stretching or
bending the body that loses equilibrium to cause a rollover or a fall of personnel.
6.This vehicle is suitable for single-person rides. It is strictly forbidden to carry two
or more people to avoid accidents and dangers.
F I G .1F I G .2
F I G .3
D A N G ER
F I G .4
F I G .5 F I G .6
7
Ｓ５０２３ OWNER’S MANUAL
Don’t leave children playing
alone nearby the mobility scooter.
Do not operate your
scooter after consuming alcohol.
Do not use cell phone or any
mobile device while riding the scooter.
Make sure there is no obstacle
behind while reversing scooter.
No sharp turning or
sudden stop while driving scooter.
Never drive into traffic area.
F I G .7 F I G .8
F I G .9
Safety Belt
F I G .10
8
Ｓ５０２３ OWNER’S MANUAL
Please read this manual carefully before operating the scooter for the first time.
Don’t attempt to drive on
slopes more than 12 degrees.
Do not leave hands and
legs off improper location.
No driving in snow or slippery area. Fasten seat belt and
put your legs on foot plate.
1. Do not drive a scooter on public streets and highways. Please note that when
you are sitting on a scooter, it is difficult for other vehicles to see you. Please
follow local traffic rules and drive carefully in busy areas or shopping malls.
2. Always make sure the power is turned off when getting in and out of the scooter.
9
Ｓ５０２３ OWNER’S MANUAL
5. In some situations, user needs the presence of a trained companion to operate
the scooter. The trained companion can be a family member, or a care professional
that specializes in assisting the daily life of the scooter user. Check with your doctor
if you are using a drug that affects safe driving.
6. Please do not lift or move the scooter through the detachable parts of the body,
for example, handrails, seats, and outer casings, otherwise the scooter will be
damaged.
7. Please operate the scooter within the limits described in this manual.
8. Don't sit on a contemporary walker while on a moving vehicle.
9. When driving the scooter, keep your hands away from the wheels. Also note that
loose clothing may also get caught in the tires.
10. Please consult your physiotherapist if you are using prescription drugs or if you
have specific physiological limitations. Because some drugs and limitations may
prevent you from operating the scooter safely.
11. Please note whether the driving mode is on.
12. If the scooter has an anti-roll device, please do not remove it.
13. Contact may result in electric shock and do not allow wiring on the A C /A D
converter or charger.
14. Please do not lift or move the scooter through the detachable parts of the body,
for example, handrails, seats, and shells.
3. Make sure scooter in good condition before driving. Do not suddenly turn off
power switch while the scooter is running.
4. Failure to note the warnings in this manual may cause personal injury. If you are
unable to understand this manual, please contact our local dealer, or technician for
assistance.
