SolaX Power DataHub 1000 Manuel utilisateur

DataHub 1000

User Manual

SolaX Power Network Technology (Zhejiang) Co., Ltd.

320101034802

                                                                                              DataHub 1000 User Manual

I
Contents
Safety........................................................................................................................................................................ 1
Overview of DataHub............................................................................................................................................... 2
1 Introduction ................................................................................................................................................... 2
2 Appearance .................................................................................................................................................... 2
3 LED Indicator ................................................................................................................................................ 3
Installation ................................................................................................................................................................ 4
1 Packing List ................................................................................................................................................... 4
2 Device Installation ......................................................................................................................................... 4
2.1 Preinstallation Check.......................................................................................................................... 4
2.2 Indoor Wall Mounting......................................................................................................................... 5
2.3 Guide Rail Mounting .......................................................................................................................... 5
Electrical Connection................................................................................................................................................ 6
1 Inverter Connection ....................................................................................................................................... 6
2 Installation of RS485 ..................................................................................................................................... 6
3 Installation of DI Signal Cable ...................................................................................................................... 7
4 Installation of AI Signal Cable....................................................................................................................... 7
5 Installation of DO Signal Cable..................................................................................................................... 7
6 Installation of Network Cable........................................................................................................................ 8
7 Connecting to Ripple Control Receiver......................................................................................................... 8
8 Connecting to DRED..................................................................................................................................... 9
Configuration Function........................................................................................................................................... 10
1 Login............................................................................................................................................................ 10
2 Site Management ..........................................................................................................................................11
2.1 Add Device ........................................................................................................................................11
2.2 Device Detail .................................................................................................................................... 12
3 Sits Setting................................................................................................................................................... 12
3.1 Export Limit Control ........................................................................................................................ 13
3.2 Power Control................................................................................................................................... 15
3.3 Other Setting..................................................................................................................................... 16
4 Inverter Setting ............................................................................................................................................ 17
4.1 Inverter Active/Reactive Power Setting............................................................................................ 17
4.2 Remote System Switch ..................................................................................................................... 18
4.3 Parameter Setting.............................................................................................................................. 18
4.4 IV Curve Scanning............................................................................................................................ 18

                                                                                              DataHub 1000 User Manual

II
5 Smart Scene ................................................................................................................................................. 19
6 Inverter Upgrade.......................................................................................................................................... 20
7 DataHub Setting........................................................................................................................................... 21
7.1 Internet Setting.................................................................................................................................. 21
7.2 Time Setting...................................................................................................................................... 21
7.3 Serial Port Settings ........................................................................................................................... 22
7.4 Other Setting..................................................................................................................................... 22
7.5 Datahub Information......................................................................................................................... 23
7.6 DataHub Upgrade ............................................................................................................................. 24
8 Password Modification ................................................................................................................................ 24
9 System Resetting ......................................................................................................................................... 24
Technical Specifications ......................................................................................................................................... 25
Certified Quality Assurance.................................................................................................................................... 26
1 Certification mark........................................................................................................................................ 26
2 Warranty....................................................................................................................................................... 26
3 Warranty Conditions .................................................................................................................................... 26
4 Exclusion of Liability .................................................................................................................................. 26
Contact Us .............................................................................................................................................................. 27
Appendix 1 Matched Model...................................................................................................................................... 28


DataHub 1000 User Manual

1 Safety

The DataHub produced by SolaX Power Network Technology (Zhejiang) Co., Ltd. has been designed and tested

strictly in accordance with relevant safety regulations. The safety instructions must be followed when installing and

maintaining the electrical and electronic equipment. Improper operation will cause personal injury and property

damage to the operator and the third party.

Children should be supervised to ensure that they do not play with DataHub;

Please do not open the top cover. Touching or replacing the components without authorization of SolaX

may cause personal injury or damage to DataHub. SolaX does not assume any responsibility and warranty;

Static electricity may damage the electronic components; therefore, appropriate anti-static measures should

be taken.

DataHub 1000 User Manual

2 Overview of DataHub

2.1 Introduction

DataHub, a special equipment of the monitoring platform of photovoltaic power generation system, has realized

many functions, with details as follows: interface aggregation, data acquisition, data storage, output control, and

centralized monitoring and centralized maintenance of inverters, electricity meters, environmental monitors and other

equipment in photovoltaic power generation systems.

2.2 Appearance

910 11 13 14 15 16

(1) Antenna jack

(3) RSTbutton(RST)

(5) USB socket(USB)

(7) LEDindicator (RUN,SERVER,ALARM)

(9) NETsocket(NET)

(11) CANsocket(CAN)

(13) DOsocket(DO)

(15) DI socket(DI)

(2) TF cardsocket(TF)

(4) SIM cardsocket(SIM)

(6) TYPE-C socket

(8) Railclip

(10) RS485socket(RS485)

(12) 12Vpower output(12V/GND)

(14) AI socket(AI)

(16) 12Vpower input(DC12V)

DataHub 1000 User Manual

2.3 LED Indicator

Sign

Status

Explanation

RUN

(GREEN)

Flash

The program runs normally.

Always on or always off

The program runs abnormally.

SERVE

(GREEN)

The network connection is

normal.

OFF

The network connection isn’t

normal.

ALARM

(RED)

Device alarms

OFF

No alarm

DataHub 1000 User Manual

3 Installation

3.1 Packing List

After receiving the package of DataHub, please check whether the accessories are complete and there is no obvious

damage to the appearance. If there is any damage or items missing, please contact the dealer.

Cross-sectional area 0.2mm²~2.5mm²(24AWG ~14AWG) dual-core or multi-core cables

Cat5e or higher standardnetworkcable

Cross-sectional area 0.2mm²~1.5mm²or (24AWG ~ 16AWG) dual-core or multi-core cables

Packing List

RS485

DO/DI/AI

NETCable

Line Specification

——

Power adapter Intallation instruction WiFiantenna

Rail buckle*2Plug-in terminal *5 Plug-in terminal*1 Plug-in terminal *1

Screws

6*30Nylon

ST4.8*L30sus304PAN

M3*L6sus304CHEN

M3*L8 sus304 PAN S +P

M2*L41022APAN

3.2 Device Installation

3.2.1 Preinstallation Check

For Wi-Fi mode, the longest connection distance between the router and the equipment should be no more than 150

meters; if there is a wall between the router and the equipment, the longest connection distance is 20 meters; the

number of walls between the equipment and the router should be less than 3.

For LAN mode, the requirements above are not applicable.

DataHub 1000 User Manual

*Note: When the Wi-Fi signal is weak, please install a Wi-Fi signal booster at the appropriate location.

3.2.2 Indoor Wall Mounting

1) Choose a flat and solid indoor wall to drill for installation;

2) Hang the DataHub on the wall with the cable connection area facing down.

(a) (b)

( )с

( )d

Expansion bolts

3.2.3 Guide Rail Mounting

1) Use the four M3*L6 screws in the accessory bag to fix the buckle on the DataHub.

2) Please prepare 35mm standard rail (effective length ≥230mm) and install it firmly.

*Note: The outdoor installation must be in a waterproof housing.

DataHub 1000 User Manual

4 Electrical Connection

4.1 Inverter Connection

1) The inverter is connected to the DataHub through the RS485. For the connection method of the inverter,

please refer to the inverter installation manual;

2) It is recommended that the number of devices connected to each channel of RS485 is less than 20;

3) The baud rate, communication protocol and verification method of the inverters connected to the same

RS485 port of DataHub must be consistent, and the communication addresses of the inverters must be

consecutive and not repeated.

DataHub

Electricitymeter

Inverter InverterInverter Inverter

RS485

R485S

4.2 Installation of RS485

Make sure that RS485+ is connected to DataHub’s RS485+, RS485- is connected to DataHub’s RS485-, RS485 GND

is connected to the GND of DataHub.

φ2.5mm

0.4-0.5N·m

Pocket Sign Illustrate

RS485A,RS485Differential signal+

RS485B,RS485Differential signal-

GND Ground wire

8-10mm8-10mm

Inverter(example)

RS485

RS4 85 -1

RS4 85 -2

RS4 85 -3

RS4 85 -4

DataHub 1000 User Manual

4.3 Installation of DI Signal Cable

DataHub can access DI signals such as remote control and alarms through the DI port.

D 1I

D 2I

D 3I

D 4I

Illustrate

8-10mm terminal

DI1~DI4

12V

Supportpa ssive

dry c o n tact

s i g n a l a cc es s

marksocket

4.4 Installation of AI Signal Cable

Installation advice：

It is recommended that the transmission distance does not exceed 10 m;

AI port 0 and AI port 1 are connected to AI signal +, and GND is connected to AI signal–.

8-10mm8-10mm GND

AI0~AI1

AI0

AI1

GND

Illustratemarksocket

Supports 0-12Vvoltageinput

4.5 Installation of DO Signal Cable

The DO port supports 30V signal voltage in maximum. The contact of four-group output is on by default.

Autres manuels pour DataHub 1000

Table des matières

Autres manuels SolaX Power Changer

SolaX Power

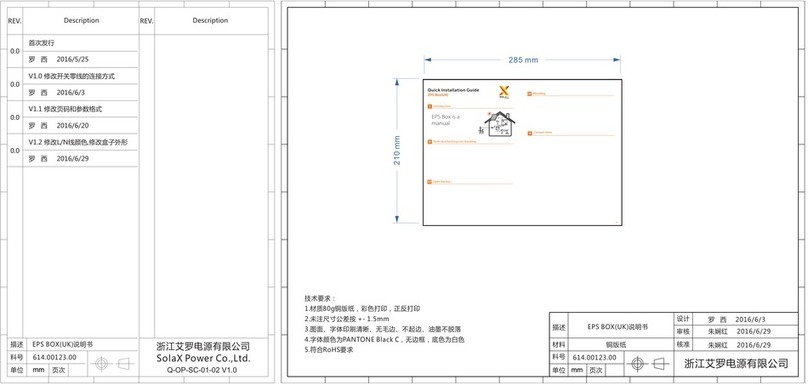

SolaX Power EPS Box Manuel utilisateur
