WiFiKitS-WE01S
QuickGuide

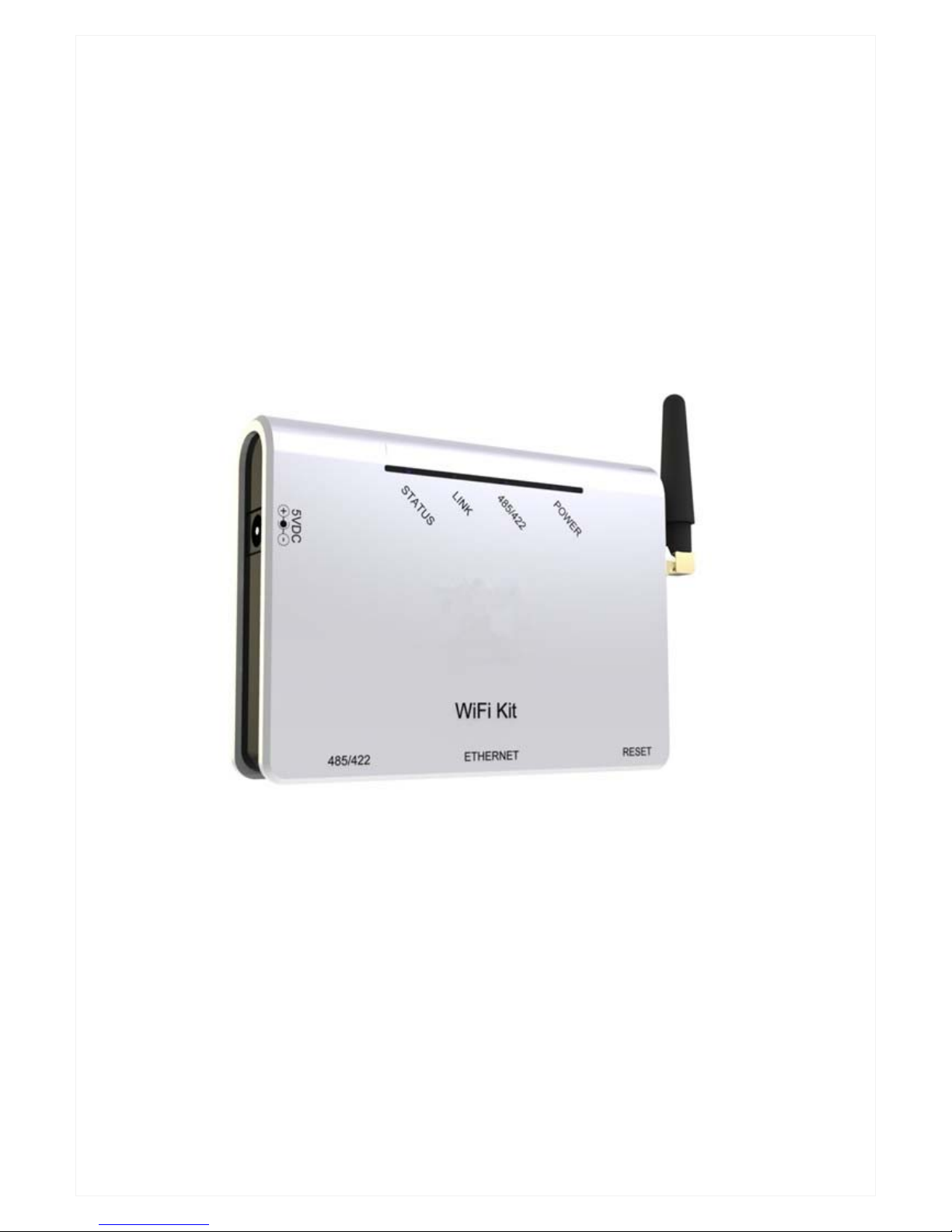

WiFiKitS-WE01SisanexternaldataloggerintheSolarMANPVmonitoringseries.
1
WiFiKitQuickGuide
ByconnectingwithsingleormultipleinvertersthroughRS485/422interface,theKitcancollectinformationofPV
systemsfrominverters.WiththeintegratedWiFifunction,theKitcanconnecttorouterandtransmitdatatotheweb
server,realizingremotemonitoringforusers.Inaddition,Ethernetisalsoavailableforconnectiontorouter,enabling
transmissionofdata.
Userscanchecktheruntimestatusofthedevicebycheckingthe4LEDsonthepanel,indicatingPower,485/422,Link
andStatusrespectively.
A : Unpack
B : Install data logger
C : Connect data logger and inverters
D : Network setting
E : Register on SolarMAN Portal
F : Log in SolarMAN Portal to manage power station
G : Trouble shootings
2
WiFiKitQuickGuide
ThisQuickGuideisintendedtoassistusersinquickinstallationandstartofWiFiKitS‐WE01S.Ifany
problems,pleaserefertocorrespondingchaptersofS‐WE01SUserManualfordetails.
A：Unpack
I.Checklist
Afterunpackingthebox,pleasemakesurealltheitemsarecontainedasfollows:
1PVdatalogger(WiFiKitS-WE01S)
1poweradapterwithEuropeanorBritishplug
2screws 2expandablerubberhoses
1QuickGuide
II.Interfaceandconnection
3
WiFiKitQuickGuide
Pin corresponding relationship between inverter and GPRS/Wifi unit.
B：Installdatalogger
WiFiKitcanbeeitherwall-mountedorflatwise.Pleasereferto3.InstallationofUserManualfordetails.
C：Connectdataloggerandinverters
4
WiFiKitQuickGuide
Notice:Powersupplyofinvertersmustbecutoffbeforeconnection.Makesurethatallconnectionsarecompleted,
thenpowerthedataloggerandinverters,otherwisepersonalinjuryorequipmentdamagemaybecaused.
I.Connectionwithsingleinverter
Connectinverteranddataloggerwithnetworkcable,andconnectdataloggerandpowersupplywithpoweradapter.
II.Connectionwithmultipleinverters
1.Stringconnectmultipleinverterswithnetworkcables.
2.Connectthefirstorlastinverterinthestringtodataloggerwithnetworkcable.
3.Connectdataloggertopowersupplywithpoweradapter.
Notice:Theconnectorsoftheconnectioncablemaydifferaccordingtothebrandsandmodelsofconnectedinverters.
1.Stringconnectmultipleinverterswithnetworkcables.
5
WiFiKitQuickGuide
2.Connectthefirstorlastinverterinthestringtodataloggerwithnetworkcable.
3.Connectdataloggertopowersupplywithpoweradapter.
III.Confirmconnection
Whenallconnectionsarefinishedandwiththepoweronforabout1minute,checkthe4LEDs.IfPOWERandSTATUS
arepermanentlyon,andLINKand485/422arepermanentlyonorflashing,connectionsaresuccessful.Ifanyproblems,
pleaserefertoG.Debug.
D：Networksetting
TheKitcantransferinformationviaeitherWiFiorEthernet,usersmaychoosetheappropriatemethodaccordingly.
I.ConnectionviaWiFi
Notice:ThesettinghereinafterisoperatedwithWindowXPforreferenceonly.Ifotheroperatingsystemsareused,
pleasefollowthecorrespondingprocedures.
1.PrepareacomputerordevicewithWiFi.
2.CheckthemodeofWiFi.
(a)WhenSTATUSisflashing,whichmeansthattheWiFimoduleisinAPmode,userscanproceedtostep4for
networksettingofdatalogger.
(b)IfWiFimoduleisnotinAPmode,resetthedataloggerfirst.Afterreset,ifLINKison,proceedtostep4,
otherwiseproceedtostep3.

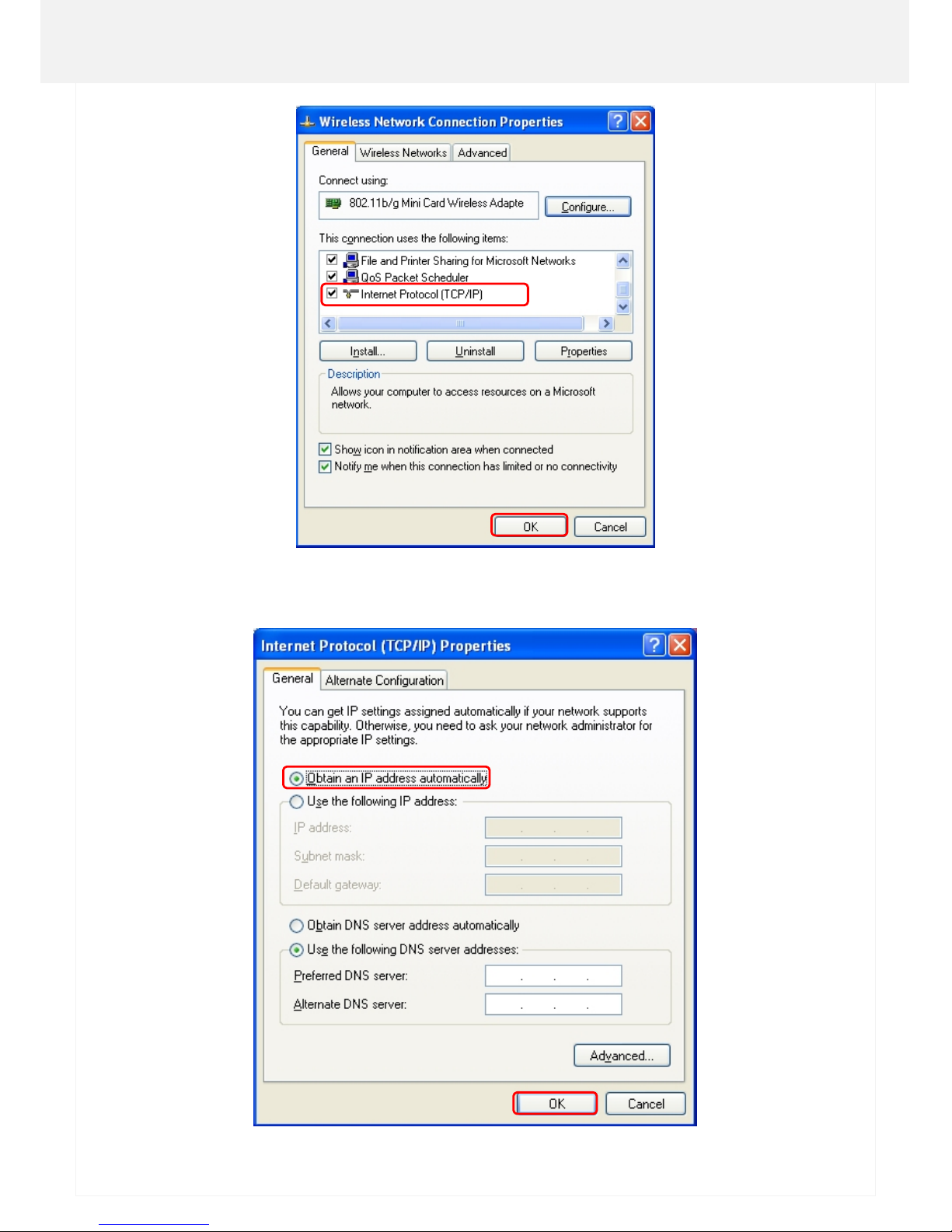

3.Setnetworkconnectionofcomputer
(a)ObtainanIPaddressautomatically.
○
1
OpenWirelessNetworkConnectionProperties,doubleclickInternetProtocol(TCP/IP)
6
WiFiKitQuickGuide
○
2
SelectObtainanIPaddressautomatically,andclickOK
7
WiFiKitQuickGuide

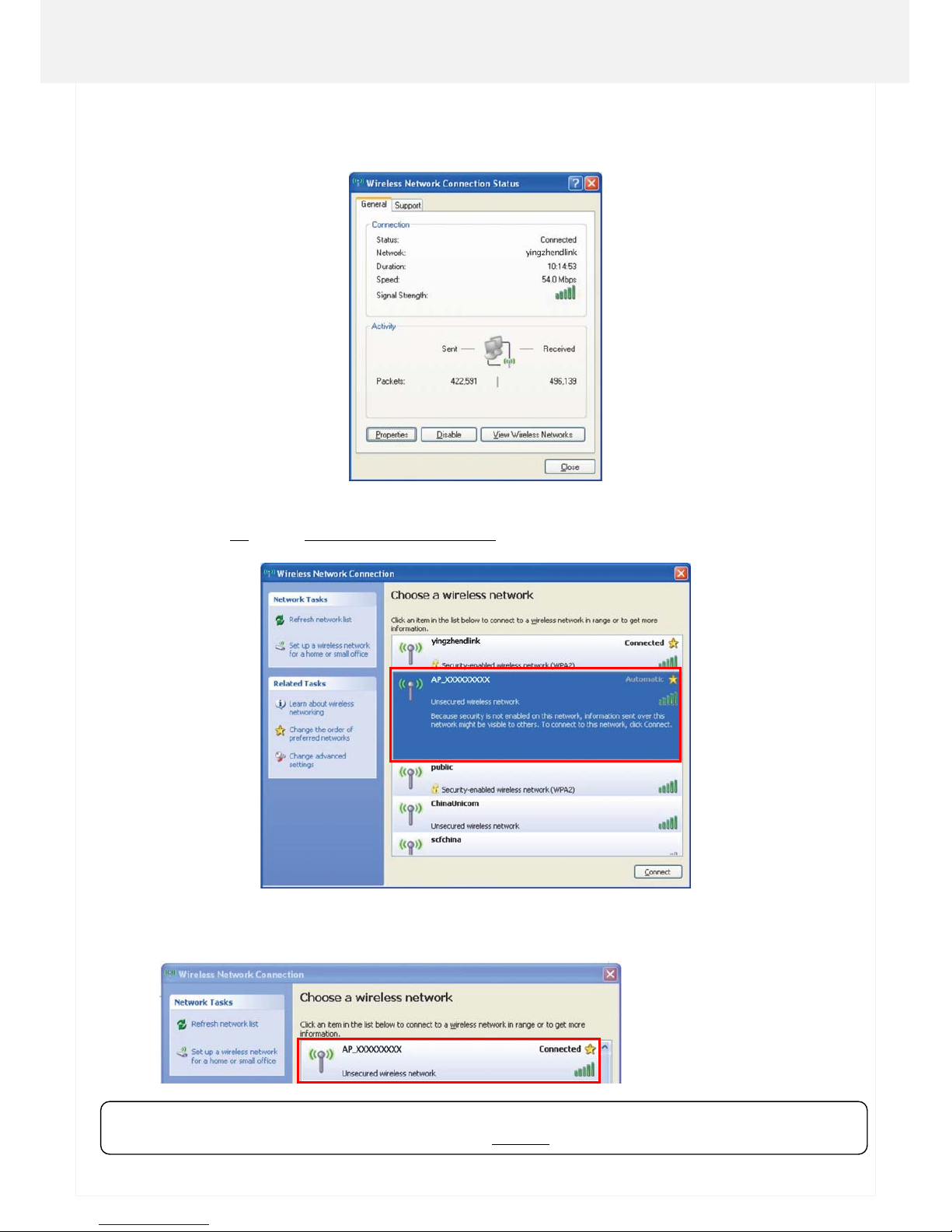

1.
SetWiFiconnectiontothemodule
○
1
OpenwirelessnetworkconnectionandclickViewWirelessNetworks
○
2Selectwirelessnetworkofthedataloggingmodule,nopasswordsrequiredasdefault.Thenetworkname
consistsofAPandtheserialnumberoftheproduct.ThenclickConnect.
○
3
Connectionsuccessful
Notice:IfAP_(serialnumberofproduct)isnotavailableinthewirelessnetworklist,theremaybeproblemsinthe
connectionorsettingofdataloggingmodule.Pleasereferto5.DebugofUserManualfortroubleshooting.
8
WiFiKitQuickGuide

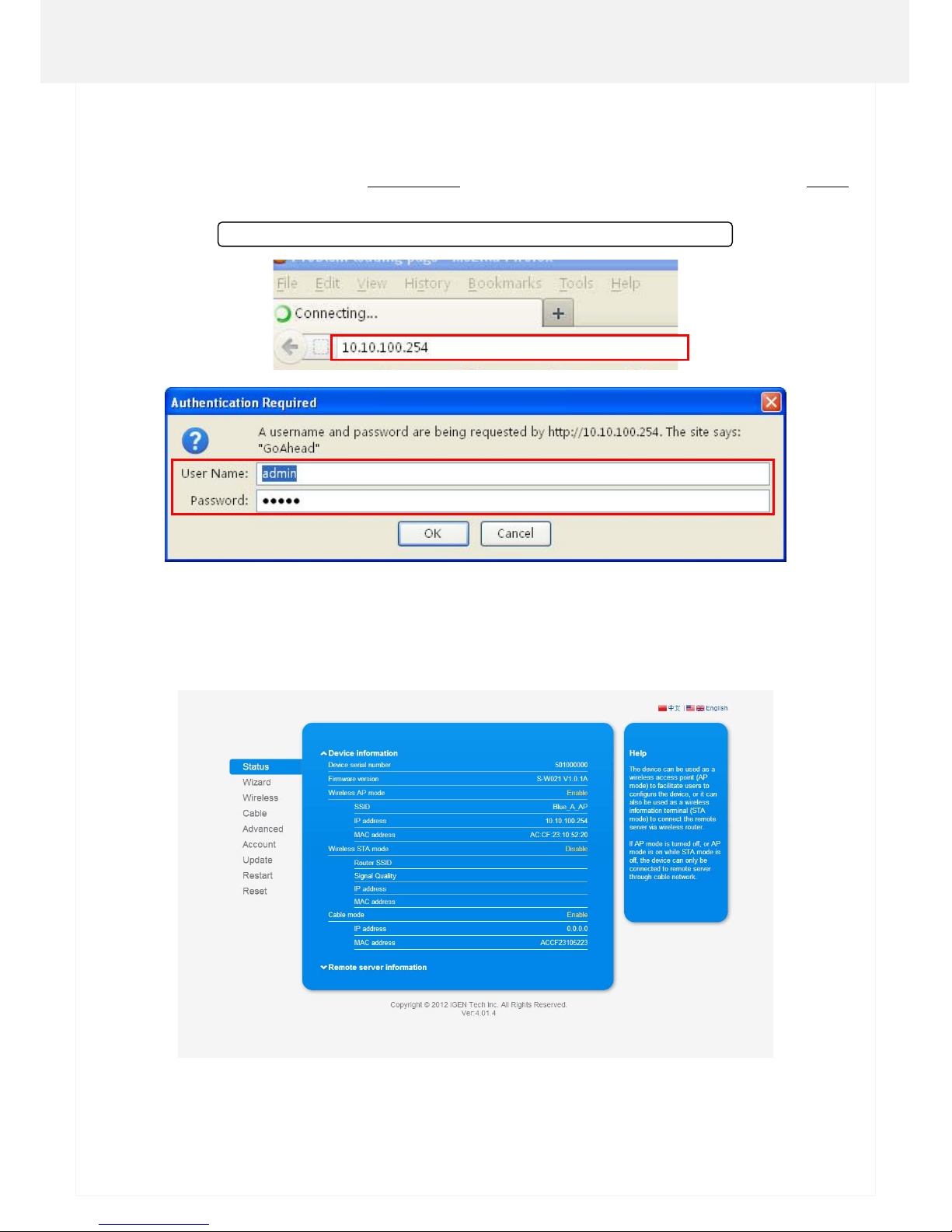

4.SetparametersofWiFimodule
(a)Openawebbrowser,andenter10.10.100.254,thenfillinusernameandpassword,bothofwhichareadmin
asdefault.
Recommendedbrowsers:InternetExplorer8+,GoogleChrome15+,Firefox10+
(b)IntheconfigurationinterfaceofWiFimodule,youcanviewgeneralinformationofthemodule.

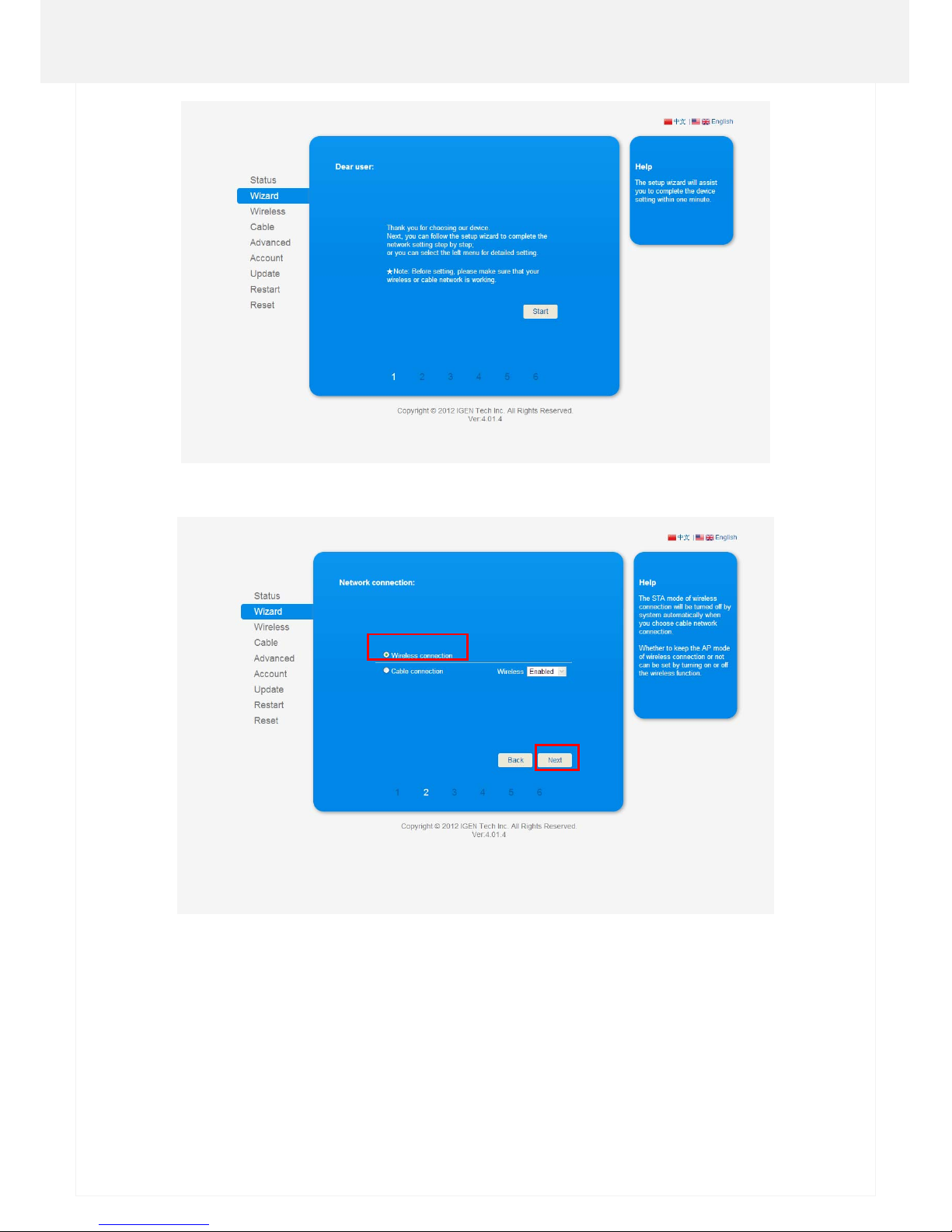

Followthesetupwizardtostartquicksetting.
○
1ClickWizardtostart
○
2ClickStarttocontinue
admin
admin
9
WiFiKitQuickGuide
○
3SelectWirelessconnection,andclickNext
○
4ClickRefreshtosearchavailablewirelessnetworks,oradditmanually
