INSTALLATION MANUAL
Advanced Lithium-Ion battery
SS4074-11
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Introduction 2
Product Description 2
Product Specifications 2
Errors or Inaccuracies 2
Copyrights 3
Safety Information 3
⚠ Warnings ⚠ Cautions 3
Specification 4
Mechanical installation 5
Installing bottom cover plate 6
Electrical installation 7
Commissioning 9
Multicolor multipurpose button 10
Button function 10
Button indication
BMS Warnings and Errors 12
CANBUS connection.
CANBUS warnings.
Troubleshooting Warnings / Errors
Maximum charging / discharging voltages for non supported
devices.
1
11
18
19
20
21
SS4074-11 INSTALLATION MANUAL v1.0
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Introduction
This manual is intended to provide assistance to an installer for the installation and
commissioning of the range of Solar MD Lithium Ion phosphate (LiFePO4) energy storage
solutions.
Product Description
meet most residential applications. The rated voltage is 51.2V nominal (to suit 48V systems).
WARNING: Read the entire document before installing or using the Solar MD battery. Failure
to comply with the instructions or warnings in this document could result in electrical shock or
Solar MD battery inoperable.
2
Larger systems are provided by Solar MD based on specific project requirements.
serious injury that can result in death or damage to the product that can render the SS4074
SS4074-11 INSTALLATION MANUAL v1.0
The SS4074-11 battery solution is available in one standard size and can be paralleled to
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Product Specifications
improvements at any time.
Errors or Inaccuracies
To communicate any inaccuracies, omissions or to provide general feedback regarding this
manual, send an email to [email protected]
Copyrights
All information in this document is subject to the copyright of Solar MD (Pty) Ltd. Additional
information is available upon request.
Safety Information
This manual contains important instructions and warnings that must be followed when using
⚠ Warnings ⚠ Cautions
● For communication and other information please read the BMS manual.
● Do not attempt to disassemble, repair, modify, or tamper with this battery unit.
● Do not insert foreign objects into any part of battery unit.
● Avoid exposure to any moisture.
● Do not expose to extreme temperatures.
● Do not drill any holes into the box.
● Use only an approved Solar MD installer to install this product.
3
accurate at the time of printing. Solar MD reserves the right to make any product revisions &
Failure to comply will void the warranty
SS4074-11 INSTALLATION MANUAL v1.0
All SS4074-11 specifications & descriptions contained in this document are verified to be
SS4074-11.
Read all instructions before installing and using the SS4074-11.
● Use SS4074-11 only as instructed.
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Specification
Battery type
Lithium Iron
Phosphate
Scalability
Yes
Battery module
SS4074
Communication
CANBUS 500kbps / CAN 2.0B
Rated battery capacity
7373 Wh
Can BUS termination
Single 120 Ohm
Output power
Max 5 kW
Canbus id range:
256 - 499
Usable battery energy @
0.3℃
7.37 kWh
Protection method
Cell level: uv / ov / oc
Position: x / y / x
Acceleration: x / y / z
Temperature: ot / ut
Nominal voltage
51.2V
Protection phy
Mechanical relay NO
Rated Current (Ampere)
100A
C Rating
0.69C
Number of battery modules
1 module
Com (CANBUS ) isolation
Yes 1.5kV
Weight
Transportation protection
Yes
Operating voltage
44.8V - 55.6Vdc
Indicator
Led, programmable
Communication
CANBUS
Addition IO
3 GPO
Dimensions of SS4074:
h/w/d (mm)
620/605
/200
Cell balancing
Passive balancing
Net Weight of SS4074
72 kg
Counters
Cycle counters and SoH
Battery cycle life [+25 ℃]
> 4000
AUX power output
5V 1A max
Charging efficiency
99%
Storage duration
6 months@+25℃
Operating temperature
-5℃ ~+50℃
Safety standards
compliance
IEC 62619/UN 38.3/UL1642
Transport
UN3480 & UN38.3
Cell Certificate
TUV / CE / RCM / UL1642
4
76kg
SS4074-11 INSTALLATION MANUAL v1.0
Solar MD 7.4kWh SS4074-11 specification
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa

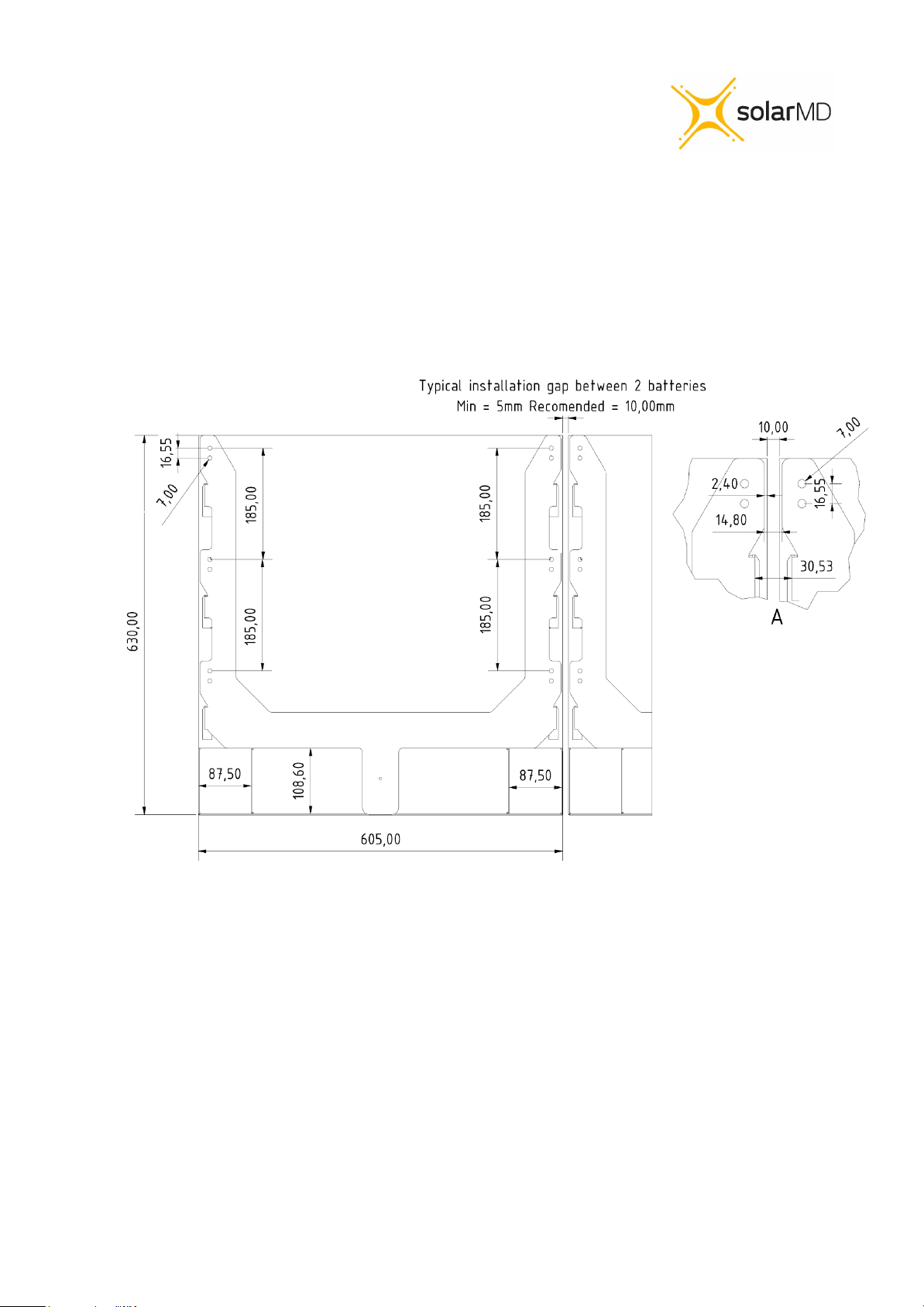

Mechanical installation
Please use the correct mounting screws for the correct wall surface. Screw heads should not
be larger than 16mm in diameter. The Battery is only to be installed in an upright position.
The maximum allowed tilt is 30 degrees.
5
SS4074-11 INSTALLATION MANUAL v1.0
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa

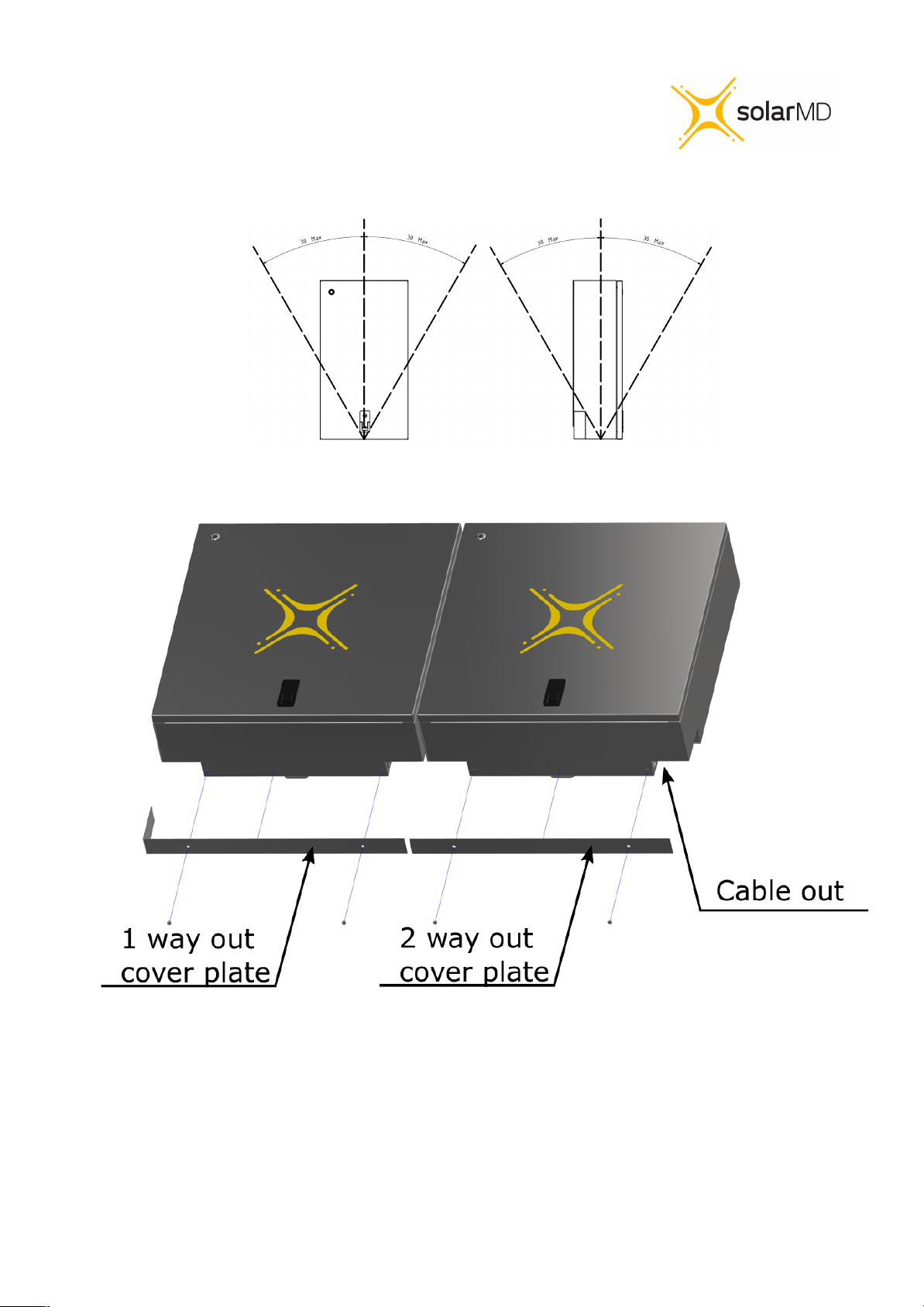

Installing bottom cover plate
The Battery comes with two covers for single out or double out on both sides of the battery. Use
the 1 or 2 way out cover plate and fix it with the two M5x6 bolts provided in the box.
6
Figure 3 Bottom cover installation single or multiple batteries in line
SS4074-11 INSTALLATION MANUAL v1.0
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Electrical installation
Step 1. Before connecting anything be sure that the battery ON/OFF switch is at OFF
7

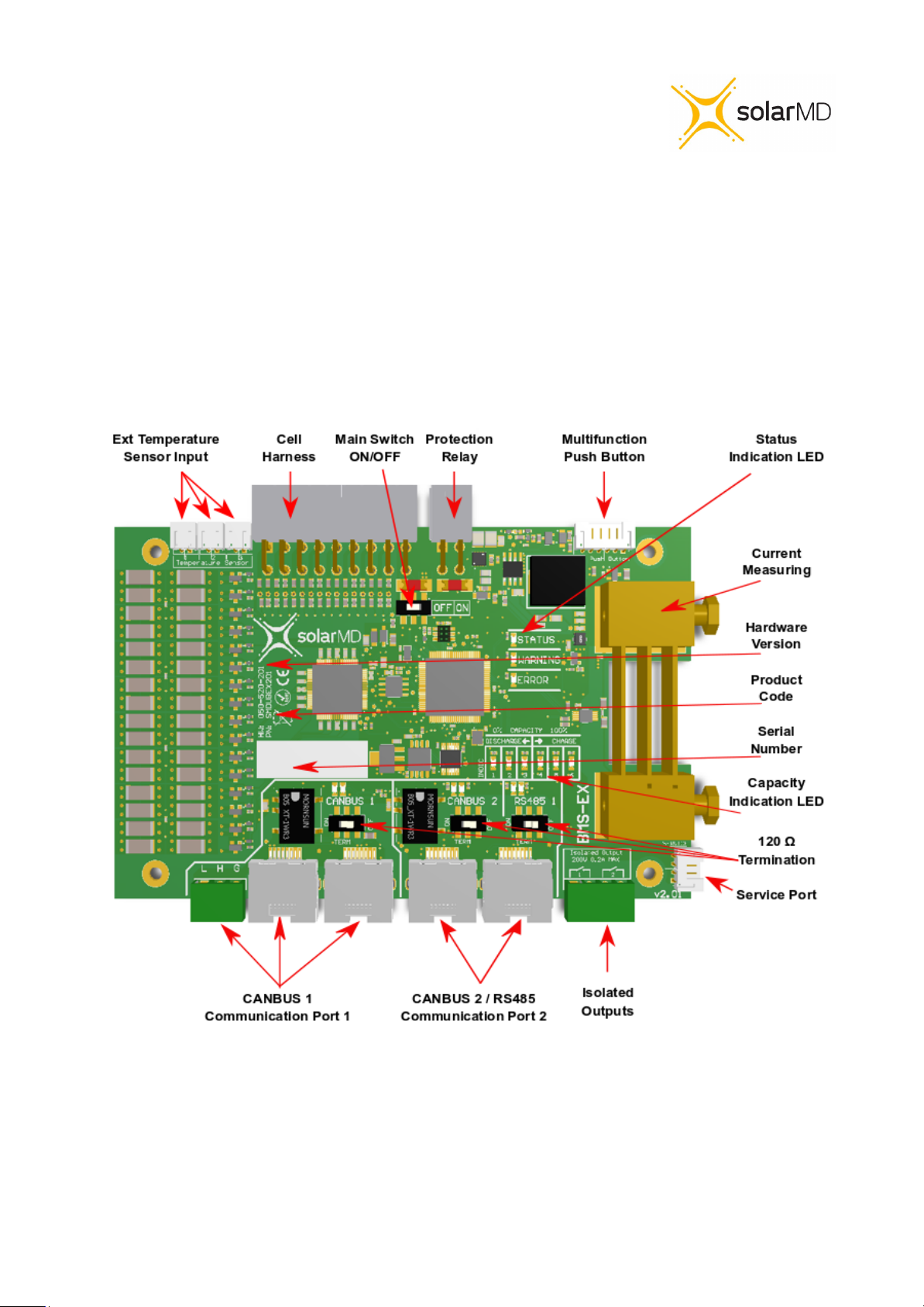

Figure 4 BMS board component locations
SS4074-11 INSTALLATION MANUAL v1.0
position. (fig4 pos 3)
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Connecting Inverters/chargers/UPS to the battery unit while is ON can cause big sparks due to
capacitors inside the connected device. This can be harmful for people.
Connecting main battery terminal must be with correct size cable.
based on the rated current of the battery and the charger/inverter in case it is lower.
Step 2. Connect the negative cable to the battery negative busbar and positive cable to the
8

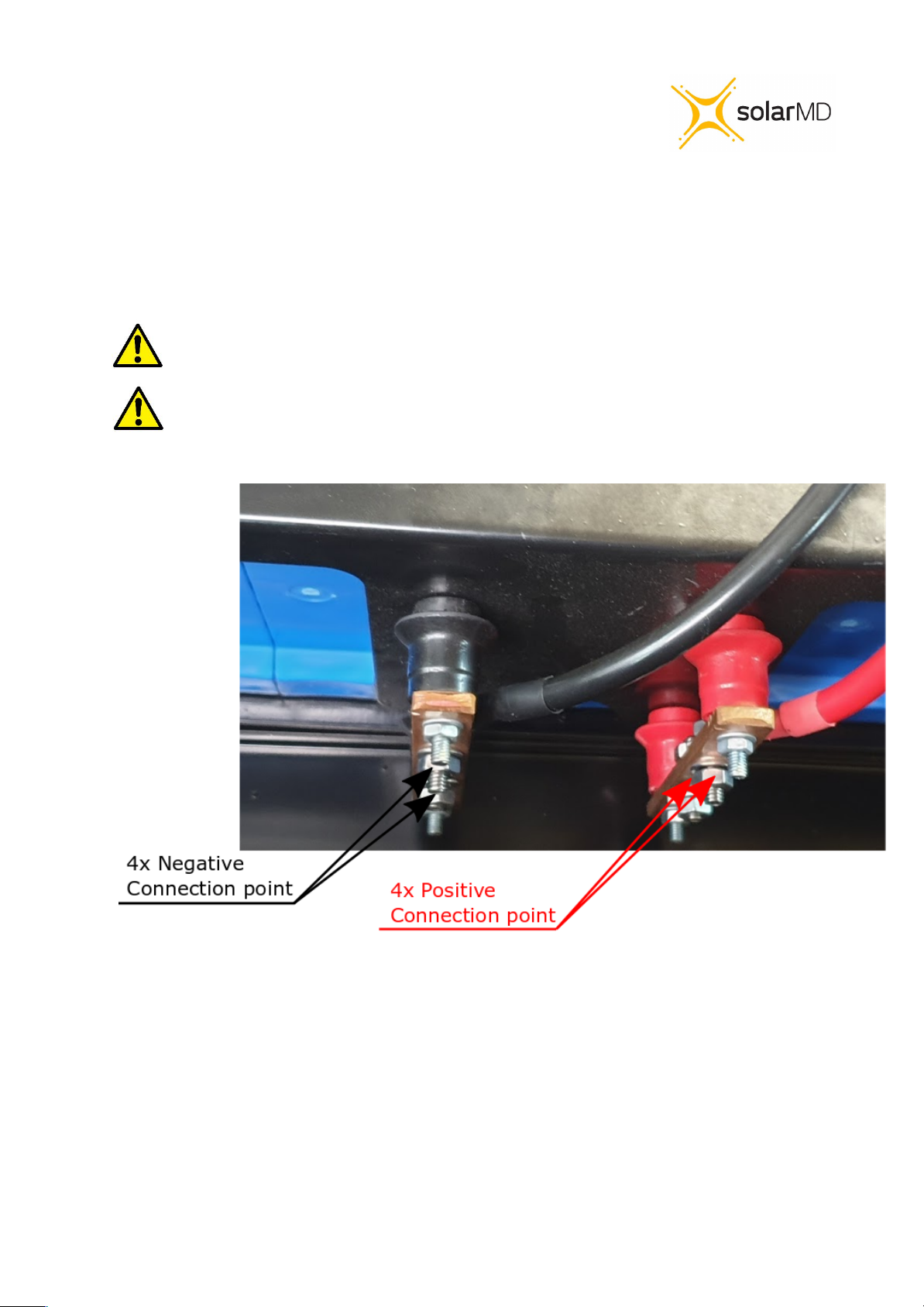

Figure 5 connection terminals
SS4074-11 INSTALLATION MANUAL v1.0
battery positive busbar as shown in figure 5.
Unit 23, Alternator Park
Montague Gardens 7441
Cape Town, South Africa
Switching the Battery ON
Step 1. Make sure all DC cables are tightened according specifications.
Step 2. If the battery operates in parallel with other Energy sources, make sure that the
difference between battery voltage and DC bus is not more than 2.5V. If greater than 2.5V
please Charge or Discharge the other source accordingly until voltage difference is in safe
ranges under 2.5V.
Caution! A hot connection with difference in voltage can cause very high
equalization current which can burn the fuses of the battery!
Caution! Measure the voltage of the battery before connecting the dc
Cables.
Step 5. Hold multi purpose button until the light comes on.
Warning! If the battery does not switch the main protection Contact ON in 7
sec, please check BMS board indication LED for faults. See section BMS Error
and Warnings.
9
SS4074-11 INSTALLATION MANUAL v1.0
Step 3. Turn the BMS board ON/OFF switch to the ON position (figure 4 pos 3).
Step 4. Connect Multipurpose button if not connected to the BMS board connector (figure 4
pos 5).
