WELCOME TO THE S

TEAM!

Thank you for selecting a S

L harness. You have just acquired a high quality product,

manufactured under one of the most demanding industry standards worldwide.

We trust your C

SÍ

ÍV

L will bring you many great life memories you will

cherish forever.

We would like you to read this manual carefully and thoroughly. In it, you will find

important information about using your new equipment.

In the event you should have any questions about its usage or should you wish to be

updated on the latest news at S

L, we remain at your disposal:

Phone: 0055 47 275 775

Mail: [email protected] or [email protected].

Don’t forget to access our website often at

http://www.solsparagliders.com.br.

to keep current on the latest models’ launchings, results and news from the world of

paragliding.

Welcome to the SOL Team!

ATTENTION

Please read this manual carefully and note the following details:

• This harness meets at the time of delivery the requirements of the LTF

certification or of the EN!

• Any equipment alteration will result in the cancellation of this respective

certification.

• Flying with this equipment shall be performed at the individual's own risk.

• The manufacturer and its representatives are not liable and therefore not

responsible for any misusage nor mishandling of this equipment.

• Every pilot is responsible for the maintenance and assessment of equipment

usability.

• It is a basic assumption that the pilot is certified to fly this paraglider.

•

This manual offers information about your paraglider. It is not a training

manual.

•

It is a assumption that the pilot respects the law and order of aviation and that

his skills are up to the challenge of this particular equipment!

About S

Founded in 1991, after six months of research and many visits to several

manufacturing facilities and suppliers, S

L began its production in partnership with the

European brands Condor, Comet and Nova, and became autonomous in 1999 with its

own testing and development centers.

From the beginning S

L has adopted the philosophy of utilizing certified designs,

manufactured with imported materials of the highest quality by specialized and skilled-

trained staff.

In 1995, the company moved to its current facility, occupying an area of .400 m² and

has at its disposal a team of about 140 employees, of which many are pilots. S

provides a comprehensive benefits package such as Health Plan, Life Insurance,

partnerships with pharmacies, transportation vouchers, incentive getaways to

employees who outperform each month, and education grants.

At S

L, we take extreme measures to maintain our machinery and manufacturing

equipment current with the world market. This way, we safeguard our accuracy

everyday in the production process, control and assuring the high quality of S

brand

and products throughout more than 70 countries around the world.

is one of the few paragliding enterprises worldwide to have its own manufacturing

facilities able to test every new model before making it available to the market, which

fosters the reliability necessary for excellent performance when flying.

In early 2004 S

became certified by DHV, which is the most respected regulating

body of free-flying worldwide. Its mandate is to make sure its members have the

capacity to reproduce faithfully the certified equipment on an industrial scale. Few

facilities in the world possess this certification in their manufacturing process. S

L was

one of the firsts to obtain it!

This is just one of the great accomplishments of this young and dynamic company,

which presently is among the ten major paragliding and accessories manufacturers in

the world!

Philosophy

L's philosophy is to introduce products that are considerably better than current

ones, in order to guarantee significant advancements in four aspects: Safety,

Performance, Ease of Operation and Innovation.

Safety: The new product has to offer a level of safety that is at par or better than the

one it is replacing.

Performance: The new product must perform better than the one it is replacing.

Ease of Operation: The new product must display higher levels and better operational

ease than the one it is replacing.

Innovation: New products must display real benefits to the user, facilitating free-flying,

increased safety, or both.

The development process and design of every new product begins at the computer.

Drawing Software, 2D, D modeling and simulation are utilized before the actual

manufacturing of prototypes, in order to ensure greater accuracy in each new design.

Introduction

is producing a complete line of

modern paragliders: from teaching to

competition and acro all pilots will

find their paragliders.

Since we are often in the air - testing

our gliders, for fun or breaking world

or national records - it was only logic

to develop our own harness to assure

the evolution in safety, performance, ease of operation and innovation.

As in any other product of S

L, we are using always the best and most carefully chosen

materials, they are granting a long life and a high security standard. All S

L paragliders

are manufactured in our own industrial park.

The harness C

sí

ív

l is a version of the well-known harness Mountain Light

Calliplox. But it is more comfortable and can be used as a backpack. Light and small it

can be used by all pilots. The harness has an integrated back-protector Airbag Cygnus.

The back-pack is comfortable and has solutions for long walks. The integrates system

for the reserve corresponds the European norm LTF/EN DHV GS-0 -0 75-10 in all

aspects (120 kg). In this manual you will find all important information about using

your new equipment Calliplox Reversível .

Technical innovations

• Lateral fitting with trimmer and safety strap

• ABS system

• Quick hook leg locking

• Water compartment hose gap

• Anatomic shoulders' cut

• Anatomic back-rest comprised of foam

• Spacious side pocket

• Shoulder strap attached to seat

• Lateral reinforcement for better load distribution

• Elastic setter for accelerator and foot support

• Sliding reserve parachute container

• Foot support

• Spacious baggage pocket

• Personal identification compartment

• Reserve independent bridle system, as per LTF/EN regulation

• Straps' handle as per LTF/EN regulation

• Adjustable quick “hook T Cobra of 8-55 cm

• Extended accelerator pulley

• Waist fitting

• Back-pack with:

o Pocket for waterbottle

o Personal identification compartment

o Regulation for chest-strap

o Hand support

o Shoulder strap regulation and cushioned

o Cushioned waist strap

o Height-regulation for shoulder strap

o Cushioned back

o Volume: 1 0 L

o Anatomic Back-Rest

o Pocket in Waisstrap

Adjustments and installations

The S

L-Harness provide a variety of adjustment possibilities, so that the pilot is able

to find his/her ideal flying position. The first adjustment must be done in a simulator

where you can be hanging in order to make the adjustments. It may be necessary to

take a few testing flights until the ideal setting is achieved, but the pilot will be

rewarded with amazing comfortable flights.

For your first flight, choose calm weather conditions. Should you need to make further

adjustments, it will be easier to find the ideal position after this first flight.

Attention

• Please install the carabines, the accelerator and the reserve before

you make the adjustments of the S

L-Harness.

• Never carry instruments that may perforate the harness backing in case of

impact!

Cara iners´installation

Attention

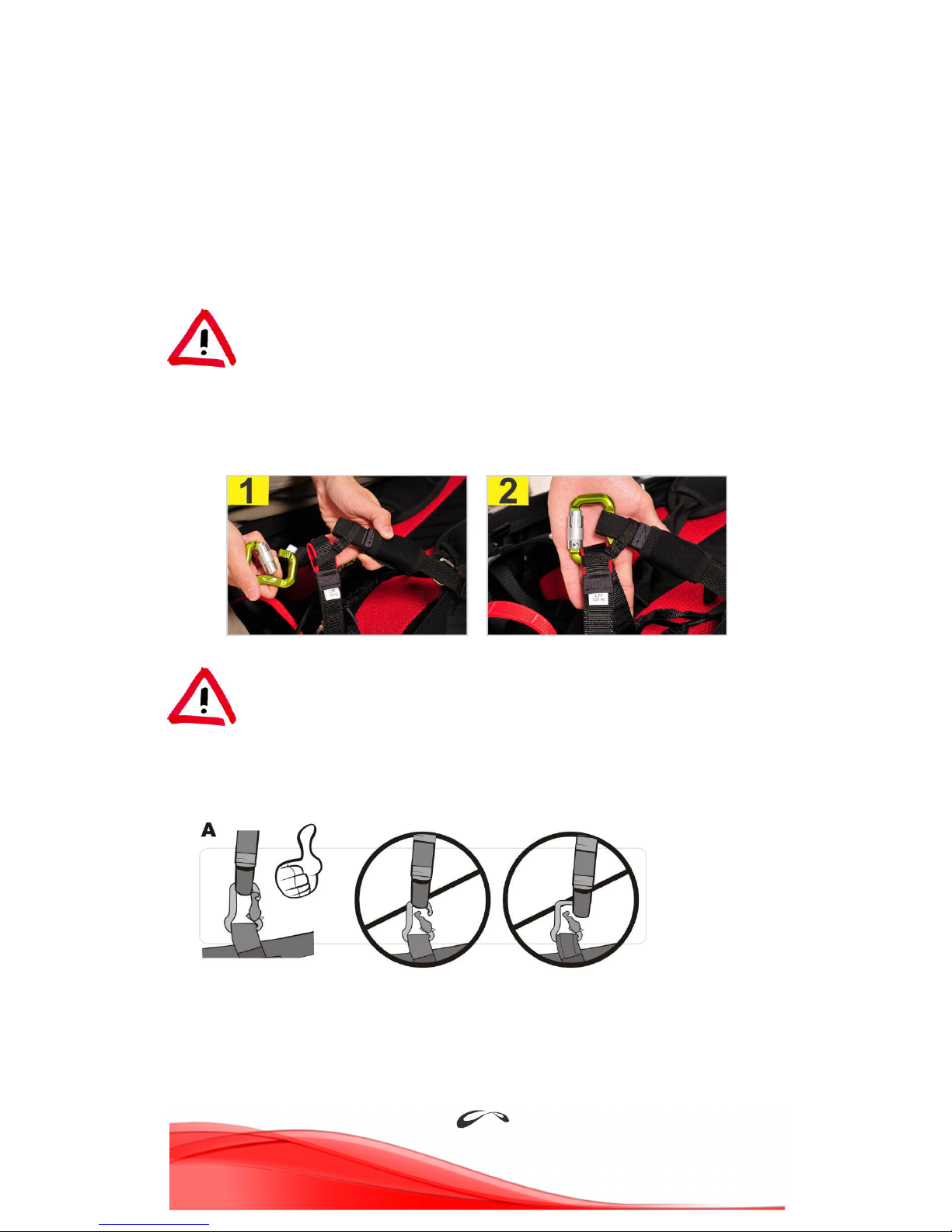

Carabiners: Pay attention at each installed carabine of the permission

and/or other references of the producer. You have to look out regularly for

thin fissures and/or mal-function. The carabine has to close always 100%.

If you choose to change the carabines (even made of steel) at least each 5 years or

after 250 flight hours you are making a wise decision.

Cara iners opening

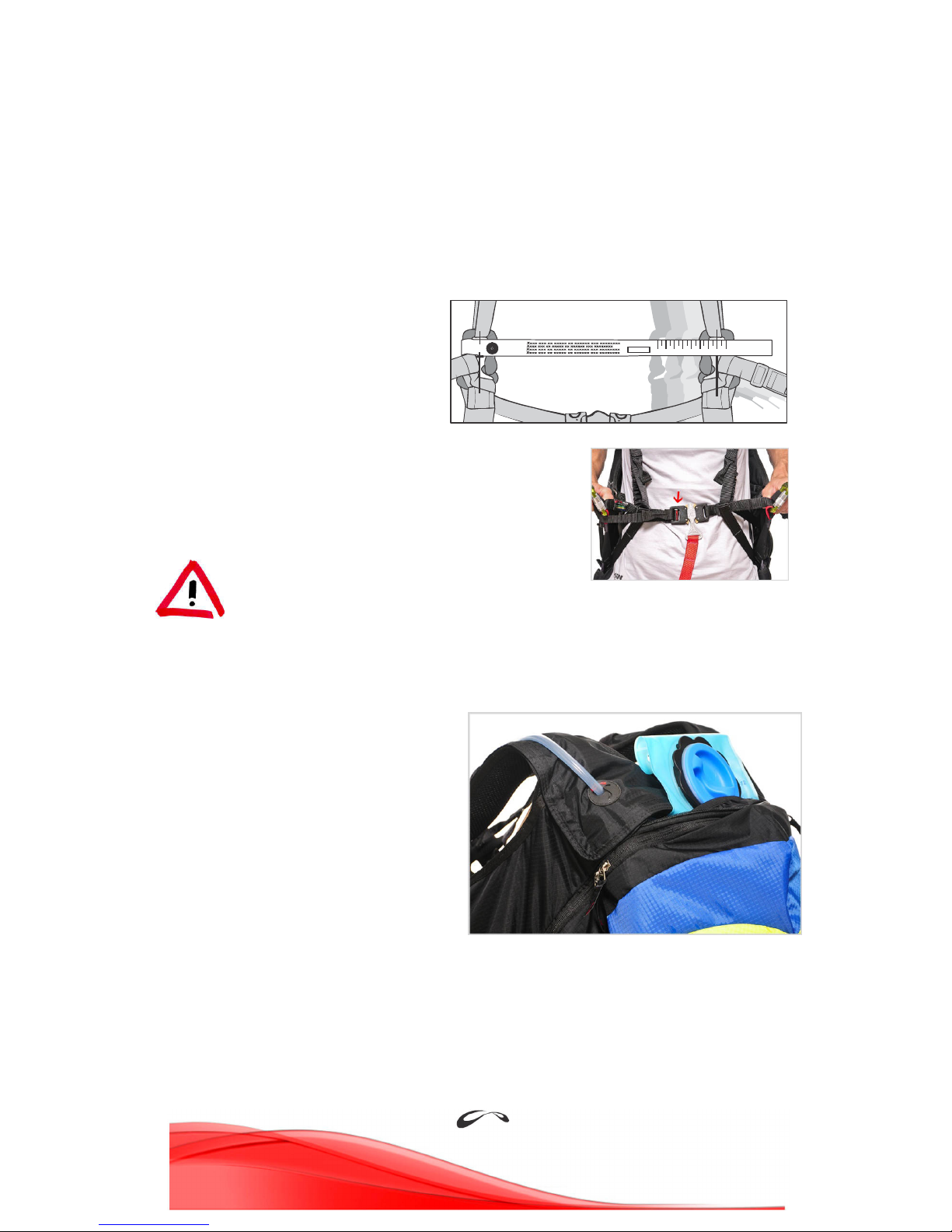

The chest strap is responsible for the carabiners opening, depending of the paragliders

size. Depending on the paraglider size, there is a measurement of the carabiners

opening to which the paraglider was designed and tested. With S

L paragliders you

must fly within these measurements. In case you are outside these measurements, the

paraglider's behavior can not correspond to the certification:

We have included a tape with your harness to help you set the exact measurement

of distance between the carabiners.

S 40cm

M 42cm

L 44cm

XL 46cm

For better orientation we marked the chest strap. If

you see the mark in the center of the hook the

carabiners opening is 42 cm.

Attention

You have to obey the opening in the

paragliders owner manual to maintain the certification.

Water compartment

Your harness C

sí

ív

l has at

its disposal a water compartment

located in an aero dynamically efficient

place in the rear pocket with easy

access. Through an aperture you can

pull the tube.

0cm

46c m

444240

Baggage pocket

Your equipment should be stored in the baggage

pocket to avoid mal-function of the Airbag.

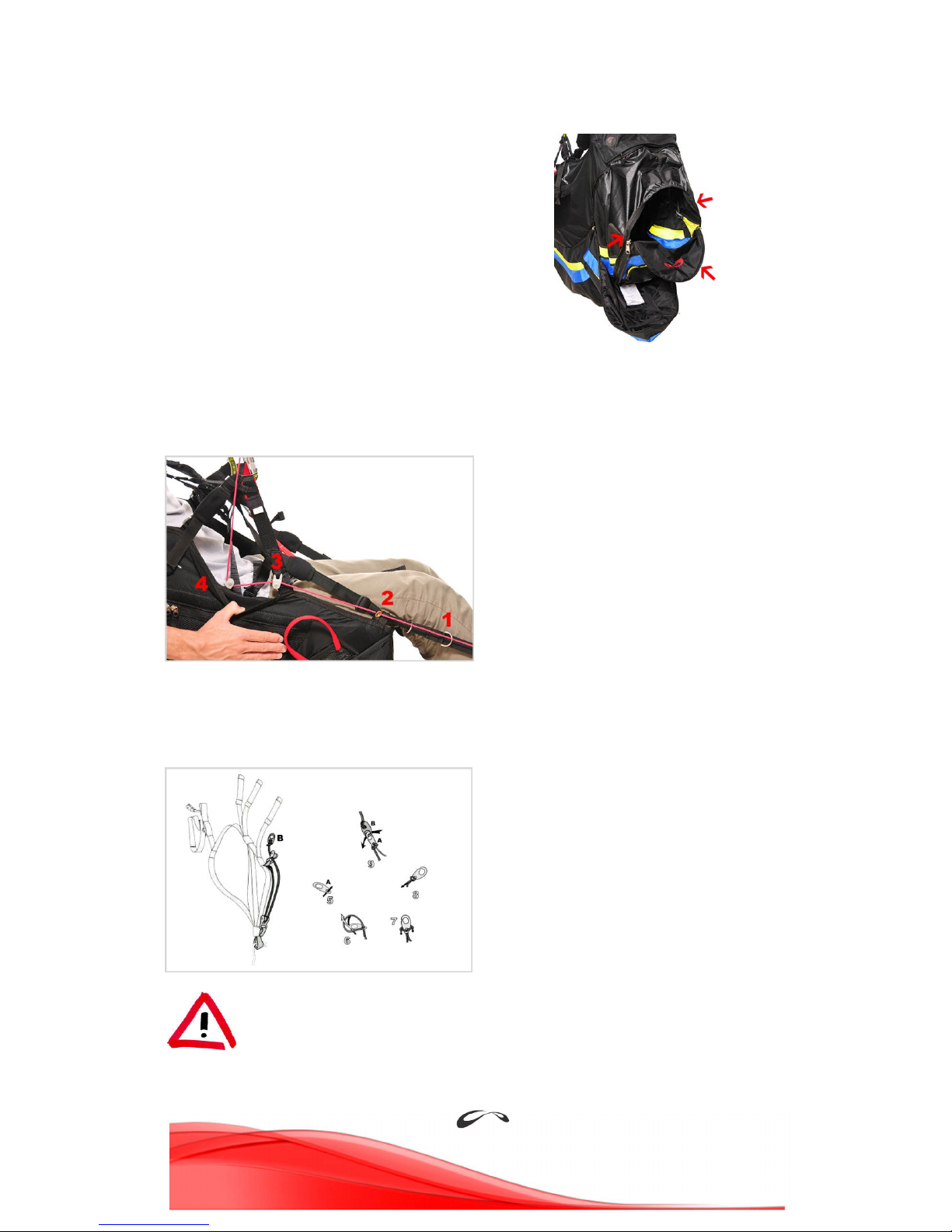

Installation of the accelerator

All necessary buckles to adjust the speed

system are found on the harness' body.

Follow the instruction in the image.

Installation of the accelerator hook

Follow the instruction in the

illustration.

Attention

Adjust the accelerator in the simulator to avoid surprises during flight.

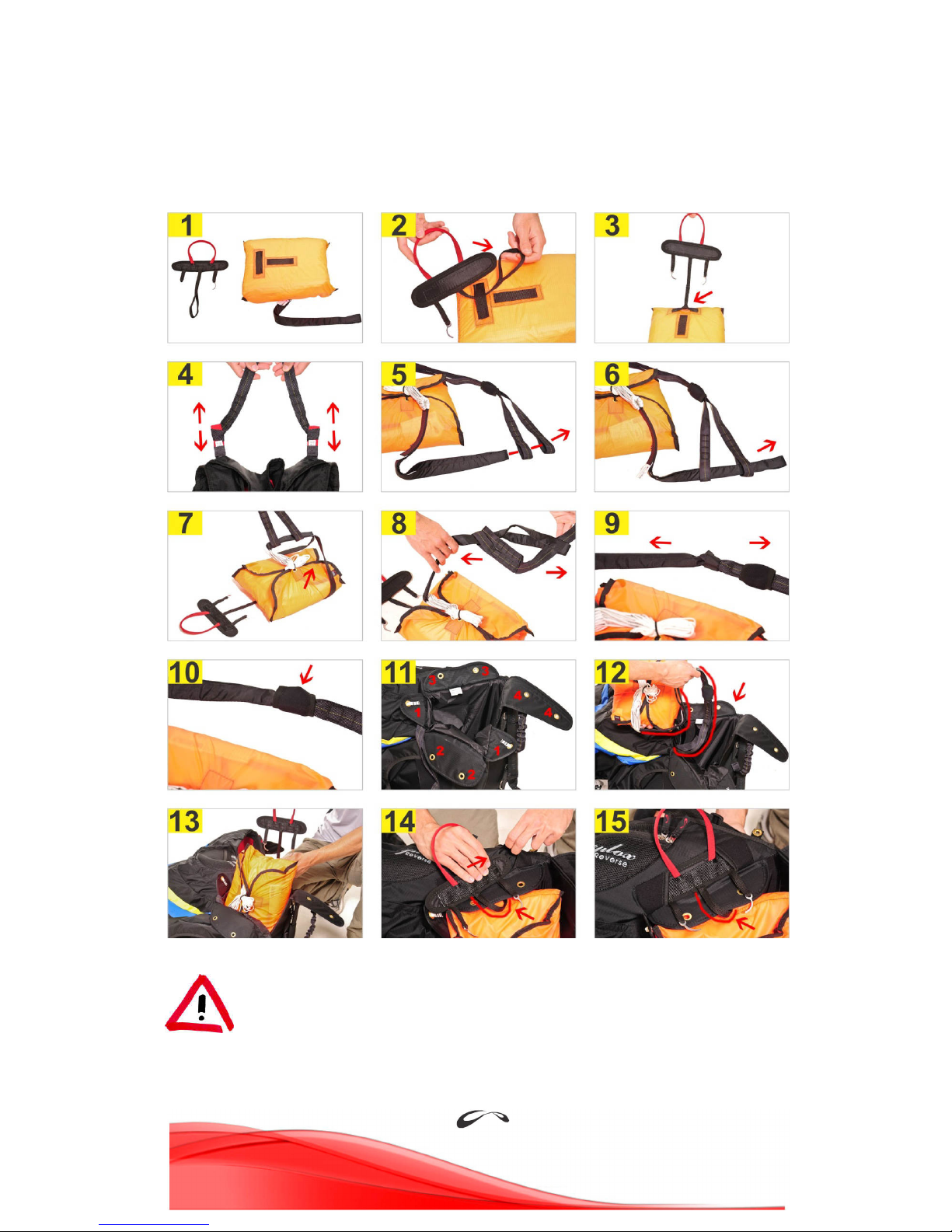

Reserve parachute installation

Visualize the details of how to execute the reserve parachute installation. The purpose

of this illustration is to help you understand the process. I necessary, you should ask

for professional help to make sure it is properly installed.

Attention

Image 4 and 9: Pull the bridles firmly to stop an involuntary opening, this

avoids a dangerous friction in the event of a reserve opening.

Table des matières

Autres manuels SOL paragliders Accessoires

SOL paragliders

SOL paragliders X-Light 2 Manuel utilisateur

SOL paragliders

SOL paragliders HORIZON Manuel utilisateur

SOL paragliders

SOL paragliders CX MAX Manuel utilisateur

SOL paragliders

SOL paragliders VIRTUE 2 Manuel

SOL paragliders

SOL paragliders Just Acro Manuel

SOL paragliders

SOL paragliders X lIght Manuel utilisateur

SOL paragliders

SOL paragliders CX 2 Manuel utilisateur

SOL paragliders

SOL paragliders CXC Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
