9. NEVER STAND ON MACHINE. Serious injury could occur if the machine is tipped or if the
rotary die is accidentally contacted.
10. CHECK DAMAGED PARTS. Before further use of the machine, a guard or other part that is
damaged should be carefully checked to ensure that it will operate properly and perform its
intended function – check for alignment of moving parts, binding or moving parts, breakage
of parts, mounting, and any other conditions that may affect its operation. A guard or other
part that is damaged should be properly repaired or replaced.
11.TURN THE MACHINE “OFF” AND DISCONNECT THE MACHINE from the power source
before installing or removing accessories, before adjusting or changing set-ups, or when
making repairs.
12.NEVER LEAVE MACHINE RUNNING UNATTENDED. TURN POWER OFF. Don’t leave
machine until it comes to a complete stop.
13.CERTAIN MATERIALS will generate unusually high noise levels. When using such
materials, test to determine the necessity of hearing protection.
14.CERTAIN DIES, i.e.dies with very deep engravings, could become a severing hazard.
15.STAY ALERT. WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE WHEN
OPERATING THIS MACHINE. DO NOT USE MACHINE WHILE TIRED OR UNDER
MEDICATION. A moment of inattentiveness while operating machinery may result in
serious personal injury.
16.THE RECORDED DECIBEL LEVEL OF THIS MACHINE IS 81.9 DECIBELS AT MAXIMUM
RUNNING SPEED.

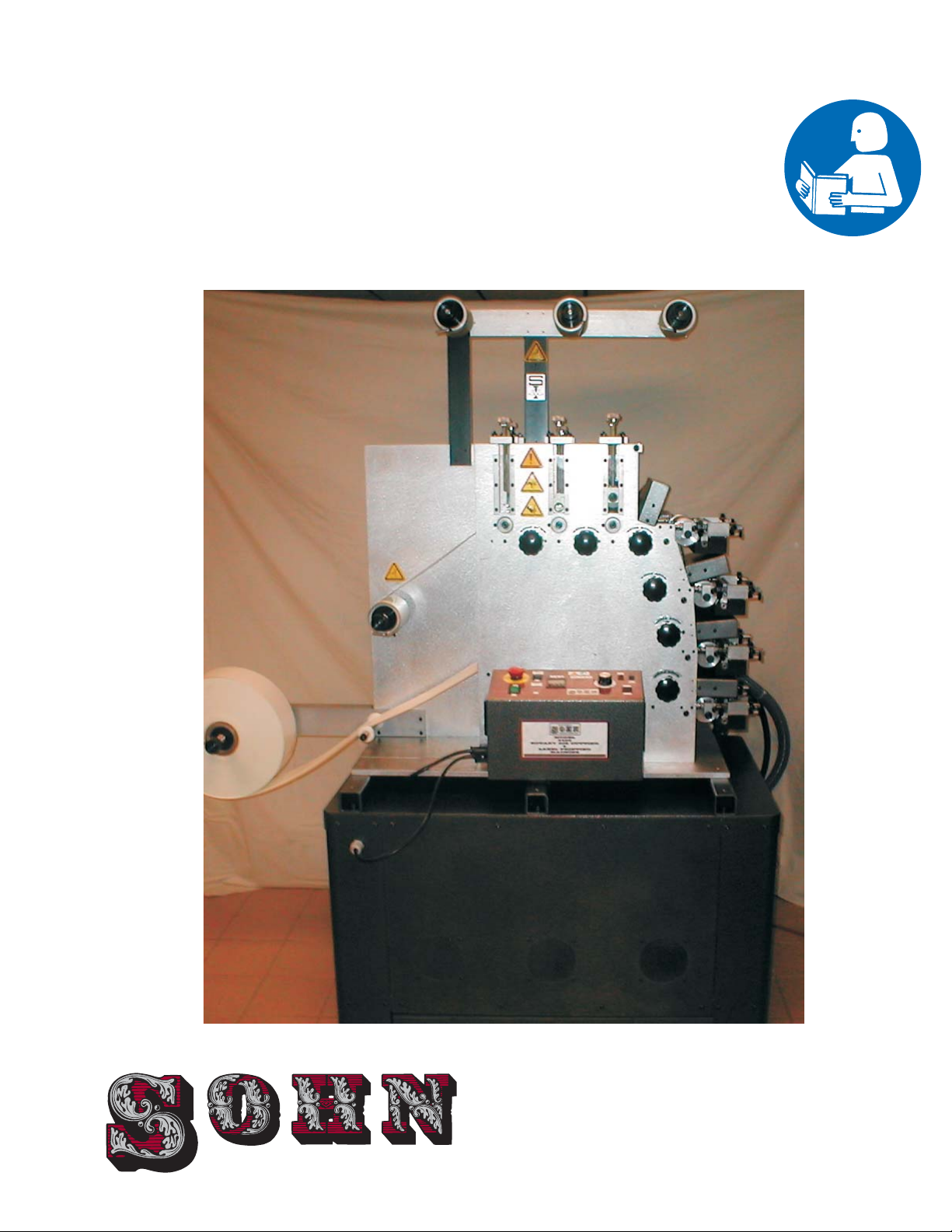

Sohn's versatile 4400 Series Label Printer is the first label printing machine designed for in-plant use that is simple to operate and
produces high quality printed die-cut labels with capabilities of 1-4 colors.
Our Model 4400 Label Printer brings the capabilities of a commercial printer inside your own facility. Our unit will eliminate costly
inventory, long lead times, expensive set up charges and high quantity minimum order requirements. The Model 4400 will produce
premium single or multi-colored labels when you need them. Printing the exact number of labels you need saves time and reduces
waste. Labels can be printed on pressure-sensitive, gummed or ungummed stock. They can be made from high gloss, litho, colored,
fluorescent, tag, foil, acetate material and many other materials. Designed for high speed operation, the unit prints, die-cuts any
shape and rewinds the waste matrix and finished labels in one roll to roll operation. This machine has sheeting capabilities and a
pressurized shut off on the heating system.
The Model 4400 has 4 flexographic print stations, each with lateral and longitudinal registration control. Print stations are designed
to use state of the art photopolymer printing plates. An optional “quick change” plate mounting system is available which will reduce
set up times on repeat runs. Die cutting configuration options includes 3 die cutting stations or laminating capabilities with running
longitudinal registration control.
Sohn's 4400 Series label makers are engineered for a long service life of continuous usage with minimum maintenance. Standard
electrical components include a proven, fuse protected, solid state variable speed DC motor drive and automatic shut off counter.
SAVE THESE INSTRUCTIONS
Refer to them often and use them to instruct others.
CALL SOHN MFG., INC. AT 920-876-3361
WITH QUESTIONS AFTER READING
THE GENERAL SAFETY RULES AND
THE OPERATING INSTRUCTIONS.
4
