MYT Tripod Setup and Use
The Paramount MYT Tripod provides an ultra-stable platform for portable digital imaging with the
Paramount MYT mount. Designed for portability and ease of use, the tripod weighs 9kg (20 pounds) and
has a carrying capacity of 68 kg (150 pounds). The legs incorporate easily graspable handles for ease of
transporting and setting up (Figure 1) and includes a padded carrying case (Figure 2).

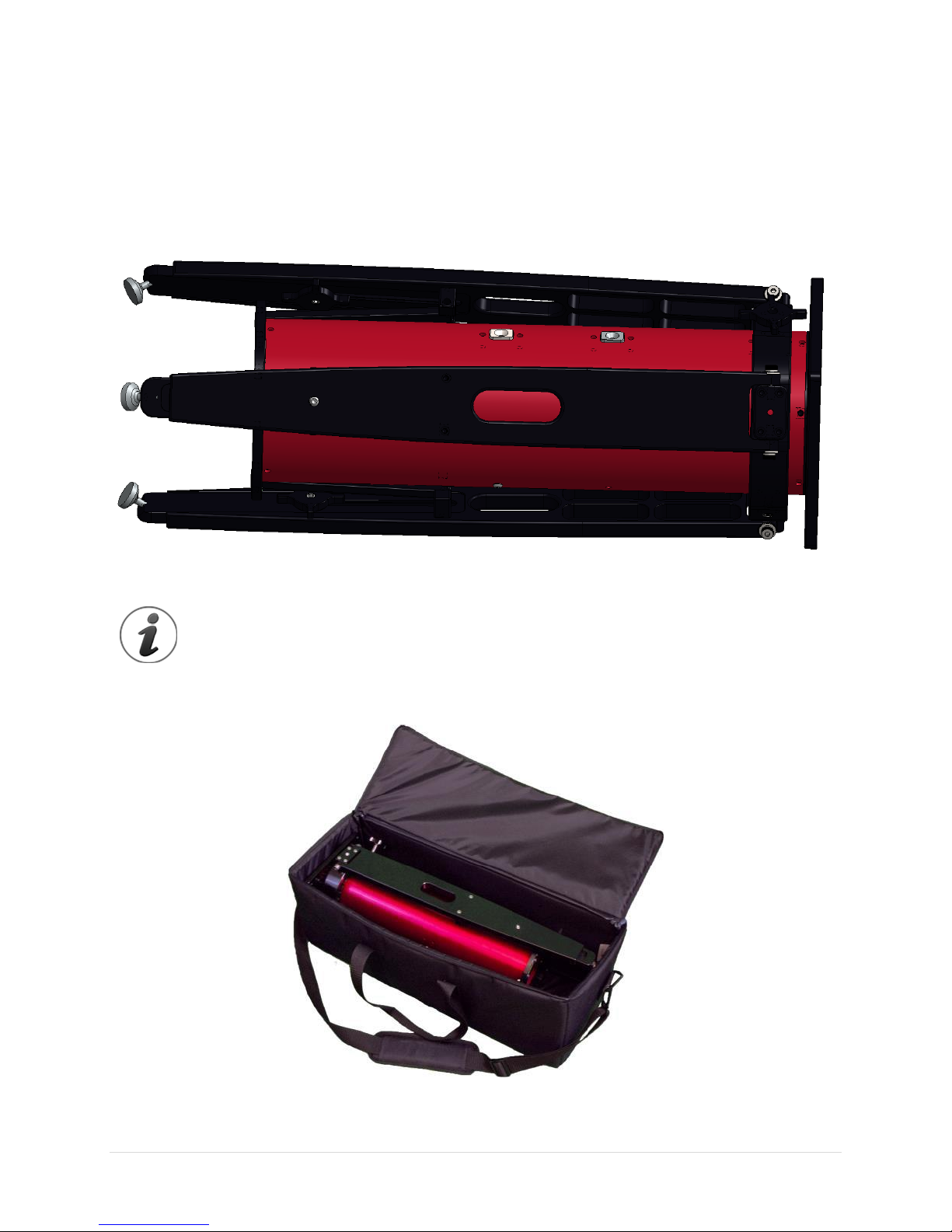

Figure 1: Paramount MYT Tripod retracted.
The top plate of the Paramount MYT tripod includes a mounting hole for an optional
bubble level. The bubble level is sold separately on the Software Bisque Store. See
“Leveling the MYT Tripod”on page 9 for details how to level the tripod using the three
integrated bubble levels on the tripod legs.
Figure 2: Paramount MYT Tripod inside carrying case.
4 | P a g e
Height Adjustments
The Paramount MYT Tripod has three different locking positions. Fully retracted for transport, it
measures 64 cm (25 in.). There are two operational heights, either 79 cm (31 in.), as shown in Figure 3,
or 70 cm (27.5 in.) as shown in Figure 4.
From each of these heights, the legs can be extended up to another 5 in. (13 cm) to accommodate
unleveled ground, or to increase the tripod’s maximum height. The end of each leg has a steel swivel
foot to conform to uneven mounting surfaces.

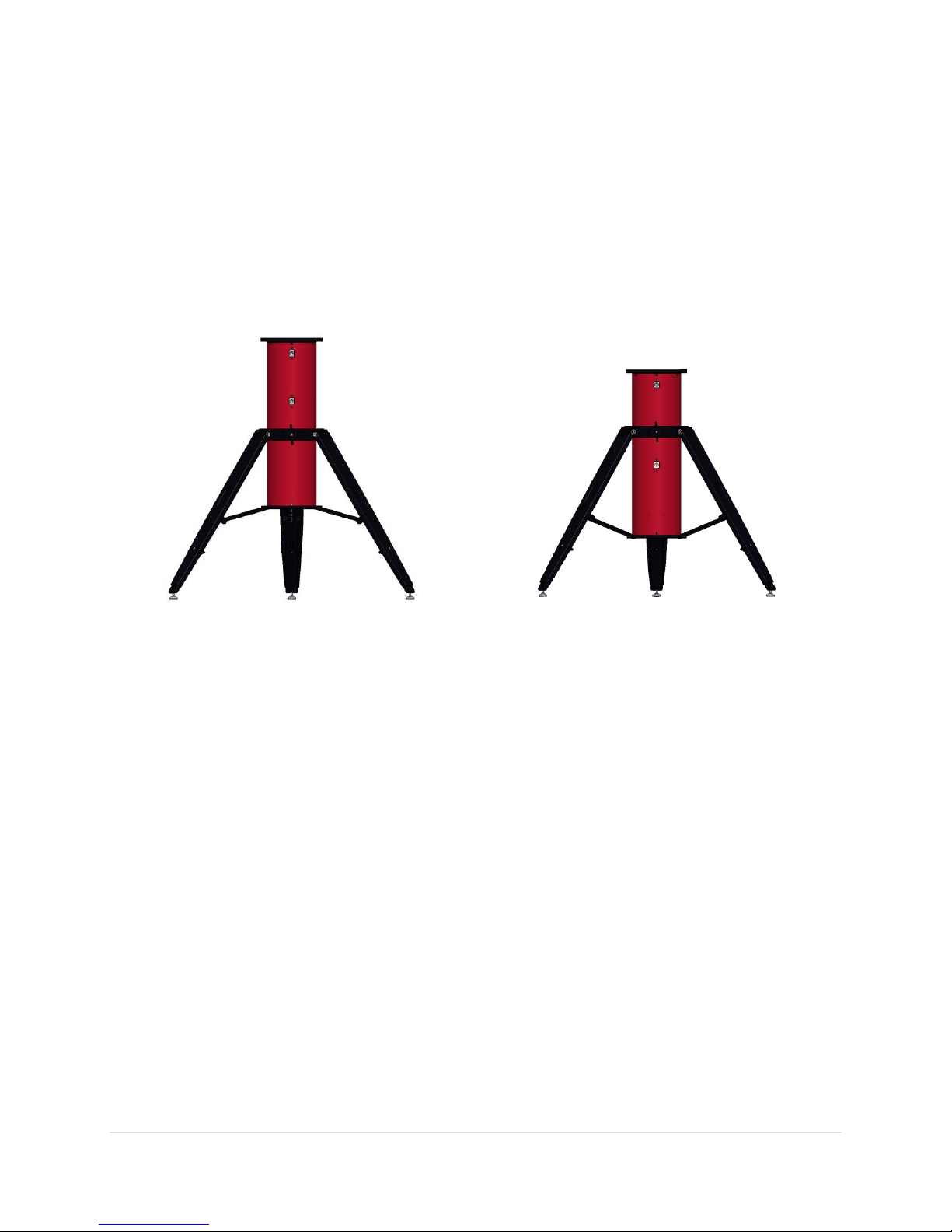

Figure 3: Taller pier height, 31 in. (79 cm).
Figure 4: Shorter pier height, 27.5 in. (70 cm).
The tripod height position locking knob is located on the center ring that adjusts the height of the tripod
and can be seen in Figure 5. When this knob is unscrewed so the tip does not engage the stainless steel
detent, the center ring is free to slide up and down. By lifting up on the top plate the legs will expand
and slide between the different height positions.
Once the tripod legs are at the desired pier height, the knob must be tightened until it fully engages and
presses against the stainless-steel detent.

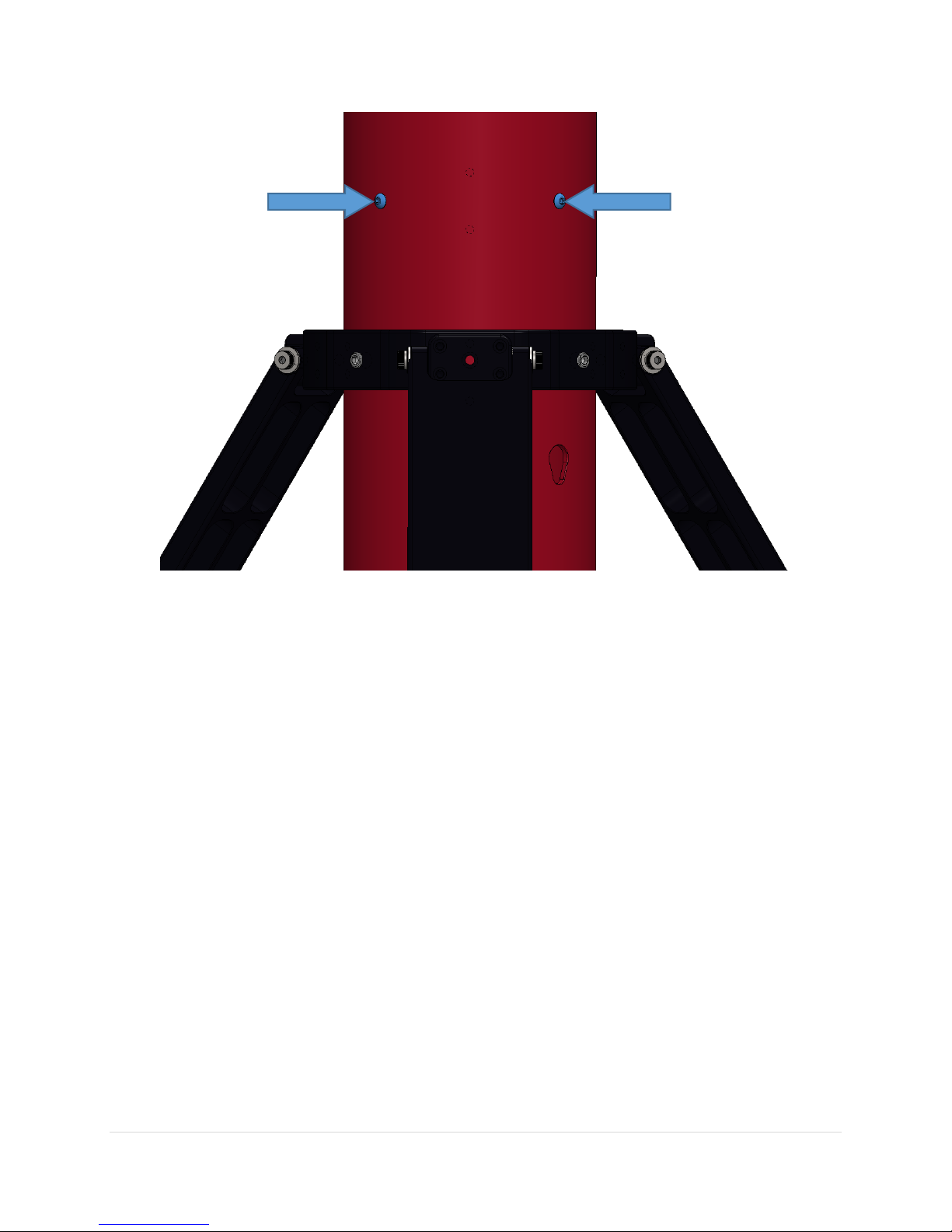

When the knob is screwed all the way in, there are two button heads on the opposite side of the tube
(Figure 6) as the position locking knob should and they should sit right on top of set screws in the center
ring (Figure 7). This ensures that the contact points are on stainless steel, resulting in less force exerted
on the aluminum tube. If the knob is fully tight, but the contact of the set screw is not quite right, see
“Button Head Adjustment” on page 11 on how to make this adjustment. (This should not need to be
adjusted frequently.)
5 | P a g e

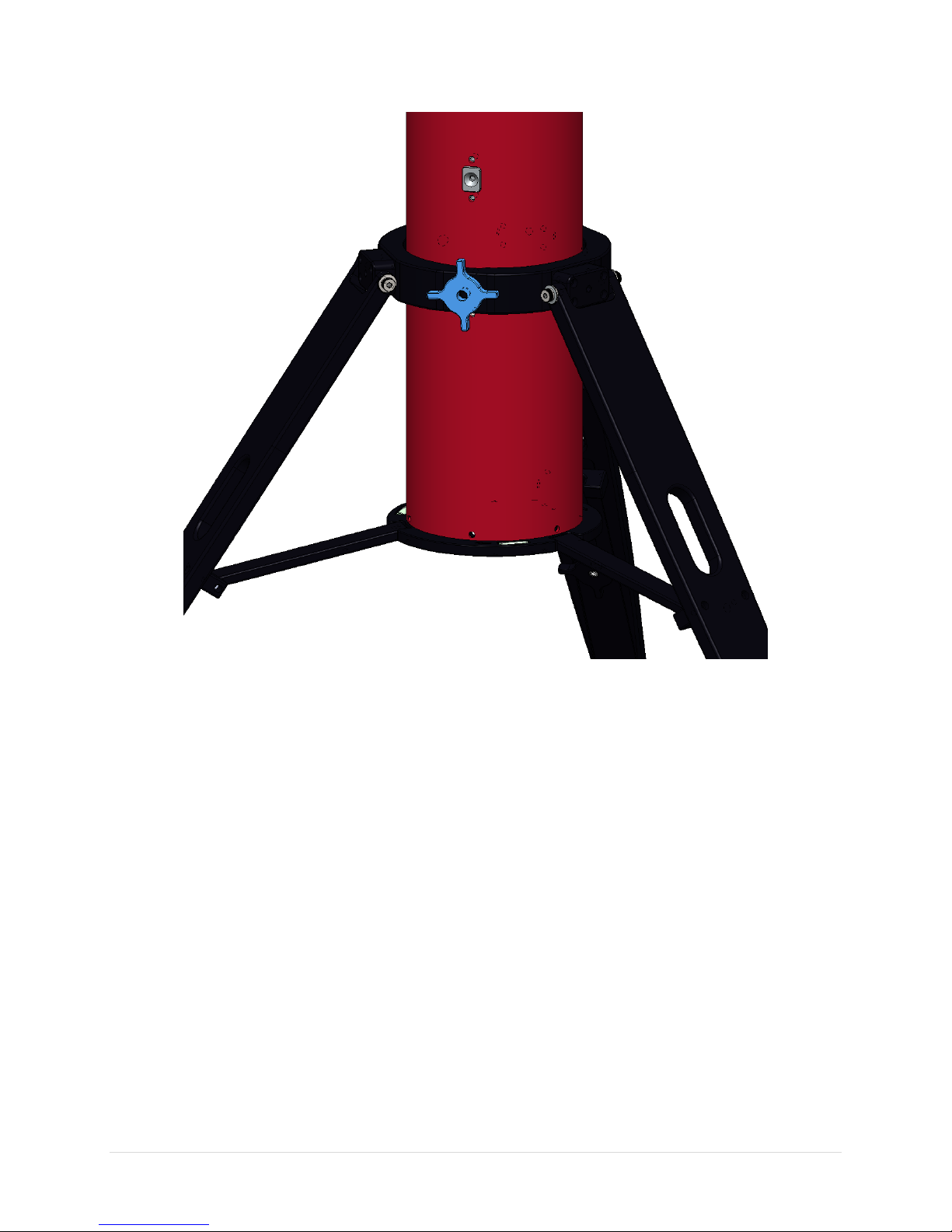

Figure 5: Height position lock knob.
6 | P a g e

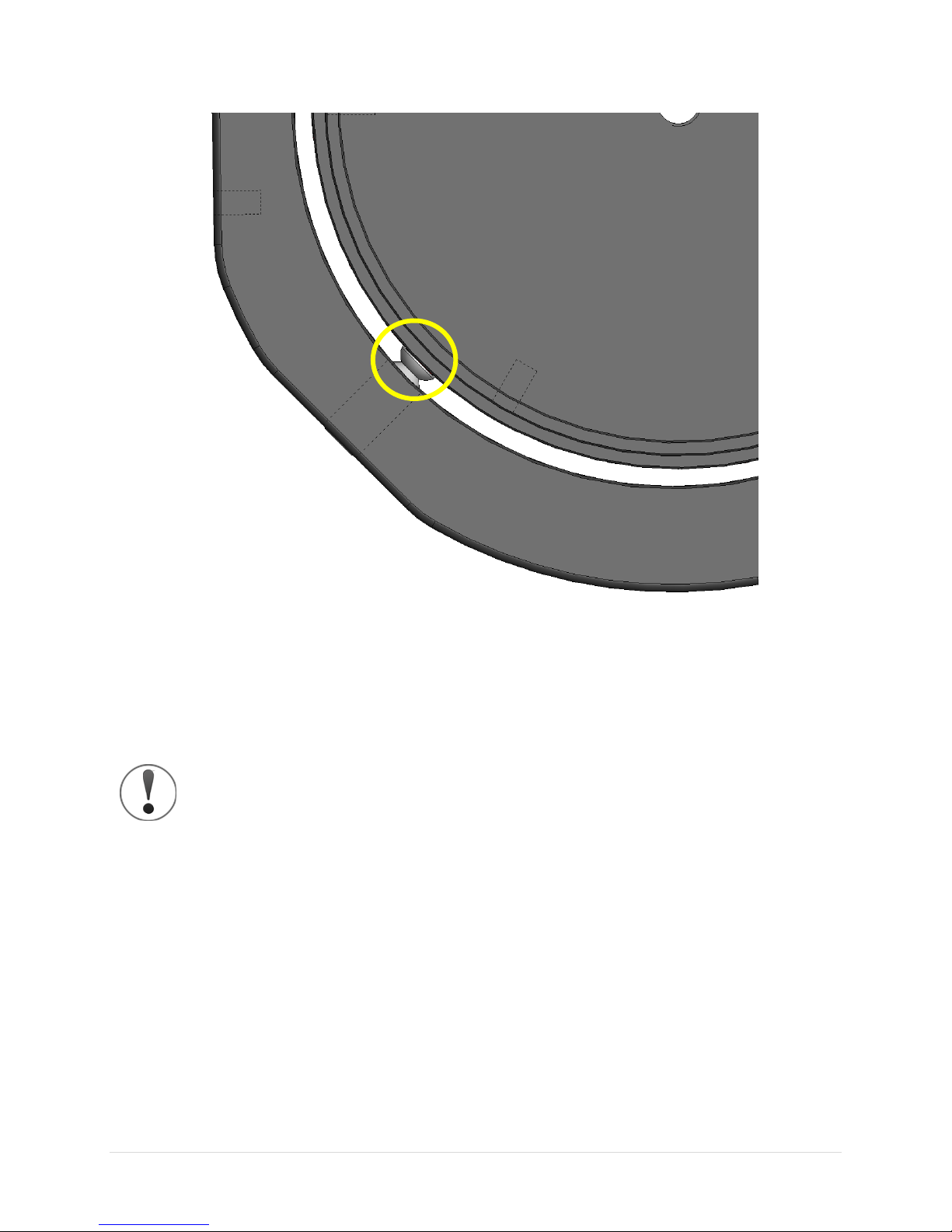

Figure 6: Button head contact points.
7 | P a g e
Figure 7: Button head and set screw contact.
Top Plate Adjustment
The top plate has dimensions of 7-¼ in (18.4 cm) as shown in the technical drawing in Figure 8. The top
plate can also rotate 360° to assist in polar alignment. The knob located on the top plate (Figure 9)
loosens and secures down the top plate from rotating.
This adjustment should be done before mounting the Paramount MYT on the tripod. It is
good practice to tighten this knob all the way down when you have the approximate
location however the top plate can be rotated with a bit of force after the Paramount MYT is
attached. The tighter the knob after this adjustment, the less room for movement there will
be during use.
8 | P a g e

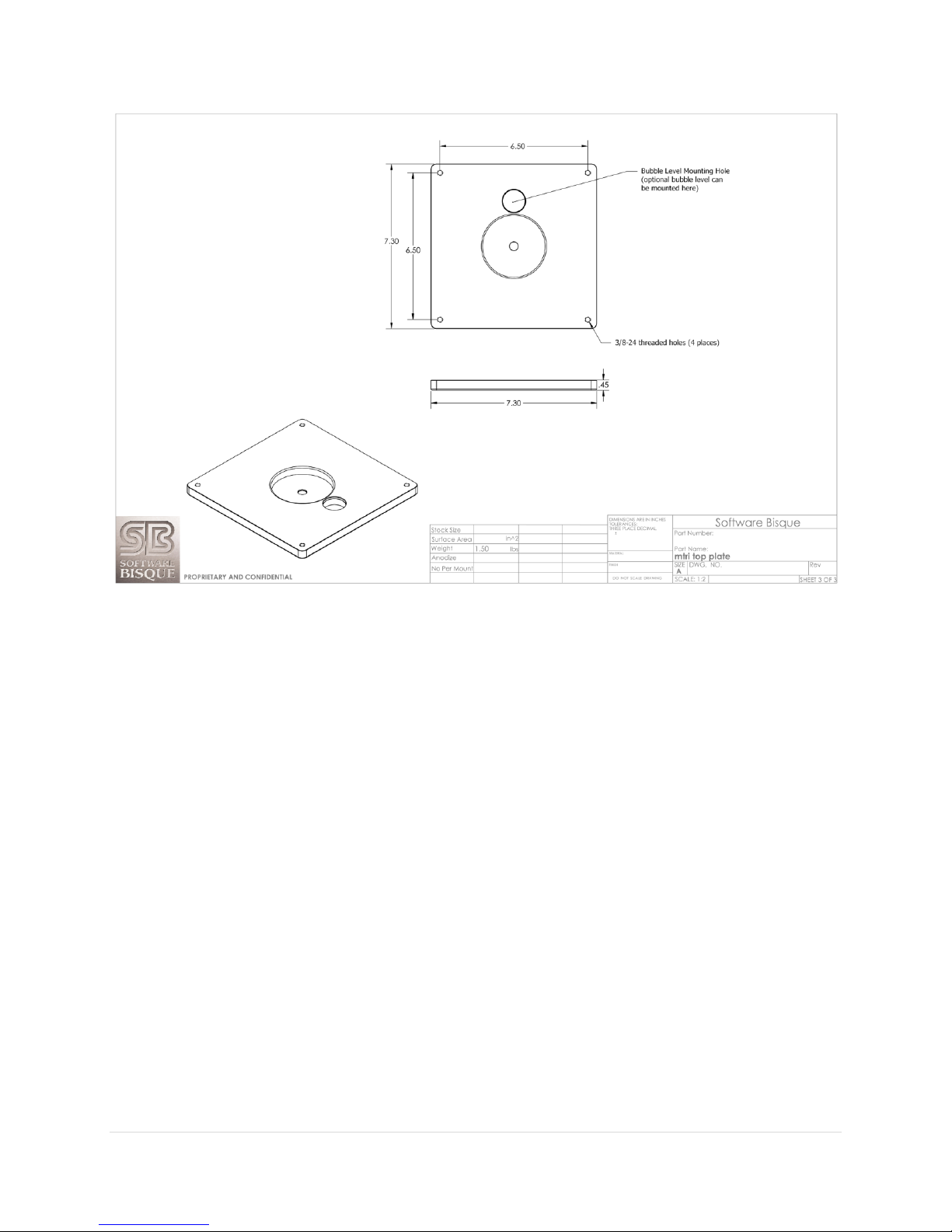

Figure 8: Top plate technical drawing.
9 | P a g e

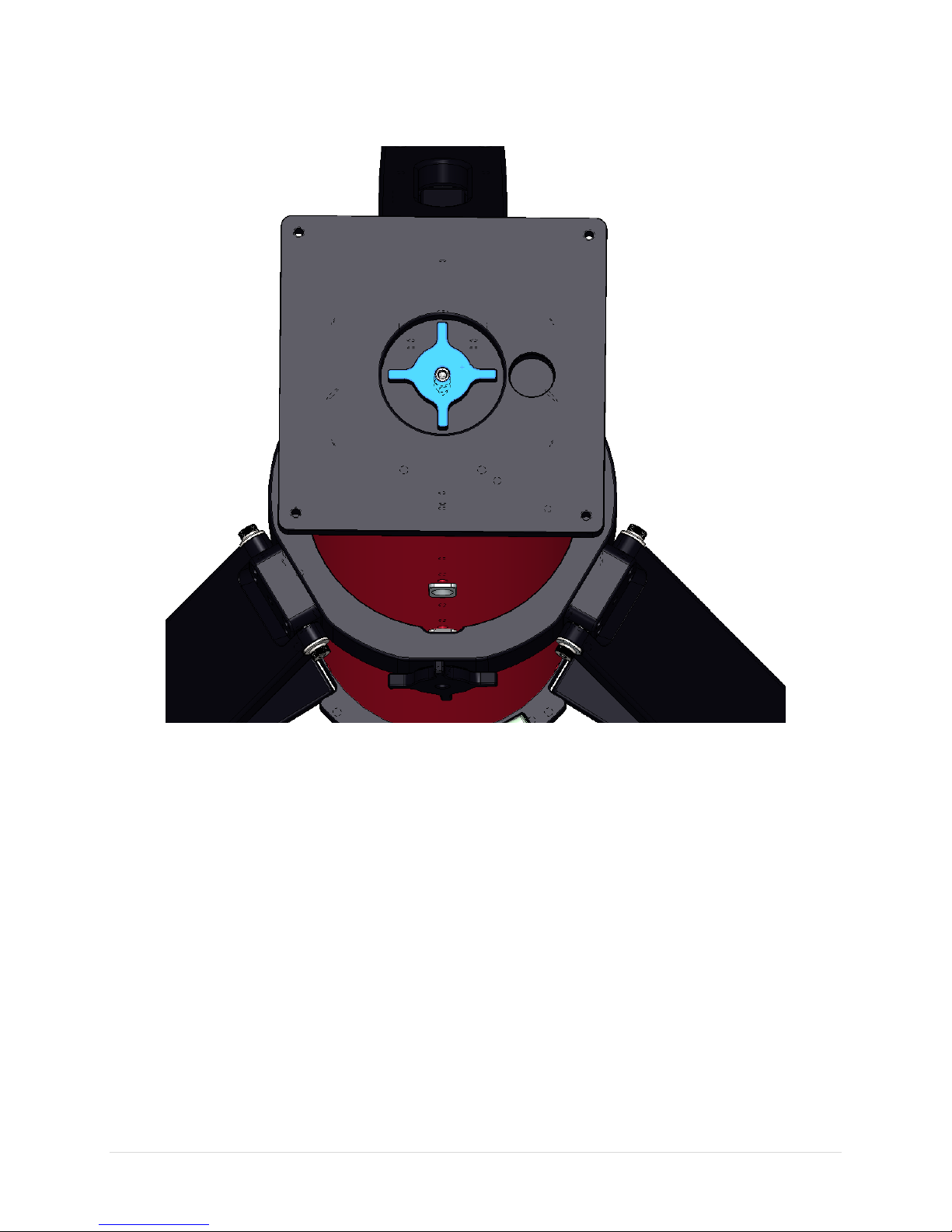

Figure 9: Top plate and knob.
Leveling the MYT Tripod
There are three bubble level plus arrow pairs machined in to the bottom ring of the tripod (Figure 10).
Each arrow points to the leg that changes the level of this bubble; see the examples highlighted in blue
in Figure 11.
Use these three levels to get your tripod as level as possible before mounting the Paramount MYT. The
circular depression in the top plate is a mounting hole for an optional bubble level (sold separately).
While the three bubble levels that are integrated into the legs should provide the means to achieve level
exceptionally well, the optional level bubble, when installed, can also be used to help level the tripod.
10 | P a g e

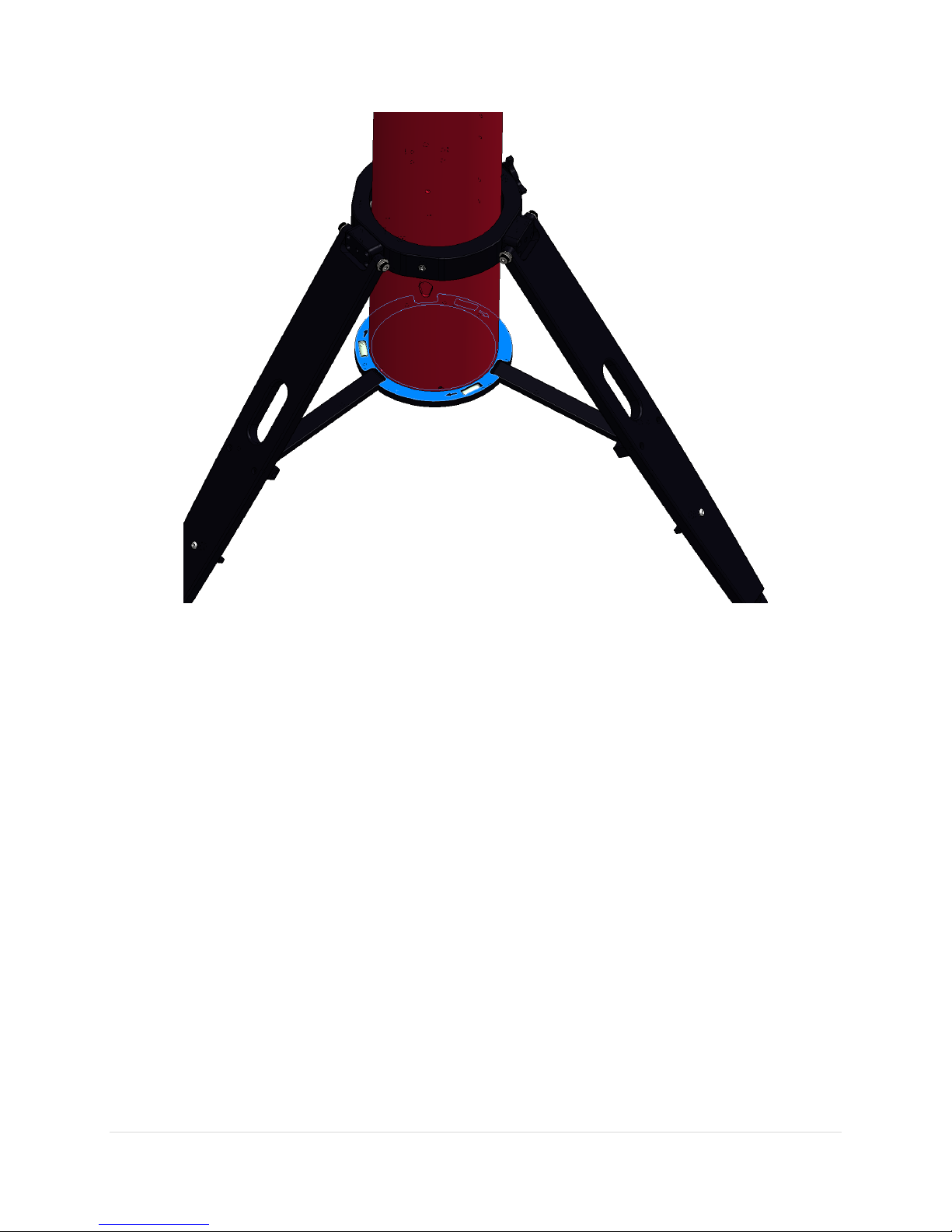

Figure 10: Leveling arrows and level bubbles.
