Socket AC4088-1657 Manuel utilisateur
Charging Mount SKU# AC4088-1657 P/N 9010-01657
User Guide
Charging Mount
Command Barcode
label to place on mount
USB Charging Cable
© 2020 Socket Mobile, Inc. All rights reserved.
Socket®, the Socket Mobile logo, SocketScan®, DuraScan®, DuraSled™, DuraCase™ and Battery Friendly® are registered
trademarks or trademarks of Socket Mobile, Inc. Microsoft® is a registered trademark of Microsoft Corporation in the
United States and other countries. Apple®, iPad®, iPad Air®, iPad mini®, iPad Pro®, iPhone®, iPod touch®, Objective-C®, Swift™,
and Xcode® are registered trademarks of Apple, Inc., registered in the U.S. and other countries. The Bluetooth® Technology
word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket
Mobile, Inc. is under license. Other trademarks and trade names are those of their respective owners. Socket Mobile is not
affiliated with Socket Internet Inc., a provider of data, voice and Internet communications services.

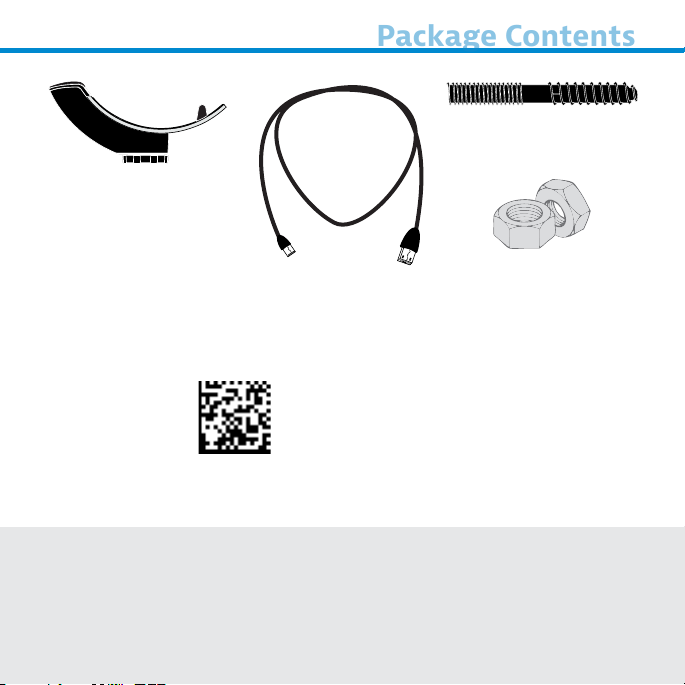

Charging Mount
Hanger Bolt
2 x Hex Nuts
Package Contents

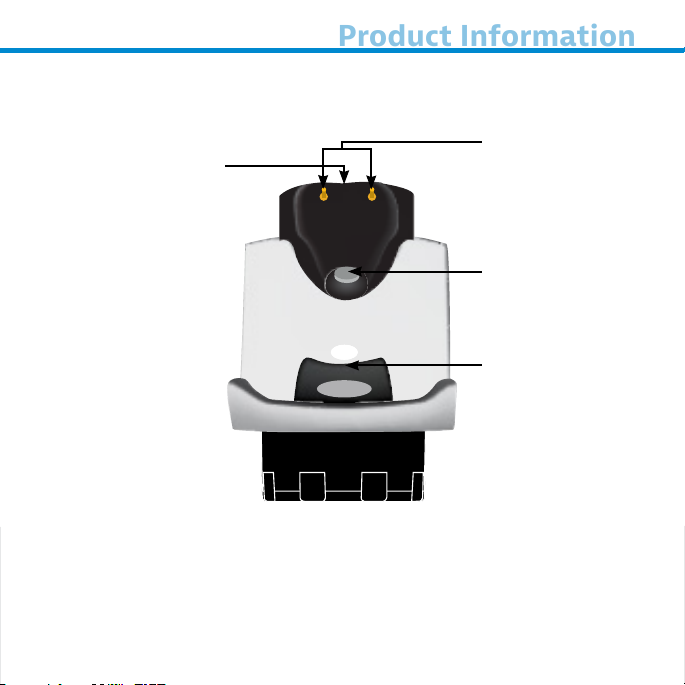

Magnet
Hook
Charging Mount
*Illuminates Red when connected to AC adapter.
Charging Pins
LED*
Product Information
3

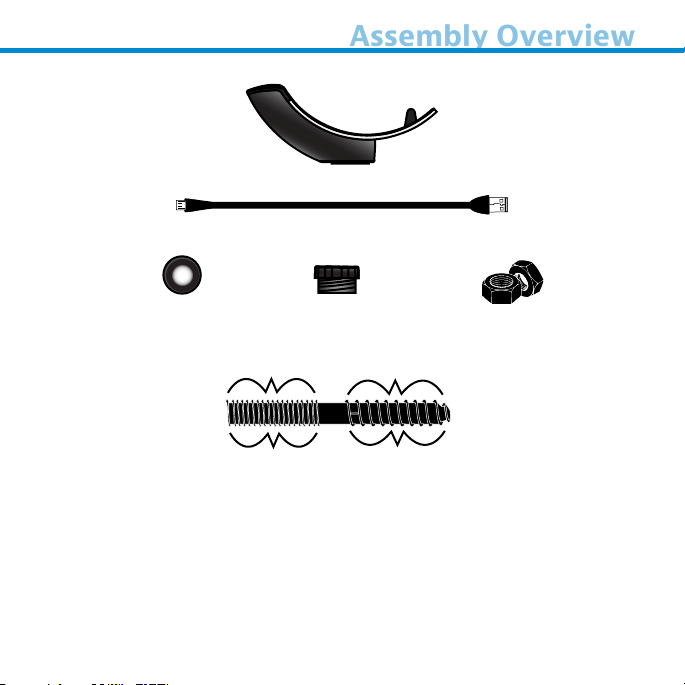

A. Charging Mount
B. Micro USB (2m)
C. Cushion Crown
D. Pem Cap / Camera Mount*
E. 2 x Hex Nuts
F. Hanger Bolt**
A.
B.
D. E.
F.
C.
*Optional for Camera Mount (see page 14)
**Optional for table mount
¼” - 20
Machine
bolt thread
Screws into
wooden
surface
Tapered
lag-screw
Screws into
camera mount
or Charging
Mount
Assembly Overview
4

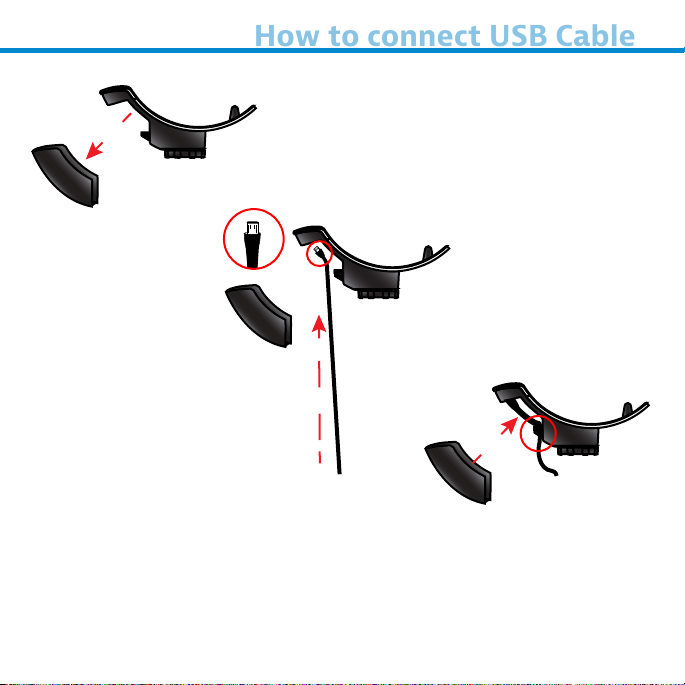

A. Remove Micro USB cover.
B. Insert Micro USB connector into port and fit
usb cable into the cord keeper.
C. Secure the cable to prevent from movement.
A.
B.
C.
How to connect USB Cable
5
When charging the scanner, make
sure the charging pins on the
Mount and the scanner make
contact with each other and the
red LED on the Mount is illumi-
nated.
“Beep
Beep”*
Charging Mount Operations
6
4-6 inches
(10 - 15 cm)
Charging Mount Operations
7
Charging Mount Modes
Mobile Mode - Normal (default)* Scan-
ning this barcode will enable the scan-
ner to enter mobile mode. It will always
be in manual trigger mode even when
placed in the mount or cradle.
*Scanner Factory Reset returns to Mo-
bile Mode. #FNB 41FBA50000#
Auto Mode (Presentation Mode)
Scanning this barcode will enable the
scanner to enter auto mode. When the
scanner is in auto mode, it will switch to
presentation trigger mode when it
detects power on the cradle pins. When
the scanner is removed from the cradle
it will remain in presentation trigger
mode until the users press the trigger.
At that point it will switch to normal
manual trigger mode. Auto Mode com-
mand barcode is also printed on the
product label.
#FNB 41FBA50003#
Command Barcodes
8
Auto Mode (In the Mount)
Action Behavior
Notification
Beep
Pattern
LED Activ-
ity
Vibrate
Place
Scanner in
the Mount
Scanner
switches to
Presenta-
tion Mode
High-high
tone confirms
proper seat-
ing*
Battery
status LED
is disabled
None
Place a
barcode in
the
scanner’s
field of
view
Decode
Barcode
1 Beep when
data
successfully
scanned
Green
LED blinks
(while
scanning)
None
Auto Mode: Barcodes placed in the Scanner’s field of view are
automatically scanned.
*Note: Auto Mode available with the following scanners: D740,
D745, D750, D755, D760, S740, S760.
Auto Mode
9
Action Behavior
Notification
Beep
Pattern
LED
Activity
Vibrate
Remove
the Scanner
from the
Mount and
press the
Trigger but-
ton
Scanner
switches
to Mobile
Mode
None Battery
Status LED
is Enabled
Enabled
Press the
Trigger
button
Decode
Barcode
1 Beep
when Data
successfully
scanned
Green
LED blinks
(while
scanning)
Vibrate
when Data
successfully
scanned
Mobile Mode: Pressing the Trigger button initiates a scan.
Mobile Mode (Not in the Mount)
Auto Mode
10
