Socket Wand Scanner 2E Manuel utilisateur

Wand Scanner Series 2

CompactFlash Card with Attached Scanner Wand

for:

•Pocket PC 2003/2003SE

•Notebook computer running Windows XP

•Tablet running Windows XP Tablet Edition

User's Guide

8/2005 Document # 6410-00164 F

Socket Communications, Socket, the Socket Communications logo, Wand

Scanner 2E, Bar Code Laser Scanner Card, and Mobility Friendly are

registered trademarks or trademarks of Socket Communications, Inc. All

other brand and product names are trademarks of their respective holders.

Reproduction of the contents of this manual without the permission of

Socket Communications is expressly prohibited. Please be aware that the

products described in this manual may change without notice.

Feel free to contact SOCKET COMMUNICATIONS at:

Socket Communications

37400 Central Court

Newark, CA 94560

Other than the above, Socket Communications can assume no responsibility

for anything resulting from the application of information contained in this

manual.

Socket Communications requests that you refrain from any applications of

the Wand Scanner 2E that are not described in this manual. Socket

Communications also requests that you refrain from disassembling the

CompactFlash card. Disassembly of this device will void the product

warranty.

You can track new product releases, software updates and technical

bulletins by visiting Socket’s website at: www.socketcom.com.

Table of Contents

1|INTRODUCTION ............................................................. 5

Overview 5

About the Software 5

System Requirements 6

Package Contents 6

Product Registration 6

2|SETUP FOR WINDOWS MOBILE ...................................... 7

STEP 1: Uninstall Other Scanning Software 8

STEP 2: Install the Software 9

STEP 3: Insert the Card 11

STEP 4: Scan Data into a Windows Program 12

OPTIONAL: Configure Prefix/Suffixes 14

OPTIONAL: Configure Sounds 15

OPTIONAL: Configure Symbologies 16

3|SETUP FOR WINDOWS XP........................................... 17

STEP 1: Uninstall Other Scanning Software 17

STEP 2: Insert the Installation CD 18

STEP 3: Insert the Card 18

STEP 4: Configure Windows for New Hardware 19

STEP 5: Install SocketScan Software 21

STEP 6: Scan Data into a Windows Program 23

OPTIONAL: Configure Scanning Settings 25

OPTIONAL: Configure Symbologies 27

APPENDICES

A | Specifications.............................................................................. 28

B | Default Parameters..................................................................... 30

C | Troubleshooting.......................................................................... 32

D | Technical Support....................................................................... 34

Limited Warranty.............................................................................. 36

Regulatory Compliance 38

1 | Introduction

Overview

Socket's Wand Scanner (WS) 2E adds affordable

contact bar code scanning capability to Windows-based

Pocket PCs, laptops and tablets with CompactFlash or

PCMCIA card slots. Plug the CF card into your mobile

computer, launch Socket's SocketScan keyboard wedge

software, and scan bar coded data into any Windows

application as substitute keystrokes — it's 50 times

faster and 10,000 times more accurate than manual data

entry. Use an adapter (sold separately) to use the card in

a PCMCIA card slot.

For certain applications, the WS 2E can be much faster and more

convenient than laser or image scanning. Using the wand like a pen or

pencil drawing a line across the bar code, the ergonomics of scanning items

on a flat work surface like a table are much more natural than trying to aim

a laser gun or portable data collection terminal.

Also, scanning a single bar code from a page crowded with bar codes, such

as a sales order entry catalog, is much easier. The wand can also scan bar

codes with a forward or backwards swipe, upside down or right side up, so

the orientation of the label isn't an issue. In addition, the wand is smaller,

lighter, less expensive and uses less battery power than any laser or image

scanner.

Other features of the Wand Scanner 2E include:

•Automatic detection of major bar code symbologies, such as Code 39,

Interleaved 2 of 5, UPC, EAN, and Code 128.

•Mobility Friendly® design maximizes your mobile device’s battery life.

About the Software

SocketScan™, software enters scanned data directly into

any active Windows program as if the data were manually

typed. You can configure Prefix/Suffixes and assign a

.WAV file to signify good data reads.

You can use the WS2E with any Windows application that accepts virtual

keyboard entry, such as Notepad, Excel, Word, or their Pocket versions.

For software updates, visit: www.socketcom.com/support/support_bar.asp

CHAPTER 1: INTRODUCTION 5

System Requirements

Your mobile computer should meet these minimum requirements:

•Any of the following operating systems:

−Windows Mobile 2003/2003SE

−Windows XP

−Windows XP Tablet Edition

•Available Type I or II CompactFlash or PC Card (PCMCIA) slot

Operation in a PC Card slot requires s PC Card adapter (available

separately, SKU# AC4000-978)..

Package Contents

The Wand Scanner 2E package includes:

•A CompactFlash or PC Card Wand Scanner 2E

•An attached Welch Allyn SCANTEAM™ bar code scanner wand

•The SocketScan Installation CD

Product Registration

Socket highly recommends that all customers register their Socket products.

Registered users receive priority for technical support. Register online at:

www.socketcom.com/prodreg

Product registration is not required to ensure your warranty rights.

2| Setup for Windows Mobile

This chapter explains how to install the Wand Scanner 2E on a Pocket PC

running Windows Mobile 2003/2003SE.

Setup Summary

STEP 1: Uninstall other scanning software.

STEP 2: Install the software.

STEP 3: Insert the card.

STEP 4: Scan data into your Windows program.

OPTIONAL:

•Configure prefix/suffixes.

•Configure sounds.

•Configure symbologies.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 7

STEP 1: Uninstall Other Scanning Software

Delete any bar code scanning software you may already have installed on

your Pocket PC, including previous versions of SocketScan. You can

uninstall either directly from your Pocket PC, or indirectly via ActiveSync.

OPTION 1: Uninstall Directly from the Pocket PC

1. Make sure the bar code scanning software is closed, and remove the

ISC from your Pocket PC.

2. Tap Start | Settings. Tap on the System tab or Control Panel.

3. Tap on the Remove Programs icon.

4. Select the bar code scanning software, then tap Remove.

5. Tap Yes to confirm removal of the program.

6. Soft reset the Pocket PC by pressing the reset button.

OPTION 2: Uninstall via ActiveSync

1. Make sure the bar code scanning software is closed, and remove the

ISC from your Pocket PC.

2. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an

active connection between your Pocket PC and a host PC.

3. On the host PC, open Microsoft ActiveSync.

4. Click Tools | Add/Remove Programs.

5. Select the bar code scanning software and click Remove.

6. In the confirmation screen, click OK.

7. The next dialog will ask if you want to remove the software from your

host PC as well.

•Click NO to keep a copy of the software on the host PC that can

later be re-installed onto a Pocket PC.

•Click YES to remove the software from the host PC.

STEP 2: Install the Software

1. Make an active connection between your Pocket PC and a host PC. Use

ActiveSync and a serial/USB/Ethernet connection cable or cradle.

2. Insert the installation CD into your host PC.

3. Use My Computer or Windows Explorer to access your CD-ROM drive.

In the CD, click on SETUP.EXE.

4. Follow the instructions on your screen to install the software.

•Read the information in the first screen and click next.

•In the Main Page, click Install Software.

•In the Installation screen, click Windows CE.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 9

5. In the File Download screen, click Run.

6. If the Security Warning screen appears, click Run.

7. The InstallShield Wizard for SocketScan Software will begin. Follow

the screens that appear to install the software.

8. When software installation is complete, disconnect the Pocket PC from

the host PC. Soft reset the Pocket PC by pressing the reset button. Now

you are ready to insert the card.

Table des matières

Autres manuels Socket Lecteur de codes-barres

Socket

Socket CHS 7Mi Manuel utilisateur

Socket

Socket CF RFID Manuel utilisateur

Socket

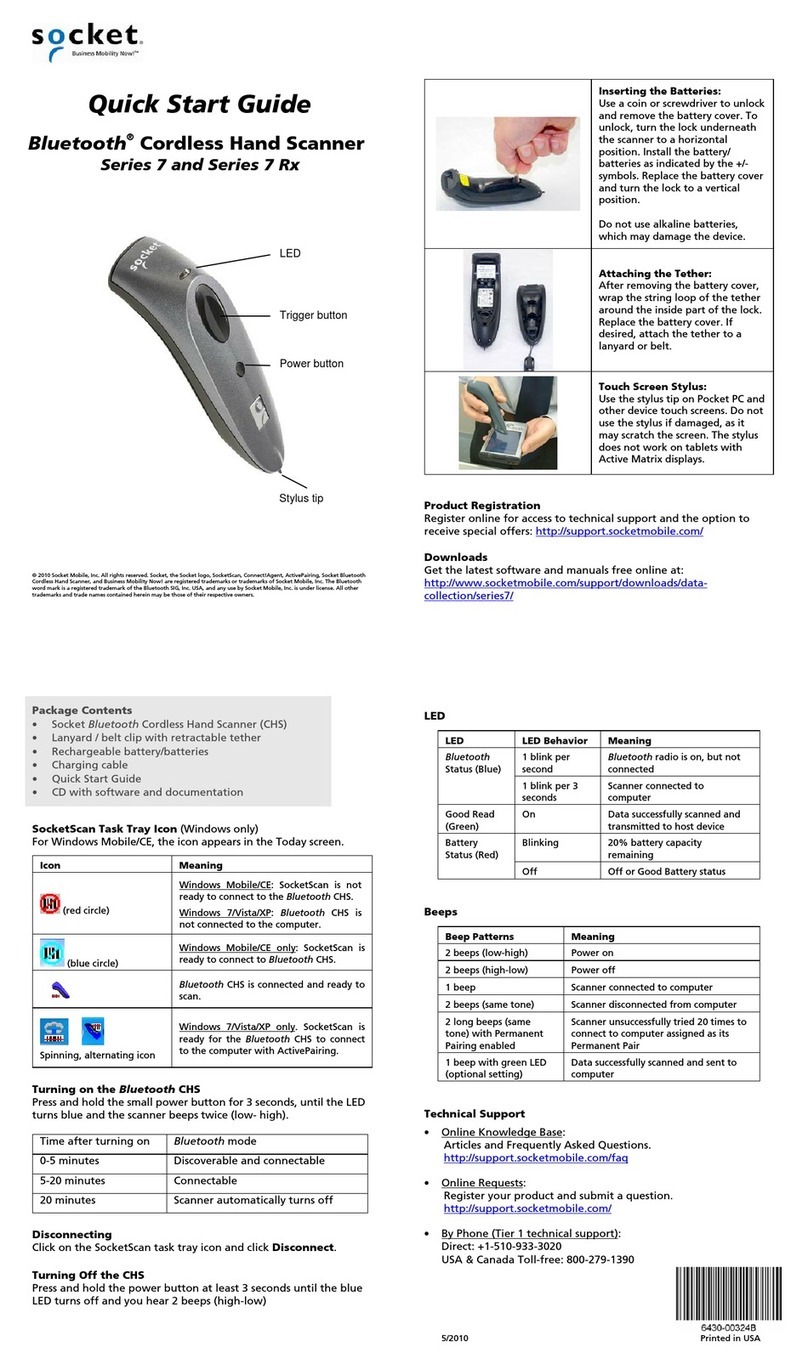

Socket CHS Series 7 Manuel utilisateur

Socket

Socket CHS Series 7 Manuel utilisateur

Socket

Socket SOCKETSCAN 800 Series Manuel utilisateur

Socket

Socket Socketscan S370 Fiche technique

Socket

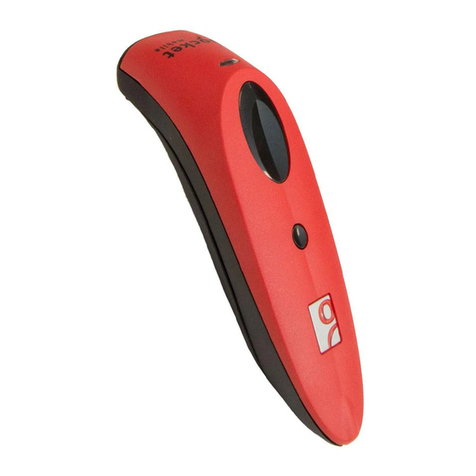

Socket CHS 7Qi Manuel utilisateur
