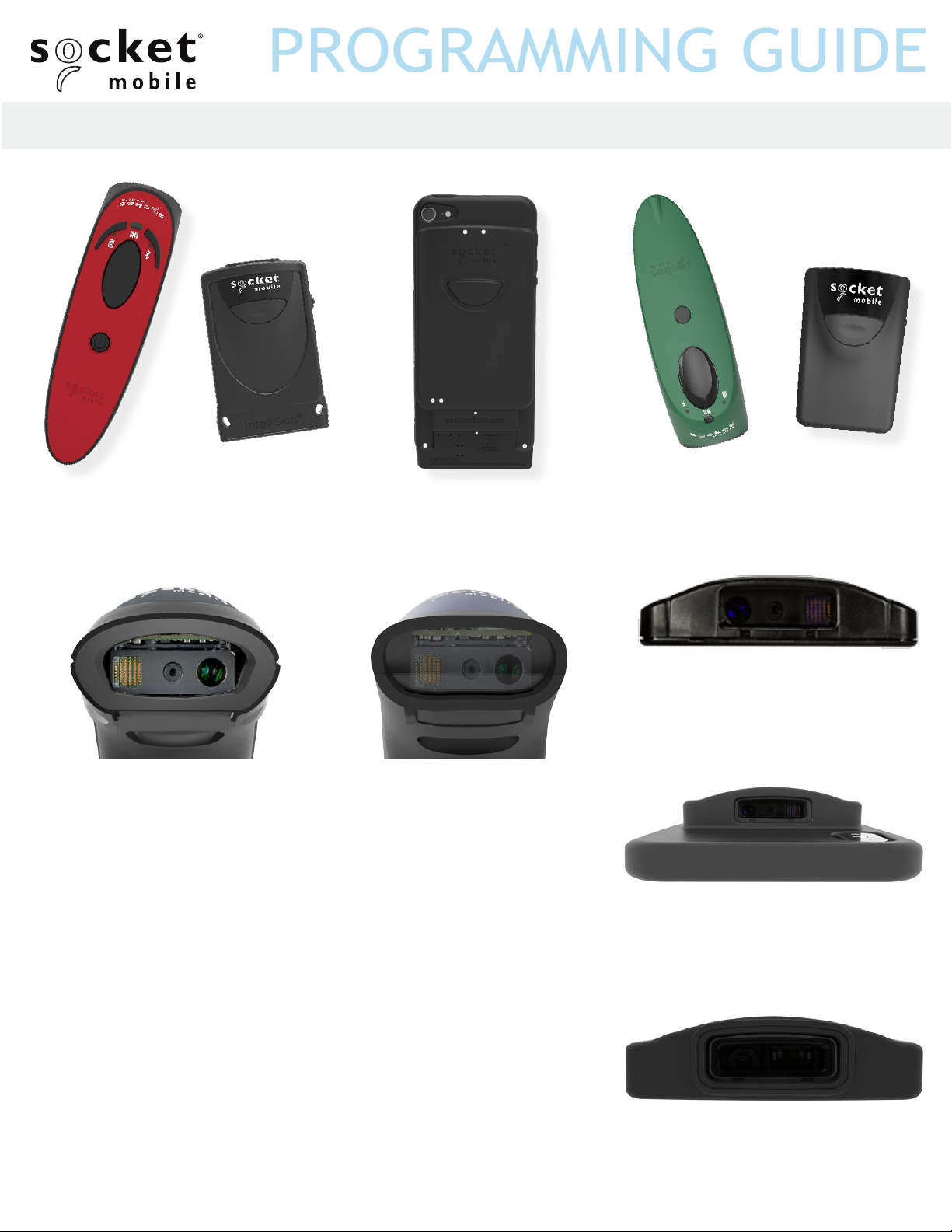

PROGRAMMING GUIDE

1D/2D/OCR/DOTCODE READER - D760,D860, DS860, S760 AND S860

Model

D760 Black

D760 Gray

D760 Red

D760 White

Model

S760 Blue

S760 Green

S760 Red

S760 White

S760 Yellow

Model

S860 Black

Model

DS860 Black

Model

D860 Black

TABLE OF CONTENTS

COMPANION APP 3

RESETS 3

BLUETOOTH CONNECTION MODE 4

PREFIX/SUFFIX 5

VIBRATE/BEEP MODES 6

ACTIVE MODES 7

PRESENTATION MODES 8

HID KEYBOARD LANGUAGE SETTINGS 9-10

AUTOMATIC RECONNECTION 11

BLUETOOTH CONNECTION ROLES 12

DATA MODE - FOR SPP MODE ONLY 13

PROGRAMMING 14-15

OCR 16-25

1D SYMBOLOGIES

UPC/EAN 26-36

CODE 128 37

GS1-128 37

CODE 39 38-39

CONVERT CODE 39 TO CODE 32 (ITALIAN PHARMA CODE) 40

CODE 32 PREFIX 40

CODE 93 41

INTERLEAVED 2 OF 5 42

CODABAR 43-44

MSI 45-46

GS1 DATABAR 47-48

2D SYMBOLOGIES

PDF417 49

MICROPDF417 49

DATAMATRIX 49

MAXICODE 49

QR CODE 50

MICROQR 50

AZTEC 50

HAN XIN 50

DOTCODE 50

POSTAL CODES 51-52

SAMPLE BARCODES 53-54

COMPANION APP

Make sure the scanner is not connected to a host computer or device before scanning a command

barcode.

Factory Reset

Congures the scanner to factory defaults. The scanner powers off after scanning this barcode.

Scan QR code with mobile device to

download app.

Scan QR code with mobile device to

download app.

Set up your scanner with Socket Mobile Companion App.

• Easy to follow instructions for pairing scanners

• Check scanner status

• Check warranty and register scanners

Learn more about Application Mode.

RESETS

Pairing Reset

If the scanner is paired with a device, unpair it before trying to connect to a different device.

Step 1: Scan barcode (for serial number that begins 1931 and above only).

Or follow steps to manually reset scanner:

A. Power on the scanner.

B. Press and hold down the scan button.

C. Press and hold down the power button.

D. After you hear 3 beeps, release both buttons.

The scanner will unpair and automatically power off.

Step 2: Remove or forget the scanner from the Bluetooth list on the

host device.

The scanner is now discoverable.

Both steps above must be done to complete the unpairing.

BLUETOOTH CONNECTION MODE

Make sure the scanner is not connected to a host computer or device before scanning a command

barcode.

Scan command barcode(s) to congure the scanner.

Basic Mode (HID) (default)

(All host devices)

Congures the scanner to Human Interface Device (HID) mode. The scanner will be discoverable as a

keyboard to other Bluetooth devices.

Application Mode (MFi-SPP) for Apple Devices

*Required for Apple iOS applications developed with Socket Mobile SDK.

Application Mode (Auto Connect-SPP) for Windows or Android 8.0 and later

*Congures the scanner to Serial Port Prole.

Application Mode (SPP) for Windows or Android version 7.0 and lower

*Congures the scanner to Serial Port Prole (SPP).

*For compatible applications developed with Socket Mobile SDK: socketmobile.com/partners/app

BLUETOOTH CONNECTION ROLES

Advanced users only.

Basic Mode (HID) Keyboard

Changes a scanner in HID-Peripheral mode to HID-Keyboard mode.

For Mac OS, Apple iOS, and other smart devices.

Basic Mode (HID) Peripheral

Changes a scanner in HID-Keyboard mode to HID-Peripheral mode.

For some MS Windows or Android mobile devices.

Scan only with scanner in Application Mode (SPP) in Windows PC devices.

Acceptor (default)

Congures the scanner to accept a Bluetooth connection puts the scanner in discoverable mode.

Initiator

Congures the scanner to initiate a connection to a computer/device with the Bluetooth Device Address

specied in the barcode.

The barcode must be formatted in Code 128 and contain the data #FNIaabbccddeeff# such that

aabbccddeeff is the Bluetooth Device Address of the computer/device you want to connect to the scanner.

You must create a custom barcode for each computer/device that you want to connect to the scanner.

You can use barcode generating software or website (e.g., http://barcode.tec-it.com)

DATA MODE-FOR SPP MODE ONLY

Advanced users only.

Packet Mode (default)

Congures the scanner to transmit decoded data in packet format.

Raw Mode - Android and Windows only

Congures the scanner to transmit decoded data in raw (unpacketed) format.

AUTOMATIC RECONNECTION

All Bluetooth Connection Modes are OK.

Important! After scanning this command barcode, power off and power on the scanner to make sure it is

congured properly.

Enable Automatic Reconnection from scanner (default)

Congure the scanner to automatically initiate a connection to the last paired computer/device after the

scanner is powered on.

Disable Automatic Reconnection from scanner

Congure the scanner to wait for a computer/device to initiate a Bluetooth connection after the scanner

is powered on.

You can congure the scanner to automatically add a prex and/or sufx to each scan of data. Scanner is

allowed 1 prex and 2 sufxes.

For custom prex and sufx, contact [email protected].

Note: Scanning multiple commands in a single instance will overwrite (not append) the previous

command.

Sufx – Carriage Return (default in bas)

Congures the scanner to add a carriage return after decoded data.

Sufx – Tab

Congures the scanner to add a tab after decoded data.

Sufx – Carriage Return and Line Feed

Congures the scanner to add a carriage return and line feed after decoded data.

Data As Is

Congures the scanner to return only the decoded data (i.e., no prex or sufx).

PREFIX/SUFFIX

Make sure the scanner is not connected to a host computer or device before scanning a command

barcode.

Vibrate “On” (default)

Enable the scanner to vibrate to indicate a successful scan.

Vibrate “Off”

Disable the scanner from vibrating to indicate a successful scan.

Beep “On” (default)

Enable the scanner to vibrate to indicate a successful scan.

Beep “Off”

Disable the scanner from beeping to indicate a successful scan.

VIBRATE/BEEP MODES

Scan one of the barcodes to recongure the scanner to remain powered on for a longer time.

These settings drain the battery faster. Please ensure the scanner is charged daily.

2 hours (default)

Scanner powers off in 2 hours when idle/inactive while connected and 5 minutes when disconnected.

Continuous Power for 4 hours

Congures the scanner to remain on for 4 hours.

Continuous Power for 8 hours

Congures the scanner to remain on for 8 hours.

Scanner Always On

Congures the scanner to never power off.

ACTIVE MODES

PRESENTATION MODES

Scan one of the barcodes to congure the scanner to automatically scan barcodes.

These settings drain the battery faster. Please ensure the scanner is charged daily.

Mobile Mode (default)

Reverts back to manual scan mode.

#FNB 41FBA50000#

Auto Mode (recommended)

Congures the scanner to switch to presentation mode when power is detected on the charging pins. The

scanner will remain on presentaion mode until the scan button is pressed to exit the mode.

#FNB 41FBA50003#

Detect Mode

Congures the scanner to switch to presentation mode when power is detected on the charging pins. The

automatic scan will continue until power is removed.

#FNB 41FBA50002#

Stand Mode

Scanner is permanently in presentation mode.

#FNB 41FBA50001#

Command barcode is for model D760 and S760 only.
