CAP Series Operating Directions
New Environmental International
A: Fixed and Connected UV probe with the electrical box fitting.
B: UV Lamp.
C: Fixed and Connected UV probe with the “A “fitting.
D: Probe= B + C.
Installation:
1, Power Supply:
---AC/100-250V/50-60Hz.
---FAP power must be connected to the AHU or PAU air blower power, The AC air blower
operating, FAP open, AC air blower close, FAP close, too.
---Always leave the air blower, You can be add a switch in the FAP power, or add a Timer.
---Electrical connections should only be made licensed HVAC or Electrical Contractor.
WARNING!!!
Never look directly the UV light tube. It may cause blindness.
2, Install to the HVAC System.
---Take to dismantle of the UV probe’s protecting membrane.

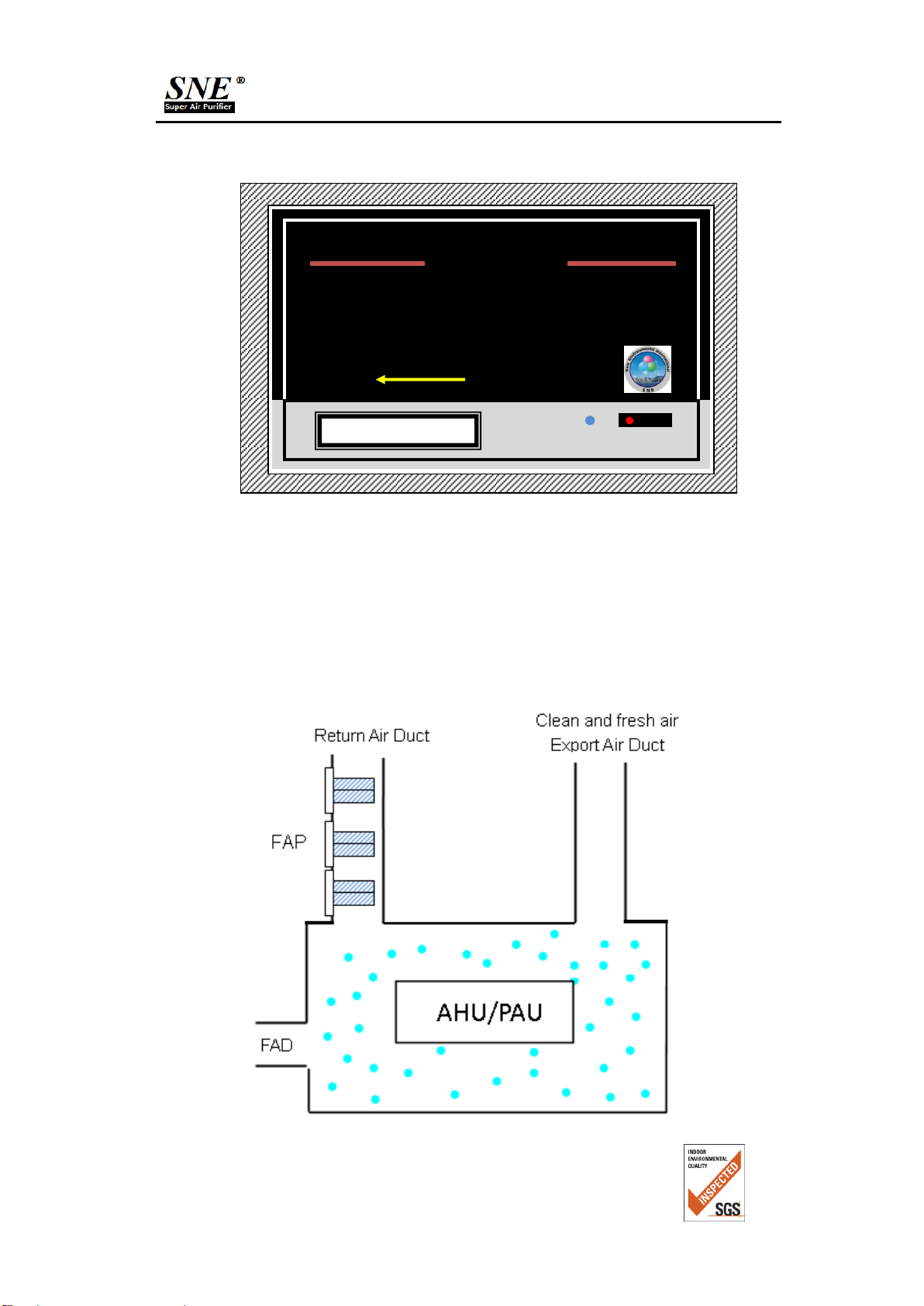

---Installation to the main Return Air Duct end, but the Export Air duct start point, that right
too
(Figure-3).

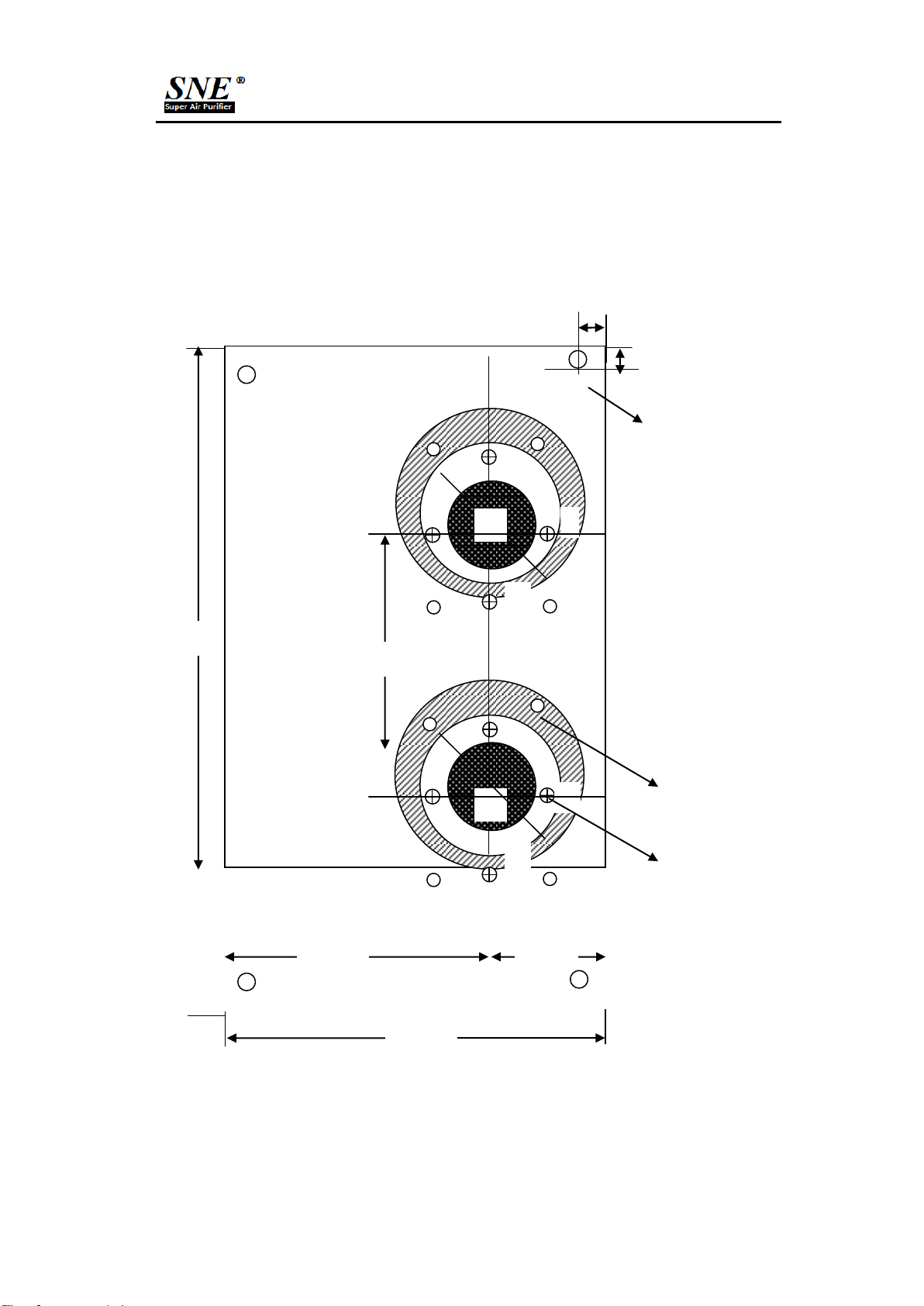

---The UV Probe Ø=4.8cm, Installing hole can be cut >5.5cm (Figure-4).
---Use 4 X 0.5cm screws to fix the HVAC return air duct. (Figure-4, Install Ø0=0.6cm)
--- The FAP Panel had FAN <-------- display, It to indicate installing FAP must be note
the Air Blower direction (Figure-2).
--- Detail. Please look the FAP & CAP Installation DVD or Installation Figure.
UV Probe Replacement:
