Parts Manual for

TWO-STAGE

INTERMEDIATE FRAME

SNOW THROWER

SERIES 4

MODELS

I55224 EI55224

I7244 EI7244

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE

AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH

CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

SNAPPER INC.

(Rev. 2, 6/30/02) MANUAL No. 06068

CONTENTS

GROUP PAGE

DISCHARGE CHUTE ............................................................................................. 3

COLLECTOR HOUSING .................................................................................... 4, 5

AUGERS, IMPELLER, GEAR CASE, SHAFT.................................................... 6, 7

CHUTE CRANK CONTROL ............................................................................... 8, 9

HANDLES (CONVENTIONAL TYPE)............................................................. 10, 11

HANDLES (SINGLE HANDLE TYPE) ............................................................ 12, 13

FRAME, TRACTION DRIVE ........................................................................... 14, 15

ENGINE, PULLEYS, IDLER, CLUTCH SYSTEM........................................... 16, 17

CHAIN CASE .................................................................................................. 18, 19

WHEELS............................................................................................................... 20

ACCESSORIES .................................................................................................... 21

DECALS ......................................................................................................... 22, 23

MANUAL No. 06068 INTERMEDIATE SNOW THROWER

DISCHARGE CHUTE

ITEM PART NO. DESCRIPTION

1 5-3411 ASSEMBLY, Discharge Chute (Includes Item 2)

2 2-4773 DECAL, Danger

2A 2-8700 DECAL, Read Manual (Euro)

3 2-8184 DEFLECTOR, Discharge Chute

4A 1-6324 T-KNOB (Plastic)

4B 3-5744 T-KNOB (w/5/16-18 insert)

5 2-8253 PIN, Hinge

6 3-8205 RING, Chute

7 1-1938 RETAINER (Chute Ring to Housing) (3)

8 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tapping (6)

9 9-1077 BOLT, 5/16-18 x 5/8" Square Neck Carriage, Grade 5 (3)

10 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (3)

11 9-1097 BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5

12 9-1076 WASHER, 5/16 Flat (2)

13 9-0196 NUT, 5/16-18 Hex, Grade B or 5

14 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5

15 9-1074 NUT, 5/16-24 Hex Center Lock, Grade B

16 9-1552 WASHER, 7/32 Flat (6)

17 1-9692 WIRE, Safety (Euro)

18 2-3673 PUSH-ON Fastener, .5/32” Dia. (Euro) (2)

19 3-2559 RETAINER, Safety Wire (Euro)

INTERMEDIATE SNOW THROWER MANUAL No. 06068

17 8

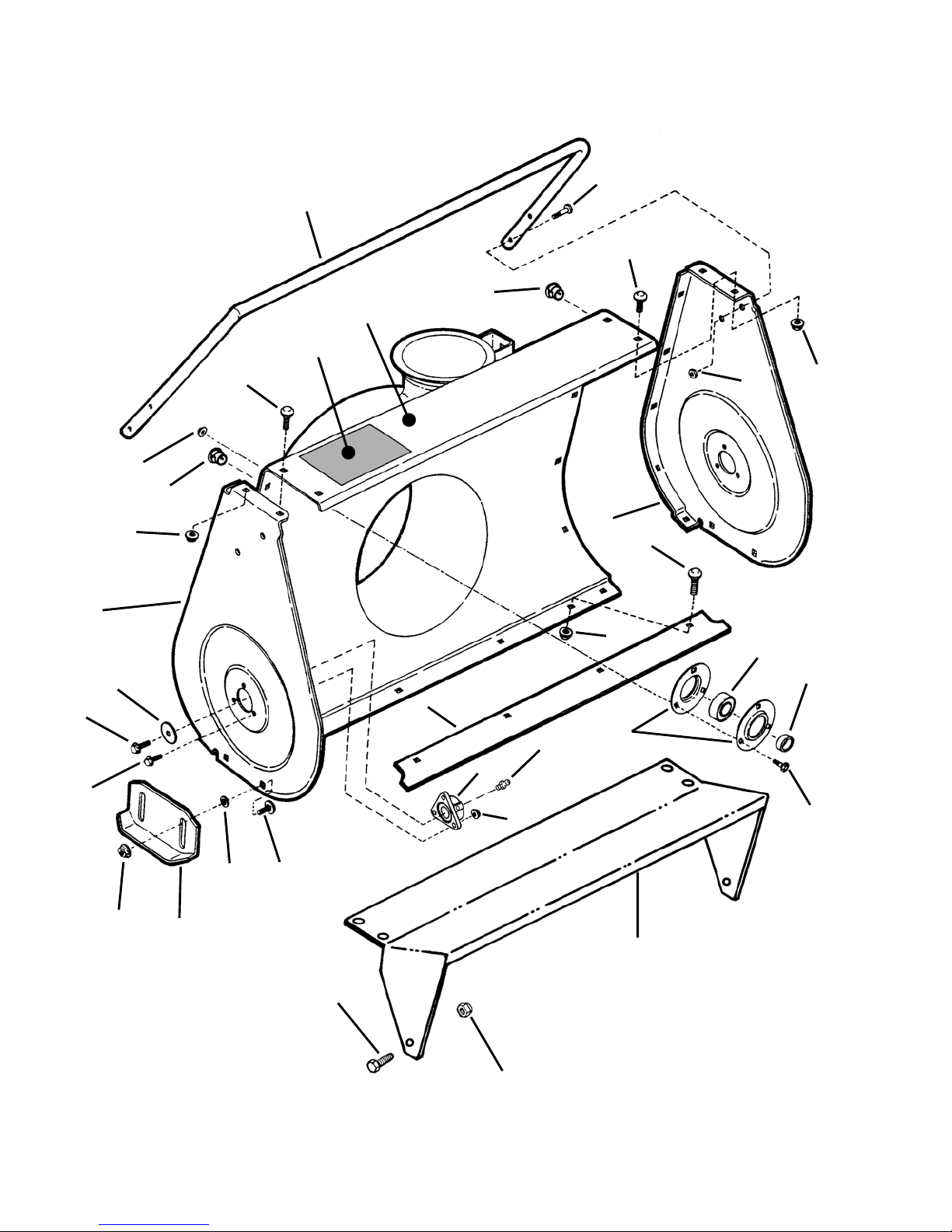

COLLECTOR HOUSING

(3 Piece Bolted)

MANUAL No. 06068 INTERMEDIATE SNOW THROWER

3A, 3B

16 9

15 14

COLLECTOR HOUSING

(3 Piece Bolted)

ITEM PART NO. DESCRIPTION

1 3-4285 PLATE, Right Side

- 3-4288 PLATE, Right Side (I7244 & EI7244 Models)

2 5-3412 ASSEMBLY, 22” Blower Housing (I55224 & EI55224 Models) (Includes Item 3B)

- 5-3622 ASSEMBLY, 24” Blower Housing (I7244 & EI7244 Models) (Includes Item 3A)

3A 2-8280 DECAL, Foot Danger

3B 1-6578 DECAL, Danger (Collector)

4 3-4284 PLATE, Left Side

- 2-8231 PLATE, Left Side (I7244 & EI7244 Models)

5 3-3298 BLADE, Scraper (I55224 & EI55224 Models)

- 3-6163 BLADE, Scraper (I7244 & EI7244 Models)

6 2-8188 BEARING, Auger Shaft (I55224 & EI55224 Models) (2)

- 1-8736 BEARING, Auger Shaft (I7244 & EI7244 Models) (2)

7 3-2455 HOUSING, Bearing (2)

8 1-4608 BEARING, Ball

9 3-7982 SHOE, Skid (2)

10 1-7865 SPACER, 3/4 x 1/4 x 1"

11 9-0999 SCREW, 1/4-20 x 5/8" Self-Tapping (Truss Head Torx) (14)

12 9-0666 BOLT, 1/4-20 x 5/8" Square Neck Carriage, Grade 5 (7)

13 9-1065 NUT, 1/4-20 Hex Flange Lock (13)

14 9-0799 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5 (4)

15 3-2070 WASHER, 5/16 Flat (4)

16 9-1070 NUT, 5/16-18 Hex Flange Lock (4)

17 9-0699 BOLT, 1/4-20 x 3/4” Hex Flange Lock, Grade 5 (6)

18 9-0361 SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap (2)

19 1-6314 WASHER, 21/64” Flat (2)

20 3-8201 DRIFT-CUTTER (I55224 & EI55224 Models)

-- 3-8230 DRIFT-CUTTER (I7244 & EI7244 Models)

21 9-1059 SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5 (4)

22 9-1099 NUT, 1/4-20 Hex Center Lock (4)

23 4-2894 PLUG, Dome 3/16” Diameter (2)

24 3-4431 ADAPTER, Housing (22”)

-- 3-4432 ADAPTER, Housing (24”)

25 1-0817 FITTING, Lube (2)

26 9-0071 SCREW, 1/4-20 x 1/2” Hex Head Cap, Grade 5 (2)

27 9-1603 NUT, 1/4-20 Hex Nyloc (2)

INTERMEDIATE SNOW THROWER MANUAL No. 06068

AUGERS, IMPELLER, GEAR CASE, SHAFT

MANUAL No. 06068 INTERMEDIATE SNOW THROWER

32 127

712

AUGERS, IMPELLER, GEAR CASE, SHAFT

ITEM PART NO. DESCRIPTION

1 7-2423 WELDMENT, Impeller (Fan)

2 5-1566 ASSEMBLY, Drive Plate (Includes Items 3 & 4)

3 1-0756 BEARING, Ball

4 1-4295 BEARING, Ball

5 1-0211 KEY, #9 (3/16 x 3/4") Woodruff (2)

6 9-0929 SCREW, 1/4-20 x 1/2" Truss Head Self-Tapping (Torx)

7 9-0913 SCREW, #10-24 x 1/2" Hex Washer Self-Tapping (Torx)

8 1-9779 COVER, Gear Case (Left Hand)

9 1-5136 SEAL (2)

10 1-5230 BUSHING

11 1-5137 "O" RING

12 1-9780 COVER, Gear Case (Right Hand)

13 9-0290 SCREW, 1/4-20 x 3/4" Hex Washer Self-Tapping (4)

14 9-1075 SCREW, #10-24 x 5/8" Hex Washer Self-Tap, Grade 5 (3)

15 2-9275 FITTING, Lube 1/4-28 Thread Forming

16 2-9554 SHAFT, Auger

17 1-3852 WASHER, Thrust (2)

18 2-7652 GEAR, Worm

19 4-9969 AUGER, (Left Hand)

20 1-3864 FITTING, Lube (for 3/16” dia. hole)(2)

21 4-9968 AUGER, (Right Hand)

22 1-5257 BOLT, 1/4-20 x 1-1/2" Shear (2)

23 9-0372 NUT, 1/4-20 Hex Center Lock (2)

24 1-3867 SHEAVE (Includes Setscrews)

25 9-0201 SCREW, 5/16-18 x 5/16 Hex Socket Set (2)

26 2-1961 COLLAR

27 1-0776 RING, 1/2” Heavy Duty External Retaining

28 1-9783 SHAFT, Pinned Impeller (Worm)

29 9-0842 ROLL-PIN, 1/4 x 1-1/4” (3)

30 3-2479 WASHER, Thrust

31 1-5363 BEARING

32 1-7865 SPACER, .76 I.D. x 1” O.D. x .25” Thick

33 9-0987 WASHER, Shim (4)

INTERMEDIATE SNOW THROWER MANUAL No. 06068

CHUTE CRANK CONTROL

MANUAL No. 06068 INTERMEDIATE SNOW THROWER

CHUTE CRANK CONTROL

ITEM PART NO. DESCRIPTION

1 2-8180 CRANK, Chute

2 1-3901 KNOB, Chute Crank

3 9-1067 NUT, 5/16-18 Hex Center Lock, Grade B

4 1-2117 BUSHING (2)

5 9-0539 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tapping

6 9-1070 NUT, 5/16-18 Hex Flange Lock, Grade 5 (2)

7 9-1082 PIN, 3/32 x 3/4" Cotter (3)

8 2-8222 BLOCK

9 3-4301 BRACKET, Shaft

10 1-4001 PIN, 1/8 x 3/4" Roll (3)

11 2-1828 WORM

12 1-1724 WASHER, Spring

13 9-1138 SCREW, 5/16-18 x 5/8" Hex Head Cap, Grade 5

14 2-8177 BRACKET, Worm Shaft

15 4-5204 SHAFT, Worm (long)

16 9-0858 SCREW, 5/16-18 1/2” Hex Washer Self-Tapping (2)

17 9-1026 BOLT, 5/16-18 x 5/8” Short Neck Carriage, Grade 5

INTERMEDIATE SNOW THROWER MANUAL No. 06068

HANDLES, CONTROLS (CONVENTIONAL TYPE)

(I55224 & EI55224 Models)

MANUAL No. 06068 INTERMEDIATE SNOW THROWER

576

10A, B
