Snapper SPX310 Manuel utilisateur

Not for

Reproduction

Revision A

Not for

Reproduction

Not for

Reproduction

Not for

Reproduction

Table of Contents:

Products Covered by This Manual......................................5

General Information..............................................................5

European Office Contact Information.................................5

European Union (EU) Stage V (5): Carbon Dioxide (CO2)

Values.....................................................................................5

Operator Safety..................................................................... 5

Slope Identification Guide................................................ 5

Safety Symbols and Meanings.........................................5

Safety Alert Symbol and Signal Words............................ 6

Safety Decals................................................................... 6

Safety Messages.............................................................7

Features and Controls..........................................................7

Control Symbols and Meaning.........................................7

Operation............................................................................... 9

Operating Area................................................................. 9

Safety Interlock System Tests..........................................9

Electronic Dash Panel....................................................10

Engine.............................................................................10

Tractor Operation........................................................... 12

Mowing............................................................................13

Adjust Mower Cutting Height..........................................13

Reverse Mowing Option (RMO)..................................... 13

Maintenance.........................................................................14

Maintenance Schedule................................................... 14

Tire Pressure Check...................................................... 14

Battery Maintenance.......................................................14

Mower Blade Stop Time.................................................15

Change the Engine Oil...................................................15

Air Filter Assembly (Cartridge with pre-cleaner).............15

Check the Spark Plugs.................................................. 15

Pushing the Tractor by Hand......................................... 15

Towed Equipment...........................................................16

Clean the Mower Deck (if equipped)..............................16

Storage.................................................................................16

Troubleshooting..................................................................17

Troubleshooting the Rider..............................................17

Troubleshooting the Mower............................................17

Specifications......................................................................18

Specifications Chart........................................................18

Not for

Reproduction

Products Covered by This

Manual

The following products are covered by this manual:

2691481-00, 2691481-01,2691481-02,2691482-00,

2691483-00, 2691487-00, 2691487-01,2691487-02,

2691488-00, 2691489-00, 2691576-00.

General Information

For additional information, refer to the Customer Contact

Guide included with the unit.

The illustrations in this document are representative. Your

unit might look different from the images shown. LEFT and

RIGHT are referenced from the operating position.

The use of Important and Note in the text shows clarifications,

exceptions, or alternatives to the procedures.

All language translations of this document derive from the

initial English source file.

Recycle all packaging, used oil, and batteries according to

applicable government regulations.

European Office Contact

Information

For questions regarding European emissions, please contact

our European office at:

Max-Born-Straße 2, 68519 Viernheim, Germany.

European Union (EU) Stage

V (5): Carbon Dioxide (CO2)

Values

Carbon dioxide values of Briggs & Stratton EU Type-Approval

Certificate engines can be found by entering CO2 into the

search window on BriggsandStratton.com.

Operator Safety

Save these instructions for future reference.This manual

contains safety information to make you aware of the hazards

and risks associated with the product and how to avoid them.

It also contains important instructions that must be followed

during the initial set-up, operation, and maintenance of the

product.

This product is designed and intended for cutting well

maintained grass and is not intended for other purposes.

It is important that you read and understand these instructions

before you attempt to start or operate this equipment.

Make sure that you are fully familiar with the controls and the

correct use of the product.

Know how to stop the unit and disengage controls quickly.

Slope Identification Guide

How to measure the slope of a lawn surface with a

smartphone or an angle finder tool:

WARNING

Do not operate on slopes greater than10degrees.

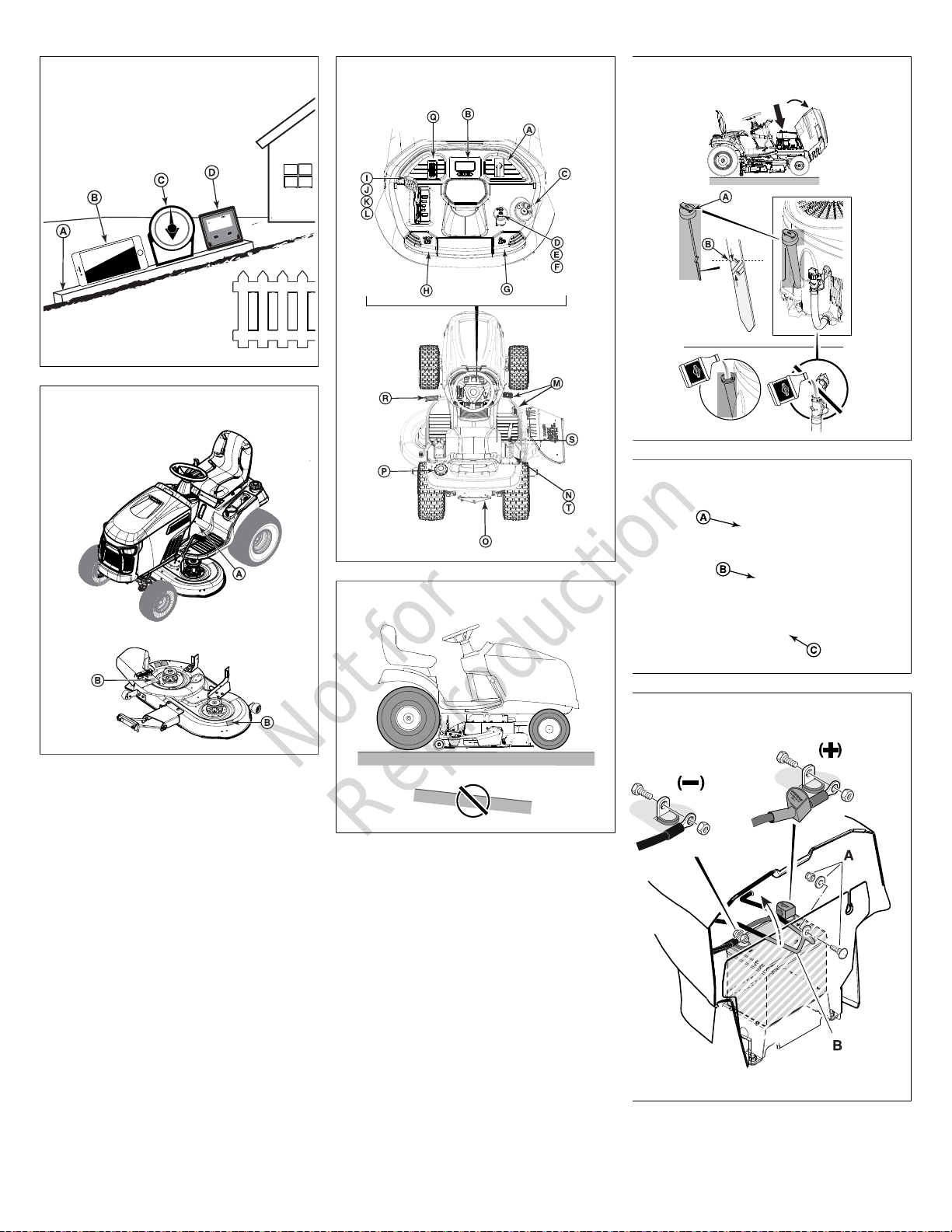

1. Use a straight edge at least two (2) feet long (A,

Figure1). A 2x4 or a straight piece of metal works well.

2. Angle finder tools.

a. Use your smartphone:Many smartphones (B,

Figure1) have an inclinometer (angle finder) located

under the compass application (app). Or, search an

app store for an Inclinometer app.

b. Use angle finder tools:Angle finder tools (C and

D, Figure1) are available at local hardware stores

or online (also called inclinometer, protractor, angle

meter, or angle gauge). Dial type (C) or digital type

(D) work, others may not. Follow user instructions

with the angle finder tool.

3. Put the two (2) feet long straight edge along the steepest

part of the lawn slope. Put the board up and down the

slope.

4. Lay the smartphone or angle finder tool on the straight

edge and read the angle in degrees. This is the slope of

your lawn.

Note:A paper gauge slope identification guide is included

in your product literature packet and is also available to

download from the manufacturer's website.

Safety Symbols and Meanings

Symbol Meaning

Safety information about hazards that can result in personal

injury.

Read and understand the Operator's Manual before you

operate or service the unit.

Remove the key and read the Operator's Manual before

you service the unit.

Not for

Reproduction

Symbol Meaning

Stop

Fire hazard

Explosion hazard

 Shock hazard

Toxic fume hazard

Moving parts

Wear eye protection.

Hazardous chemical

Hot surface hazard

Amputation hazard

Thrown objects hazard

Symbol Meaning

Keep a safe distance

Keep children away

Roll-over hazard

Amputation hazard

Safety Alert Symbol and Signal Words

The safety alert symbol identifies safety information

about hazards that can result in personal injury. A signal word

(DANGER, WARNING, or CAUTION) is used with the alert

symbol to indicate the likelihood and the potential severity of

injury. In addition, a hazard symbol may be used to represent

the type of hazard.

DANGER indicates a hazard which, if not avoided, will

result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

could result in minor or moderate injury.

NOTICE indicates an action that could result in damage to

the product.

Safety Decals

Before you operate the machine, read the safety decals.

Compare Figure2to the decals shown in the table below.

The cautions and warnings are for your safety. To avoid

personal injury or damage to the machine, understand and

follow all the safety decals.

 

Important:If any safety decals become worn or damaged,

and cannot be read, order replacement decals from your local

dealer.

Not for

Reproduction

A

Safety Decal Icon Definitions

Compare the letters (A - J) in the safety decal icons to

thesafety definitions listed in the table that follows.

AWARNING:Read and understand the Operator's Manual before

you use this machine. Know the location and function of all controls.

Do not operate this machine unless you are trained.

BDANGER - LOSS OF TRACTION, SLIDING, STEERING

AND CONTROL ON SLOPES HAZARD:If the machine stops

forward motion or starts to move on a slope, stop the blades,

andslowlydriveoff the slope.

CDANGER - FIRE HAZARD:Make sure the unit is free of grass,

leaves, and excess oil. Do not add fuel while the engine is hot or on.

Stop the engine. Let the engine cool for at least 3 minutes before

you add fuel. Do not add fuel indoors, in an enclosed trailer, garage

or other enclosed areas. Remove spilled fuel. Do not smoke while

you operate this machine.

DDANGER - TIPPING AND SLIPPING HAZARD:Mow up and down

slopes not across. Do not operate on slopes more than 10 degrees.

Avoid sudden and sharp (fast) turns while on slopes.

EDANGER - AMPUTATION AND DISMEMBERMENT HAZARD:To

avoid injury from rotating blades and moving parts, keep safety

devices (guards, shields and switches) in place and working.

F Do not mow when children or others are around. DO NOT carry

riders especially children even with the blades off. Do not mow

in reverse unless absolutely necessary. Look down and behind –

before and while you drive the unit in reverse.

G Consult technical literature before technical repairs or maintenance.

When you leave the machine, stop the engine, set the parking

brake to the lock position, and remove the ignition key.

H Keep by-standers and children a safe distance away. Remove

objects that can be thrown by the blade. Do not mow without the

discharge chute in place.

I Do not mow without discharge chute or entire grass catcher in

place.

J To avoid injury from rotating blades, stay clear of deck edge and

keep others away.

Safety Messages

WARNING

Read, understand, and follow all the instructions and

warnings in the Operator's Manual and on the machine,

engine, and attachments before you operate this machine.

Failure to observe the safety instructions in this manual and

on the equipment could result in death or serious injury.

• Only let operators who are responsible, trained and

familiar with the instructions and physically capable to

operate the machine.

• Do not operate the machine while under the influence of

alcohol or drugs.

• Wear safety glasses and closed toe footwear.

• Do not put hands or feet near rotating parts or under

the machine. Keep clear of the discharge opening at all

times.

• Keep the machine in good working order. Replace worn

or damaged parts.

• Be careful when youservice the blades. Wrap the

blades or wear gloves. Replace damaged blades. Do

not repair or alterthe blades.

• Use full width ramps when you load and unload a

machine for transport.

• See attachment or accessory for proper wheel weights

or counterweights.

• To help prevent fires, keep machine free of grass,

leaves, or other unwanted material. Clean remaining oil

or fuel spillage. Remove fuel soaked debris and let the

machine to cool before storage.

WARNING

Running engine gives off carbon monoxide, an odorless,

colorless, poison gas. Breathing carbon monoxide can

cause headaches, fatigue, dizziness, vomiting, confusion,

seizures, nausea, fainting or death.

• Operate equipment ONLY outdoors.

• Keep exhaust gas from entering a confined area

through windows, doors, ventilation intakes, or other

openings.

Features and Controls

Compare Figure3with the table that follows.



Features and controls may differ from those shown.

Control Symbols and Meaning

A Reverse Mowing Option

Not for

Reproduction

B Hourmeter (if equipped)

Ignition Switch

OFF

RUN

Start

C

Headlight Switch

D Power Take-Off(PTO) Switch Up,

Engage Blades

E Power Take-Off

F Power Take-Off (PTO) Switch Down,

Disengage Blades

G Cruise Control

H Parking Brake Control

I Throttle Control

J Throttle Control SLOW Position

K Throttle Control FAST Position

L Choke

M Ground Speed Pedals

N Mower Lift Lever

O Transmission Release Lever

P Fuel Tank

Q Fuel Level Gauge

R Brake Pedal

S Seat Adjustment Lever

Not for

Reproduction

T Height-of-Cut Switch (if equipped)

Operation



Read theOperator Safetysection before you operate this

machine. Make sure that you know the controls and how to

stop the unit.

Operating Area

1. Know the area where you plan to operate the mower.

2. Make sure that the area is free of unwanted material that

could be picked up by the blades and thrown.

DANGER

This machine is capable of throwing objects that could

injure bystanders or cause damage to buildings.

• Do not operate the machine without the entire grass

catcher, discharge chute, or other safety devices in

place and functioning properly. Check frequently for

signs of wear or detoriation and replace as needed.

• Clear the operating area of any objects which could

be thrown by or interfere with the operation of the

machine.

3. Move the rider mower outside, before you start the

engine.

WARNING

Engines give off carbon monoxide, an odorless, colorless,

poison gas. Breathing carbon monoxide can cause nausea,

fainting, or death.

4. Note all slopes and drop-offs.

DANGER

Operating on slopes, or near water, or drop-offs can result

in loss of control and roll-over.

• Mow up and down slopes not across.

• Reduce speed and be careful on slopes.

• Do not operate on slopes over 10 degrees, which is a

3.5 foot rise over a 20 foot length.

• Give yourself a minimum of two mower widths of

clearance around water, retaining walls, or drop-offs.

• Avoid mowing wet grass.

• Do not operate machine under any condition where

traction, steering, or stability is in question. Tires could

slide even if the wheels are stopped.

• Avoid starting and stopping on slopes.

• Avoid making sudden changes in speed or direction.

• Make turns slowly and gradually.

• Be careful while operating machine with a grass catcher

or other attachment(s). They can affect the stability of

the machine.

• Follow the manufacturer's recommendation for weight

limits for towed equipment and towing on slopes.

SeeTowed Equipment.

5. Make sure that the operating area is clear of bystanders,

especially children.

DANGER

This rider mower is capable of amputating hands and feet.

• Stop the mower when children or others are near.

• Keep children out of the operating area and under the

watchful care of a responsible adult.

• Do not carry passengers, especially children, even

with the blade(s) shut off. Children can fall off and be

seriously injured or interfere with the safe machine

operation. Children who have been given rides in

the past can suddenly appear in the mowing area for

another ride and be run over or backed over by the

machine.

• Use care when approaching blind corners, shrubs,

trees, or other objects that obscure vision.

Safety Interlock System Tests

This machine is equipped with a Safety Interlock System.

Do not attempt to bypass or tamper with the switches and

devices.

WARNING

If the machine does not pass a safety test, do not

operate the machine. See an authorized dealer.

Test 1 — Engine should NOT crank if

• The Power-Take-Off (PTO) switch is ON, OR

Not for

Reproduction

• The brake pedal is NOT fullydepressed(parking brake

OFF).

Test 2 — Engine SHOULD crank and start if

• The PTO switch is OFF, AND

• The Brake pedal is fullydepressed(parking brake ON).

Test 3 — Engine should SHUT OFF if

• The operator rises off the seat with the PTO engaged.

• The operator rises off the seat with the brake pedal NOT

fully depressed (parking brake OFF).

Test 4 — Mower Blade Stopping TimeCheck

• The mower blades and mower drive belt should come to

a complete stop within five seconds after the PTO switch

is turned OFF.

• If the drive belt does not stop within five seconds, see an

authorized dealer.

Test 5 — Reverse Mowing Option (RMO) Check

• The engine should shut off if reverse travel is attempted

if the PTO has been switched ON and the RMO has not

been activated.

• The RMO light should come on when the RMO has been

activated.

DANGER

Mowing in reverse can be hazardous to bystanders. Tragic

accidents can occur if the operator is not alert to the

presence of children. Never activate the Reverse Mowing

Option (RMO) if children are present. Children are often

attracted to the machine and the mowing activity.

Electronic Dash Panel

Display Total Hours, Trip Hours, and Clock

Note:When you start the unit, the Total Hours show on the

maintenance display. The total hours will set to 0 after 999.9.

1. Push MODE for less than 1 second to show the Trip

Hours.

2. Push RESET for more than 3 seconds to set the Trip

Hours to 0.

3. Push MODE for less than 1 second to show the Clock.

SeeSet the Clocksection.

4. Push MODE for less than 1 second to show the Total

Hours.

Set the Clock

1. Push MODE for more than 3 seconds. The hours will

flash on the display.

2. Push RESET to adjust the hours.

3. Push MODE for less than 1 second to save the setting.

The minutes will flash on the display.

4. Push RESET to adjust the minutes.

5. Push MODE for less than 1 second to save the setting.

Maintenance Display

OIL CHANGE- This message shows after 50 hours of

operation. After you change the oil and filter, push MODE two

times to show OIL HRS. Then, push and hold MODE for 3

seconds to set the timer to zero and clear the display.

AIR FILTER CHECK- This message shows after 25 hours of

operation. After you clean or change the air filter, push MODE

three times to show AIR FILTER HRS. Then, push and hold

MODE for 3 seconds to set the timer to zero and clear the

display.

CHANGE BLADES- This message shows after 100 hours

of operation. After you change the blade, hold the RESET

button for more than 3 seconds to set the timer to zero and

clear the display.

LOW BATTERY- This message shows when a battery

voltage problem occurs. The display will automatically clear

after the battery has been serviced.



Note:When the LOW BATTERY message shows on the

display, it has priority over all other messages. Service

the battery first, and then, check for other maintenance

messages.

Engine

Check and Add Engine Oil

Use Briggs & Stratton®Warranty Certified oils for best

performance. Other high-quality detergent oils are acceptable

if classified for service SF, SG, SH, SJ or higher. Do not use

special additives.

Outdoor temperatures determine the proper oil viscosity for

the engine. Use the chart to select the best viscosity for the

outdoor temperature range expected.

Table des matières

Langues :

Autres manuels Snapper Tondeuse à gazon

Snapper

Snapper EZF2100DKU, EZF2300GKU, EZF520 Manuel d'exploitation et d'entretien

Snapper

Snapper CLT195420 (7800313) Manuel

Snapper

Snapper 3011523BV (7800103) Manuel d'exploitation et d'entretien

Snapper

Snapper M280817B Manuel utilisateur

Snapper

Snapper S2265FC Manuel d'exploitation et d'entretien

Snapper

Snapper 355ZB2654 DLR Manuel utilisateur

Snapper

Snapper 19 Manuel utilisateur

Snapper

Snapper WLT170H38IBV Manuel utilisateur

Snapper

Snapper Z1203B Manuel d'exploitation et d'entretien

Snapper

Snapper LT145H33HBV Manuel d'exploitation et d'entretien

Snapper

Snapper BH50000SP Manuel d'exploitation et d'entretien

Snapper

Snapper 19307T-2 Manuel utilisateur

Snapper

Snapper 2690858 Manuel utilisateur

Snapper

Snapper LWE07B Manuel utilisateur

Snapper

Snapper LT125G33 Manuel utilisateur

Snapper

Snapper SPV211S Manuel d'exploitation et d'entretien

Snapper

Snapper CZT19480KWV, CZT19481KWV, HZT2 Manuel d'exploitation et d'entretien

Snapper

Snapper NZMJ23521KH, NZMJ25611KH Manuel d'exploitation et d'entretien

Snapper

Snapper 21500 Manuel utilisateur

Snapper

Snapper SPLH141KW Manuel d'exploitation et d'entretien

Snapper

Snapper EP21550E Manuel d'exploitation et d'entretien

Snapper

Snapper 1810 Manuel utilisateur

Snapper

Snapper 7800923-00 Manuel utilisateur

Snapper

Snapper Steel Deck Commercial Walk Behind Mowers Manuel

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
