Parts Manual fo

Revision IR,

21" STEEL DECK EUROPEA

SERIES 19

2006

McDonough, GA, 30253 U.S.A.

TP 400-5198-IR-WB-N

6/12/2006 Manual No. 7006157

SNAPPER PRODUCTS, INC.

WALK BEHIND MOWERS

MODEL

EP217019BV

ERP2167519BV

ERP217019B

Table Of Content

TP 400-5198-IR-WB-N

Manual No. 700615721" STEEL DECK EUROPEAN

SERIES 19 3

PAGE GROUP

4HANDLES & CONTROLS

8CUTTING DECK, BLADES

10 WHEEL BRACKETS, LATCHES

12 WHEELS, FRONT & REAR

14 DRIVE SYSTEM SELF-PROPELLED

18 TRANSMISSION (DIFFERENTIAL)

20 THROTTLE CONTROLS/ENGINE SPECS

22 SIDE CHUTE ADAPTER

24 ACCESSORY GRASS BAG

26 DECALS

28 RECYCLING KITS ACCESSORY

30 SNAPPERIZER ACCESSORY

32 THATCHERIZER ASSEMBLY

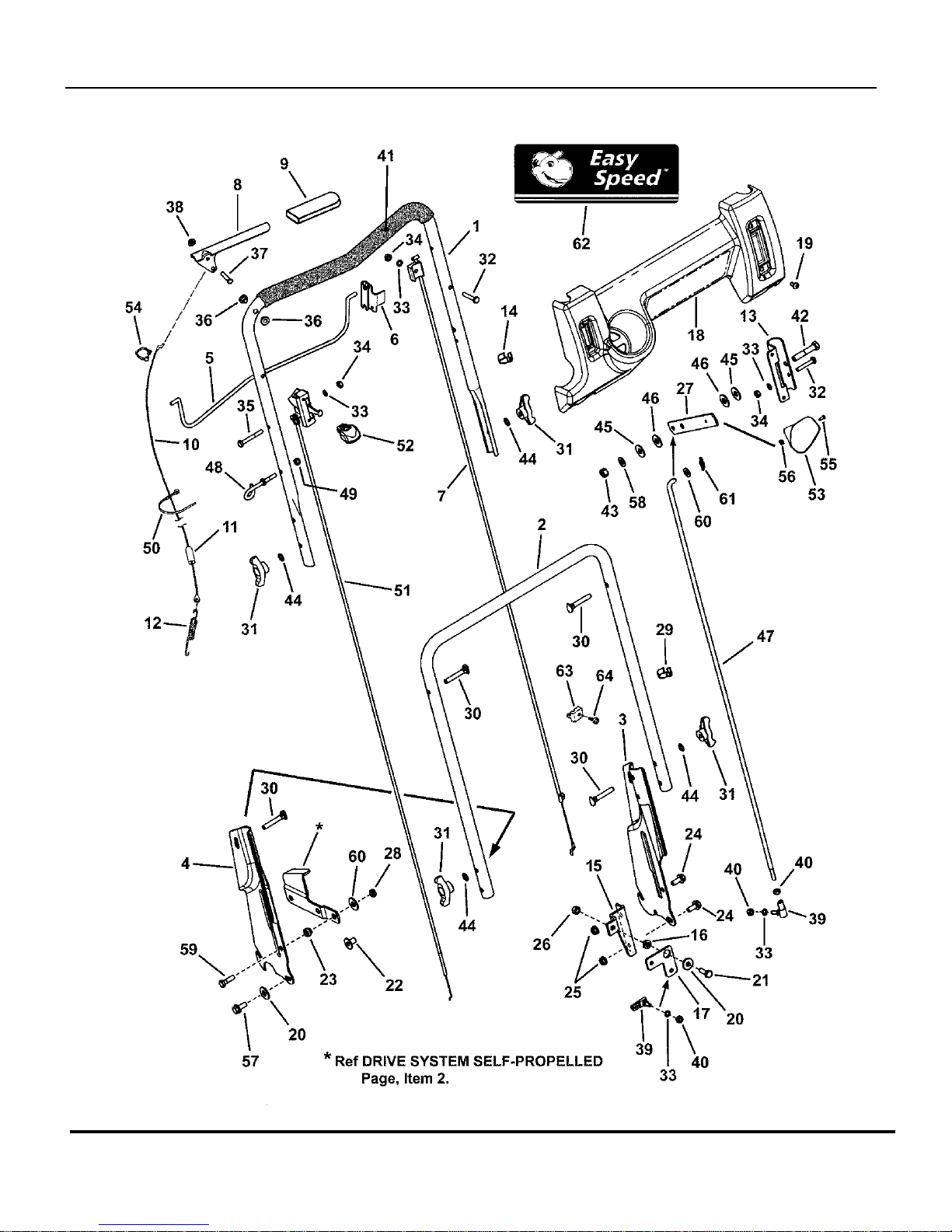

HANDLES & CONTROLS

TP 400-5198-IR-WB-N

Manual No. 7006157 21" STEEL DECK EUROPEAN

SERIES 19

HANDLES & CONTROLS

Footnotes:

TP 400-5198-IR-WB-N

Manual No. 700615721" STEEL DECK EUROPEAN

SERIES 19 5

Part No Descri

tionItem Qt

Note

1 7074411 1 HANDLE, Upper

2 7074156 1 HANDLE, Middle

3 7033985 1 HANDLE, Lower LH (Adjustable)

4 7033986 1 HANDLE, Lower RH (Adjustable)

5 7074418 1 BAIL, OPC Control

6 7034872 1 CLIP, Zone Control

7 7034608 1 CABLE, Zone Control (52-63/64” Long)

8 7074473 1 HANDLE, Clutch

9 7028407 1 GRIP, International Symbol

10 7034604 1 CABLE, Clutch Control (41-1/4” Long)

11 7012121 1 COVER, Vinyl

12 7012122 1 SPRING, Clutch- 21S

13 7074003 1 BRACKET, Shift

14 7024641 2 TIE, Wire, 1.29 long, black

15 7073822 1 BRACKET, Bell Crank

16 7013849 1 SPACER, .33 x .63 x .156

17 7073913 1 BELL CRANK

18 7074140 1 CONTROL PANEL (w/o Electrical Switch Hole)

19 7091200 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx)

20 7091130 2 WASHER, .33 x .88 x .09 Flat

21 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5

22 7090895 1 TEENUT 5/16-18

23 7012114 1 BUSHING, Differential, .328 x .625 x .41

24 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR 5

25 7090585 2 NUT, 5/16-18 Hex Flange Lock, GR 5 or 7091601

26 7091067 1 NUT, 5/16-18 Hex Center Lock

27 7074113 1 LEVER, Shift

28 7091606 1 NUT, 5/16-24 Hex Center Lock GR 5

29 7023813 1 CLIP, Wiring Harness

30 7091189 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR 2 or 7091740

31 7035744 4 KNOB, 5/16-18 Wing (Black)

32 7079577 2 SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR 5

33 7090053 5 WASHER, 1/4” Internal Tooth Lock

34 7091100 3 NUT, 1/4-20 Hex or 7091576

35 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

36 7014343 2 BUSHING, .27 x .35 x .4 Flange

37 7023792 1 PIN, 1/4 x 1-1/2”

Note* See also Throttle Control Page

HANDLES & CONTROLS

TP 400-5198-IR-WB-N

Manual No. 7006157 21" STEEL DECK EUROPEAN

SERIES 19

HANDLES & CONTROLS

Footnotes:

TP 400-5198-IR-WB-N

Manual No. 700615721" STEEL DECK EUROPEAN

SERIES 19 7

Part No Descri

tionItem Qt

Note

38 7091020 1 PUSH-NUT, 1/4”

39 7015753 2 BALL JOINT, 1/4-28

40 7090095 4 NUT, 1/4-28 Hex

41 7023810 1 FOAM GRIP, 18.75” long

42 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5

43 7091585 1 NUT, 3/8-16 Hex Center Lock

44 7090391 4 WASHER, 5/16” Internal Tooth Lock

45 7031961 8 WASHER, 7/16” Flat

46 7028465 2 WASHER, Nylon

47 7074133 1 ROD, Speed Control (1/4-28 thread)

48 7028488 1 GUIDE, Rope (1/4-20 thread)

49 7076978 1 NUT, 1/4-28 Hex GR 5 or B

50 7012080 1 CABLE-TIE, 7”

51 7074460 1 *THROTTLE CONTROL, .48 x .61

52 7075308 1 THROTTLE KNOB

53 7075182 1 KNOB, Shift

54 7026219 1 CLAMP, 7/8” Double Cable

55 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine

56 7091018 1 NUT, #8-32 Hex

57 7091151 1 SCREW, 5/16-18 x 1-1/4” Hex Washer Head Self-Tap

58 7028568 1 WASHER, Belleville

59 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR 5

60 7090188 1 WASHER, 11/32” Flat

61 7034162 1 COTTER PIN, 5/16 Self Lock

62 7100183 1 DECAL, Easy Speed, Control Panel

63 7023153 1 CLAMP, Casing

64 7023154 1 SCREW,#10-32 x 5/8” Self-Tap

Note* See also Throttle Control Page

CUTTING DECK, BLADES

TP 400-5198-IR-WB-N

Manual No. 7006157 21" STEEL DECK EUROPEAN

SERIES 19

CUTTING DECK, BLADES

Footnotes:

TP 400-5198-IR-WB-N

Manual No. 700615721" STEEL DECK EUROPEAN

SERIES 19 9

Part No Descri

tionItem Qt

Note

1 7400026 1 WELDMENT, Deck, 21” Non-Adjust Air finish: red painted but w/o decals

1 7400027 1 WELDMENT, Deck, 21”, S.P., HV, Core Model finish: red painted but w/o decals

2 7091070 5 NUT, 5/16-18 Hex Flange Lock, GR 5

3 7090731 3 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5

4 7046780 2 PLUG, Hole, Polyethylene

5 7090001 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 or 7091508

6 7011791 1 RETAINER, 5/16” Bolt

7 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5

8 7012063 2 WASHER, Cone

9 7019795 1 BLADE, 21” Air Lift

10 7026407 1 BLADE, 21” Ninja (Quad Edge) used on ERP2167519BV &

ERP217019BV

11 7074568 1 COVER, Belt

12 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)

13 7092086 1 SCREW, 5/16-18 x 1/2” Hex Socket Head

14 7091214 1 KEY, Woodruff #HP-506 Hi-Pro Used on EP217019BV &

ERP217019BV

15 7015626 1 HUB, Blade Drive 25mm I.D.

16 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping engine mount bolts

17 7090228 4 SCREW, 5/16-24 x 21/32” Oval Head Machine

18 7032558 2 AIR LIFT

19 7090391 4 WASHER, 5/16” Internal Tooth Lock

20 7090223 4 NUT, 5/16-24 Hex, GR 5

21 7041400 1 FENDER (Weldment), EP21S

22 7090539 6 SCREW, 1/4-20 x 1/2” Hex Flange Self-Tap

23 7073462 1 DECAL, Caution Symbols (International)

24 7090702 1 BOLT, 5/16-18 x 2-1/4” Hex Flange Lock

25 7013320 1 BUSHING, .388 x .625 x 1.62 Flanged matl: powdered metal

26 7031961 2 WASHER, 7/16” Flat

27 7033863 1 COVER, Belt- IP21S

28 7090534 1 SCREW, 5/16-18 x 1/2” Hex Head Cap, GR 5

29 7091076 1 WASHER, 5/16” Flat

1 *ENGINE, 6.75 Briggs Quantum Mod 125K02-0142-E1 Used on ERP2167519BV

1 *ENGINE, 7HP Briggs Intek Euro Mod 128602-0112-E1 Used on EP217019BV &

ERP217019BV

WHEEL BRACKETS, LATCHES

TP 400-5198-IR-WB-N

Manual No. 7006157 21" STEEL DECK EUROPEAN

SERIES 19
