Snapper 7800386 Manuel utilisateur

Parts Manual fo

Revision IR,

HYDRO DRIVE ZTR 33", 42" & 50

150Z SERIES

TP 400-5417-IR-HZ-N10/6/2008

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967 Manual No. 7006269

MODEL

CSC18533 (7800392)

CSC2142 (7800393)

CSC2650 (7800394)

SC18533 (7800269)

SC2142 (7800386)

SC2650 (7800387)

Table Of Content

TP 400-5417-IR-HZ-N

HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 3

Manual No. 7006269

PAGE GROUP

4Frame, Body & Seat Group

8Transmission Group

12 Controls Group

16 Engine Group (18.5 H.P.)

20 Engine Group (21 H.P.)

24 Engine Group (26 H.P.)

28 Wheel & Tire Group

30 Mower Lift Group (33" Deck)

32 Mower Lift Group (42" Deck)

34 Mower Lift Group (50" Deck)

36 33" Mower Deck Group

40 42" Mower Deck - Clutch & Support Group

42 42" Mower Deck - Housing & Arbor Group

44 50" Mower Deck - Clutch & Support Group

46 50" Mower Deck - Housing & Arbor Group

50 Decal Group

52 Electrical Group

56 Wiring Schematic

Frame, Body & Seat Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

Frame, Body & Seat Group

Footnotes:

TP 400-5417-IR-HZ-N

Manual No. 7006269HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 5

Part No Descri

tionItem Qt

Note

1 1733448A 2 WELDMENT, Caster Yoke & Spindle - Black

2 1960160 4 WASHER, .75 ID x 1.60 OD x .05 Thick Flat (Black)

3 1611710 2 KLIPRING, External for .750 Dia. Shaft

4 1734135 2 CAP, Hub 1.481 I.D. x .62 Long Red Poly

5 1730186 2 BUSHING, Axle Pivot PM, Yellow

6 1733426A 1 AXLE, Front Iron Casting Machined ZT

7 1733571 2 SHOULDER BOLT, 3/8-16 x 3” Long .50 Sh GR5, Black

8 1960687 3 NUT, 3/8-16 Hex Flange Nyloc

9 2860744 1 SCREW, 5/8-11 x 3-1/4” Hex Head Cap, GR5, Yellow

10 1960035 1 WASHER, 0.64 I.D. x 1.75 O.D. x .11 Thick, Black

11 2860646 1 NUT, Hex Flange 5/8-11 Two Way Lock, Yellow

12 1733304A 1 BRACKET, Footrest Support, Black

13 1930601 2 SCREW, 5/16-18 x .62 Taptite

14 1960368 2 SPEED NUT, 1/4-20 Lug Type .025/.150, Black

15 1921333 2 SCREW, 5/16-18 x 1” Hex Head Cap

16 1726025D 1 PANEL, Footrest, 18 Ga ZT 7000, Red

17 1960694 14 NUT, 1/4-20 Hex Flange Nyloc, Black

18 1931317 2 BOLT, 1/4-20 x 2” Round Head Short Square Neck, GR5, Black

19 1726306 1 PAD, Footrest Center Black Vinyl

20 1726018 1 ASSEMBLY, Seat w/Arm Rests, ZTR

21 7300752A 1 PANEL, Front - Manual Brake & Deck Lift

22 1960518 2 RETAINER, 1/4” Bolt

23 1935255 4 SPEED NUT, 5/16 -18 Lug Type .025/.150 B

24 720107 2 SHOULDER BOLT, 5/16-18

25 1960223 2 BOLT, 5/16-18 x 1-1/4” Round Head Short Square Neck GR5,

Black

26 1728086 2 PIVOT, Hood (Powdered Metal)

27 1931277 4 NUT, 5/16-18 Hex Flange Lock, Small - Black

28 1716654 2 BOLT, 5/16-18 Idler Pivot

29 1960295 6 SCREW, 1/4-20 x 5/8” Hex Whiz Lock Flange

30 1960738 2 SCREW, 5/16-18 x 3/4” Hex Flange Lock Dog Point

31 7102141 1 SCREEN, Deck Top

32 1673320 3 RIVET, .188 x .617 Large Flange

33 1735028A 1 WELDMENT, Frame - 33” ZT

33 1733227A 1 WELDMENT, Frame - 42” & 50” ZT

34 1733965A 1 SUPPORT, Seat Deck, ZTS - Black

35 1734145 1 SEAT DECK, Red Poly, ZTS - Red

36 1734252A 1 PLATE, Control, ZTS - Black

Frame, Body & Seat Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

Frame, Body & Seat Group

Footnotes:

TP 400-5417-IR-HZ-N

Manual No. 7006269HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 7

Part No Descri

tionItem Qt

Note

37 1960715 8 SCREW, 1/4-20 x 3/4” Truss Head Torx, Black

37 1930594 6 SCREW, 1/4-20 x 3/4” Hex Flange Lock, Black

38 7091591 4 BOLT, 5/16-18 x 1” Hex Flange Lock YZ

39 1728986 1 PAD, Footrest RH Black Vinyl w/Adhesive

40 1728987 1 PAD, Footrest LH Black Vinyl w/Adhesive

41 1960534 1 WASHER, .375 Flat (0.41 I.D. x 1.50 O.D. x .25 Thick) Black

42 1735680 1 TRIM, 8”

43 2820426 2 WASHER, 5/16” External Tooth Lock Washer, Yellow

44 1734392A 2 GUARD, Debris, ZTR - Black

45 1921221 1 SCREW, 5/16-18 x 1-1/2” Hex Head Cap, GR5, Black

46 1919381 1 WASHER, 5/16” Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black

47 7090189 1 WASHER 5/16” Internal/External Tooth Lock, BZ

48 7024340 1 SPACER, .316 x .375 x .300/.310

49 1933988 4 PUSH NUT, 5/16” Dia. Thread .625 O.D. Black (Pal)

50 1734323A 1 STRAP, Fuel Tank Brace

51 1921977 5 SCREW, 5/16-18 x 1-1/4” Hex Head Cap, GR5, Black

52 1726390 2 BUMPER, Rubber 1.50 DIA 0.5 Thick

53 1715962A 1 SHROUD, Rear, ZTR, Black

54 1925003 6 SCREW, 1/4-20 x 1/2” Hex Washer Head Screw Black (Taptite)

55 1733393A 1 SUPPORT, Seat Deck .250 Thick - Black

56 1920415 1 SCREW, 3/8-16 x 1-1/4” Hex Head Cap, GR5, Black

57 1931942 1 PUSH NUT, .375 Dia. Thread .781 O.D., Black (Pal)

58 1677021SM 1 KIT, Arm Rest L.H. & R.H.

59 1960686 9 NUT, 5/16-18 Hex Flange Nyloc

60A 1734257 1 ASSEMBLY, Fuel Tank used on 49-state models

(excluding California)

60B 7102688 1 ASS'Y, Fuel Tank (incl. cap, pickup tube, bushing & elbow) (not

shown) used on California models

61 1734320 1 ASSEMBLY, Fuel Cap (Vented)

62 7102690 1 TUBE, Fuel Pickup (not shown)

63 1674792 1 ELBOW, Gas Tank (not shown)

64 1726400 1 BUSHING, Fuel (not shown)

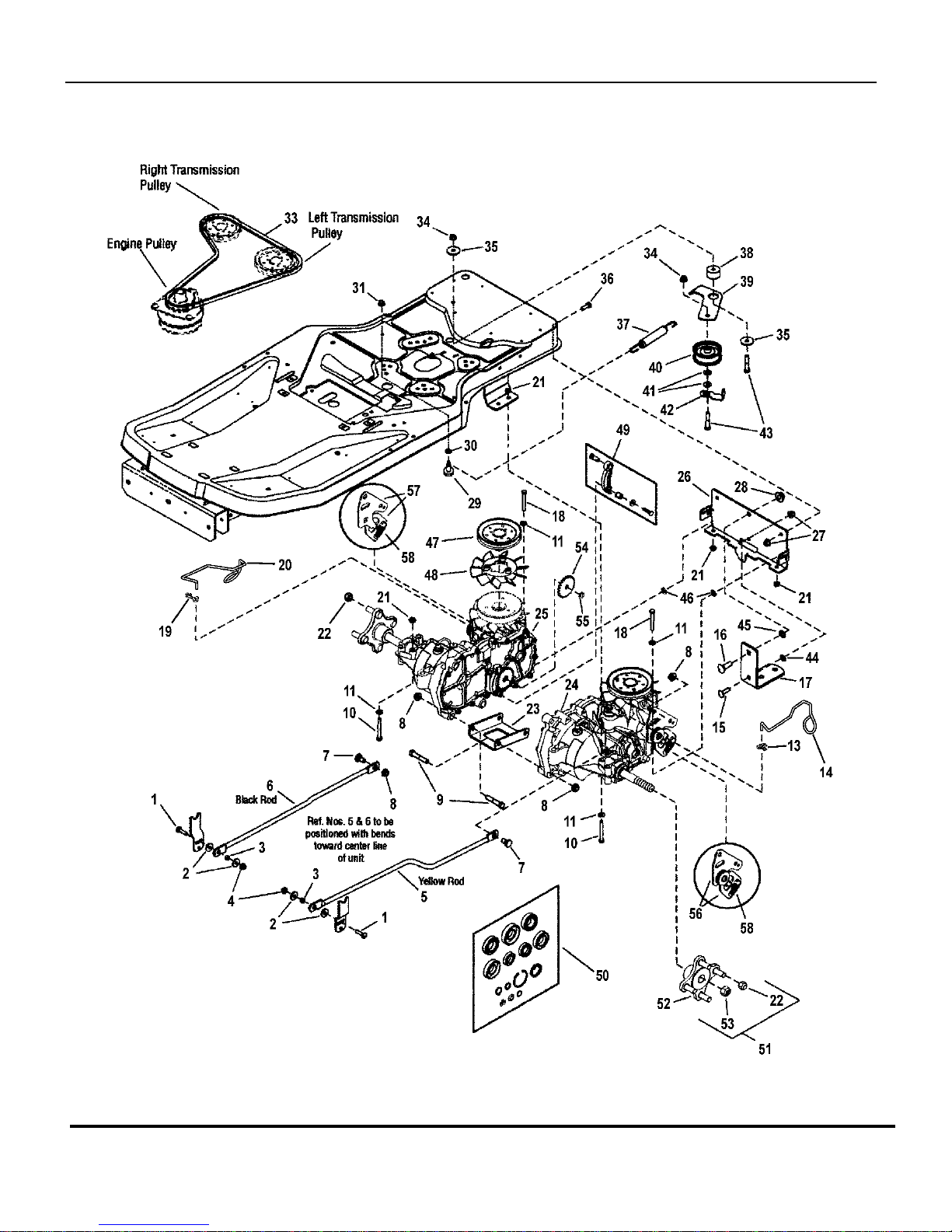

Transmission Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269

Transmission Group

Footnotes:

TP 400-5417-IR-HZ-N

Manual No. 7006269HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES 9

Part No Descri

tionItem Qt

Note

1 1960223 2 BOLT, 5/16-18 x 1-1/4” Round Head Short Square Neck GR5,

Black

2 1919381 4 WASHER, 5/16” Flat (.341 I.D. x 1.00 O.D. x .13 Thick) Black

3 1703900 2 SPACER, .323 I.D. x .500 O.D. x 0.270 Long Heat Treated

4 1960684 2 NUT, 5/16-18 Hex Keps Conical Washer, Black

5 1727555 1 ROD, Control, LH (.500 Dia. X 27.88 Long)

6 1727556 1 ROD, Control, RH (.500 Dia. X 27.88 Long)

7 1727831 2 SHOULDER BOLT, 7/16-14 x 1.07 Long, GR5

8 1930650 6 NUT, 7/16-14 Hex Flange Lock Two Way, Black

9 1927120 4 SCREW, 7/16-14 x 2-1/4” Hex Head Cap, GR8, Black

10 1923141 4 SCREW, 5/16-18 x 2-3/4” Hex Head Cap, GR5, Black

11 1919326 6 WASHER, .312 (.34 I.D. x.75 O.D.)

13 1717024 1 CLIP, Rod End Clevis RH (for .188 Dia. Rod)

14 1733913 1 ROD, Tow Valve LH (.156 Dia. 5.05 Long)

15 1960268 1 BOLT, 3/8-16 x 1-1/4” Round Head Short Square Neck, Black

16 1960758 1 BOLT, 1/2-13 x 1-1/2” Round Head Short Square Neck, GR5,

Black

17 1733305A 1 DRAWBAR- .250 Thick - Black

18 1921719 2 SCREW, 5/16-18 x 2-1/2” Hex Head Cap, GR5, Black

19 1725550 1 CLIP, Rod End Clevis LH (for .188 Dia. Rod)

20 1733914 1 ROD, Tow Valve RH (.156 Dia. 5.05 Long)

21 1931277 6 NUT, 5/16-18 Hex Flange Lock, Small - Black

22 5020601 8 NUT, 1/2-20, (for Wheel Bolt) Silver

23 1733309A 1 SUPPORT, Transmission Center - Black

24 1733351 1 TRANSMISSION- Hydro Gear EZT LH (ZC-AHBB-2A7B-1DPX)

25 1733352 1 TRANSMISSION- Hydro Gear EZT RH (ZC-DHBB-2A7C-1DPX)

26 1733302A 1 SUPPORT, Transmission Rear - Black

27 1960687 3 NUT, 3/8-16 Hex Flange Nyloc

28 5025396 1 NUT, 1/2-13 Hex Flange Nyloc

29 1728976 1 SHOULDER BOLT, 5/16-18 GR5

30 1924874 1 WASHER, 5/16 Flat (.341 I.D. x .87 O.D. X .06 Thick) Black

31 1927557 1 NUT, 5/16-18 Hex Flange Lock Large, Black

33 1732224 1 * V-BELT, Transmission Drive (HA Sect. 54.40 Effective Length)

34 1930645 2 NUT, 3/8-16 Hex Flange Lock Two Way, Black

35 1924356 2 WASHER

36 1921210 2 SCREW, 3/8-16 x 1” Hex Head Cap, GR5, Black

37 1734316 1 SPRING, Extension

38 1729007 1 SPACER (.387 I.D. x 1.50 O.D. x 1.04 Long (Powdered Metal)

Yellow

39 1733303A 1 ARM, Idler (Transmission Drive) Black

Note: * Part number printed on belt.

Transmission Group

TP 400-5417-IR-HZ-N HYDRO DRIVE ZTR 33", 42" & 50"

150Z SERIES

Manual No. 7006269
