Snapper NZM19483KWV Manuel utilisateur

Parts Manual fo

MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3

HYDRO DRIVE NZ

Revision A, TP 400-5218-A-NZ-N5/6/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7006939

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

NZM19483KWV (7800020)

NZM21523KWV (7800021)

NZM25523KWV (7800057)

NZM25613KWV (7800022)

NZM27613KH (7800023)

Table Of Content

TP 400-5218-A-NZ-N

MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3 3

Manual No. 7006939

PAGE GROUP

4CASTER WHEEL ASSEMBLY

6DRIVE TIRE & WHEEL ASSEMBLY

8FRONT FRAME ASSEMBLY (Frame)

12 FRONT FRAME ASSEMBLY (Deck Lift)

14 REAR FRAME & TANK BRACKETS

16 FUEL TANK ASSEMBLY

18 TWIN STICK CONTROL ASSEMBLY (R.H. Side)

22 TWIN STICK CONTROL ASSEMBLY (L.H. Side)

26 PARKING BRAKE ASSEMBLY

28 HYDRO PUMP ASSEMBLIES

30 HOSE ASSEMBLY (48" & 52" Deck)

32 HOSE ASSEMBLY (61" Deck)

34 HYDRO RESERVOIR ASSEMBLY

36 HYDRO IDLER ASSEMBLY

38 ENGINE SUB-ASSEMBLY

40 SEAT ASSEMBLY

42 MUFFLER GUARD ASSEMBLY

44 ROLL BAR PROTECTIVE STRUCTURE

46 48" CUTTING DECK ASSEMBLY (Sub Assy)

48 48" CUTTING DECK ASSEMBLY (Final Assy)

50 52" CUTTING DECK ASSEMBLY (Sub Assy)

52 52" CUTTING DECK ASSEMBLY (Final Assy)

54 61" CUTTING DECK ASSEMBLY (Sub Assy)

56 61" CUTTING DECK ASSEMBLY (Final Assy)

58 IDLER ASSEMBLIES

60 DECK SPINDLE ASSEMBLIES

62 DECALS

64 CONTROL PANEL ASSEMBLY

66 ELECTRICAL COMPONENTS

68 WIRING HARNESS (Kawasaki Engines)

70 WIRING HARNESS (Kohler Engines)

72 WIRING SCHEMATIC (Kawasaki Engines)

74 WIRING SCHEMATIC (Kohler Engines)

TP 400-5218-A-NZ-N

Manual No. 7006939 MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3

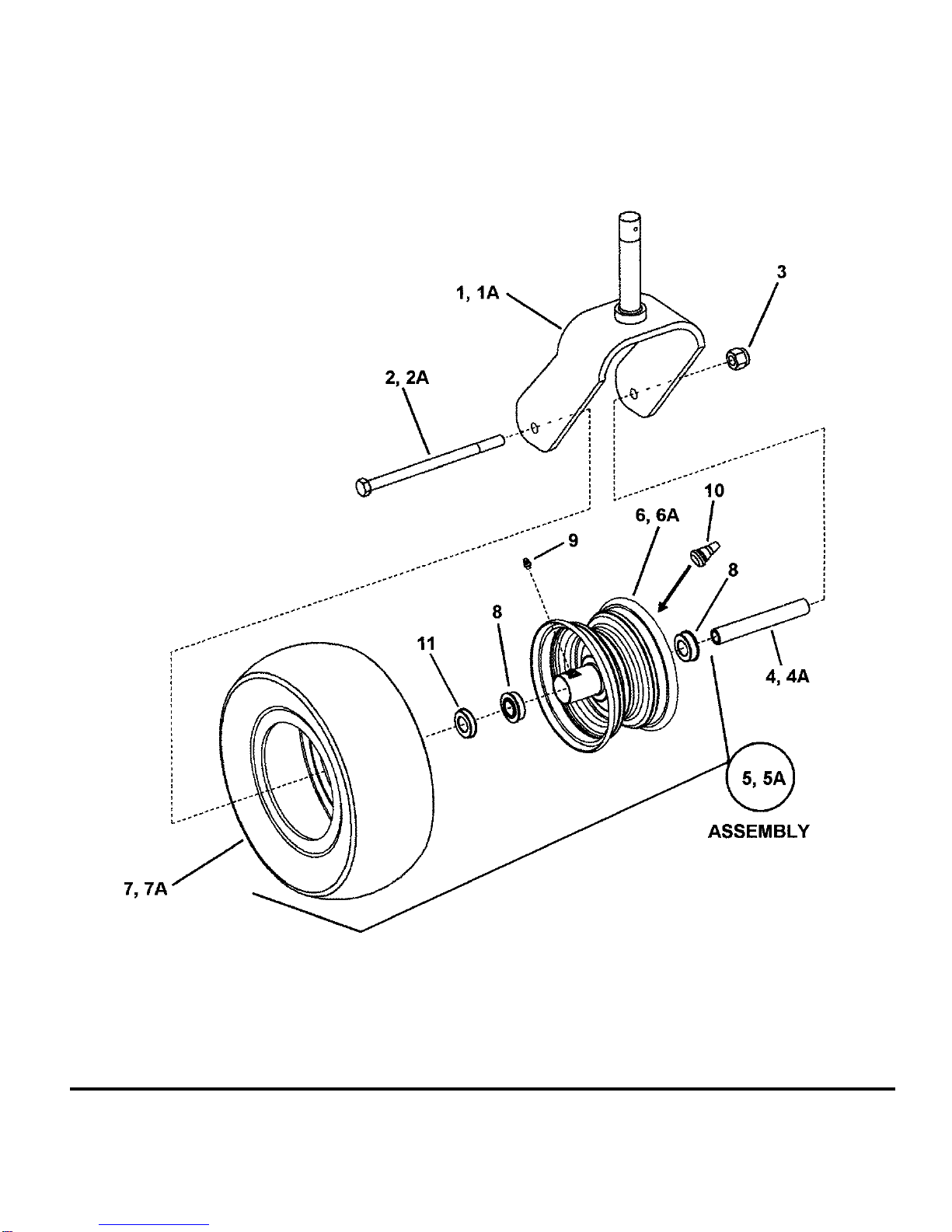

CASTER WHEEL ASSEMBLY

Footnotes:

TP 400-5218-A-NZ-N

Manual No. 7006939MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3 5

Part No Descri

tionItem Qt

Note

1 7058744 2 WELDMENT, Caster Yoke

1A 7075398 2 WELDMENT, Caster Yoke, 7-1/4” Wide used on 61” Deck Model only

2 7091773 2 SCREW, 1/2-13 x 7” Hex Head Cap, GR 5

2A 7092094 2 SCREW, 1/2-13 x 9-1/2” Hex Head Cap, GR 5 used on 61” Deck Model only

3 7091325 2 NUT, 1/2-13 Hex Nyloc

4 7035476 2 SPACER, Bearing, 5.29” Long

4A 7075462 2 SPACER, Bearing, 7.29” Long used on 61” Deck Model only

5 7026188 2 ASSY, Tire & Wheel 13 x 5.00-6 (Incl. item 6, 7, 8, 9 & 10) used on 48” & 52” Deck Models

only

5A 7072795 2 ASSY, Tire & Wheel 13 x 6.50-6 (Incl. item 6A, 7A, 8, 9 & 10) used on 61” Deck Model only

6 7078276 1 WELDMENT, Wheel Hub & Rim 13 x 5.00-6 (gray)

6A 7078285 1 WELDMENT, Wheel Hub & Rim 13 x 6.50-6 (gray) used on 61” Deck Model only

7 7078275 1 TIRE, 13 x 5.00-6 4 Ply Smooth

7A 7078277 1 TIRE, 13 x 6.50-6, 4PR Smooth

8 7028722 2 BALL BEARING, Heim .750 Heim Unibal # RF 12-22-14AP

9 7012700 1 FITTING, 1/4-28 Lube Tapered Head w/Ball Check

10 7012234 1 AIR VALVE STEM & Cap Goodyear # TR-412 or

equivalent

11 7075883 1 SPACER

DRIVE TIRE & WHEEL ASSEMBLY

TP 400-5218-A-NZ-N

Manual No. 7006939 MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3

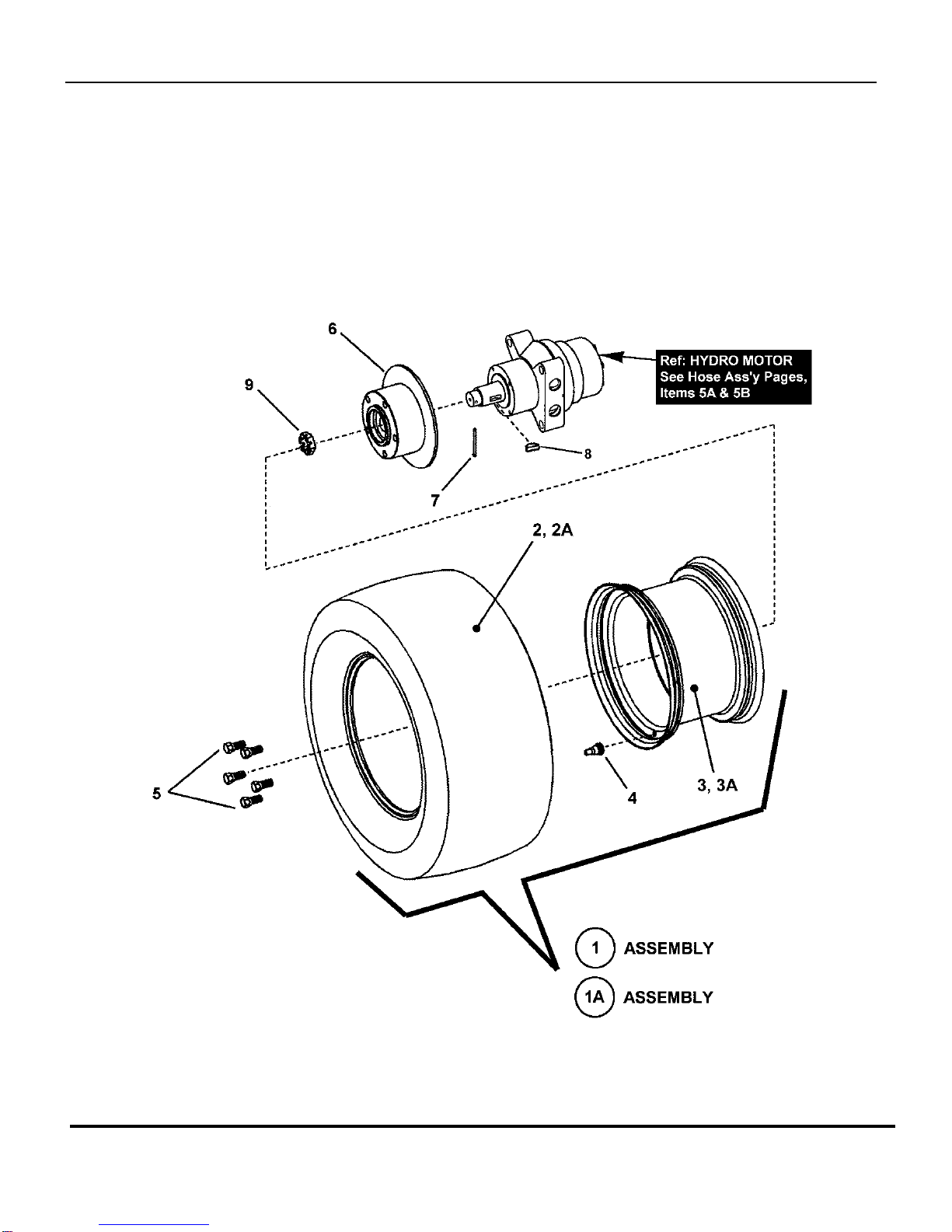

DRIVE TIRE & WHEEL ASSEMBLY

Footnotes:

TP 400-5218-A-NZ-N

Manual No. 7006939MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3 7

Part No Descri

tionItem Qt

Note

1 7072796 2 ASSY, Wheel 23 x 10.50-12 (Incl. items 2, 3 & 4) used on 48” & 52” Deck Models

1A 7072797 2 ASSY, Wheel 24 x 12-12 (Incl. items 2A, 3A & 4) used on Series 61” Deck Models

2 7100296 1 TIRE, 23 x 10.50-12NHS 4Pr Turf Master TL

2A 7100298 1 TIRE, 24 x 12-12HHS 49R Turf Master

3 7100295 1 RIM, 12 x 7.00 5/4.5 AG Silver 237

3A 7100297 1 RIM, 12 x 8.50 5/4.5 RAW

4 7012234 1 AIR VALVE STEM & Cap Goodyear # TR-412 or

equivalent

5 7092073 10 LUG BOLT, 1/2-20 UNF x 7/8”

6 7071819 2 DRUM, Brake (Ausco)

7 7091793 PIN, 9/64 x 1-1/2” Cotter included as part of wheel motor

8 7013861 KEY, #11 Woodruff included as part of wheel motor

9 7091828 NUT, 3/4-20 Slotted Hex included as part of wheel motor

FRONT FRAME ASSEMBLY (Frame)

TP 400-5218-A-NZ-N

Manual No. 7006939 MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3

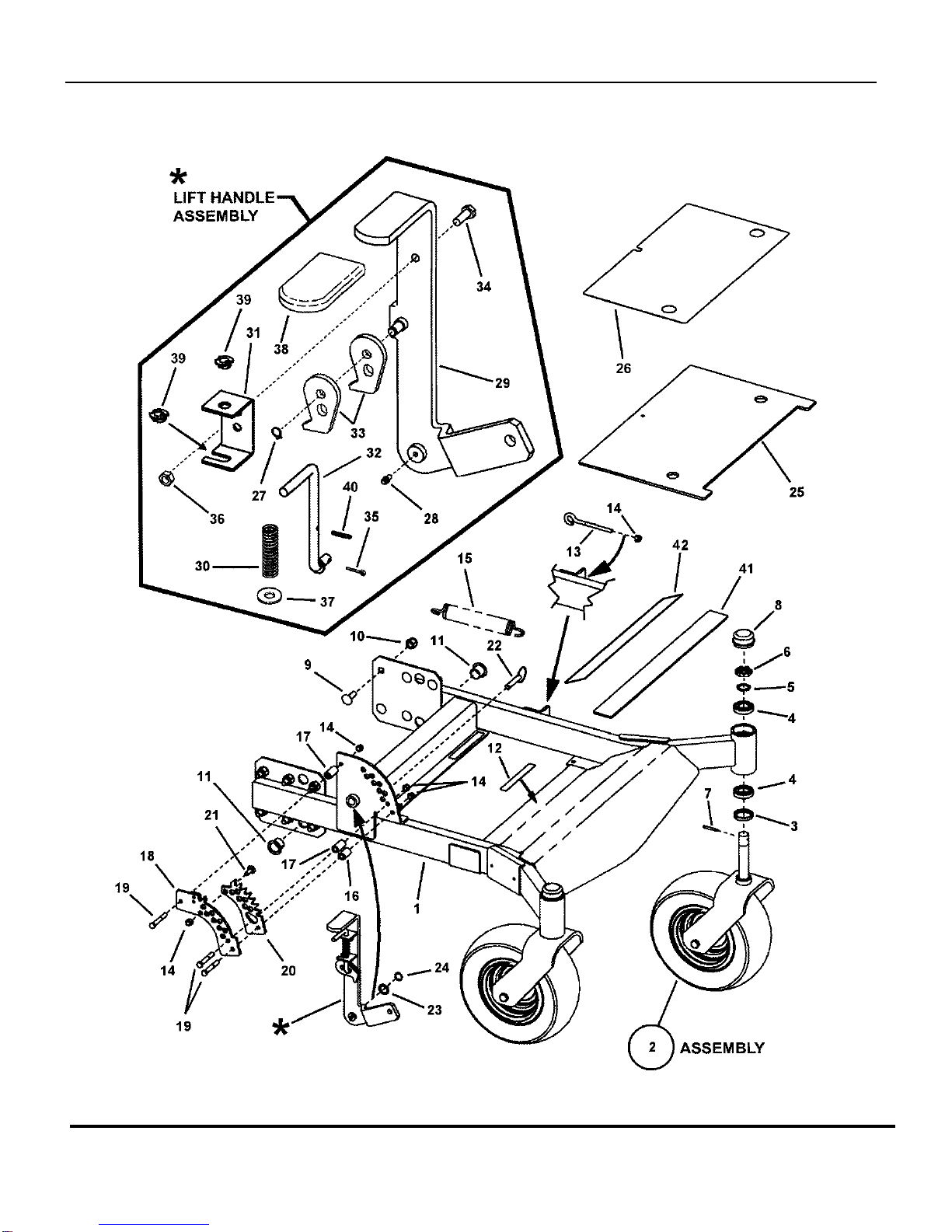

FRONT FRAME ASSEMBLY (Frame)

Footnotes:

TP 400-5218-A-NZ-N

Manual No. 7006939MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3 9

Part No Descri

tionItem Qt

Note

1 7044821 1 WELDMENT, Front Frame

2 2 GROUP, Front Wheel (ref: Caster Wheel Assembly Page)

3 7074723 2 GREASE SEAL

4 7058554 4 BEARING, Tapered Roller 7074706 (tapered roller brg.) &

7074707 (inner race)

5 7029137 2 SPACER, Jackstaff

6 7092083 2 CASTLE NUT, 1-1/ UNF, GR B

7 7090841 2 ROLL PIN, 3/16 x 1-1/2”

8 7074537 2 CAP, Dust

9 7090768 12 BOLT, 1/2-13 x 1-1/2” Square Neck Carriage Grade 5

10 7091325 12 NUT, 1/2-13 Hex Nyloc

11 7073326 2 BUSHING, Teflon

12 7041818 3 PAD, Floor Pan

13 7044860 1 EYEBOLT, 3/8-16 x 3”

14 7091299 9 NUT, 3/8-16 Hex Nyloc

15 7035667 1 SPRING, Extension, Lift Assist

16 7074777 1 SPACER, Lift Adjust (1.08” Long)

17 7074580 2 SPACER, Lift Adjust (1.43” Long)

18 7058446 1 WELDMENT, Height Adjust

19 7091501 3 SCREW, 3/8-16 x 2-1/2” Hex Head Cap, GR 5

20 7074657 1 BRACKET, Deck Lift Detent

21 7091640 1 BOLT, 3/8-16 x 1” Square Neck Carriage GR 5

22 7074716 1 CLIP, Roll Pin, 1/2”

23 7010935 1 WASHER, .77 I.D. Flat

24 7010746 1 RING, 3/4” External Retaining

25 7300100 1 FLOOR PAN (Detached)

26 7100128 1 MAT, Floor Pan

27 7012313 1 RING, .375” Diameter External Retaining

28 7014669 1 LUBE FITTING, 3/16” or 7076998, 1/4-28 Straight

Lube Fitting

29 7058901 1 WELDMENT, Deck Lift Handle

30 7072450 1 SPRING, Neutral Return

31 7074531 1 BRACKET, Handle Support

32 7074532 1 ROD, Latch

33 7074533 2 STOP, Latch

34 7090636 2 SCREW, 5/16-18 x 1” Hex Head Cap, GR 5

35 7090555 1 PIN, 3/32 x 1/2” Cotter or 7091597

FRONT FRAME ASSEMBLY (Frame)

TP 400-5218-A-NZ-N

Manual No. 7006939 MID-MOUNT Z-RIDER ZERO TURNING

SERIES 3
