Snapper 5901182 Manuel utilisateur

Parts

Rev. Date: 10/2008

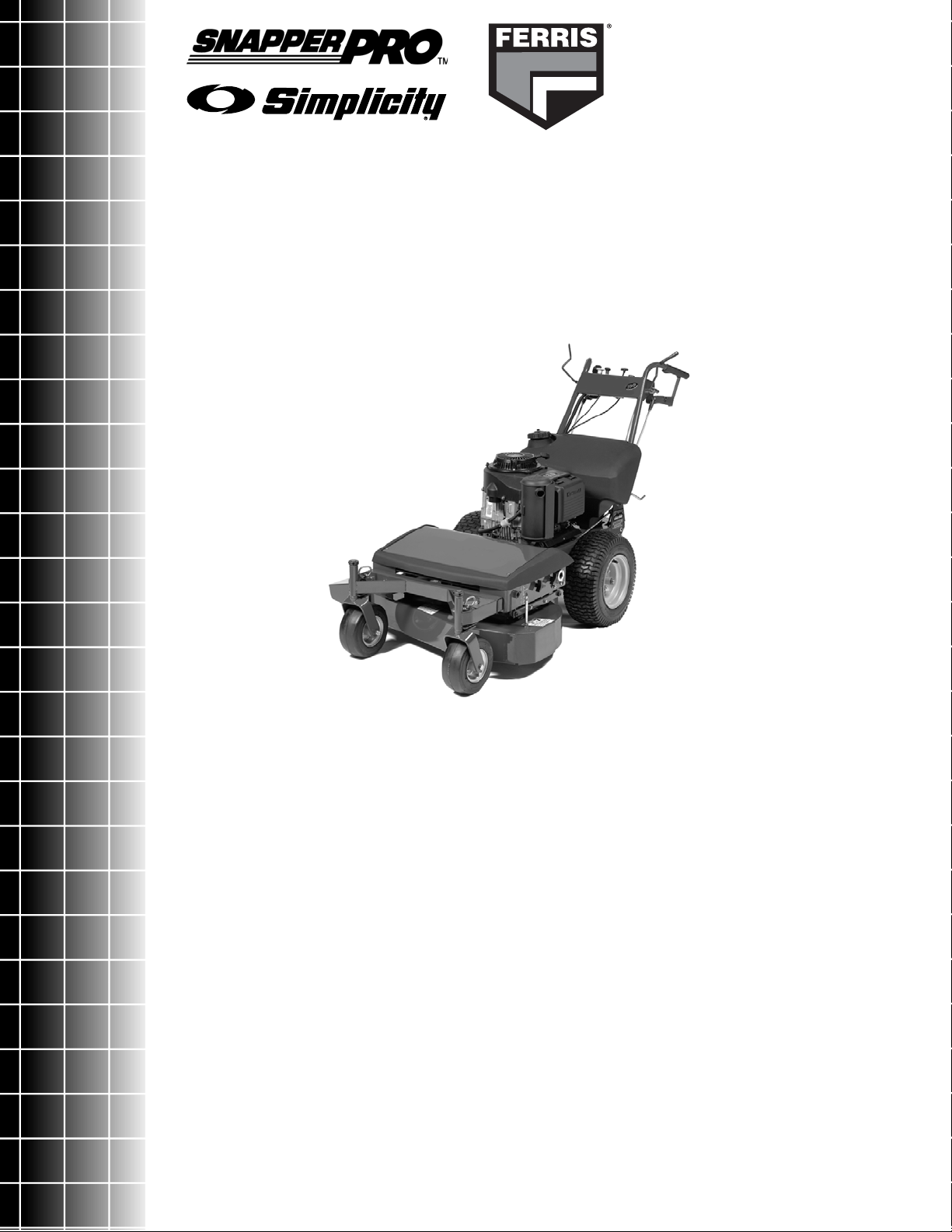

Hydrocut Export

Walk-Behind Mower

Manual

S/N: 2000856282 & Above

5101227

5375 North Main Street

Munnsville, NY 13409 USA

800-933-6175

Briggs and Stratton Power Products Group, LLC

TP 400-7336-B-HC-SN

Models: Descri

tion:

5901182 (HC32KAV13E) Hydro-Drive PRO (S/N: 2000856282 & Above)

BRevision

Table Of Content

Tor

ue S

ecification Chart ............................................................................................. Inside Back Cover

MODEL COMPONENTS PAGE

ine Frame & Handle Bars Group - Electric Start .......................................................................................................... 4

Fuel Supply Hose & Tank Replacement Parts Group ........................................................................................................ 6

Fuel Tank & Mount Group .................................................................................................................................................. 8

ine, PTO, & Deck Drive Idler Group ............................................................................................................................. 10

Motion Control, Parkin

Brake, & Operator Presence Group

(

S/N: 2013136021 & Above

)

............................................... 12

Motion Control, Parking Brake, & Operator Presence Group (S/N: 2013136020 & Below) ............................................... 16

Transaxle & Mount Group .................................................................................................................................................. 20

Transaxle - SERVICE PARTS ...........................................................................................................................................

Tire & Wheel Group ........................................................................................................................................................... 24

Decals - Safety & Instruction .............................................................................................................................................. 26

Decals - Brand & Model ..................................................................................................................................................... 28

32" Mower Deck - Frame, Casters, & Shield Group ........................................................................................................... 30

32" Mower Deck - Hei

ht Ad

ustment Group .....................................................................................................................

32" Mower Deck - Housing, Spindles, Blades, & Pulleys Group ........................................................................................ 34

Electrical Group - Electric Start .......................................................................................................................................... 36

Electrical Schematic - Electric Start ................................................................................................................................... 38

Engine Frame & Handle Bars Group - Electric Start

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2008 4

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN

PART NO. DESCRIPTIONREF NO. QTY.

Engine Frame & Handle Bars Group - Electric Start

Footnotes

1 5022180 1 SWITCH, BLADE ENGAGEMENT

2 5022222 1 RING, SWITCH RETAINER

3 5025035 1 NUT, 3/8-24 HEX

4 5046501 1 CABLE, CHOKE CONTROL, 47” (Includes Ref. No. 3)

5 5025010X6 4 BOLT, 1/4-20 X 3/4” GD5 YZ (2 for battery terminals - not shown)

6 5020927 1 SWITCH, IGNITION, 6 POST (Includes Ref No. 7 - 9)

7 5022789 1 KEY, Ignition, Molded Set

8 5022790 1 COVER

9 5022791 1 PLASTIC NUT

10 5047629 1 CABLE, THROTTLE CONTROL, 48”

11 5021841 2 GRIP, FOAM, .940” X 5” X .187”

12 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE

13 5061279B 1 WELD, HANDLE BAR, TD

14 5025271 2 NUT, #10-24 HEX NYLON LOCK

15 5021670 1 STRAP, RUBBER

16 5025270 2 SCREW, #10-24 X 1” RS

17 5046188 1 BATTERY BOX W/ DRAIN

18 - 1 BATTERY, WET ( BCIU1, 340 CCA)

19 5022308 4 BODY CLIP, 5/16-18 X 1/2” DEEP

20 5047735B 1 SHIELD, REAR

21 5025011X8 4 BOLT, 5/16-18 X 1” GD5 YZ

22 5025155 4 WASHER, 5/16” SAE

23 5049229B 1 WELD, ENGINE DECK, HC36

24 5025126 2 NUT, 1/4-20 HEX SERR. FLANGE (for battery terminals - not shown)

The above parts group applies to the following Mfg. Nos.:

2008 5

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN

Fuel Supply Hose & Tank Replacement Parts Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2008 6

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN

PART NO. DESCRIPTIONREF NO. QTY.

Fuel Supply Hose & Tank Replacement Parts Group

Footnotes

1 5020835 6 CLAMP, HOSE, EXTERNAL, 1/2 - RED

2 5050831X7 1 HOSE, 1/4” FUEL, 7.00” (supplied with engine)

3 5021178X3 1 FUEL FILTER (supplied with engine)

4 5050831X35 1 HOSE, 1/4” FUEL, 35.00”

5 5050833X23 1 WIRE LOOM, 1/2” ID, 23” LONG

6 5021235 1 VALVE, FUEL SHUT OFF

7 5050831X5 1 HOSE, 1/4” FUEL, 5.00”

8 5023061 1 ELBOW FITTING

9 1726400 1 GROMMET

10 5023069 2 HOSE CLAMP

11 5050925X20 1 HOSE, 20”

12 5023067 1 SCREEN FITTING

The above parts group applies to the following Mfg. Nos.:

2008 7

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN

Fuel Tank & Mount Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2008 8

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN

PART NO. DESCRIPTIONREF NO. QTY.

Fuel Tank & Mount Group

Footnotes

1 5022158 1 CAP, FUEL TANK, 3-1/2” NECK

2 5048149 1 TANK, FUEL

3 5025013X6 4 BOLT, 3/8-16 X 3/4” GD5 YZ

4 5025156 8 WASHER, 3/8” SAE

5 5025013X10 4 BOLT, 3/8-16 X 1-1/4” GD5

6 5049228B 2 MOUNT, FUEL TANK

7 5025394 4 NUT, 3/8-16 HEX NYLOCK FLANGE

8 5025171 4 WASHER, 3/8” SPLIT LOCK

The above parts group applies to the following Mfg. Nos.:

2008 9

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN

Engine, PTO, & Deck Drive Idler Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2008 10

5901182

(

HC32KAV13E

)

32" 13 HP H

dro

TP 400-7336-B-HC-SN
