Snapper NZM19480KWV Manuel utilisateur

Parts Manual fo

Revision 4,

MID MOUNT Z-RIDE

NZM SERIES 0 & 1

2006

McDonough, GA, 30253 U.S.A.

TP 400-5017-4-NZ-N

1/18/2006 Manual No. 7006930

SNAPPER PRODUCTS, INC.

ZERO TURNING HYDRO DRIV

MODEL

NZM19480KWV

NZM19481KWV

NZM21520KWV

NZM21521KWV

NZM25611KWV

NZM27611K

Table Of Content

TP 400-5017-4-NZ-N

Manual No. 7006930MID MOUNT Z-RIDER

NZM SERIES 0 & 1 3

PAGE GROUP

4CASTER WHEEL ASSEMBLY

6DRIVE TIRE & WHEEL ASSEMBLY

8FRONT FRAME ASSEMBLY PT.1

12 FRONT FRAME ASSEMBLY PT.2

14 REAR FRAME & TANK BRACKETS

16 FUEL TANK ASSEMBLY

18 MUFFLER GUARD ASSEMBLY

20 TWIN STICK CONTROL ASSEMBLY PT.1

24 TWIN STICK CONTROL ASSEMBLY PT.2

28 PARKING BRAKE ASSEMBLY

30 HYDRO PUMP ASSEMBLIES

32 HYDRO PUMP LINKAGE

34 HOSE ASSEMBLY (Series 0) PT.1

36 HOSE ASSEMBLY (Series 0) PT.2

38 HOSE ASSEMBLY (48" & 52" DECK, SERIES 1) PT.1

40 HOSE ASSEMBLY (48" & 52" DECK, SERIES 1) PT.2

42 HOSE ASSEMBLY (61" DECK, SERIES 1) PT.1

44 HOSE ASSEMBLY (61" DECK, SERIES 1) PT.2

46 HYDRO RESERVOIR ASSEMBLY

48 HYDRO IDLER ASSEMBLY

50 SEAT ASSEMBLY (SERIES 0)

52 SEAT ASSEMBLY (SERIES 1)

54 ENGINE SUB-ASSEMBLY

56 CONTROL PANEL ASSEMBLY

58 48" CUTTING DECK ASSEMBLY PT.1

60 48" CUTTING DECK ASSEMBLY PT.2

62 52" CUTTING DECK ASSEMBLY PT.1

64 52" CUTTING DECK ASSEMBLY PT.2

66 61" CUTTING DECK ASSEMBLY PT.1

68 61" CUTTING DECK ASSEMBLY PT.2

70 IDLER ASSEMBLIES (58885)

72 DECK SPINDLE ASSEMBLIES

74 DECALS

76 DECALS (continued)

78 ELECTRICAL COMPONENTS (except wiring) PT.1

80 ELECTRICAL COMPONENTS (except wiring) PT.2

82 WIRING HARNESS (Kawasaki engines)

84 WIRING HARNESS (Kohler Engines)

86 WIRING SCHEMATIC (Kawasaki engines)

88 WIRING SCHEMATIC (Kohler Engines)

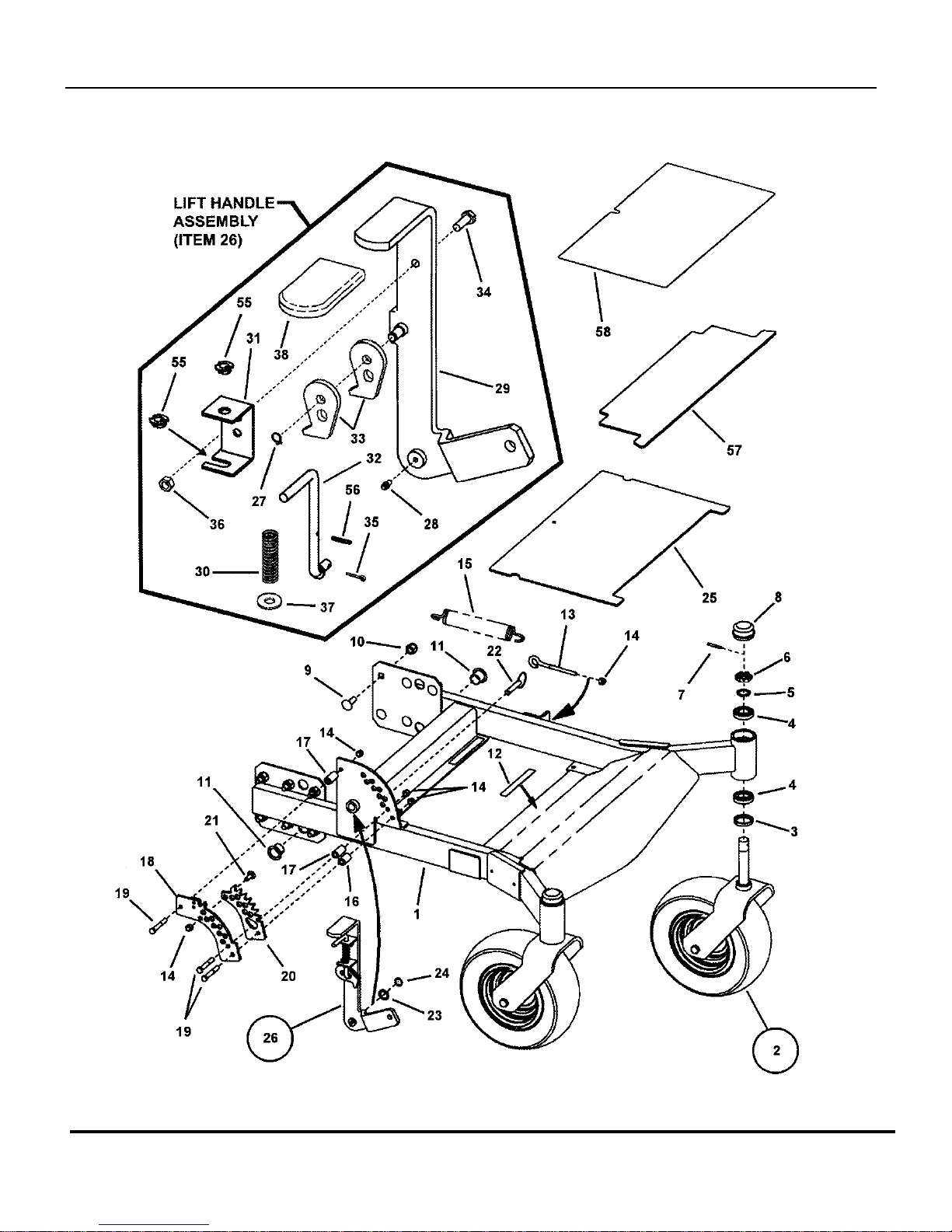

CASTER WHEEL ASSEMBLY

TP 400-5017-4-NZ-N

Manual No. 7006930 MID MOUNT Z-RIDER

NZM SERIES 0 & 1

CASTER WHEEL ASSEMBLY

Footnotes:

TP 400-5017-4-NZ-N

Manual No. 7006930MID MOUNT Z-RIDER

NZM SERIES 0 & 1 5

Part No Descri

tionItem Qt

Note

1 7058744 2 WELDMENT, Caster Yoke

1A 7075398 2 WELDMENT, Caster Yoke, 7-1/4” Wide used on 61” Deck Model only

2 7091773 1 SCREW, 1/2-13 x 7” Hex Head Cap, GR5

2A 7092094 2 SCREW, 1/2-13 x 9-1/2” Hex Head Cap, GR5 used on 61” Deck Model only

3 7091325 1 NUT,1/2-13 Nyloc

4 7035476 1 SPACER, Bearing, 5.29” Long

4A 7075462 1 SPACER, Bearing, 7.29” Long used on 61” Deck Model only

5 7053496 2 ASSY, Tire & Wheel (Incl. items 6 thru 10)

5A 7075461 2 ASSY, Tire & Wheel (Incl. items 6A, 7A, 8, 9A & 10) used on 61” Deck Model only

6 7075335 1 WELDMENT, Wheel Hub & Rim

6A 7075460 1 WELDMENT, Wheel Hub & Rim used on 61” Deck Model only

7 7074791 1 TIRE, 13 x 5.06 4 Ply Slick

7A 7075463 1 TIRE, 13 x 6.5-6 4 Ply Slick used on 61” Deck Model only

8 7028722 2 BEARING, .750 Heim

9 7076998 1 FITTING, Lube

9A 7076998 1 FITTING, Lube, 1/4-28 Thread Was 12700, used on 61” Deck

Model only

10 7012234 1 VALVE STEM, Air

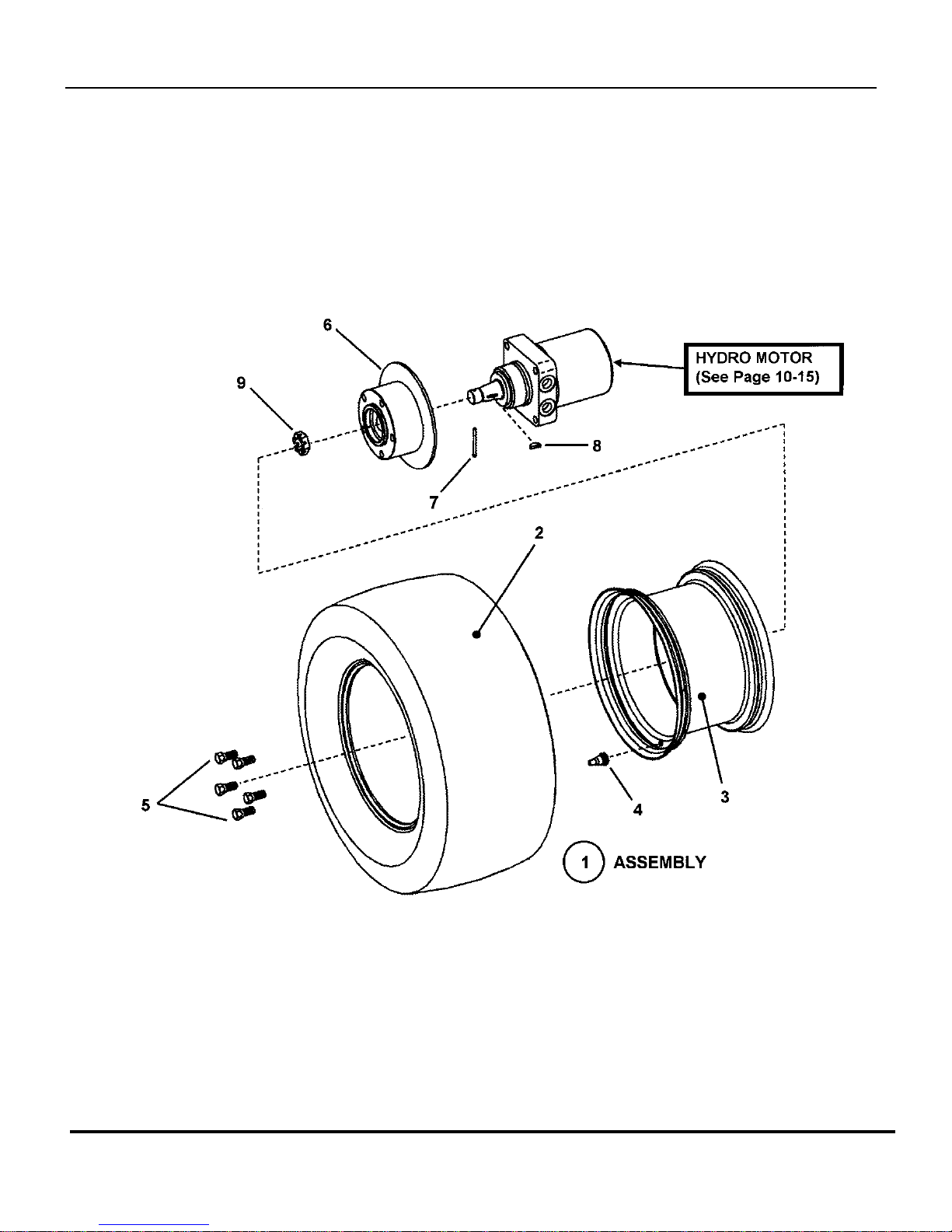

DRIVE TIRE & WHEEL ASSEMBLY

TP 400-5017-4-NZ-N

Manual No. 7006930 MID MOUNT Z-RIDER

NZM SERIES 0 & 1

DRIVE TIRE & WHEEL ASSEMBLY

Footnotes:

TP 400-5017-4-NZ-N

Manual No. 7006930MID MOUNT Z-RIDER

NZM SERIES 0 & 1 7

Part No Descri

tionItem Qt

Note

1 7059161 2 ASSEMBLY, Rear Tire & Rim (Incl. Items 2, 3 & 4)

-- 7075473 2 ASSEMBLY, Rear Tire & Rim (Incl. Items 2, 3 & 4) NOTE: These items are used on

61” deck models only.

2 7074157 1 TIRE, 23 x 10.5 - 12 NHS 4PR Kenda “Super Turf” 4 Ply

-- 7075478 1 TIRE, 24 x 12.00 - 12 Kenda “Super Turf” 4 Ply NOTE: These items are used on

61” deck models only.

3 7075336 1 RIM, 12” Diameter x 7.00”

-- 7075474 1 RIM, 12” Diameter x 8.5”

4 7012234 1 VALVE, Air

5 7092073 10 NUT, 1/2-20NF Lug

6 7074179 2 DRUM, BRAKE/WHEEL, HAYES (no lip on back)

7 7091793 PIN, 9/64 x 1-1/2” Cotter included as part of wheel motor

8 7013861 KEY, 3/16 x 7/8" Woodruff included as part of wheel motor

9 7091828 NUT, 3/4-20 Slotted Hex included as part of wheel motor

FRONT FRAME ASSEMBLY PT.1

TP 400-5017-4-NZ-N

Manual No. 7006930 MID MOUNT Z-RIDER

NZM SERIES 0 & 1

FRONT FRAME ASSEMBLY PT.1

Footnotes:

TP 400-5017-4-NZ-N

Manual No. 7006930MID MOUNT Z-RIDER

NZM SERIES 0 & 1 9

Part No Descri

tionItem Qt

Note

1 7058032 1 WELDMENT, Front Frame

-- 7044821 1 WELDMENT, Front Frame used on 61” Deck Model only

2 -- 2 GROUP, Front Wheel (see Caster Wheel Assembly Page)

3 7074723 2 GREASE SEAL

4 7058554 4 BEARING, Tapered Roller comprised of 74706 (tapered

roller brg.) and 74707 (inner

race)

5 7029137 2 SPACER, Jackstaff

6 7092083 2 CASTLE NUT, 1-1/ UNF, GR B

7 7090841 2 ROLL PIN, 3/16 x 1-1/2”

8 7074537 2 CAP, 3-1/2” Fuel

9 7090768 12 BOLT, 1/2-13 x 1-1/2” Square Neck Carriage GR5

10 7091325 12 NUT, 1/2-13 Hex Nyloc

11 7073326 2 BUSHING, Teflon

12 7041818 3 PAD, Floor Pan

13 7044860 1 EYEBOLT, 3/8-16 x 3”

14 7091299 9 NUT, 3/8-16 Hex Nyloc

15 7035667 1 SPRING, Extension, Lift Assist

16 7074777 1 SPACER, Lift Adjust (1.08” Long)

17 7074580 2 SPACER, Lift Adjust (1.43” Long)

18 7058446 1 WELDMENT, Height Adjust

19 7091501 3 SCREW, 3/8-16 x 2-1/2” Hex Head Cap, GR5

20 7074657 1 BRACKET, Deck Lift Detent

21 7091640 1 BOLT, 3/8-16 x 1” Square Neck Carriage GR5

22 7074716 1 CLIP, Roll Pin, 1/2”

23 7010935 1 WASHER, .77 I.D. Flat

24 7010746 1 RING, 3/4” External Retaining

25 7074776 1 FLOORPAN

26 -- ASSY, Deck Lift Handle (Incl. indented items below)

27 7012313 1 RING, .375” Diameter External Retaining

28 7014669 1 LUBE FITTING, 3/16” (or 76998, 1/4-28 Straight Lube Fitting) or 76998, 1/4-28 Straight Lube

Fitting

29 7058901 1 WELDMENT, Deck Lift Handle

30 7072450 1 SPRING, Neutral Return

31 7074531 1 BRACKET, Handle Support

32 7074532 1 ROD, Latch

33 7074533 2 STOP, Latch

34 7090209 2 SCREW, 5/16-18 x 1” Hex Head Cap, GR2

35 7091597 1 PIN, 3/32 x 1/2” Cotter

36 7091575 2 NUT, 5/16-18 Hex Center Lock

FRONT FRAME ASSEMBLY PT.1

TP 400-5017-4-NZ-N

Manual No. 7006930 MID MOUNT Z-RIDER

NZM SERIES 0 & 1
