Snapper NP216012 Manuel utilisateur

Parts Manual fo

Revision 7,

21" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

2005

McDonough, GA, 30253 U.S.A.

TP 400-5137-7-WB-N

11/14/2005 Manual No. 7006059

SNAPPER PRODUCTS, INC.

PUSH MODELS PROPELLED

MODELS

215012 EFRP216012TV

215014 EFRP216512TV

215015 EFRP216516BV

216015 EFRP216516TV

216515BV EP216012

FR215014 FRP216012

N21501

FRP216012TV

NR215012 FRP216016

R21501

FRP216512TV

NP216012

NRP215012

P216012

P216012TV

P216512BV

P216512TV

RP215012

RP215012T2

RP216012

WP216512BV

Table Of Content

TP 400-5137-7-WB-N

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16 3

PAGE GROUP

4Handles & Controls

10 Cutting Deck, Blades

14 Front Wheel Bracket

16 Rear Wheel Brackets, Latches

18 Front Wheels

20 Rear Wheels

22 Drive System Self-Propelled

26 Transmission (Differential)

28 Throttle Controls (1997 Thru 2001 Models)

30 Decals (Part 1)

32 Decals (Part 2)

34 Decals (Part 3)

36 Decals (Part 4)

38 Side Chute, Adapter

40 Accessory - Grass Bag

42 Accessory - Snapperizer

44 Accessory - Recycling Kits

46 Thatcherizer - Accessory

48 Electric Start

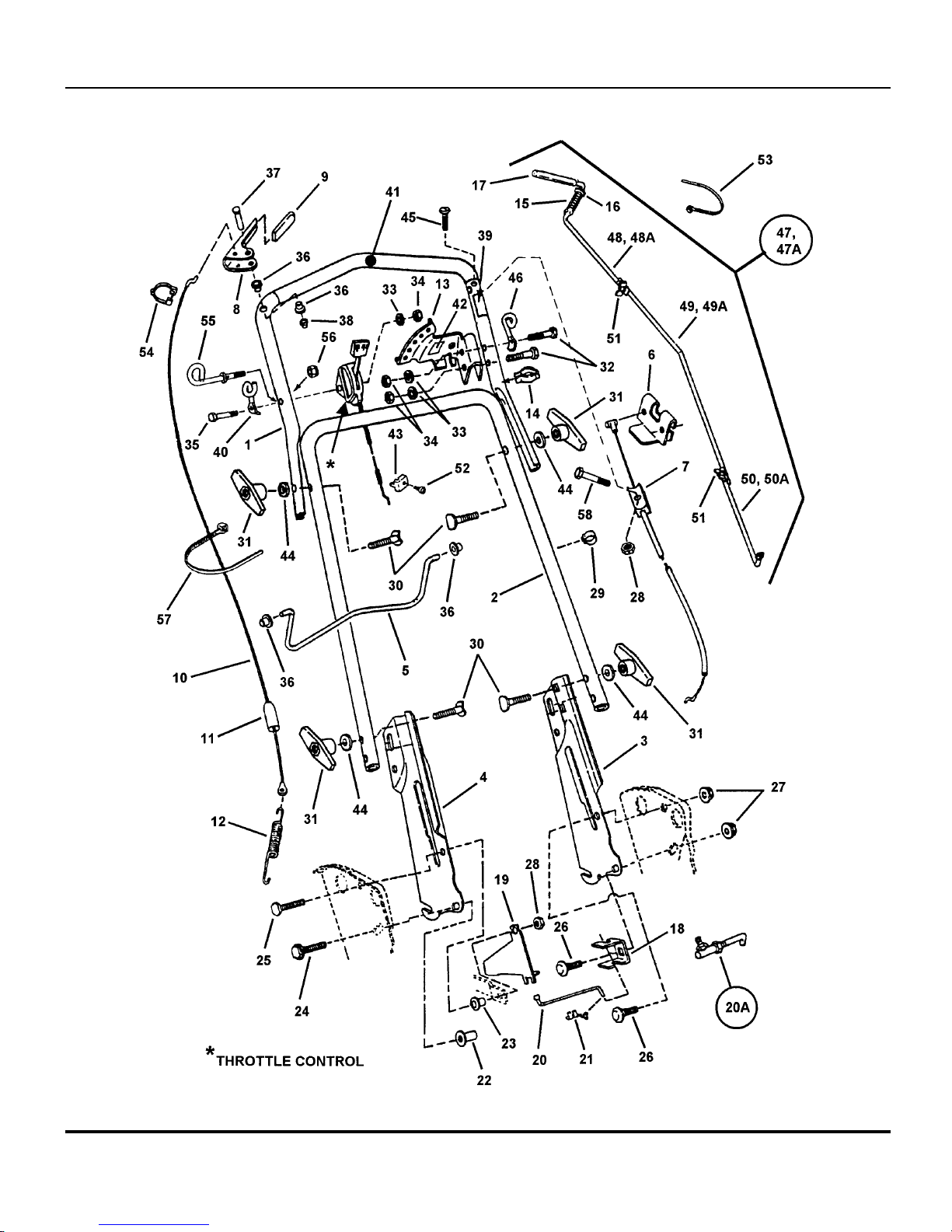

Handles & Controls

TP 400-5137-7-WB-N

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

Handles & Controls

Footnotes:

TP 400-5137-7-WB-N

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16 5

Part No Descri

tionItem Qt

Note

1 7046914 HANDLE, Upper Was 24889

7035252 HANDLE, Upper NRP215012, RP215012

7074384 HANDLE, Upper Was 33473, Note #2

7074254 HANDLE, Upper 215015, 216015, 216515BV

7046914 HANDLE, Upper Used on P216012E

2 7024890 HANDLE, Middle Note #1

7036350 HANDLE, Middle Note #3

3 7033985 HANDLE, Lower Left Hand Note #1

7046502 HANDLE, Lower Left Hand Was 35343, Note #3

7046502 HANDLE, Lower Left Hand 215015, 216015, 216515BV

4 7033986 HANDLE, Lower Right Hand Note #1

7035342 HANDLE, Lower Right Hand Note #4

5 7017072 CONTROL, Blade Note #3

7047011 CONTROL, Blade 215015, 216015, 216515BV

6 7033904 CLIP, Blade Control Used on All Except 215015

7034872 CLIP, Blade Control 215015, 216015, 216515BV

7 7025036 CABLE, Blade Control (50-1/2" Long) Note #1

7026136 CABLE, Blade Control (74-1/16" Long) Used on RP215012T2

7035808 CABLE, Blade Control (46-1/16" Long) Note #3

7035840 CABLE, Blade Control (60" Long) P216012TV, FRP216012TV,

EFRP216012TV

7072933 CABLE, Blade Control (49-1/4" Long) 215015, 216015, 216515BV

8 7032826 HANDLE, Wheel Drive Self-Propelled Models

9 7014307 GRIP, Wheel Drive Handle Self-Propelled Models

7029775 GRIP, Wheel Drive Handle European Models

10 7025013 CABLE, Clutch Pull (Z-BEND) (41-7/16" Long) Note #1

7023134 CABLE, Clutch Pull (Z-BEND) (36-1/16" Long) NRP215012, RP215012

11 7012121 COVER, Vinyl Self-Propelled Models

12 7012122 SPRING, Clutch Self-Propelled Models

13 7038478 SECTOR, Speed Self-Propelled Models

14 7024641 TIE, Wire (3) Self-Propelled Models

15 7012093 SPRING, Speed Control Self-Propelled Models

16 7090188 WASHER, 3/8" Flat Self-Propelled Models

17 7023801 GRIP, Speed Control Handle Note #1

7023801 GRIP, Speed Control Handle NRP215012, RP215012

18 7034892 ANCHOR, Speed Control Self-Propelled Models

19 7032408 GUIDE, Lower V-Belt Self-Propelled Models

20 7023790 ROD, Transfer American models

Note 1: RP215012T2, RP216012, NP216012, EP216012, P216012, P216012E, P216012TV, P216512BV, FRP216012TV,

EFRP216012TV, FRP216012, FRP216016, EFRP216512TV, EFRP216516TV & EFRP216516BV.

Note 2: N215012, 215012, 216015, NR215012, 8215012.

Handles & Controls

TP 400-5137-7-WB-N

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

Handles & Controls

Footnotes:

TP 400-5137-7-WB-N

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16 7

Part No Descri

tionItem Qt

Note

20A 7051698 ASSEMBLY, Transfer Rod European models

21 7010937 CLIP, Transfer Rod Self-Propelled Models

22 7090895 TEE-NUT, 5/16-18 Self-Propelled Models

23 7012114 BUSHING, Differential Self-Propelled Models

24 7090595 BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5

25 7090238 SCREW, 5/16-24 x 1" Hex Cap, Grade 5

26 7090799 BOLT, 5/16-18 x 5/8" Carriage, Grade 5 Was 91026 (Used on All Models)

27 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 (Used on All Models)

28 7091606 NUT, 5/16-24 Center Lock, Grade 5 Was 91074 (Used on All Models)

29 7023813 CLIP, Cable/Wiring

30 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189 (Used on All Models)

31 7035744 T-KNOB, 5/16-18

32 7079577 SCREW, 1/4-20 x 1-1/2 Hex Cap, Grade 5

33 7090053 WASHER, 1/4 Internal Tooth Lock Was 91023 (Used on All Models)

34 7091576 NUT, 1/4-20 Hex, Grade 5 or B Was 91100 (Used on All Models)

35 7090505 SCREW, 1/4-20 x 2" Hex Cap, Grade 5

36 7014343 4 BUSHING

37 7023792 PIN, 1/4" X 1-1/2"

38 7091020 PUSH-NUT, 1/4"

39 7024211 DECAL, Blade Control (L.H. Side) Used on All (Except European)

7029782 DECAL, Operator's Presence Control Used on European Models

7029785 DECAL, Handle International Warning Used on European Models

40 7026141 GUIDE, Rope

41 7075634 GRIP, Foam Was 73115, Note #1

7022460 GRIP, Foam Used on P216012E &

P216512BV

42 7024087 DECAL, Speed Select Except European

7029783 DECAL, Speed Select European Models

43 7023153 CLAMP, Casing

44 7090391 WASHER, 5/16 Internal Tooth Lock

45 7090545 SCREW, 5/16-24 x 1-1/2" Machine, Grade 5

46 7022779 GUIDE, Rope Used on Grass Bag Models

47 7029217 ASSEMBLY, Speed Control Lever (Includes Items 48 thru 51),

Note #1

47A 7029233 ASSEMBLY, Speed Control Lever Includes Items 48A, 49A, 50A &

48 7029217 ROD, Upper Was 29153, Note #1

48A 7029189 ROD, Upper NRP215012, RP215012

49 7029217 ROD, Intermediate Was 29154, Note #1

49A 7029190 ROD, Intermediate NRP215012, RP215012

Note 1: RP215012T2, RP216012, NP216012, EP216012, P216012, P216012E, P216012TV, P216512BV, FRP216012TV,

EFRP216012TV, FRP216012, FRP216016, EFRP216512TV, EFRP216516TV & EFRP216516BV.

Note 2: N215012, 215012, 216015, NR215012, 8215012.

Handles & Controls

TP 400-5137-7-WB-N

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16

Handles & Controls

Footnotes:

TP 400-5137-7-WB-N

Manual No. 700605921" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16 9

Part No Descri

tionItem Qt

Note

50 7029217 ROD, Lower Was 29155, Note #1

50A 7029191 ROD, Lower NRP215012, RP215012

51 7029161 2 NUT, 1/4-20 Wing Used on Item 47 & 47A

52 7023154 SCREW, #10-32 x 5/8" Self-Tapping Used on All Models

53 7024669 TIE, Wire Self-Propelled Models

54 7026219 CLAMP Self-Propelled Models

55 7046465 GUIDE, Rope Used on: 215014.

56 7076978 NUT, 1/4-20 Nyloc Used on: 215014.

57 7012080 CABLE-TIE, 7" Used on: 215014.

58 7079577 SCREW, 1/4-20 x 1-1/2" Hex Head Cap, Grade 5 Used on: 215014.

-- Note 3: NRP215012, RP215012, N215012, 215012, 216015,

NR215012, 8215012.

-- Note 4: NRP215012, RP2150122, N215012, 215012, 216015,

NR215012, 8215012, 215015, 216015, 216515BV.

Note 1: RP215012T2, RP216012, NP216012, EP216012, P216012, P216012E, P216012TV, P216512BV, FRP216012TV,

EFRP216012TV, FRP216012, FRP216016, EFRP216512TV, EFRP216516TV & EFRP216516BV.

Note 2: N215012, 215012, 216015, NR215012, 8215012.

Cutting Deck, Blades

TP 400-5137-7-WB-N

Manual No. 7006059 21" STEEL DECK WALK BEHIND MOWERS

SERIES 12, 14, 15, & 16
