Snapper 7800428 Manuel utilisateur

Parts Manual fo

Revision: E

21"STEEL DECK WALK BEHIND MOWERS

SERIES 20

1/20/2010

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967 Manual No. 7006477

Descri

tionModel No.

780042

2167520B

780059

217020B

780043

N2167520B

780060

N217020B

780043

NP2167520B

7800601 NP217020B

780069

NP2187520

7800439 NP2187520BV

7800429 P2167520B

780059

P217020B

780055

P2187520

780043

P2187520BV

780043

P2187520BVE

780055

P2187520E

780060

RP217020

780042

RP217020BDV

780055

RP2187520

780042

RP2187520BV

780049

RP2187520BV2N1

780042

RP2187520BVE

780055

RP2187520E

Not for

Reproduction

Not for

Reproduction

Table Of Contents

21"STEEL DECK WALK BEHIND MOWERS

SERIES 20 3

Manual No. 7006477

PAGE GROUP

4 Handles and Controls

8 Engine, Cutting Deck & Blade

10 Wheels Front and Rear

12 Wheel Brackets & Latches (Push)

14 Wheel Brackets & Latches (Self-Propelled)

16 Drive System Self-Propelled

20 Transmission (Differential)

22 Decals

24 Side Chute, Adapter

26 Grass Bag Components

28 Accessory Recycling Kits

30 Accessory Snapperizer

32 Electric Start Components

Not for

Reproduction

Handles and Controls

21"STEEL DECK WALK BEHIND MOWERS

SERIES 20

Manual No. 7006477

Not for

Reproduction

Handles and Controls

Footnotes:

Manual No. 700647721"STEEL DECK WALK BEHIND MOWERS

SERIES 20 5

Part No Descri

tionItem Qty

1 7074411 1 HANDLE, Upper

2 7074156 1 HANDLE, Middle

3 7033985 1 HANDLE, Lower LH (Adjustable)

4 7033986 1 HANDLE, Lower RH (Adjustable) used on 7800430 & 7800492

5 7074418 1 BAIL, OPC Control

6 7034872 1 CLIP, Zone Control

7 7034608 1 * CABLE, Zone Control (52-63/64” Long) used on 7800425, 7800428, 7800437, 7800596,

7800597 & 7800602

7 7102593 1 * CABLE, Zone Control (52-21/32” Long) used on 7800424, 7800552, 7800553, 7800554 &

7800555

7 7078078 1 * CABLE, Zone Control (50-31/64” Long) used on 7800427 & 7800432

8 7074473 1 HANDLE, Clutch

9 7028407 1 GRIP, International Symbol

10 7034604 1 CABLE, Clutch Control (41-1/4” Long)

11 7012121 1 COVER, Vinyl

12 7012122 1 SPRING, Clutch - 21S

13 7074003 1 BRACKET, Shift

14 7024641 2 TIE, Wire, 1.29 long, black

15 7073822 1 BRACKET, Bell Crank

16 7013849 1 SPACER, .33 x .63 x .156

17 7073913 1 BELL CRANK

18 7074140 1 CONTROL PANEL (w/o Electrical Switch Hole) Used on Manual Start Models

18 7074469 1 CONTROL PANEL (w/Electrical Switch Hole) Used on electric start models

18 7073826 1 CONTROL PANEL (w/o wheel drive slot) used on 7800428, 7800437 & 7800596

19 7900067 4 SCREW, 1/4-20 x 1/2” Pan Head Self-Tap (Torx)

20 7091130 2 WASHER, .33 x .88 x .09 Flat

21 7091904 1 SCREW, 5/16-18 x 7/8” Hex Head Cap, GR 5

22 7090538 1 TEENUT, 5/16-18

23 7012114 1 BUSHING, Differential, .328 x .625 x .41

24 7090595 2 BOLT, 5/16-18 x 3/4” Hex Flange Lock GR 5

25 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5

26 7091575 1 NUT, 5/16-18 Hex Center Lock

27 7074113 1 LEVER, Shift

28 7091606 1 NUT, 5/16-24 Hex Center Lock GR 5

29 7023813 1 CLIP, Wiring Harness

30 7091189 4 SCREW, 5/16-18 x 1-7/8” Curved Head GR 2

31 7035744 4 KNOB, 5/16-18 Wing (Black)

31 720727 4 KNOB, 5/16-18 Wing (Black) Briggs part

32 7079577 2 SCREW, 1/4-20 x 1-1/2” Hex Head Cap GR 5

33 7090053 5 WASHER, 1/4” Internal Tooth Lock

34 7091576 3 NUT, 1/4-20 Hex

35 7090505 1 SCREW, 1/4-20 x 2” Hex Head Cap, GR 5

36 7014343 2 BUSHING, .27 x .35 x .4 Flange

37 7023792 1 PIN, 1/4 x 1-1/2”

38 7091020 1 PUSH-NUT, 1/4”

NOTE: * Part number and revision is stamped on cable.

Not for

Reproduction

Handles and Controls

21"STEEL DECK WALK BEHIND MOWERS

SERIES 20

Manual No. 7006477

Not for

Reproduction

Handles and Controls

Footnotes:

Manual No. 700647721"STEEL DECK WALK BEHIND MOWERS

SERIES 20 7

Part No Descri

tionItem Qty

40 7090095 4 NUT, 1/4-28 Hex

41 7023810 1 FOAM GRIP, 18.75” long

42 7091305 1 SCREW, 3/8-16 x 2” Hex Head Cap, GR 5

43 7091585 1 NUT, 3/8-16 Hex Center Lock

44 7090391 4 WASHER, 5/16” Internal Tooth Lock

45 7031961 8 WASHER, 7/16” Flat

46 7028465 2 WASHER, Nylon

47 7074133 1 ROD, Speed Control (1/4-28 thread)

48 7028488 1 GUIDE, Rope (1/4-20 thread)

49 7076978 1 NUT, 1/4-20 Hex GR 5 or B

50 7012080 1 CABLE-TIE, 7”

51 7074460 1 THROTTLE CONTROL, (48.5”) used on 7800425, 7800427, 7800428, 7800429, 7800430,

7800432, 7800437, 7800438, 7800439, 7800492, 7800596, 7800597 & 7800602

51 7100975 1 THROTTLE CONTROL, RP, D.O.V. Engine (50.0”) used on 7800424

51 7102594 1 THROTTLE CONTROL (62.0”) used on 7800552, 7800553, 7800554 & 7800555

52 7075308 1 THROTTLE KNOB (Red)

53 7075182 1 KNOB, Shift (Red)

54 7026219 1 CLAMP, 7/8” Double Cable

55 7091167 1 SCREW, #8-32 x 1/2” Cross Recess Filister Head Machine

56 7091018 1 NUT, #8-32 Hex

57 7091524 1 SCREW, 5/16-18 x 1-1/4” Hex Washer Head Self-Tap

58 7028568 1 WASHER, Belleville

59 7090238 1 SCREW, 5/16-24 x 1” Hex Head Cap GR 5

60 7090188 2 WASHER, 11/32” Flat

61 7034162 1 COTTER PIN, 5/16 Self Lock

62A 7102940 1 DECAL, Easy Speed, Control Panel

62B 7102974 1 DECAL, Snapper Control Panel used on Push models

63 7023153 1 CLAMP, Casing

64 7023154 1 SCREW, #10-32 x 5/8” Self-Tap

NOTE: * Part number and revision is stamped on cable.

Not for

Reproduction

Engine, Cutting Deck & Blade

21"STEEL DECK WALK BEHIND MOWERS

SERIES 20

Manual No. 7006477

Not for

Reproduction

Engine, Cutting Deck & Blade

Footnotes:

Manual No. 700647721"STEEL DECK WALK BEHIND MOWERS

SERIES 20 9

Part No Descri

tionItem Qty

-- 100602-0155-B8 1 * ENGINE, B&S DOV 700 Series used on RP217020BDV

-- 121Q72-0110-F1 1 * ENGINE, B&S 875 Professional Series, California Compliant used on NP2187520

-- 126L02-4113-F1 1 * ENGINE, B&S 675 Series used on N2167520B & NP2167520B

-- 126T02-0267-B1 1 * ENGINE, B&S 675 Series used on 2167520B & P2167520B

-- 128L02-0114-F1 1 * ENGINE, B&S 700 Series, California Compliant used on N217020B & NP217020B

-- 12S502-0112-B1 1 * ENGINE, B&S 875 Series, Intek used on RP2187520BV, P2187520BV & RP2187520BV2N1

-- 12S507-0115-B1 1 * ENGINE, B&S 875 Series, Intek used on P2187520BVE & RP2187520BVE

-- 12S602-0110-F1 1 * ENGINE. B&S 875 Series, Snapper, XIC, F1 used on NP2187520BV

-- 12S902-0126-B1 1 * ENGINE, B&S 875 Series, W14 used on RP2187520 & P2187520

-- 12S907-0127-B1 1 * ENGINE, B&S 875 Series, W14, ES used on RP2187520E & P2187520E

1 7500081 1 WELDMENT, Deck, 21” Non-Adjust Air (red, w/o decals) used on “R” (recycling) models

1 7400029 1 WELDMENT, Deck, 21” Push, HV, Core Model (red, w/o decals) used on 2167520B &

N2167520B (push) models

1 7500549 1 WELDMENT, Deck, Part Sales, Hi-Vac, ES (red, w/decals) used on self-propelled (non-

recycling) models

2 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5 or 7091070

3 7090731 3 BOLT, 5/16-18 x 1/2”, Short Neck Carriage, GR 5

4 7046780 2 PLUG, Hole, Polyethylene

5 7011791 1 RETAINER, 5/16” Bolt

6 7091508 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage GR 5 or 7090001

7 7090324 3 SCREW, 3/8-16 x 1” Self-Tapping engine mount bolts

8 7074568 1 COVER, Belt

9 7015780 1 PULLEY, Engine (25mm I. D. x 2-1/8” O.D.)

10 7090201 1 SET SCREW, 5/16-18 x 5/16” Hex Socket or 7092086 (SET SCREW, 5/16-18 x 1/2” Hex

Recess)

11 7091214 1 KEY, Woodruff #HP-506 Hi-Pro

12 7015626 1 HUB, Blade Drive, 25 mm I.D.

13 7101414 1 HUB, Blade, 21” WBM, RD, 2 Position

14 7012063 2 WASHER, Cone 3/8”

15 7090167 1 SCREW, 3/8-24 x 2” Hex Head Cap, GR 5

16 7026691 1 BLADE, 21” Standard Lift

17 7026407 1 BLADE, 21” Ninja (Quad Edge) Used on Recycling Models

18 7044770 3 SPACER, Blade Hub Used on RP2187520BVE & RP2187520E

NOTE: * Purchase engine parts from engine manufacturer dealer.

Not for

Reproduction

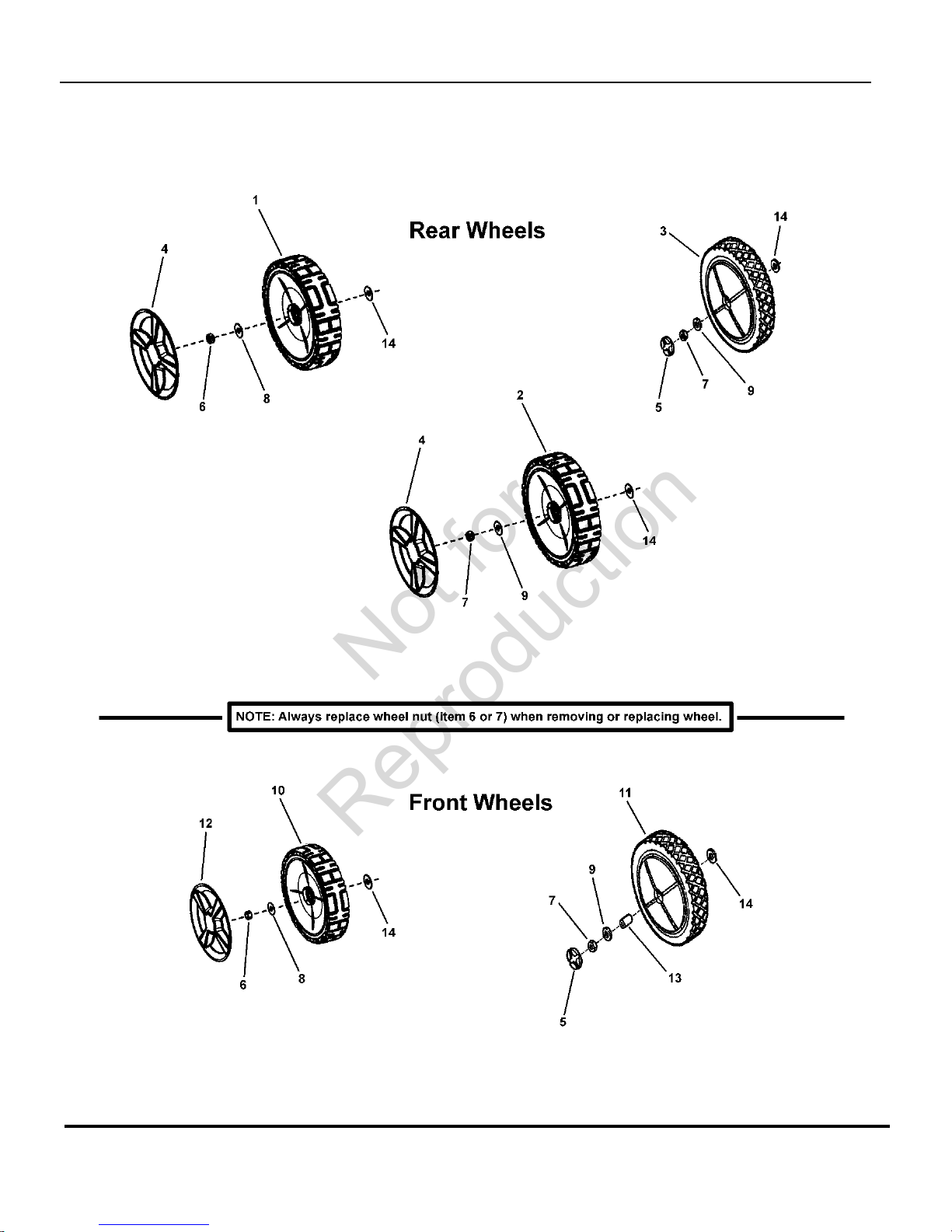

Wheels Front and Rear

21"STEEL DECK WALK BEHIND MOWERS

SERIES 20

Manual No. 7006477

Not for

Reproduction
