Snapper 5900664 Manuel utilisateur

Parts

Rev. Date: 12/2007

S200X Series

Zero-Turn Riding Mower

Manual

5101093

5375 North Main Street

Munnsville, NY 13409 USA

800-933-6175

Briggs and Stratton Yard Power Products Group

TP 400-7329-J-M2-SP

Models: Descri

tion:

5900693 S200XBV3272, 72" 32HP Briggs & Stratton Zero-Turn Rider

5900664 S200XKAV2561, 61" 25HP Kawasaki Zero-Turn Rider

5900692 S200XKOH2761, 61" 27HP Kohler Zero-Turn Rider

5900695 S200XKAV2761, 61" 27HP Kawasaki Zero-Turn Rider

JRevision

Table Of Content

Tor

ue S

ecification Chart ............................................................................................. Inside Back Cover

MODEL COMPONENTS PAGE

Main Frame Group ............................................................................................................................................................. 4

Rear Bumper & ROPS Group ............................................................................................................................................ 6

Seat & Kick Plate Group ....................................................................................................................................................

Fuel Tank & Mount Group .................................................................................................................................................. 10

Instrument Control Panel Group ........................................................................................................................................

Engine & PTO Group - 25 HP & 27HP Kawasaki ..............................................................................................................

Engine & PTO Group - 27 HP Kohler ................................................................................................................................. 18

ine & PTO Group - 32HP Bri

s & Stratton ................................................................................................................ 20

Pump Drive Group .............................................................................................................................................................

Motion Control Group ......................................................................................................................................................... 24

draulic Group ................................................................................................................................................................. 26

draulic Mount Group ...................................................................................................................................................... 30

Parkin

Brake Group .........................................................................................................................................................

Deck Lift Group .................................................................................................................................................................. 34

Wheel & Tire Group ...........................................................................................................................................................

Decals - Brand ................................................................................................................................................................... 38

Decals - Safety & Information ............................................................................................................................................

72" Mower Deck - Housing, Covers, and Spindles ............................................................................................................. 42

72" Mower Deck - Pulle

s, Belt, and Idler Arm ................................................................................................................... 44

72" Mower Deck - Rollers & Casters .................................................................................................................................. 46

61" Mower Deck - Hanger Chains ...................................................................................................................................... 48

61" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 2012617338 & Below) ....................................................... 50

61" Mower Deck - Housin

, Covers, Spindles & Blades

(

S/N: 2012617339 & Above

)

...................................................... 52

61" Mower Deck - Pulle

s, Belts & Idler Arm .....................................................................................................................

61" Mower Deck - Roller Group .........................................................................................................................................

61" & 72" Mower Deck - Rear Mount Bars ......................................................................................................................... 58

Electrical Schematics - Kawasaki & Kohler Models ...........................................................................................................

60-63

Electrical Schematics - Briggs & Stratton Model ................................................................................................................ 64-67

Main Frame Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 4

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP

PART NO. DESCRIPTIONREF NO. QTY.

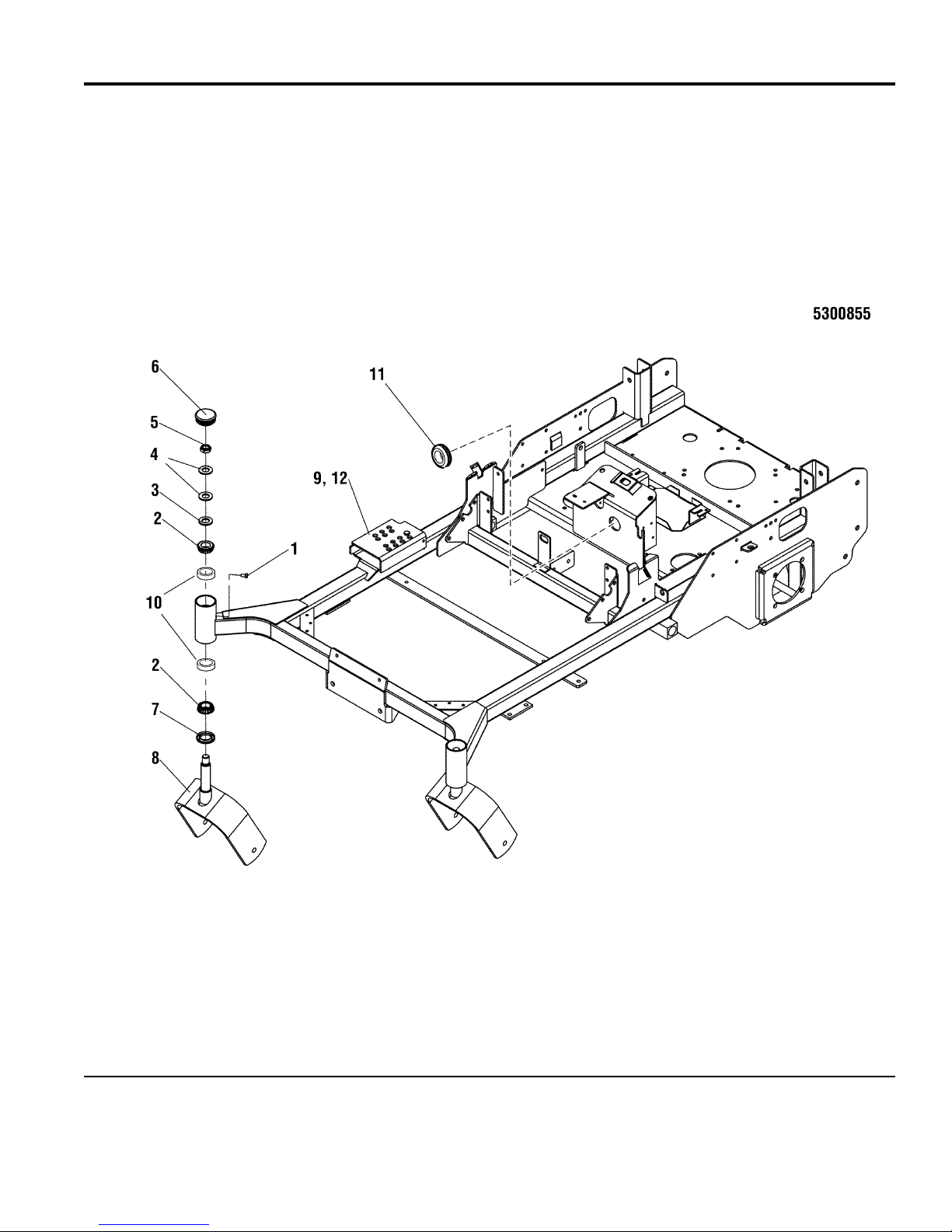

Main Frame Group

Footnotes

1 5025457 2 BOLT, 1/4-28 X 1/2, GD5 YZ

2 5020884 4 BEARING, TAPERED ROLLER, 1"

3 5025160 2 WASHER, 3/4 SAE

4 5025449 4 WASHER, BELLEVILLE - 1.500 X .755

5 5025448 2 NUT, 3/4-16, HEX JAM NYLON LOCK

6 5100882 2 CAP, CASTER SPINDLE, LOW PROFILE

7 5021072 2 SEAL, GREASE

8 5402207D 2 WELD, CASTER YOKE - RED

9 5402709D 1 WELD, MAIN FRAME SNP 61" - RED (61" Deck Models)

10 5020883 2 CUP, BEARING (SV)

11 5021379 1 GROMMET, 7/8

12 5403064D 1 WELD, MAIN FRAME SNP 72" - RED (72" Deck Models)

The above parts group applies to the following Mfg. Nos.:

2007 5

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP

Rear Bumper & ROPS Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 6

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP

PART NO. DESCRIPTIONREF NO. QTY.

Rear Bumper & ROPS Group

Footnotes

1 5100267 2 SCREW, 1/2-13 X 1.00, SHCS

2 5025396 6 NUT, 1/2-13 HEX NYLOCK FLANGE

3 5402774D 2 PLATE, SEAT BELT EXTENSION - RED

4 5100139 1 SEAT BELT, RETRACTING - ASSM (25HP KAWASAKI & 27HP KOHLER

MODELS)

5 5101110 1 ROPS, SNAPPER PRO 61

6 5025158 12 WASHER, 1/2 SAE

7 5025155 6 WASHER, 5/16 SAE

8 5025011X6 6 BOLT, 5/16-18 X 3/4 GD5

9 5025392 6 NUT, 5/16-18 HEX NYLOCK FLANGE

10 5402772D 1 PLATE, HEAT SHIELD - RED

11 5025017X26 2 BOLT, 1/2-13 X 3-1/4 GD5

12 5402760D 1 PLATE, REAR BUMPER, 61 SNP - SNP RED

13 5402776D 1 BUMPER, REAR, SNP 61 - RED

14 -- 1 ROLL BAR POST, RH (SV)

15 -- 1 ROLL BAR POST, LH (SV)

16 -- 1 ROLL BAR TOP LOOP (SV)

17 5025018X10 6 BOLT, 1/2-20 X 1-1/4" GD5 YZ

18 5025098 6 NUT, 1/2-20 HEX NYLON LOCK

19 5025056 2 NUT, 1/2-13 HEX NYLON LOCK

20 5025294X28 2 BOLT, 1/2-13 X 3-1/2, ALLEN HEAD, YZ (SV)

21 5100013 2 PIN, HITCH, .50 X 3.25 W/ LANYARD (SV)

22 5101110X1 1 HARDWARE BAG, ROPS S200X (INCLUDES ALL COMPONENTS MARKED

REF # 22)

23 5101223 1 SUPER SLEEVE BUCKLE, SEAT BELT (27HP KAWASAKI & 32HP BRIGGS

MODELS)

24 5101226 1 RETRACTOR, SEAT BELT (27HP KAWASAKI & 32HP BRIGGS MODELS)

25 5401044D 2 PLATE, SEAT BELT EXTENSION - RED (27HP KAWASAKI & 32HP BRIGGS

MODELS)

The above parts group applies to the following Mfg. Nos.:

2007 7

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP

Seat & Kick Plate Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 8

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP

PART NO. DESCRIPTIONREF NO. QTY.

Seat & Kick Plate Group

Footnotes

1 5025392 12 NUT, 5/16-18 HEX NYLOCK FLANGE

2 5025156 2 WASHER, 3/8 SAE

3 5025013X16 2 BOLT, 3/8-16 X 2 GD5 YZ

4 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE

5 5041931 2 SPACER, .38 X .50 X 1.25

6 7078299 2 SPRING, SEAT SUPPORT

7 5044617 2 WASHER, .34 X 1.25 X 10 GA

8 5025011X18 2 BOLT, 5/16-18 X 2-1/4" GD5 YZ

9 5025127 2 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)

10 5101079 2 SPRING-COMP .625 ID X .105 WIRE X 1.31 LONG

11 5022198 1 SWITCH, PLUNGER, NO/NO SNAP-IN

12 5025155 4 WASHER, 5/16 SAE

13 5101113 1 SAFETY WALK, 11-1/2 X 19

14 5101114 1 SAFETY WALK, 10 X 19

15 5402754D 1 WELD, SEAT PLATE - RED

16 5402732D 1 PLATE, SEAT SWITCH - RED

17 5025011X8 4 BOLT, 5/16-18 X 1 GD5 YZ

18 5402726D 1 PLATE, FLOOR PAN, SNP 61

19 5022031 1 SEAT, GRAY, NO LOGO, CMPT (25HP KAWASAKI & 27HP KOHLER

MODELS)(INCLUDES REF NOS 21 - 25)

20 5025011X10 2 BOLT, 5/16-18 X 1-1/4 GD5 YZ

21 5022031X2 1 CUSHION, SEAT BOTTOM, GRAY (SV) (NON SUSPENSION SEAT

REPLACEMENT PARTS)

22 5022031X4 1 CUSHION, SEAT BACK, GRAY (SV) (NON SUSPENSION SEAT

REPLACEMENT PARTS)

23 5022185 1 ARM REST, COMPLETE (SV) (NON SUSPENSION SEAT REPLACEMENT

PARTS)

24 5020930X3 1 RAILS, SEAT ADJUSTER (SET OF TWO)(SV) (NON SUSPENSION SEAT

REPLACEMENT PARTS)

25 5100652 1 SPRING, EXTENSION, 4" SEAT ADJUSTERS (SV)

26 5101214 1 SEAT, SUSP. TYPE, MICHIGAN SEAT, V5300, BLK (27HP KAWASAKI & 32HP

BRIGGS MODELS)

27 5403471D 1 PLATE, SEAT SUPPORT EXTENSION (27HP KAWASAKI & 32HP BRIGGS

MODELS)

28 5025010X6 4 BOLT, 1/4-20 X 3/4 GD5 YZ (27HP KAWASAKI & 32HP BRIGGS MODELS)

29 5025391 4 NUT, 1/4-20 HEX NYLOCK FLANGE (27HP KAWASAKI & 32HP BRIGGS

MODELS)

30 5025154 4 WASHER, 1/4 SAE (27HP KAWASAKI & 32HP BRIGGS MODELS)

31 5101214X1 1 KIT, ARM REST, S/S (SV) (SUSPENSION SEAT REPLACEMENT PARTS)

32 5101214X2 1 CUSHION, BACK, S/S (SV) (SUSPENSION SEAT REPLACEMENT PARTS)

33 5101214X3 1 CUSHION, SEAT, S/S (SV) (SUSPENSION SEAT REPLACEMENT PARTS)

34 5101214X4 1 KIT, ADJUSTER, S/S (SV) (SUSPENSION SEAT REPLACEMENT PARTS)

The above parts group applies to the following Mfg. Nos.:

2007 9

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP

Fuel Tank & Mount Group

NOTE: Unless noted otherwise, use

the standard hardware torque

specification chart.

The above parts group applies to the following Mfg. Nos.:

2007 10

5900692

5900695

5900693

5900664

TP 400-7329-J-M2-SP
