Snapper 355ZB2444 Manuel utilisateur

Parts Manual fo

Revision B,

24HP HYDRO DRIVE ZT

355Z SERIES

TP 400-5275-B-HZ-N3/26/2008

Briggs & Stratton Yard Power Products Group

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967 Manual No. 5101225

MODEL

355ZB2444 (5900681)

355ZB2450 (5900682)

355ZB2450CE (5900685)

Table Of Content

TP 400-5275-B-HZ-N

24HP HYDRO DRIVE ZTR

355Z SERIES 3

Manual No. 5101225

PAGE GROUP

4Wheel & Tire Group

6Main Frame Group

8Seat & Floor Plate Group

10 Fuel Tank & Replacement Parts Group

12 Engine & PTO Group - 24 HP Briggs & Stratton

14 Motion Control Group

18 Parking Brake Group

20 Pump Drive Group

22 Hydraulic Group

24 Transmission SERVICE PARTS

26 Rear Bumper Group

28 Decal Group - Brand & Model

30 Decal Group - Safety & Common

32 Export Decal Group - Safety & Common

34 Deck Lift Group

38 44" & 50" Mower Deck - Belt & Idler Group

40 44" & 50" Mower Deck - Housing, Arbors & Blades Group

44 44" & 50" Mower Deck - Rollers Group

46 Instrument Control Panel Group

48 Electrical Group

50 Wiring Schematic - 24 HP Briggs & Stratton

Wheel & Tire Group

TP 400-5275-B-HZ-N 24HP HYDRO DRIVE ZTR

355Z SERIES

Manual No. 5101225

Wheel & Tire Group

Footnotes:

TP 400-5275-B-HZ-N

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES 5

Part No Descri

tionItem Qt

Note

1 5022433S 2 WHEEL & TIRE ASSEMBLY, 11 X 4.0 - 5, Complete (INCLUDES REF NO. 2 - 6)

2 5022433X1 2 TIRE, Front, 11 X 4.0 - 5 (SV)

3 5022433SX2 2 WHEEL ASSEMBLY, Complete (INCLUDES REF NO. 4 & 5)

4 2172353 4 VALVE STEM & CAP ASSEMBLY (SV)

5 5022579 4 BEARING, Roller (2 PER TIRE)

6 5021043 4 BEARING, Retainer (2 PER TIRE)

7 5045996 2 AXLE, Front Caster

8 5025017X52 2 CAPSCREW, Hex Head, 1/2-13 X 6-1/2

9 5025056 2 NUT, Hex Nylon Lock, 1/2-13

10 5023095 2 WHEEL & TIRE ASSEMBLY, 20 X 8.0 - 10, Complete (INCLUDES REF NO. 4, 11 &

12)

11 5023095X1 2 TIRE, Rear 20 X 8.0 X 10 (SV)

12 5023095X2 2 WHEEL ASSEMBLY, For 20 X 8.0 X 10 Tire (SV)

13 5020601 8 LUG NUT, 1/2-20

14 5025158 4 WASHER, SAE, 1/2

Main Frame Group

TP 400-5275-B-HZ-N 24HP HYDRO DRIVE ZTR

355Z SERIES

Manual No. 5101225

Main Frame Group

Footnotes:

TP 400-5275-B-HZ-N

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES 7

Part No Descri

tionItem Qt

Note

1 5021541 4 BUSHING, FLANGE

2 5400405D 1 WELD, PIVOTING FRONT END - RED

3 5048775D 2 WELD, CASTER YOKE - RED

4 5025057 4 NUT, 5/16-18 HEX NYLON LOCK

5 5020095 2 GREASE FITTING, 1/4-28 STRAIGHT

6 5020602 2 COLLAR, 1" SPLIT

7 5402896D 1 WELD, MAINFRAME, SNAPPER ZT, RED

8 5025303 4 SCREW, 5/16-18 X 1 FLAT HD SC

9 5100930 2 PAD, FRICTION, .375 X 1.25 X 4.00

10 5025284 1 NUT, 3/4-16 HEX NYLON LOCK

11 5025160 1 WASHER, 3/4 SAE

12 5025265X56 1 BOLT, 3/4-16 X 7" YZ GD5

13 5047489 1 SPACER, .75 X 1.00 X 2.38

14 5022852 1 PIVOT BEARING, 1.00" X 1.125" OD X 1.50"

15 5100358 1 PIVOT BEARING, 1.00 X 1.125 OD X .50

16 5400756 1 SPACER, .76X 1.50 X .79

17 5023214 2 CAP, VINYL 1.687 X 1-1/2

Seat & Floor Plate Group

TP 400-5275-B-HZ-N 24HP HYDRO DRIVE ZTR

355Z SERIES

Manual No. 5101225

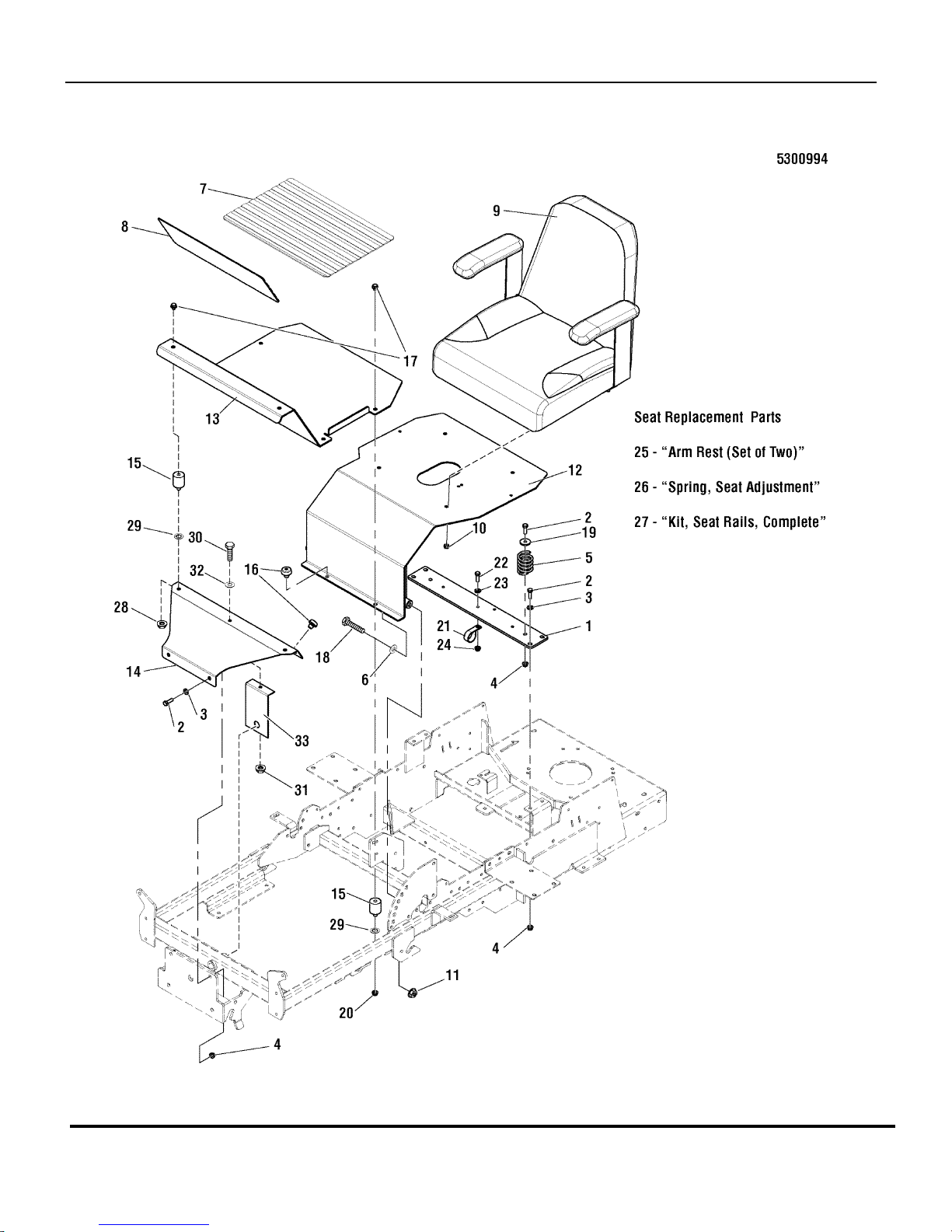

Seat & Floor Plate Group

Footnotes:

TP 400-5275-B-HZ-N

Manual No. 510122524HP HYDRO DRIVE ZTR

355Z SERIES 9

Part No Descri

tionItem Qt

Note

1 5402937D 1 PLATE, SEAT SUPPORT, CONS Z - RED

2 5025011X8 8 BOLT, 5/16-18 X 1 GD 5 YZ

3 5025292 6 WASHER, 5/16 GD. 9 FLAT

4 5025392 8 NUT, 5/16-18 HEX NYLOCK FLANGE

5 7078299 2 SPRING, SEAT SUPPORT

6 5025156 2 WASHER, 3/8 SAE

7 5100999 1 SAFETY WALK, FLOOR PLATE, 17.38 X 11.50

8 5101007 1 SAFETY WALK, FLOOR REST, 17.38 X 6.00

9 5061599 1 SEAT, XB-180, NO LOGO, BLACK

10 5025057 4 NUT, 5/16-18 HEX NYLON LOCK

11 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE

12 5403488D 1 WELD, SEAT PLATE - RED

13 5403043D 1 PLATE, FLOOR, CONSUMER Z - RED

14 5403044D 1 PLATE, FLOOR, FRONT, CONS Z - RED

15 35097 6 MOUNT, VIBRATION, 30 DURO

16 197546 4 MOUNT, VIBRATION, RUBBER

17 5025481 6 BOLT, 3/8-16 X 5/8, SERRATED UNDER HEAD

18 5025013X28 2 BOLT, 3/8-16 X 3-1/2 GD5 YZ

19 5044617 2 WASHER, .34 X 1.25 X 10 GA

20 5025128 4 NUT, 3/8-18 HEX SERRATED FLANGE

21 5021500 1 CLAMP, VINYL INSULATED

22 5025010X6 1 BOLT, 1/4-20 X 3/4 GD5 YZ

23 5025154 1 WASHER, 1/4 SAE

24 5025391 1 NUT, 1/4-20 HEX NYLOCK FLANGE

25 1686907 1 ARM REST, SET OF TWO (SV)

26 5100636 1 SPRING, SEAT ADJUSTMENT (SV)

27 5061599X1 1 KIT, SEAT RAILS. COMPLETE (SV)

28 5025394 2 NUT, 3/8-16 HEX NYLOCK FLANGE

29 5025480 6 WASHER, 3/8" ID, INTERNAL TOOTH

30 5025011X6 1 BOLT, 5/16-18 X 3/4 GDS

31 5025392 1 NUT, 5/16-18 HEX NYLOCK FLANGE

32 5025155 1 WASHER, 5/16 SAE

33 5403372D 1 PLATE, SUPPORT, FRONT FLOOR - RED

Fuel Tank & Replacement Parts Group

TP 400-5275-B-HZ-N 24HP HYDRO DRIVE ZTR

355Z SERIES

Manual No. 5101225
