Snap One B-260-SWTCH-3X1 Manuel utilisateur

B-260-SWTCH-3X1

18Gbps HDMI 3x1 Switcher

Install Guide

Welcome to Binary™

This product is engineered to provide years of exceptional reliability. We appreciate

your business, and we stand committed to providing our customers with the highest

degree of quality and service in the industry. This 18Gbps HDMI 3x1 Switcher is

compatible with HDMI 2.0/ HDCP 2.2 and supports video resolutions up to 4K@60Hz 4:4:4

8bit.

Pro Tip: -_Connect the HDMI switch to a surge protector to extend the life of the

product.

Features

lHDMI 2.0 and HDCP 2.2 compliant

lSupports video resolutions up to 4K2K@50/60Hz 4:4:4

l18Gbps video bandwidth

lSupports 3D and HDR format video

lSupported HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,

DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

lHas an auto/manual switching mode for the input source

lSupports CECcontrol

lFlexible control via front panel buttons, IR remote or RS-232 commands



Package Contents

l1 × 18Gbps HDMI 3x1 Switcher

l1× IR remote

l1× 3pin-3.5mm phoenix connector (male)

l2× Mounting ears

l4× Machine screws (KM3*4)

l1× 12V/2A Locking power adapter

l1× Quick Start Guide QR card

Warning

The IR Remote supplied with this product contains a

coin/button cell battery. Keep product and batteries

away from children. Battery can cause severe or fatal

injuries in 2 hours or less if swallowed or placed inside any

part of the body. Seek immediate medical attention if it is

suspected that a coin/button battery has been

swallowed or placed inside any part of the body.

Operation and Functions

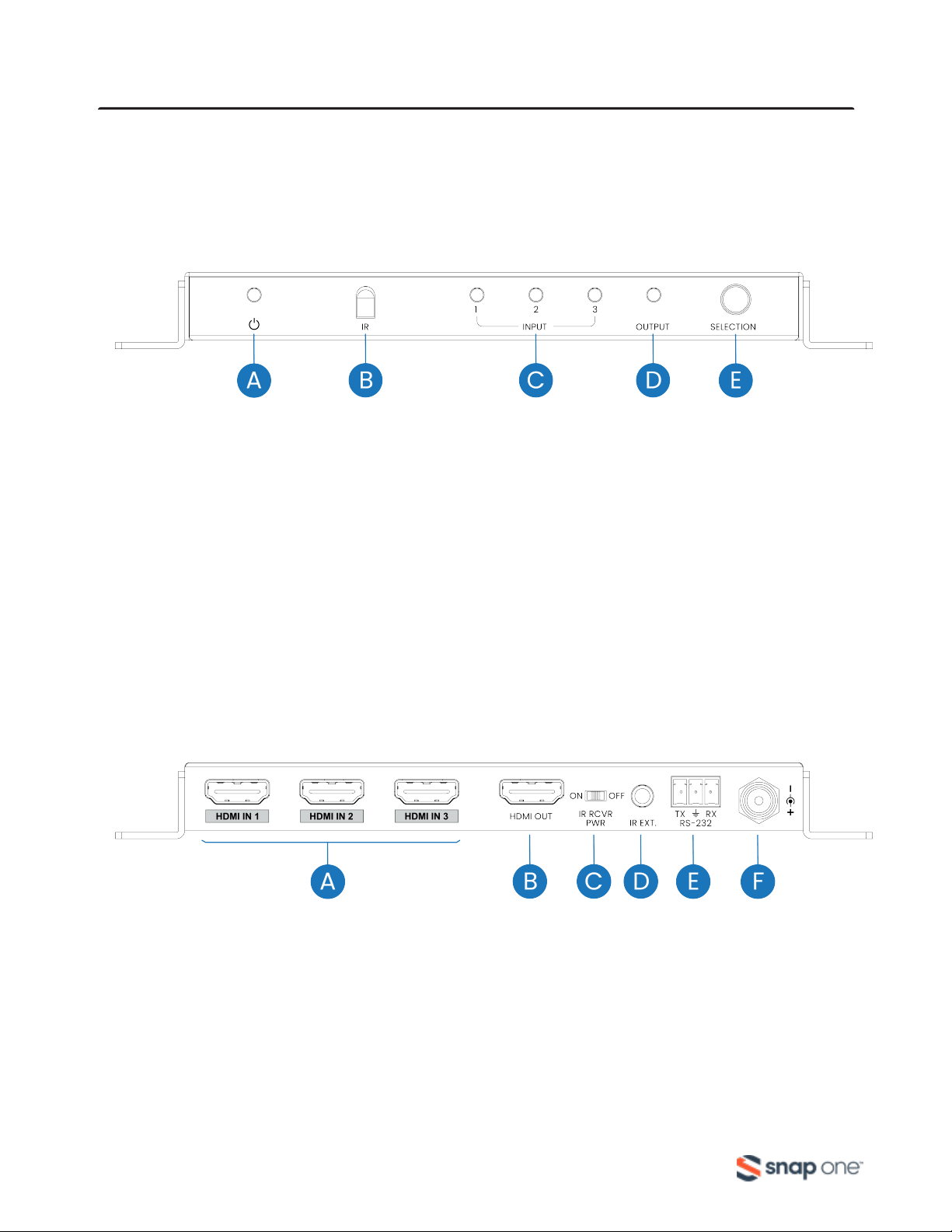

Front Panel

A. Power LED — Glows blue when the switch is powered on

B. IR window — Receives IR signals from IR emitting devices

C. Input LEDs — Glows blue when the input number is selected

D. Output LED — Glows blue when the HDMI out port is connected to a display

E. Selection button - Short press to cycle through the inputs. Hold the button for

three seconds to enable/disable auto-switching mode for the input source.

Rear Panel

A. HDMI In ports — Connect an HDMI cable from a source

B. HDMI Out port — Connect an HDMI cable to a display

C. IRRCVR PWR switch — OFF to connect to a control system | ON to connect to an IR

Receiver

D. IREXT port — IR input to connect to IR Receiver or to output of a control system

E. RS-232 serial port — RS-232 input to connect to the output of a control system

F. Thread-locking power connector — Connect to the included 12V DC, 2A power

supply.

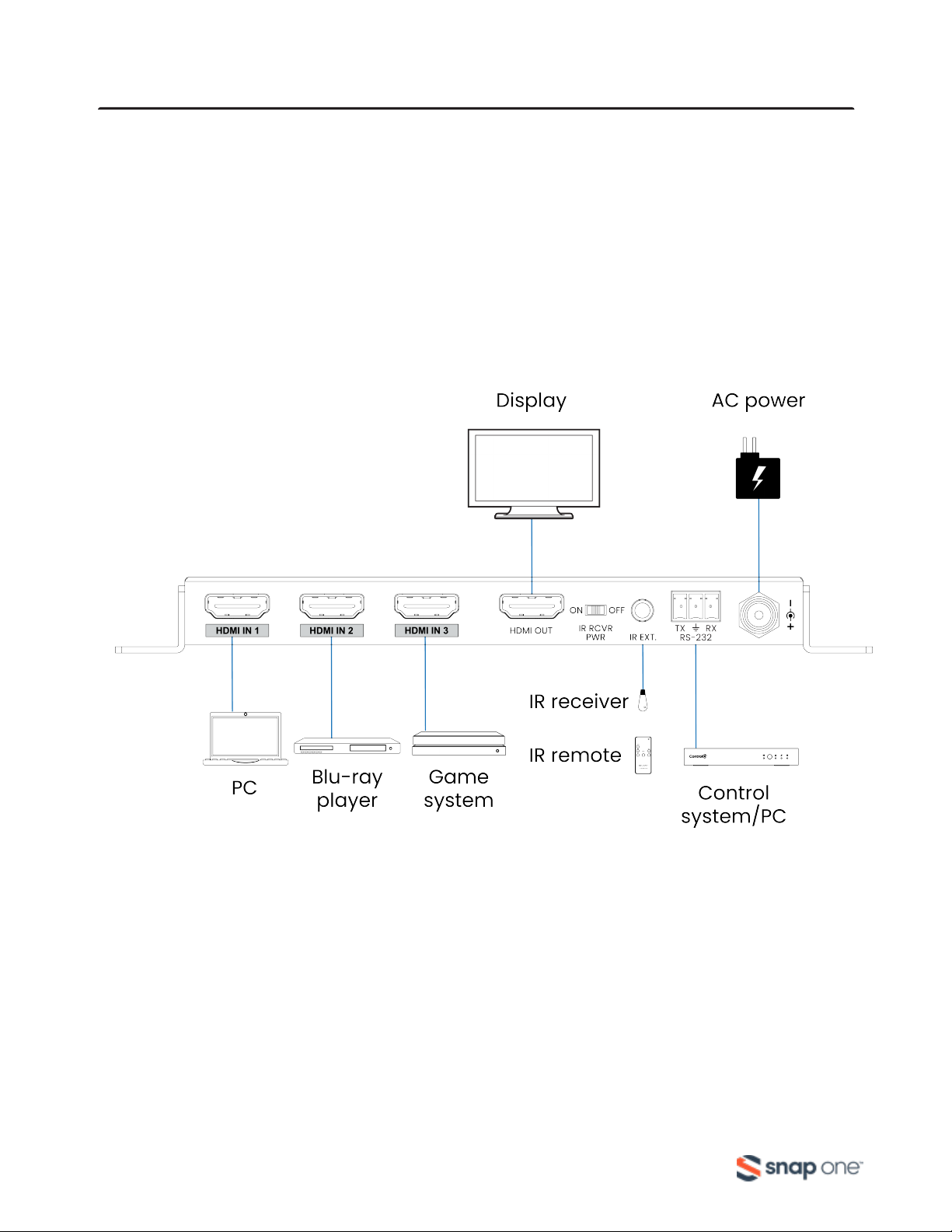

Installation

1. Connect an HDMI cable from the source to the HDMI inputs of the switch.

2. Connect an HDMIcable from the display to the switch's HDMI out port.

3. Connect any IR receivers or control systems to the switch.

4. Connect the switch's power supply. The Power, Output, and selected Input LEDs

should glow blue.

IR Control

lPower — Press to power the switch on or set it to standby

mode

lPrev — Press to select the previous source

lNext — Press to select the next source

lInput 1/2/3 — Press the desired input number to select the

connected source



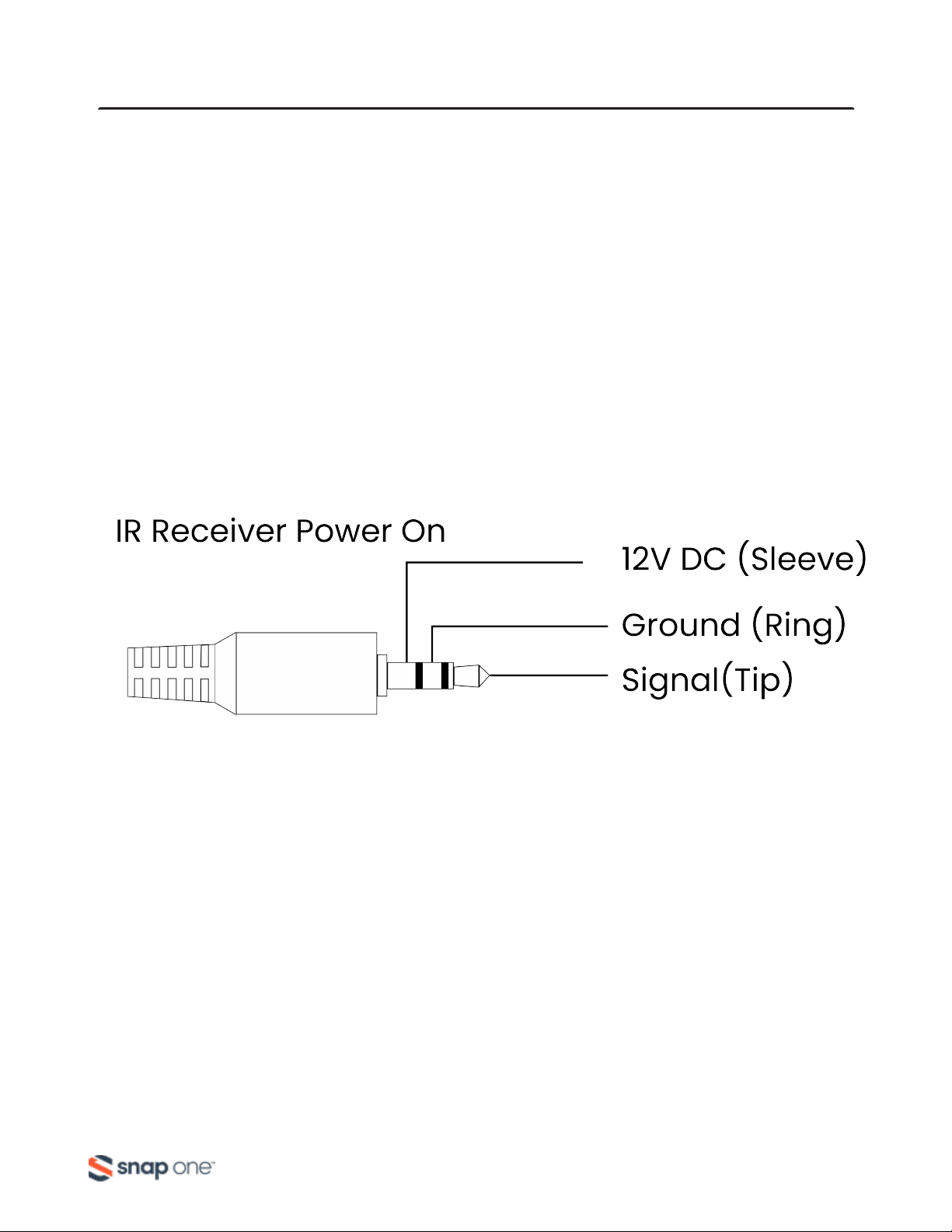

IR Receiver Cable Pinout

RS-232 Control

The switcher can be controlled using RS-232 commands from a PCor control system.

Use the included three-pin phoenix connector to connect the control device to the

switcher.

CommunicationFormat

lBaud rate: 9600 bps

lData bits: 8 bit

lParity: None

lStop bits: 1 bit

lFlow control: None

Function Commmand Paramter Description Return

Version FW VERSION <CR> Get firmware

version V1.01

Power on SETPOWER



ON<CR> Power on POWER

ON<CR>

Power Off OFF<CR> Power off POWER

OFF<CR>

Switch input



SET SWITCH



IN1<CR> Switch to input 1 SWITCH

IN1<CR>

IN2<CR> Switch to input 2 SWITCH

IN2<CR>

IN3<CR> Switch to input 3 SWITCH

IN3<CR>

NEXT<CR> Switch to the next SWITCH

Function Commmand Paramter Description Return

input IN1<CR>

PREV<CR> Switch to the

previous input

SWITCH

IN1<CR>

Set autoswitch



SET

AUTOSWITCH



ON<CR> Autoswitch is on AUTOSWITCH

ON<CR>

OFF<CR> Autoswitch is off AUTOSWITCH

OFF<CR>

Query

autoswitch

status

GET

AUTOSWITCH <CR> Get autoswitch

status ON/OFF

Example: SET SWITCH IN1<CR> switches to input 1.

Note: -__.You must use <CR> or <LF> to end a command.



Specifications

Technical

HDMI Compliance HDMI 2.0

HDCP Compliance HDCP 2.2

Video Bandwidth 594MHz/18Gbps

Video Resolution 480i ~1080p50/60Hz, 4Kx2K@24/30Hz,

4K2K@60Hz

Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0

HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True

HD, DTS, DTS-EX, DTS-96/24, DTS High

Res, DTS-HD Master Audio, DSD

HDRSupport Yes

ESD Protection Human-body model: ±8kV (air-gap

discharge), ±4kV (contact discharge)

Connection

Input 3× HDMI IN [Type A, 19-pin female]

Output 1× HDMI OUT [Type A, 19-pin female]

Control

1× RS-232 [3pin-3.5mm phoenix

connector]

1× IR EXT [3.5mm stereo mini-jack]

Mechanical

Housing Metal enclosure

Color Black

Dimensions (W × D

× H)

147mm (5.79") × 66.3mm (2.61") × 16mm

(0.63")

Weight 246g (0.54 lbs.)
