SMP FM Series Manuel
MEDICAL FLOWMETER
“FM” SERIES
SECONDARY MEDICAL PRODUCTS
Solutions Start Here
Operating and Maintenance Instructions
DUAL FM
OXYGEN FM AIR FM
PLEASE READ THOROUGHLY AND FOLLOW DIRECTIONS CAREFULLY
BEFORE OPERATING EQUIPMENT
FM - 15 - xx - xx
Control Knob
Adapter
(XX = No Adapter)
(OH = OHMEDA)
(CH = CHEMETRON)
(JS = JAPANESE STANDARD)
(DN = GERMAN STANDARD)
(BS = BRITISH STANDARD)
(DS = DISS STANDARD)
Type of Flowmeter
( A = Air)
( O = Oxygen)
Oxygen
I=White
U=Green
Air
I=Black
U=Yellow
To order Dual Oxygen Flowmeter,
please put “D” infront of “FM”
Example: DFM - 15 - UO - OH
(Dual Oxygen Flowmeter, US Standard
with an OHMEDA adapter)
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ................................................................................................. 1
RECEIVING INSPECTION ................................................................................................ 2
RESPONSIBILITY OF USER .............................................................................................. 2
INTENDED USE ................................................................................................................. 3
SPECIFICATIONS .............................................................................................................. 3
OPERATION ....................................................................................................................... 5
MAINTENANCE AND REPAIR ...................................................................................... 6
REUSABLE HUMIDIFIER .............................................................................................. 10
WARRANTY ................................................................................................................... WC
IMPORTANT: SAFETY INSTRUCTIONS
is manual provides you with important information about the
Flowmeter and should be read carefully to ensure the safe and
proper use of this product. Read and understand all the safety and
operating instructions contained in this booklet before using this
product. If you do not understand these instructions, or have any
questions, contact your supervisor, dealer or the SMP Canada before
attempting to use the device.
Indicates a potentially hazardous situation, which if
not avoided, could result in death or serious injury.
Indicates a potentially hazardous situation, which
if not avoided, could result in minor or moderate
injury.
Indicates a potentially hazardous situation, which if
not avoided, could result in property damage.
WARNING:
ATTENTION:
CAUTION:
1
RECEIVING INSPECTION
Remove the product from the package and inspect for damage.
Verify that the model received is in working condition. If the product is
damaged or incorrect, do not use. Contact your dealer, equipment
provider or SMP Canada right away.
ATTENTION:
It is crucial to allow the product to remain in the original packaging
for 24 hours to adjust to room temperature before use.
ATTENTION:
WARNING:
Service of this device should only be performed by properly trained
individuals.
is product performs as explained in this manual. is holds true
as long as the assembly, use, repair and maintenance are properly fol-
lowed according to our instructions. Periodic review of this device is
recommended. If any damage or defects are present, the product should
not be used. is includes parts that are worn or missing. If any of
the above are noted, immediate repair/replacement is required. If this
device is subject to improper maintenance, repair, use and / or
abuse leading to malfunction of the device, replacement is the sole
responsibility of the user.
2
RESPONSIBILITY OF USER
Store the product in a sealed package to avoid environmental damage.
e operating and storage temperature for the owmeter should reflect
typical environmental conditions of a medical facility environment.
Consult operating manual
Use no oil
3
To Eliminate e Risk Of Explosion Or Fire:
• Never attempt to attach a owmeter directly to a cylinder.
• Never use grease, oil, organic lubricants or flammable materials on or
near the owmeter.
• Never smoke in an area where oxygen is being used.
• Never use any type of flame, flammable or explosive material near
the owmeter.
• Always follow CGA and ANSI standards for owmeters and
Medical Gas Products (E-7) and Oxygen Handling (G-4)
ATTENTION:
ATTENTION:
Keep the Flowmeter in a clean area when not being used.
Ensure that all connections are tightened and leak-free before using
the product. Only use an oxygen-safe leak detector when testing for
leaks.
e SMP owmeter is used to dispense an adjustable flow of gas
accurately under the direction of a healthcare professional. e gas
to which the owmeter is calibrated depends on the model. Each
owmeter can be used with only one type of gas. e owmeters are
available with a wide number of gas specific adapters.
SPECIFICATIONS
Inlet
1/8-27 NPT female thread
Outlet
CGA DISS 1240, 9/16-18 UNF-2A
INTENDED USE
Accuracy
0-15 lpm Models
From 1 to 5 lpm: ±0.25 lpm
From > 6 to 15 lpm: ±0.50 lpm
Operational Temperature Limits
Maximum 120ºF (49ºC) and Minimum 0ºF (-18ºC).
Calibrated Inlet Pressure
Flowmeters are calibrated at 50 psi inlet pressure.
NOTE:
Some owmeter models may be supplied with an open 1/8-27
NPT female inlet port for connection to customer’s piping. Always
use thread sealants compatible with the gases involved. Use 15 to
20 foot-pounds torque for assembly. Always test for leaks on the
connections before putting into service.
4
Transportation / Storage Temperature
Maximum 140ºF (60ºC) and Minimum -40ºF (-40ºC).
WARNING: USE NO OIL!
Oxygen in itself is a non-ammable gas; it will however,
substantially increase the rate at which materials burn. Oil, grease
and other hydrocarbons, when combined with oxygen, will
become highly combustible and should never be used on any part
of an oxygen owmeter or other equipment used with oxygen.
Smoking is HIGHLY PROHIBITED in any area where oxygen is in
use or stored.
CAUTION:
For medicinal use only. Federal law restricts this device to be used
by or on order of a physician.
5

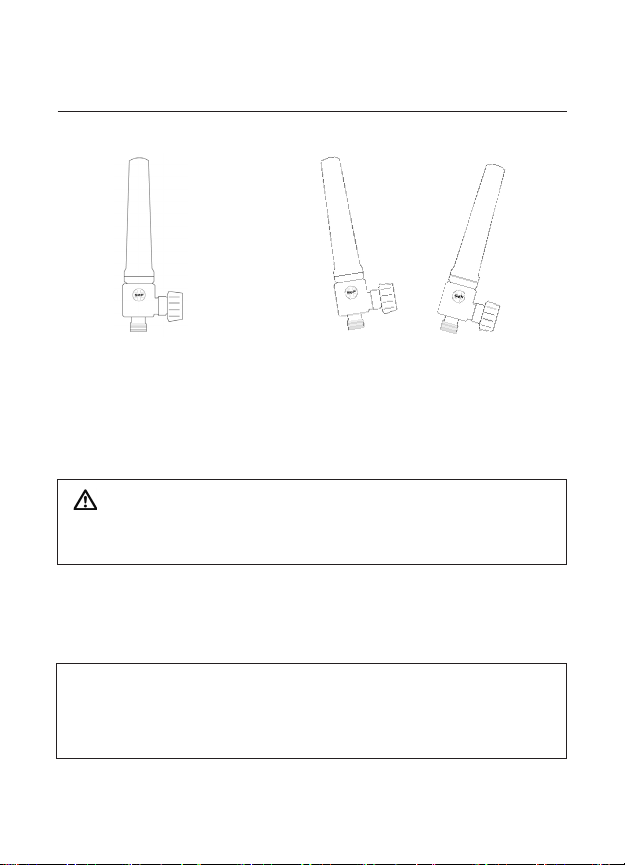

CORRECT INCORRECT
1. Attach owmeter to a 345 kPa (50 psi) gas source.
Ensure owmeter is in a vertical position (see above gures)
2. Turn control knob counterclockwise to start/increase ow.
3. Adjust to desired ow setting. Take reading at centre of ball.
4. Turn control knob clockwise to decrease/stop ow. Do not over
tighten control knob.
Always verify ow at patient’s end of tubing before applying.
Ensure that the tubing is never folded, kinked, or crushed.
WARNING:
OPERATION
DO NOT permit untrained personnel to install, operate or main-
tain this device. DO NOT attempt to install or operate this device
until you have read and fully understand these instructions. If you
do not fully understand these instructions, Contact your dealer,
equipment provider or SMP Canada for more information.
WARNING:
6
MAINTENANCE AND REPAIR
Cleaning Instructions:
Use a clean damp cloth with a mild cleaning solution to wipe the
outside of the owmeter. DO NOT gas sterilize with ETO gas.
DO NOT clean with pungent hydrocarbons.
is device should be periodically checked and repaired if necessary,
or when a malfunction is suspected or occurs.
Maintenance
7
Parts Description
8
Item Part No. Description Quantity
A
Included with each
option below
PL-Washer
Filter net
O-Ring-P6
Meter base - O2
Meter base - Air
1
1
1
1
1
Option 1: FM-BOI Control Knob Oxy - White (ISO) 1
Option 2: FM-BAI Control Knob Air - Black (ISO) 1
Option 3: FM-BOU Control Knob Oxy - Green (US) 1
Option 4: FM-BAU Control Knob Air - Yellow (US) 1
B FM-FWT
Tube Top 1
Metal Ball 1
Inner Tube 1
O-Ring 1.5 x 6 1
C FM-OUT Outer Tube 1
9
Troubleshooting
Problem Probable Cause Suggested Solution
Flow will not shut o
1. Leakage
2. Defective Valve
1. Replace seal or replace
housing
2. Replace body
assembly
Sticking indicating ball
1. Debris in ow tube 1. Clean ow tube & oat
ball with dry cloth and
swab
Knob will not turn 1. Valve seized 1. Replace body assembly
Contact your dealer or the technical support department at SMP
Canada for assistance if this device malfunctions.
Repairs
When changing connectors on the owmeter for service or
replacement, never re-attach connectors of a dierent gas. Doing
so may result in patient injury or damage to the product.
WARNING:
CAUTION:
Disconnect the device from gas supply before servicing.
