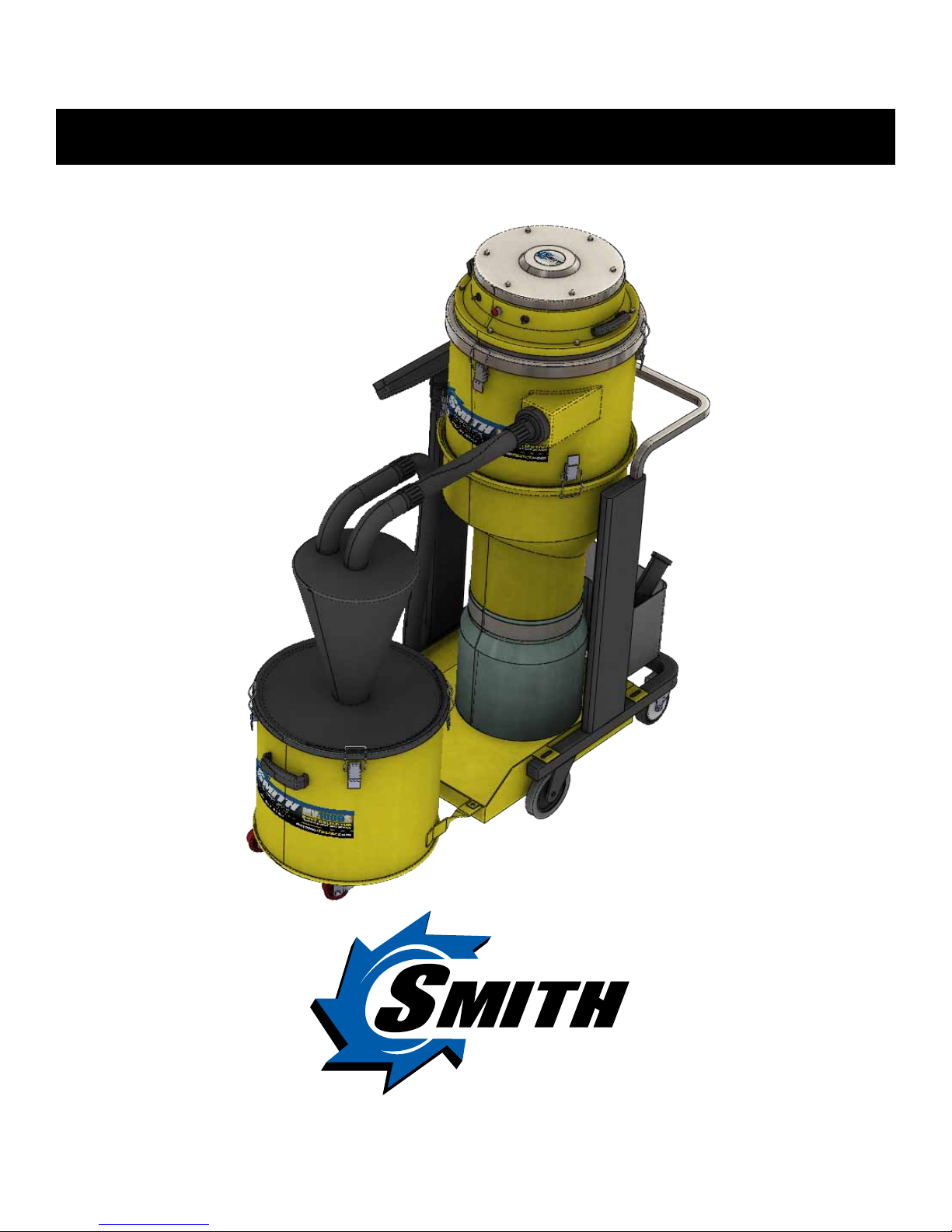

MV1000S
VERSION 10/2016
Dust collector
2
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
INTRODUCTION
Congratulations on purchasing the
MV1000S™ Dust Collector from SMITH
Mfg. Company.
The MV1000S dust collector is a rugged, powerful
unit that is sure to meet your expectations for dust
control.
See technical data below:
BEFORE START-UP,
READ THIS..
Please read all operating instructions, and be
completely familiar with your equipment before
operating. When in doubt, please contact SMITH
Manufacturing Customer Service for operational
details.
Page Contents
2 Index / Introduction
3 Uncrating equipment / Safety Guidelines
4 Your MV1000S Dust collector
5Bag replacement / Ordering / Storage / Troubleshooting
6 Main assembly
7 Motor assembly
8-9 Maintenance Log
10 Limited Equipment Warranty
11 Warranty Activation
INDEX
Voltage 220 V / 60 Hz - Single phase
Power 4050 W (5.3 HP)
Air pressure 3000 mm Aq
Airow 330 c.f.m
Hose 2” (50 mm) Dia.
Weight 175lbs (80kg) (net)
Dimension 27x27x62 in (67x67x155 cm) (LxWxH)
Plastic dust bag 22x32 in (550x800 mm) (LDPE)
Noise 75 dB
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
3
UNCRATING EQUIPMENT
When you uncrate your equipment, make certain
that the machine has not been damaged and
that all fasteners and guards are properly
tightened.
Please check that the following accessories are
included:
• Hoses
• Elbow
• Pipe
• Floorbrush
• Floornozzle
• Smallbrush
• Dustbag
• Velcrobelt
REMEMBER: Only authorized, experienced and
properly trained personnel should operate this
equipment. Operating personnel should
practice safety at all times and wear protective
gear (gloves, goggles, safety vests, ear plugs,
steel-toe shoes, etc.)
•Alwayswearpersonalsafetyequipmentsuch
as sturdy non-slip boots,ear protection, dust
mask and approved eye protection
•Positionthevacuumintheworkingarea
•Ensuredustcollectionbagistightlyxedtothe
collection cone by the Velcro belt
•Checkthatthevacuumhoseisttedsecurely
to inlet
•EnsurevacuumissettoOFFpositionpriorto
turning on power supply
•Plugvacuumintopowersupplyandswitchon
power supply
•Themachineshouldnotbeusedinareas
wherepotentialforreorexplosionsexist
•Themachineshouldnotbestartedwithoutthe
dust bag attached
•Makesurethehoseorcordarenotpinchedin
doors, fences or the like
Incorrect use of the dust collector can
result in property damage, personal injury,
or death. Be sure to read and follow all
directions and precautions as outlined in
this manual.
SAFETY GUIDELINES
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
4
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com

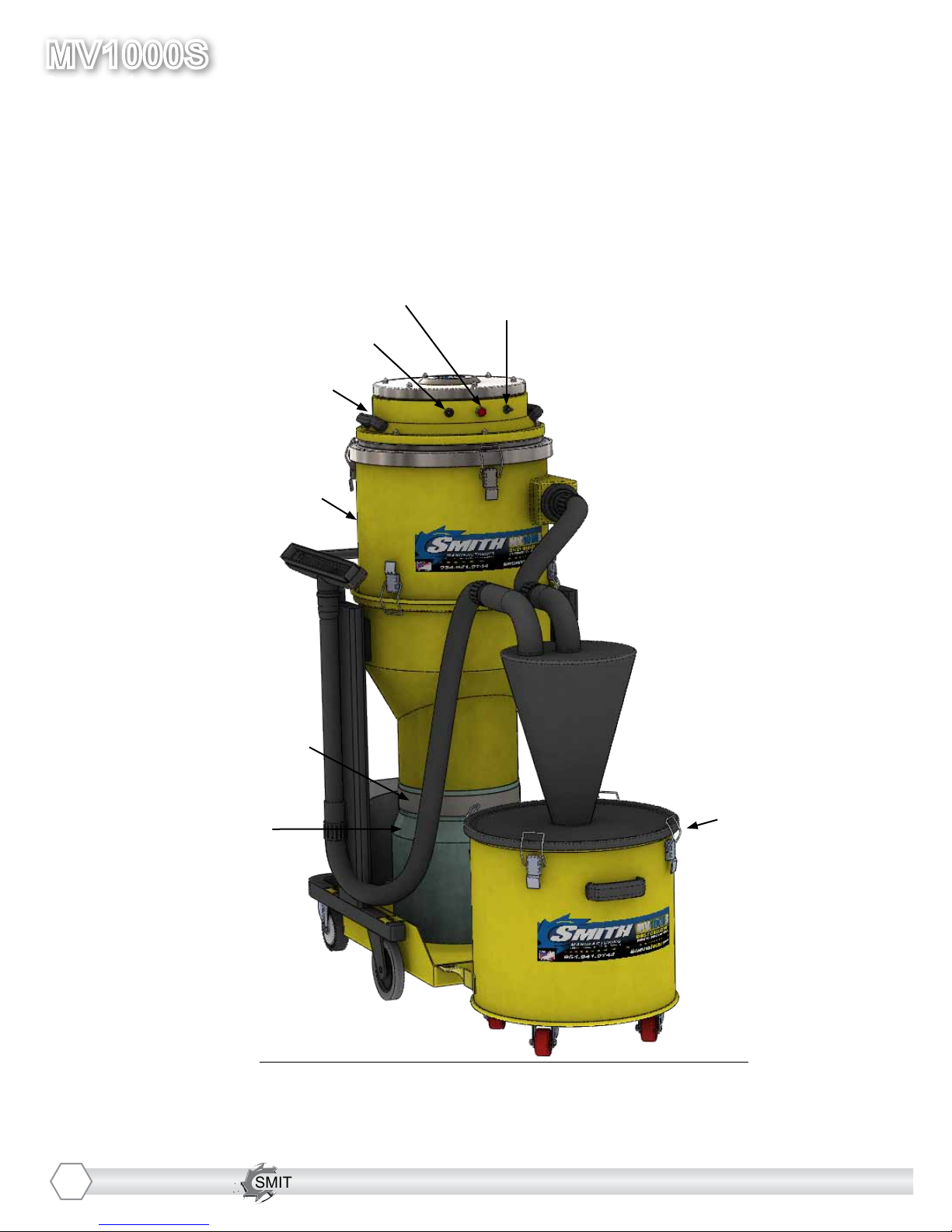

YOUR MV1000STM DUST COLLECTOR
Please take time to familiarize yourself with the MV1000S™’s controls,
as well as some of the features of your new machine
Motor housing assembly
HEPAlterhousing&body
Cyclone separator
assembly
Velcro belt
(to secure bag)
Dust bag
2 Vac motor switch
ON/OFFswitchforautoltershaking
MUST BE ON DURING OPERATION 1 Vac motor switch
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
5
DUST BAG REPLACEMENT
Once the dust bag has collected around 44 lb.
(20 kg) of material, replace the bag to avoid lift-
inghazardscausedbyoverlling
Followthestepsbelowforreplacement:
• SwitchthemachinetotheONposition
(you will notice the air is sucked from the
plastic bag)
• Loosenthebeltholdingthedustbag,remove
the dust bag from the body
• Attachedanewbag,tightenthebeltusing
Velcro
• Itisimportanttokeepvacuumrunningduring
the bag changing process. This will keep the
apinthecollectionconeclosedensuringno
dust Will drop our from within the collection
cone when bag replacement is being
performed
STORAGE
ORDERING
To ensure product safety and reliability,
and to maintain your warranty, always use
genuine replacement parts from SMITH
when making repairs to equipment.
When ordering please specify the model
and serial number of the machine. In
addition, give a part number, description,
and quantity as listed on your parts list.
If you have any questions about the
operation of your machine or would like
to order replacement parts, contact your
SMITH
Manufacturing representative directly.
Contact 1-800-653-9311 (954-941-9744)
for information.
Visit our website at
www.smithmfg.com
Unplug machine before storing (do not store
machine while plugged into a power source).
Do not store in a location where there are high
temperatures.
Store away from excessive humidity.
TROUBLESHOOTING
PROBLEM
Possible Reason(s)/Solution(s)
MOTOR DOES NO START
No power, cable or switch defective
MOTOR RUNS BUT NO SUCTION
Hose not connected or blocked
MOTOR RUNS W/ POOR SUCTION
Hose damaged
Filter blocked
Top cover loose
DUST BLOWS FROM MOTOR
Filter loose or defective
ABNORMAL NOISE
Check motor(s)
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
6
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH MANUFACTURING SmithMfg.com

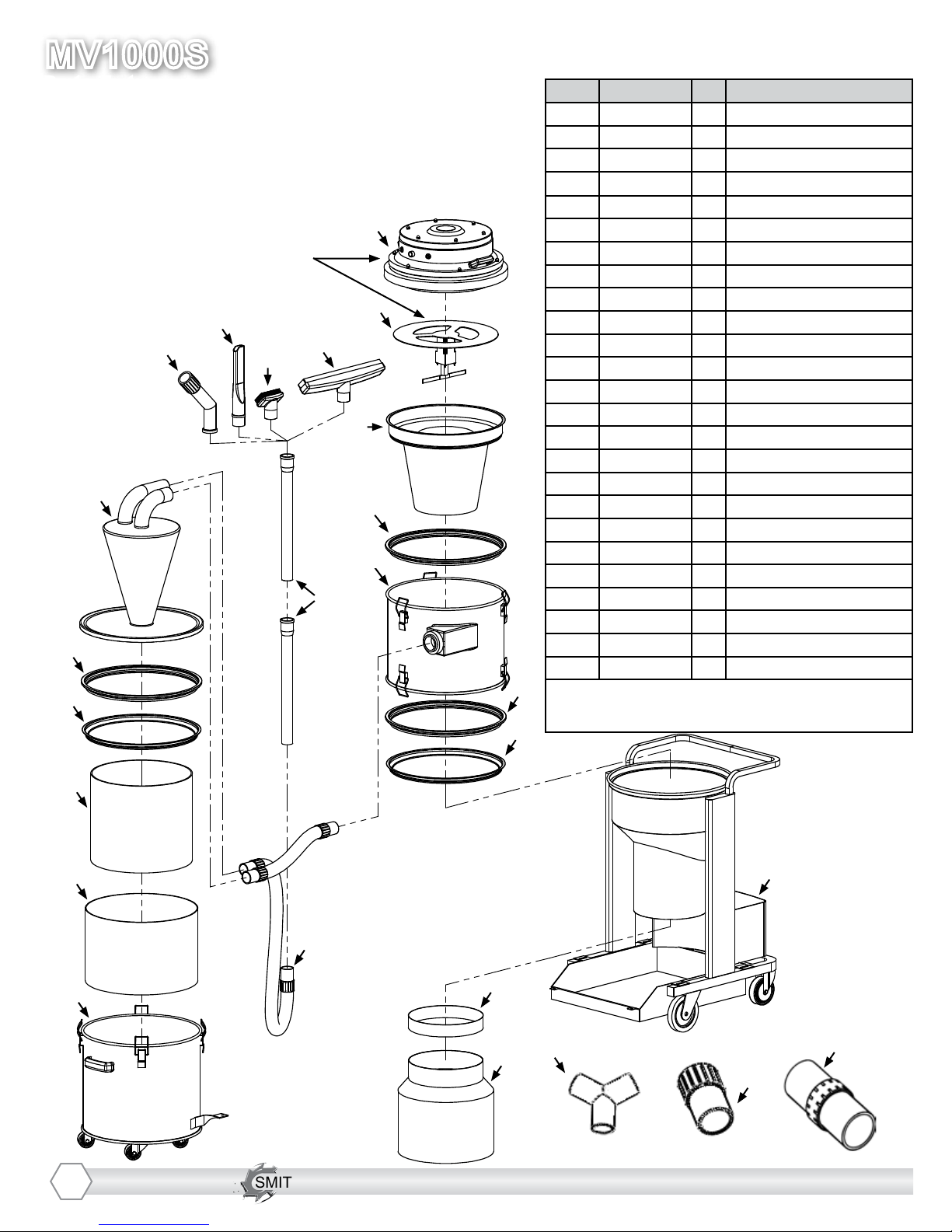

MAIN ASSEMBLY
Item P/N Qty Description
1 (see next pg.) 1 Motor assembly
2 (see pg. 8) 1 FilterShakingMotorAssembly
3 * MV.1.891A 1 HEPAlter
4 * MV.1.891A 1 Filtersealring
5 MV.1.016 1 Filterhousing/mainbody
6 MV.1.017 1 Main body seal ring
7 MV.1.018 1 Main body ring
8 MV.1.019 1 Main frame
9 MV.2.25 1 Velcro belt
10 MV.1.20 1 Dust bag 20”x32” (set of 20)
11 MV.HS 2 Vac hoses
12 MV-SA 1 Debris tank
13 MV-SA 1 Dust bag (cyclone)
14 MV-SA 1 Dust bag holder
15 MV-SA 1 Cyclone seal ring
16 MV-SA 1 Cyclone ring
17 MV-SA 1 Cyclone head
18 MV.27 2 Vac extension (MV.29)**
19 MV.26 1 Vac elbow
20 MV.25 1 Vacoornozzle
21 MV.22 1 Vac small brush
22 MV.24 1 Vac large brush (MV.28)**
23 MV-Y 1 Y-Connector
24 MV.23 1 2” (50 mm) Connector
25 VM24 1 2” (50 mm) Hose Coupler ***
*HEPAFilter,FilterSupport,andFilterSealRingsoldasaset.
** Stainless Steel Option
*** Optional
1
2
3
4
5
6
7
9
8
10
11
12
13
14
15
16
17
19
20
21
22
18
NOTE: motor assembly must
bedisconnectedfromlter
shaker before removing
23
24
25
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
7
MOTOR ASSEMBLY
SMITH MANUFACTURING SmithMfg.com
Item P/N Qty Description
1 MV.1.001 6 Acorn nut
2 MV.1.002 1 Motor housing cover
3 MV.1.003 6 Hex spacer (long)
4 MV.1.004 3 Motor rubber ring (upper)
5 MV.1.005 3 Motor rubber ring (middle)
6 MV.1.06A 3 Motor
7 MV.1.007 6 Hex spacer (short)
8 MV.1.008 3 Plastic net
9 MV.1.009 3 Motor rubber ring (lower)
10 MV.1.010 1 Motor table
11 MV.1.011 6 Flatwasher
12 MV.1.012 6 Hex head cap screw
2
1
3
4
5
6
7
8
9
10
11
12
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
8
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
Item P/N Qty Description
1 MV.1.11A 1 FilterShakingBar
2 MV.1.12A 1 FilterShakingMotor
3 MV.1.13A 1 FilterShakingMotorStand
4 MV.1.11AWP 2 Shaker Plastic Inserts (not shown)

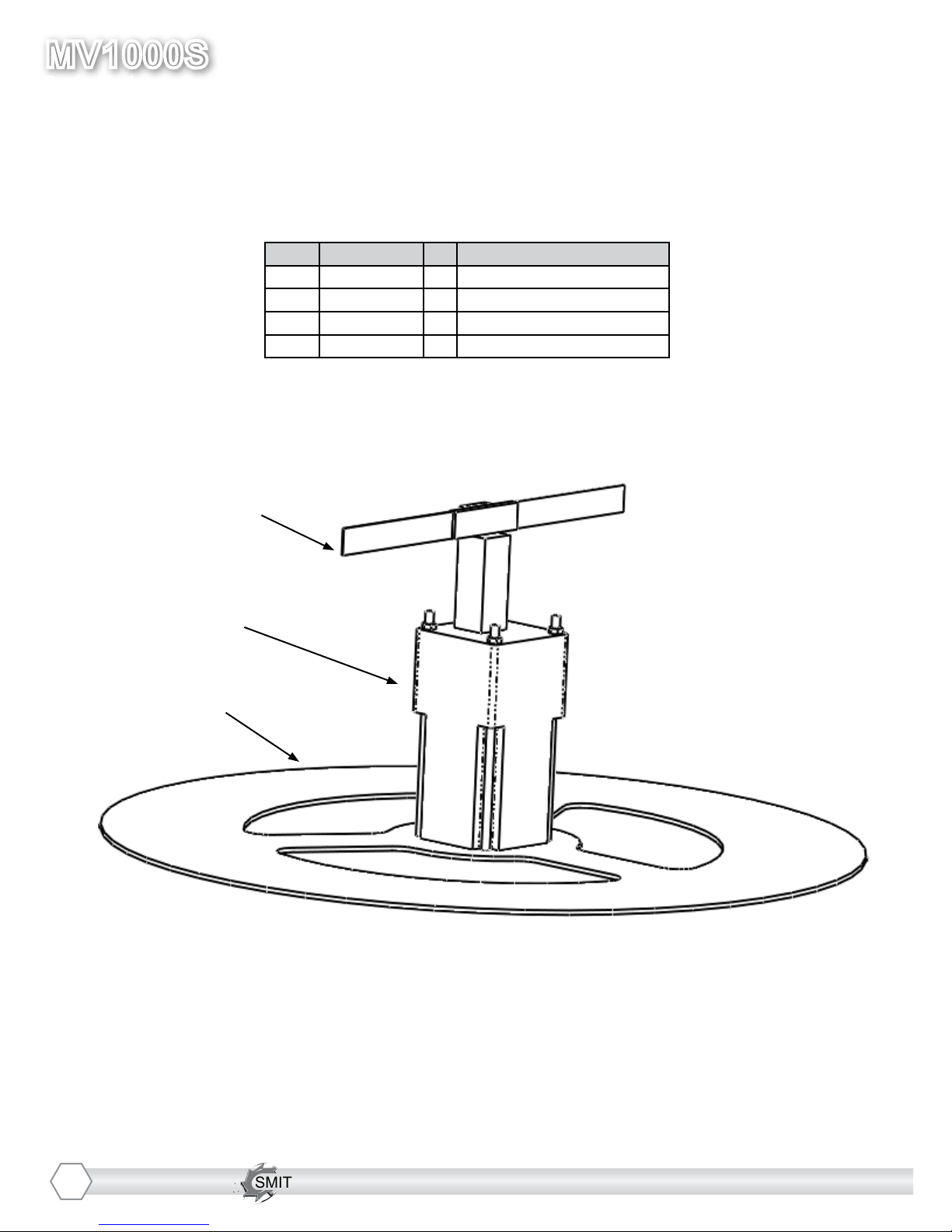

FILTER SHAKING MOTOR ASSEMBLY
1
2
3
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 10/2016
MV1000S
Dust collector
9
MAINTENANCE LOG
8
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MV1000S
VERSION 10/2016
Dust collector
10
SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
MAINTENANCE LOG
WARRANTY CLAIMS
The manufacturer reserves the right to change or improve the machine design without assuming any
obligation to update any products previously manufactured before this manual. It is the customer’s
responsibility to complete the warranty card and mail it to the seller within 10 days from the date
of purchase. If a failure occurs during the warranty period, the customer must contact the seller
to determine the appropriate action. Any and all transportation charges are to be borne by the
purchaser.
9
