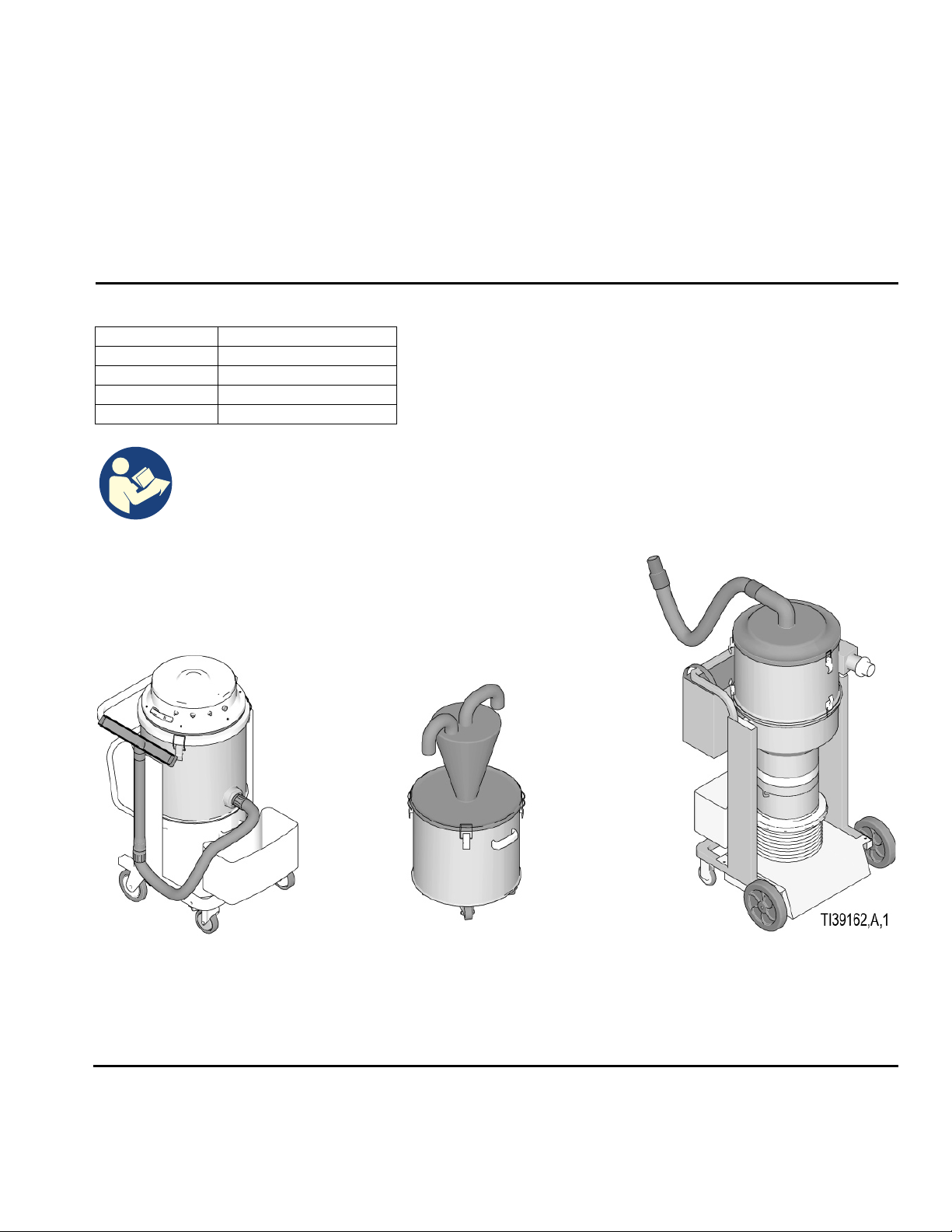

Smith MaxiVac 360 Mode d’emploi
3A7635A
EN
Operation, Parts
MaxiVac™ and Cyclone
Vacuum for collection of dry concrete and asphalt dust. For professional use only.
Vacuums
MV360 MaxiVac 360 (120V)
Separators
MVSA Cyclone 20 (20 gallon)
MVSC Cyclone LP
Important Safety Instructions
Read all warnings and instructions in this manual before using the
equipment. Be familiar with the controls and the proper usage of the
equipment. Save these instructions.
MaxiVac Cyclone 20 Cyclone LP
Contents
23A7635A
Contents
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Component Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
MaxiVac 360. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Cyclone 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Cyclone LP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Emptying Collection Tanks and Bags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Shutdown and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Recycling and Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
End of Product Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Main Assembly Diagram (MaxiVac) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Main MaxiVac Assembly Parts (MaxiVac) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Motor Housing Assembly Diagram (MaxiVac 360) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Motor Housing Assembly Parts List (MaxiVac 360) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Auto Filter Cleaner Assembly (MaxiVac) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Cyclone 20 Assembly and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Cyclone 20 Assembly and Accessories Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cyclone LP Assembly and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cyclone LP Assembly and Accessories Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
California Proposition 65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
SMITH Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Warnings
3A7635A 3
Warnings
The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation
point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these
symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-specific hazard
symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
WARNING
DUST HAZARD
Grinding concrete and other surfaces can create dust that contains hazardous substances.
To reduce the risk of serious injury:
• Control the dust to meet all applicable workplace regulations.
• Wear a properly fit-tested and government approved respirator suitable for the dust conditions when
emptying collection tank or performing maintenance.
• Do not use without dust bag and filters in place.
ELECTRIC SHOCK HAZARD
This equipment must be grounded. Improper grounding, setup, or usage of the system can cause elec-
tric shock.
• Turn off and disconnect power cord before servicing equipment.
• Connect only to grounded electrical outlets.
• Use only 3-wire extension cords.
• Ensure ground prongs are intact on power and extension cords.
• Do not expose to rain. Store indoors.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the equipment. Keep
cord away from heat, sharp edges, or moving parts.
• Do not use on wet surfaces.
PERSONAL PROTECTIVE EQUIPMENT
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, inhalation of dust or chemicals, and
hearing loss. This equipment includes but is not limited to:
• Protective eye wear.
• Hearing protection.
• Properly fit-tested and government approved respirator suitable for the dust conditions.
Warnings
43A7635A

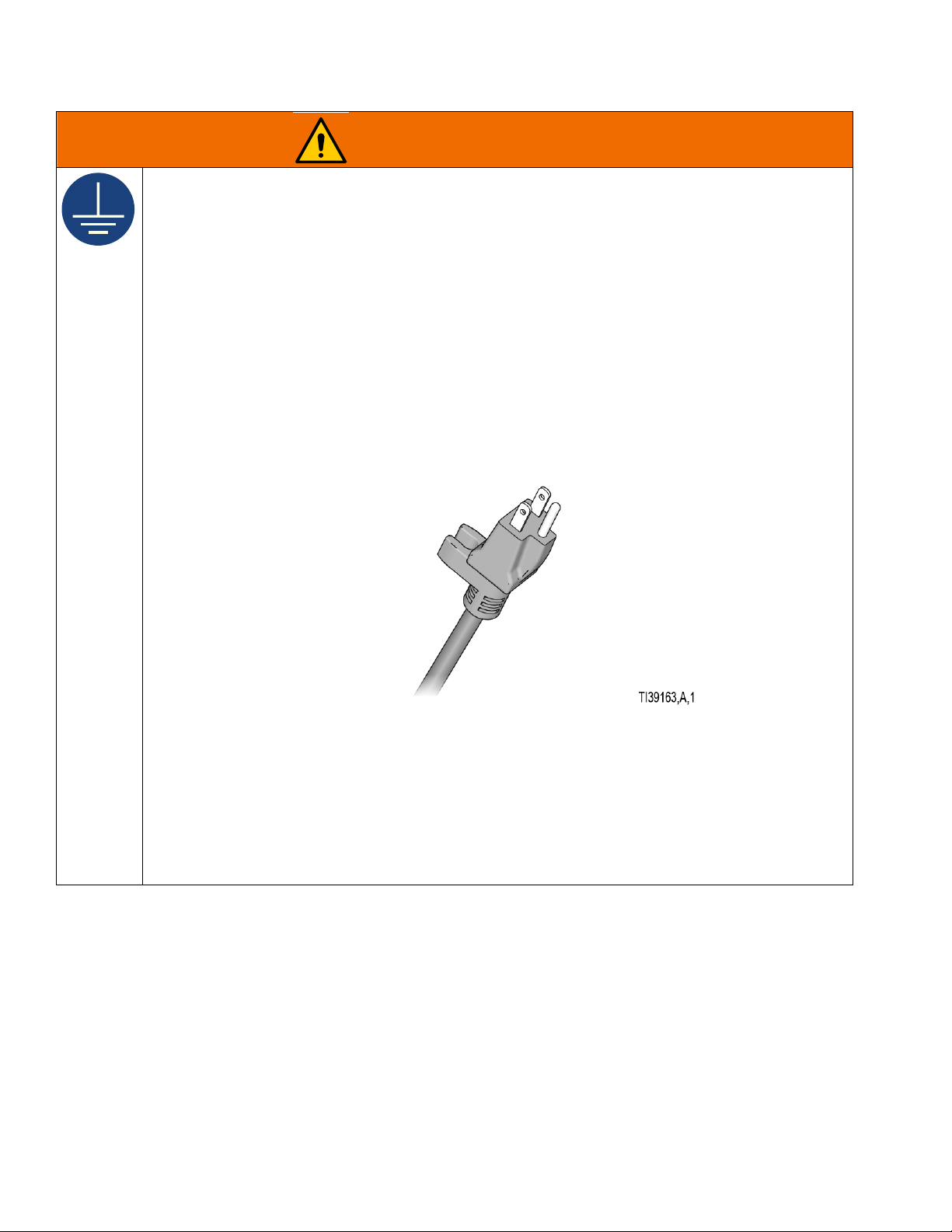

GROUNDING
This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This product is equipped with a cord
having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
• Improper installation of the grounding plug is able to result in a risk of electric shock.
• When repair or replacement of the cord or plug is required, do not connect the grounding wire to
either flat blade terminal.
• The wire with insulation having an outer surface that is green with or without yellow stripes is the
grounding wire.
• Check with a qualified electrician or serviceman when the grounding instructions are not completely
understood, or when in doubt as to whether the product is properly grounded.
• Do not modify the plug provided; if it does not fit the outlet, have the proper outlet installed by a
qualified electrician.
• This product is for use on a nominal 120V circuit and has a grounding plug similar to the plugs
illustrated in the figure below.
• Only connect the product to an outlet having the same configuration as the plug.
• Do not use an adapter with this product.
Extension Cords:
• Use only a 3-wire extension cord that has a grounding plug and a grounding receptacle that
accepts the plug on the product.
• Make sure your extension cord is not damaged. If an extension cord is necessary, use 12 AWG
(2.5 mm2) minimum to carry the current that the product draws.
• An undersized cord results in a drop in line voltage and loss of power and overheating.
WARNING
120V US
Warnings
3A7635A 5
EQUIPMENT MISUSE HAZARD
Misuse can cause death or serious injury.
• Do not operate the unit when fatigued or under the influence of drugs or alcohol.
• Do not leave the work area while equipment is energized. Turn off all equipment when equipment is
not in use.
• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine
manufacturer’s replacement parts only.
• Do not alter or modify equipment.
• Use equipment only for its intended purpose. Call your distributor for information.
• Keep children and animals away from work area.
• Comply with all applicable safety regulations.
• Maintain a safe operating distance from other people in the work area.
ENTANGLEMENT HAZARD
Rotating parts can cause serious injury.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Do not wear loose clothing, jewelery, or long hair while operating equipment.
FIRE AND EXPLOSION HAZARD
Flammable fumes in work area can ignite or explode. To help prevent fire and explosion:
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they
may be present.
WARNING
Component Identification
63A7635A

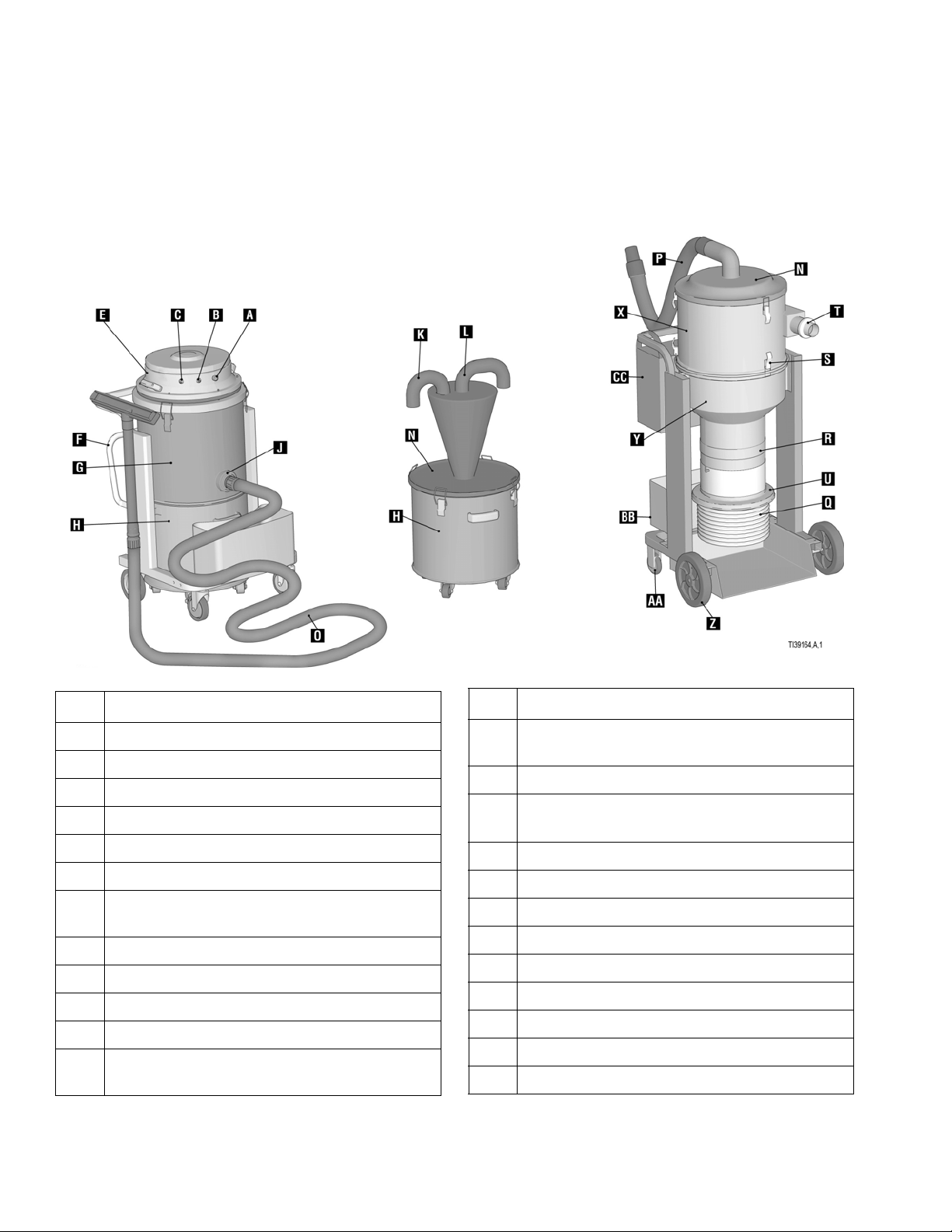

Component Identification
MaxiVac 360 Cyclone 20 Cyclone LP
Component
A Auto Filter Cleaner Power Switch
B Vacuum Motor Switch
C Vacuum Motor Switch
E Motor Housing Assembly
F Engagement Lever
G Filter Housing and Body
H Dust Collection Tank (Dust Bag Holder is
inside tank, not shown)
J Vacuum Hookup
K Vacuum Inlet
L Vacuum Outlet
N Separator Lid
O Long Hose (to connect the MaxiVac or Cyclone
to the SMITH removal equipment)
P Short Hose (to connect the MaxiVac to the
Cyclone)
Q Vacuum Dust Collection Bag
RVelcro® Belt (to secure Vacuum Dust Collec-
tion Bag)
SDrum Latch
T SMITH Scarifier/Eraser Hookup
U Bag Adapter
X Separator Mid Body
Y Separator Lower Body
Z 10” Wheel
AA 4” Wheel
BB Tool Box
CC Tool Bag
Component
Setup
3A7635A 7
Setup
1. Insert dust collection bags into Dust Collection
Tank s .
a. Remove Dust Collection Tank by pulling up on
the Engagement Lever and insert the collection
bag into the tank. Wrap the bag around the lip of
the tank and insert the Dust Bag Holder on top
of the bag. Reinsert the tank into the bottom of
the MaxiVac. Lock the tank by pushing down on
the Engagement Lever.
b. If using a Cyclone separator, remove the
Separator Lid and insert the collection bag into
the tank. Insert the Dust Bag Holder on top of
the bag. Wrap the bag around the lip of the tank
and reinstall the Separator lid onto the tank.
2. Connect hoses.
If using a Cyclone separator:
• Connect one end of the Short Vacuum Hose to the
inlet of the MaxiVac. Connect the other end of the
short hose to the outlet of the Cyclone separator.
• Connect one end of the Long Vacuum Hose to the
inlet of the Cyclone separator. Connect the other
end of the long hose to the vacuum hookup on the
SMITH removal equipment.
If not using a Cyclone separator:
• Connect one end of the Long Vacuum Hose to the
inlet of the MaxiVac. Connect the other end of the
long hose to the vacuum hookup on the SMITH
removal equipment.
Operation
83A7635A

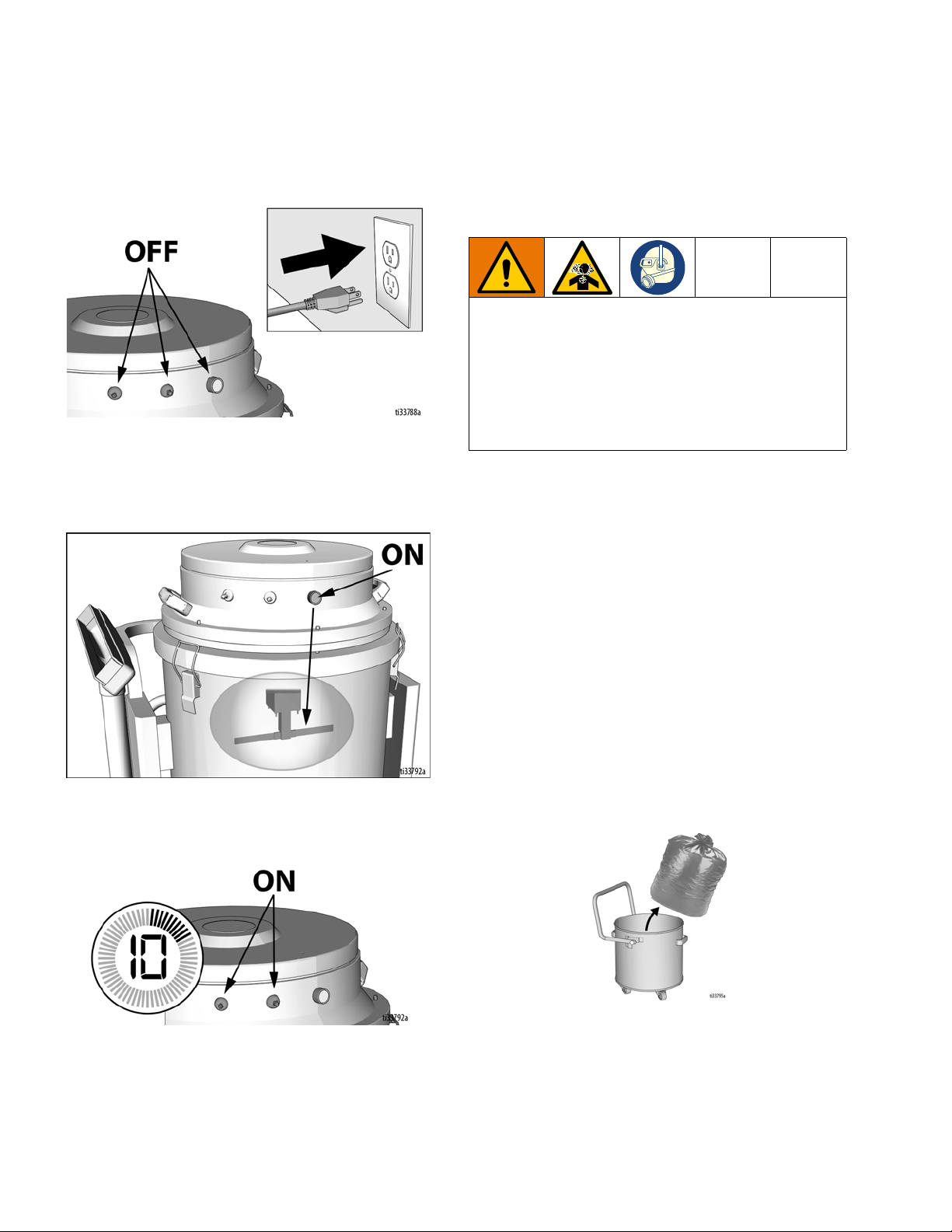

Operation
1. Ensure all MaxiVac motor switches are turned to
“OFF”. Plug vacuum into grounded power source.
2. Turn Auto Filter Cleaner Power Switch to “ON”.
Ensure the sound of the Filter Cleaner Bar is heard
contacting the inside of the filter. If no sound is
heard, replace the Plastic Inserts on the cleaning
bar. See page 16.
3. After 10 seconds, turn on a Vacuum Motor Switch.
Turn on additional vacuum motors if more vacuum
power is needed.
4. MaxiVac is now ready for dust collection from the
SMITH removal equipment.
5. Use the vacuum accessories shown in the section
titled MaxiVac 360 Main Assembly Diagram, page
12 to pick up dust from the ground between grinding
passes.
Emptying Collection Tanks and
Bags
MaxiVac and Cyclone 20

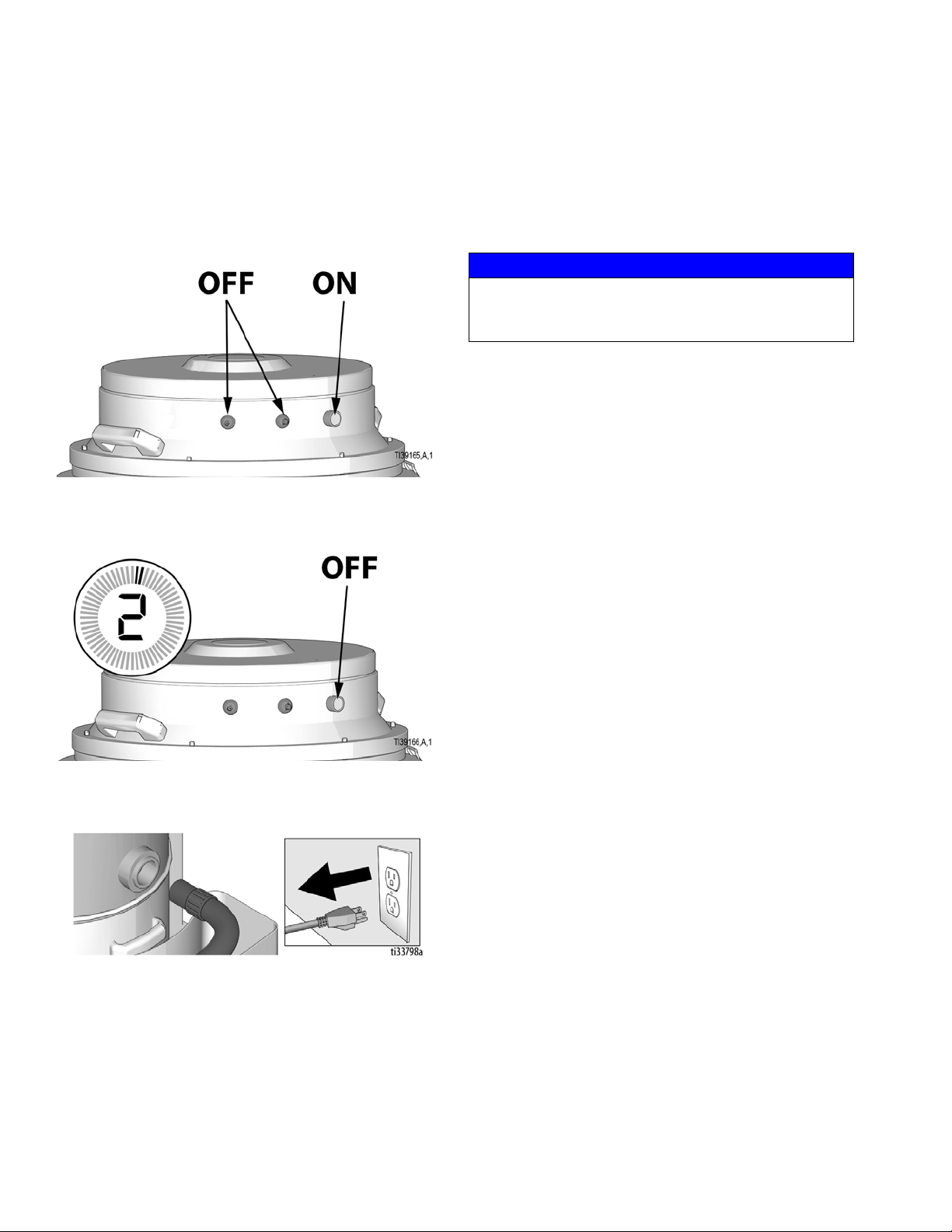

1. When Dust Collection Tanks are full, turn off all
vacuum motors and leave Auto Filter Cleaner power
switch to “ON”. After 2 minutes of cleaning the
vacuum filters, turn off cleaning switch and unplug
vacuum from power source.
2. Put on a respirator.
3. If MaxiVac is full, remove Dust Collection Tank by
pulling up on the Engagement Lever.
4. If Cyclone separator is full, remove the Separator
Lid.
5. Remove the Dust Bag Holder from the tank.
6. Gather and secure the top of the collection bag. Lift
and remove the collection bag, tie up and then
dispose. Follow local ordinances and regulations for
disposal.
DUST HAZARD
Grinding concrete and other surfaces can create dust
that contains hazardous substances. To reduce the
risk of serious injury:
• Respirator must be worn when emptying or
cleaning Dust Collection Tanks or bags.
•Follow local ordinances and regulations for
disposal.
Operation
3A7635A 9

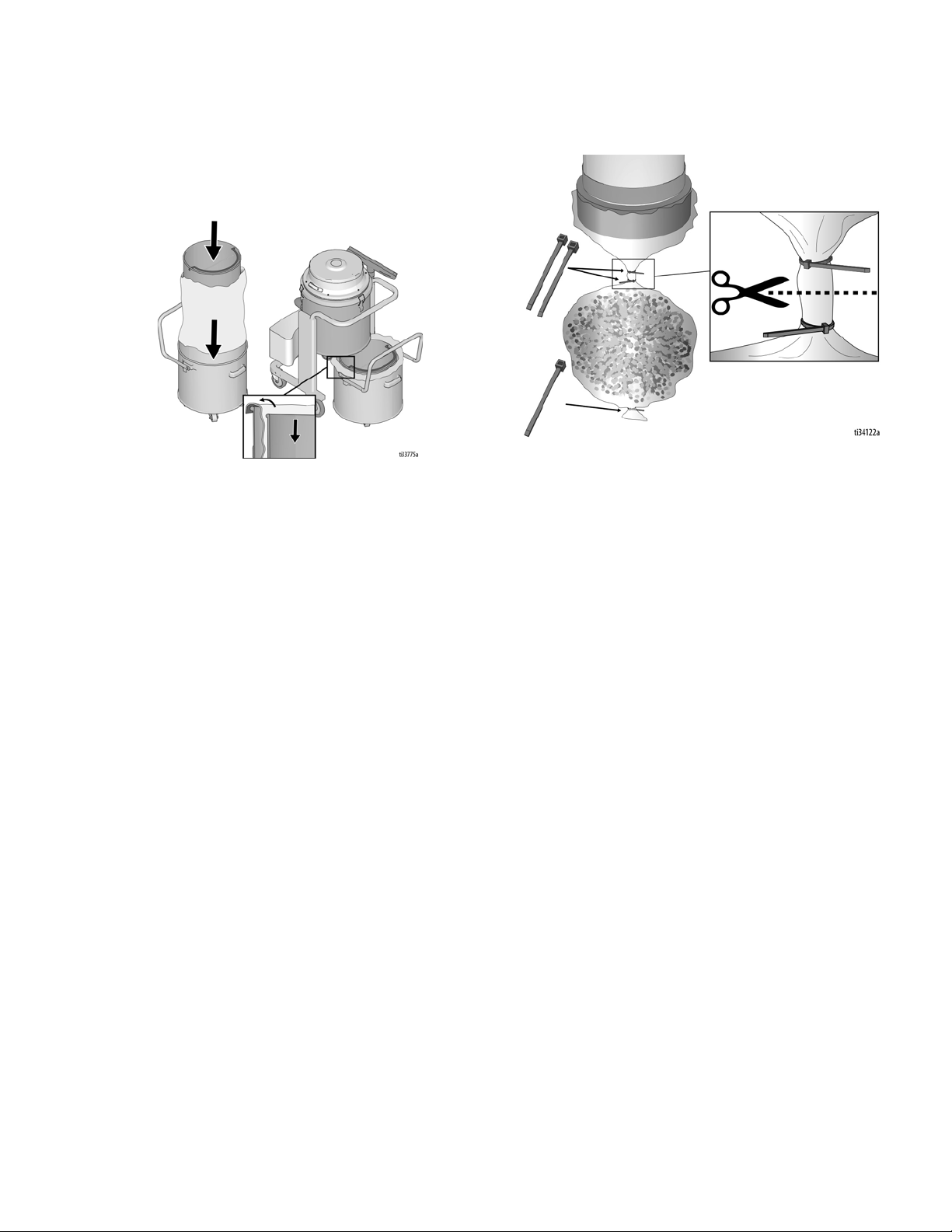

7. Insert new bags into the collection tanks and insert
the Dust Bag Holder on top of the bag. Then reinsert
the tanks into the Cyclone separator and into the
bottom of the MaxiVac. Ensure the Dust Collection
Tank is securely attached to the body of the vacuum
by pushing down on the Engagement Lever.
Cyclone LP
1. When Vacuum Collection Bag has collected
approximately 45 lbs (20 kg) of dust, the bag should
be replaced.
2. Pull down on the continuous bag to expose 6 - 12”
(15 - 30 cm) of new, unused bag.
3. Use a cable tie to tie off the top of the bag. Fasten
another cable tie 2” (5 cm) cable tie above the first
cable tie.
4. Put on respirator. Cut the bag between the two
cable ties.
5. Dispose of the dust bag. Follow local ordinances
and regulations for disposal.
6. Pull down on the new bag attached to the vacuum
until the bottom of the bag rests on the bottom of the
vacuum cart. Ensure the bottom of the bag is tied off
firmly with the cable tie.
Shutdown and Storage
10 3A7635A
Shutdown and Storage
Shutdown
1. Turn off all vacuum motors and leave Auto Filter
Cleaner Power Switch to ON.
2. Allow the Auto Filter Cleaner to run for 2 minutes,
then turn to OFF.
3. Unplug MaxiVac from power source and remove
hoses from the vacuum.
Storage
Disconnect power cord before storing. Store indoors.
NOTICE
Do not store in a location with high temperatures or
excessive humidity, in order to prevent damage to
your MaxiVac components.
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Smith dépoussiéreur
Manuels dépoussiéreur populaires d'autres marques
King Industrial
King Industrial KC-4043KWRC Manuel utilisateur
Jet
Jet 500 Manuel utilisateur
Oneida Air Systems
Oneida Air Systems Super Dust Gorilla Manuel utilisateur
Shop fox
Shop fox SHOP FOX W1687 Manuel utilisateur
Blastrac
Blastrac 655DC Manuel utilisateur
Elektra Beckum
Elektra Beckum Multi 180A Manuel utilisateur
