SMITH SYSTEM Rectangle Interchange Manuel utilisateur

For Assistance in assembling product, missing or damaged parts,

or to place an order, please contact customer service at 800-328-1061

You may also place your order online at

www.smithsystem.com

Form# 179745 04/2015

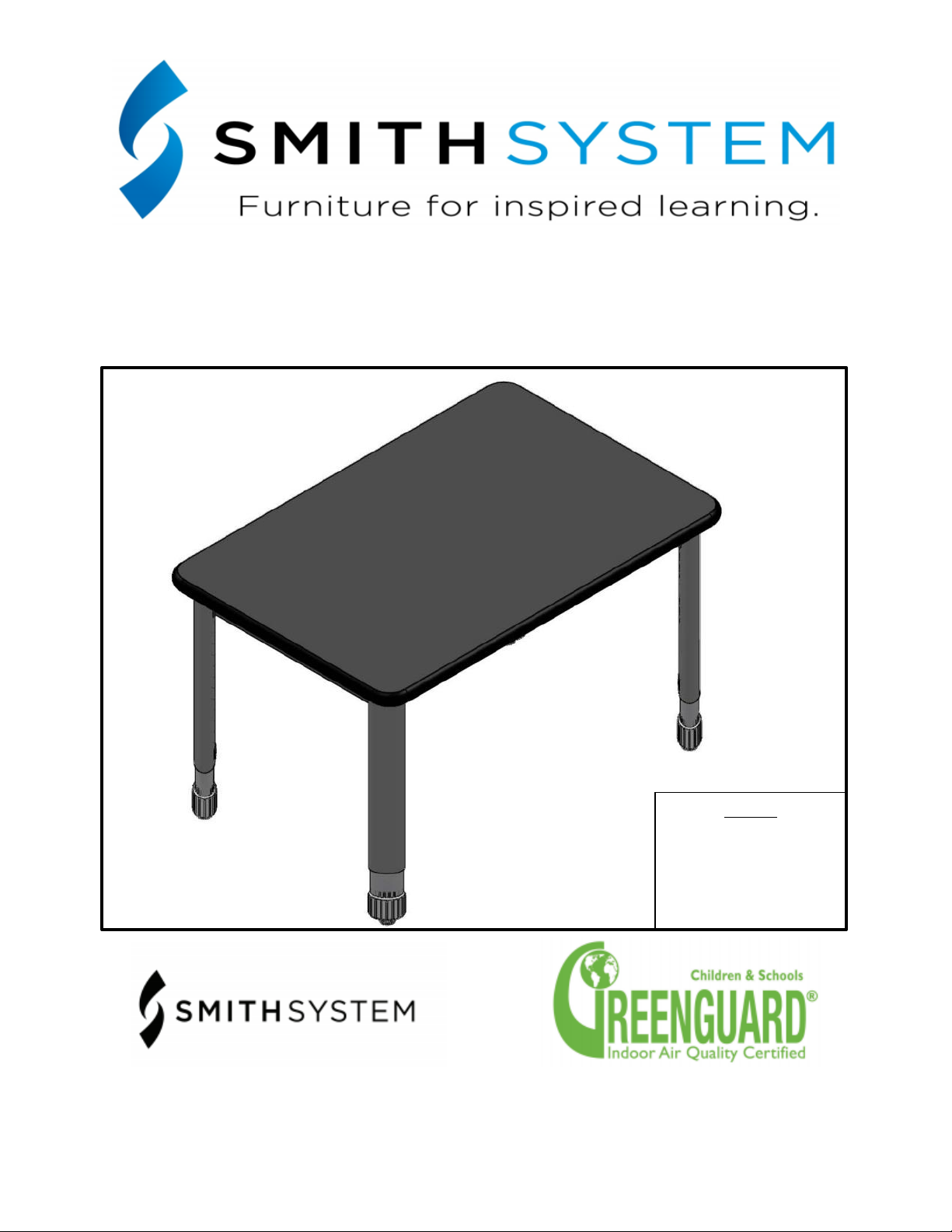

Interchange Activity Table

Assembly Instructions

Models

Rectangle Interchange

Square Interchange

Round Interchange

Contour Interchange

Flower Interchange

For Assistance in assembling product, missing or damaged parts,

or to place an order, please contact customer service at 800-328-1061

You may also place your order online at

www.smithsystem.com

Form# 179745 04/2015

Hardware and Components

Leg Set

(QTY: 1 Pair/Box)

Support Channel/Brace

(P/N&QTY: See Table)

Table Top

(QTY: 1)

3/16” Allen Wrench

P/N: 77813

(QTY: 2)

P/N: 70867 –Connector Bolt ¼-20 x 23mm

P/N: 70869 –Connector Nut ¼-20 x 17mm

(QTY: See Table)

#10x3/4” Wood Screw

P/N: 70054

(QTY: See Table)

Replacement Hardware Packs:

1. 67607 –HDWR PK, Inter Act 24, 30, 36

a. (2) 77813 –3/16” Allen Wrench

b. (4) 70867 - Connector Bolt ¼-20 x

23mm

c. (4) 70869 –Connector Nut ¼-20 x

17mm

d. (26) 70054 - #10x3/4” Wood

Screw

2. 67608 –HDWR PK, Inter Act 42, 48

a. (2) 77813 –3/16” Allen Wrench

b. (8) 70867 –Connector Bolt ¼-20 x

23mm

c. (8) 70869 –Connector Nut ¼-20 x

17mm

d. (44) 70054 - #10x3/4” Wood

Screw

For Assistance in assembling product, missing or damaged parts,

or to place an order, please contact customer service at 800-328-1061

You may also place your order online at

www.smithsystem.com

Form# 179745 04/2015

Assembly Instructions

Step 1: Place the top on a clean, dry surface laminate side down, so that the predrill holes face up.

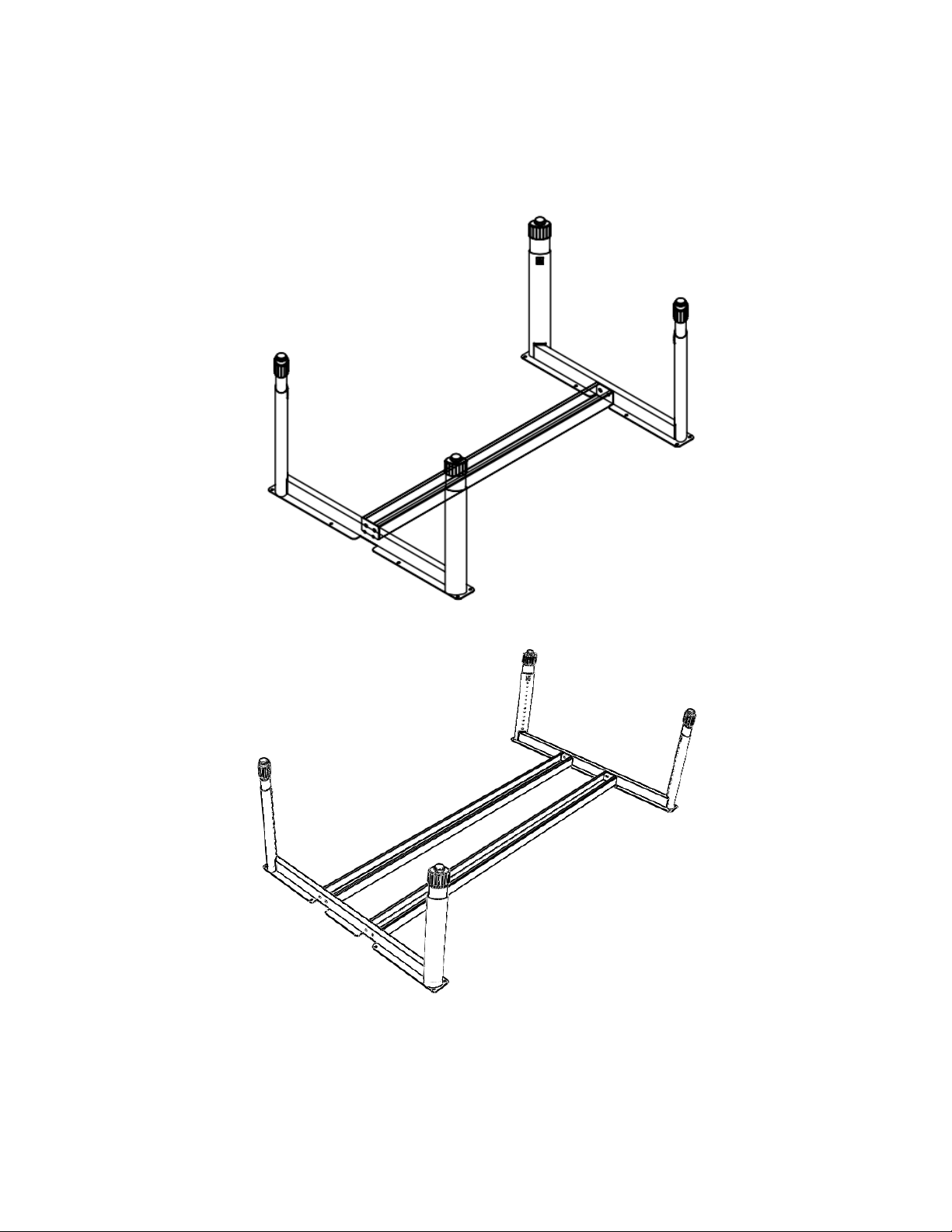

Step 2a: Loosely attach the legs to the support brace using (4) connector bolts and (4) connector nuts.

(See Picture #1A)

Step 2b: If your table requires a bigger assembly, attach the legs to the braces using (8) Connector Bolts

and (8) connector Nuts. (See Picture #1B)

Picture #1A

Picture #1B

For Assistance in assembling product, missing or damaged parts,

or to place an order, please contact customer service at 800-328-1061

You may also place your order online at

www.smithsystem.com

Form# 179745 04/2015

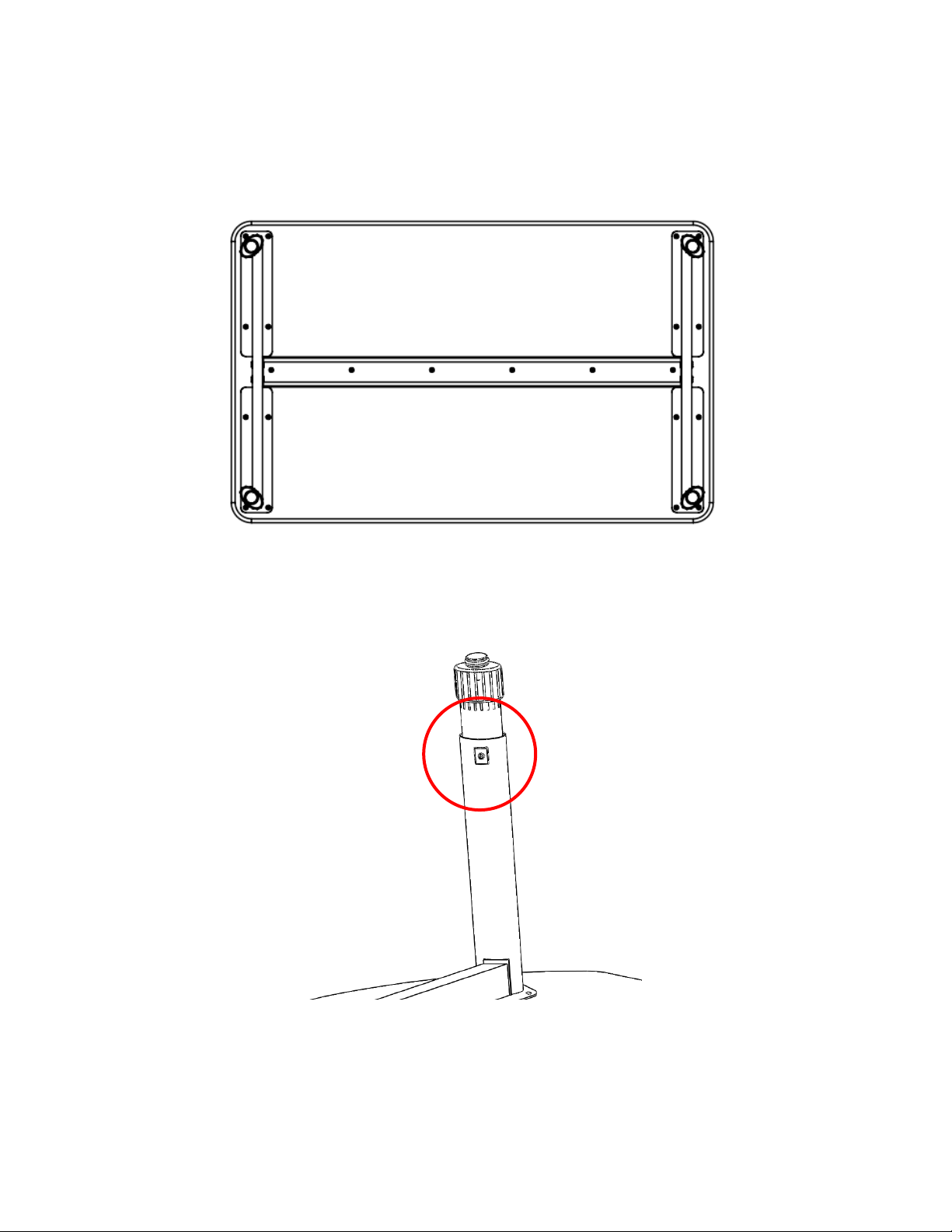

Step 3: Align the slots of the Leg Assembly to the pre-drilled holes of the top. Using the ¾” screws

provided, attach the leg assembly to the top. (Tip: Stagger the screws in the beginning. For example,

Fasten one screws on one of the legs, then another screw on the other leg. Continue to stagger the

screws until the assembly is attached to the top using all of the screws.

Step 4: Tighten the connector bolts and nuts to the channel, attached in Step 2, using both hex keys

provided.

Step 5: Adjust the leg height as needed by loosening the set screw in the leg (use the hex key to loosen).

Tighten the set screws. Hand tighten, do not use power tool, to tighten set screw to ensure screw is

correctly located in the insert hole.

Step 6: Use the help of at least one other person and turn the table over to an upright position.

Picture #3

Picture #2
