smirthwaite 3171 Manuel utilisateur
12/20
SHOWER
STRETCHER
Fixed Height
INSTRUCTIONS FOR USE
Codes: 3171-3176
Shower Stretcher Fixed Height 1
CONTENTS PAGE
1.0 INTRODUCTION 1
2.0 ILLUSTRATION OF YOUR SHOWER STRETCHER 2
3.0 TECHNICAL DATA 3
4.0 FOR YOUR SAFETY 4
5.0 SURVEYING AND INSTALLATION 5
6.0 HOW TO USE YOUR SHOWER STRETCHER 10
7.0 CARE & MAINTENANCE 12
8.0 WARRANTY & SERVICE 16
9.0 CONTINUOUS IMPROVEMENT 17
10. SERVICE INSPECTION 18
1.0 INTRODUCTION
Thank you for choosing the Smirthwaite Easi Change shower stretcher fixed height.
The stretcher has been designed to fit into a room where space is at a premium, and
provides a durable and economic solution to showering requirements.
Its compact and lightweight design is simple to use, and is suitable for use by both
children and adults with a maximum user weight of 200kg. When not required for
use, the stretcher can simply be stored vertically.
IMPORTANT!
These instructions should be read by all therapists and carers using
the equipment and should be retained for future reference. The
product should always be used under adult supervision.
Any incorrect use of the product and failure to follow the instructions
may put the user at risk or impede the function. If you have any
queries using this product or wish for further copies, please do not
hesitate to contact Customer Service department on
T: +44 (0) 1626 835552.
Shower Stretcher Fixed Height 2
2.0 ILLUSTRATION OF YOUR SHOWER STRETCHER
A. Durable non-rip vinyl
B. Stainless steel powder coated frame
C. Wall mount frame cover
D. Enclosed dampener strut
E. Safety guard rail (Optional accessory)
A
B
C
D
Shower Stretcher Fixed Height 3
3.0 TECHNICAL DATA
Code
Size
Table Dimensions
Height
Range
Wall Frame
Guard Rail*
Stored
Width
Max User
Weight
Shipping
Weight
L
mm
W
mm
M
mm
H
mm
A
Mm
B
mm
Height
mm
Length
mm
S
Mm
Kg
Kg
3171
1
1400
650
1000
Fixed
665
80
145
1400
200
200
75
3172
2
1500
650
1000
Fixed
665
80
145
1400
200
200
76
3173
3
1600
650
1000
Fixed
665
80
145
1400
200
200
77
3174
4
1700
650
1000
Fixed
650
80
145
1400
200
200
78
3175
5
1800
650
1000
Fixed
650
80
145
1400
200
200
79
3176
6
1900
650
1000
Fixed
650
80
145
1400
200
200
80
* Safety Guard rail optional Accessory
Shower Stretcher Fixed Height 4
4.0 FOR YOUR SAFETY
STOP!
Please read these instructions CAREFULLY and THOROUGHLY.
• The patient should NOT be left unattended whilst in the product. Always ensure a
responsible therapist or carer is in attendance.
• The carer should be familiar with the methods of use before transfer of a patient
onto the product
• If fitted, ensure the safety guard rail is in the ‘up’ position once a patient is on the
shower stretcher
• When storing the product vertically (up position), check to ensure that the locking
plunger pin is fully engaged.
• Regular maintenance checks and cleaning are essential for the safe use of this
equipment (see care and maintenance section).
• Always keep this product away from naked flames, cigarettes and sources of heat
including open fireplaces, radiators and heaters.
• DO NOT fit parts or accessories of other manufacturers to this product unless
authorized to do so in writing by Smirthwaite Ltd. Failure to follow these
instructions will not only invalidate the guarantee but could make the product
dangerous to use. Smirthwaite Ltd will not accept liability for any injury or damage
incurred through such malpractices.
• In the unlikely event repair work is required it must ONLY be undertaken by
Smirthwaite authorized personnel.
• If you believe the product or any fitted accessory to be faulty at any time, DO NOT
USE – contact Smirthwaite by telephone on +44 (0) 1626 835552.
• This product is CE marked. This certifies that it meets all relevant/applicable
European directives.
Shower Stretcher Fixed Height 5
5.0 SURVEYING AND INSTALLATION
STOP!
If in any doubt, ALWAYS seek ADVICE.
Always turn screws clockwise to tighten or anti-clockwise to loosen.
5.1 SURVEYING PROCEDURES
• Shower stretchers are often installed in small rooms with limited space. In such
circumstances it is vitally important to take accurate measurements of the whole
room in question, and make a plan to scale if possible.
• Ensure that the intended wall for installation is strong enough to support
the weight of the stretcher plus the patient.
• If the wall is of brick or concrete construction it will be strong enough to support
the equipment without need of the backing board.
• If the wall is of hollow or soft insulation block construction, then we would always
recommend the backing board is used.
• Check for the position of dado rails, window sills, electrical power points, switches,
etc. which may adversely affect the installation.
• Check there is sufficient room around other facilities, e.g. wash basins, toilets, etc.
• Remember to take into account the guard rail dimensions (accessory).
• Check that access to doorways is still possible.
• Inspect the wall to see if padding/spacing is required to correct wall imperfections.
STOP!
If in any doubt, ALWAYS seek PROFESSIONAL ADVICE.
5.2 INSTALLATION TOOLS REQUIRED
• Electric drill, with appropriate drill bits for wood and masonry
• Set of spanners
• Tape measure
• Spirit level
• Hammer
• Screw driver set
• Personal Protection Equipment (PPE); gloves, safety glasses.
Shower Stretcher Fixed Height 6
5.3 INSTALLATION PROCEDURE
• Carefully unpack the shower stretcher and lay all parts on to the floor.
• Check all component packs are present
• Check all components for damage that may have occurred during transit
Wall Bracket Assembly
Qty: 1
Wall Bracket Cover
Qty: 1
Stretcher Frame1,2
Qty: 1
1.Frame will vary dependent upon length chosen
2.Frame will vary if headrest accessory is chosen
Safety Guard Rail3
3.Accessory item
Fixing Kit4
Qty: 1
4.Exact contents may vary from illustration
Shower Stretcher Fixed Height 7
5.3 INSTALLATION PROCEDURE (Cont)
STOP!
Due to the size of this product, it is recommended installation is
undertaken by two persons
• Store the stretcher frame, back cover and backing board (if ordered)
somewhere safe.

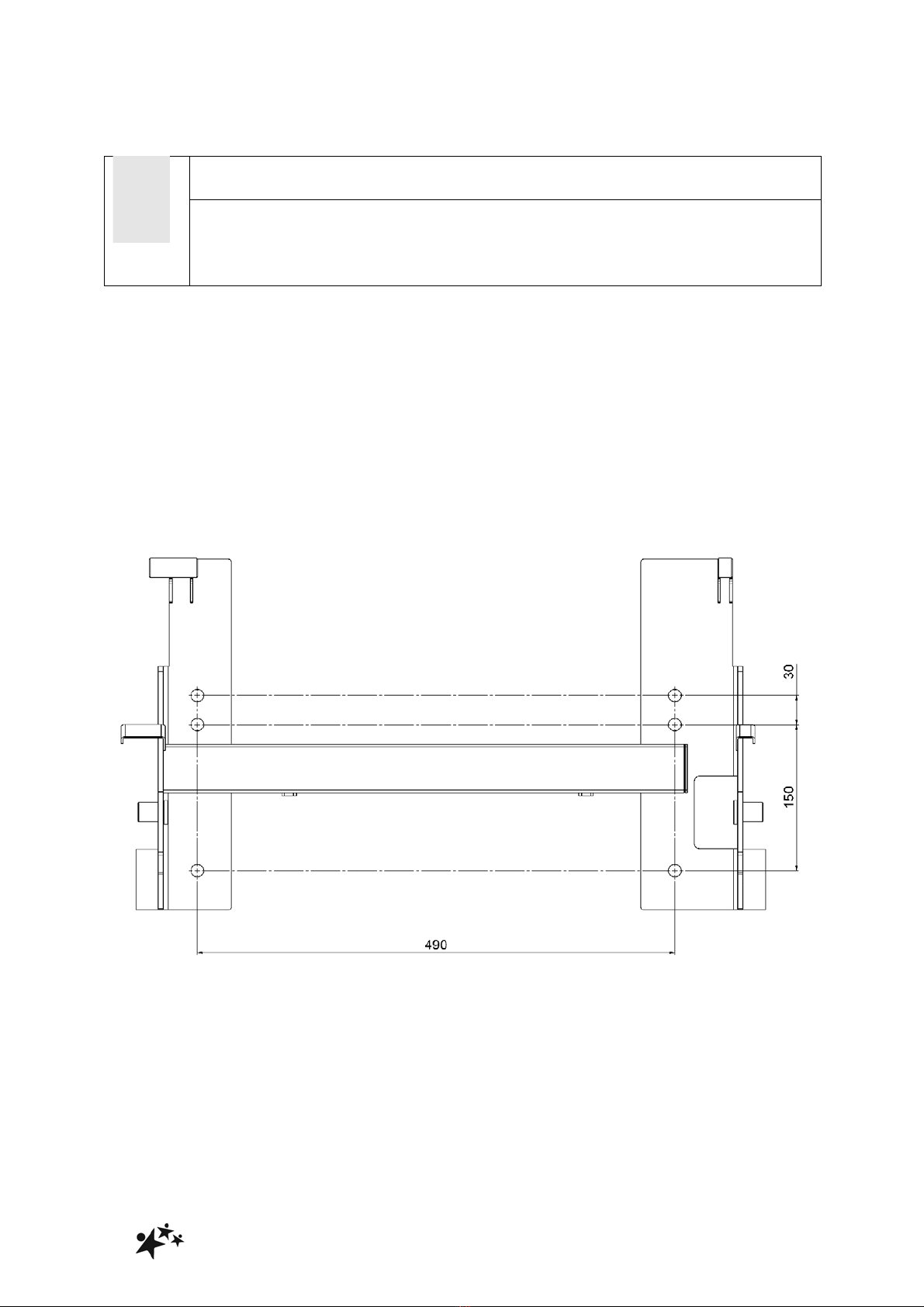

• Position the wall bracket assembly level on the desired wall at an appropriate
height, ensuring you have checked for clearances as described before.
• The bench can be positioned above a bath to aid water collection, or simply
fastened to a wall in a suitable wet room.
• Mark and drill the holes for the fixings.
• Where a backing board is to be used, it should be drilled to take a minimum of 8
fixing screws – check screws do not interfere with the wall bracket assembly
once mounted.
• Fix the frame assembly to the wall, checking the wall bracket assembly is level
and vertical before tightening the fixings – use packing if required.
Shower Stretcher Fixed Height 8
5.3 INSTALLATION PROCEDURE (Cont)
• Offer up the stretcher frame to the wall bracket assembly, fixing into place using
3 screws per side as shown below (M10 x 20mm screws, total quantity 6)
• Ensure the screw fixings are tight
• Check that the stretcher frame can be rotated from horizontal to vertical without
obstruction.
• Check that the stretcher frame can be stored securely vertically using the
plunger locking pin (circled below). To return the stretcher to horizontal, pull the
plunger locking pin, and rotate the stretcher downwards.
FIXINGS 6 x M10 x 20mm
PLUNGER
LOCKING PIN
Shower Stretcher Fixed Height 9
5.3 INSTALLATION PROCEDURE (Cont)
• To complete installation, it is necessary to fit the wall bracket cover to the wall
bracket assembly.
• Offer up the cover to the wall bracket assembly and secure in place with 4 push
fixings (D) as shown below
5.4 SHOWER STRETCHER HEAD REST ACCESSORY
If the customer has specified on order a head rest accessory, this will be fitted to the
shower stretcher at the time of manufacture at the factory. See section 6.0 for
instructions on use.
5.5 SHOWER STRETCHER SAFETY GUARD ACCESSORY
If the customer has specified on order a safety guard rail accessory, this will be fitted
to the shower stretcher at the time of manufacture at the factory. See section 6.0 for
instructions on use.
D
D
