Smeg SAH490SS Manuel utilisateur

Instruction manual

Cooker Hood

Model SAH490SS/SAH460SS-1

Information

Know your cooker hood

Please read these instructions before using your cooker hood

Congratulations on the

purchase of our Cooker hood,

which is designed to include

many superior features that

permit you the fullest

expression of your living.

Before installing and/or using

the cooker hood carefully read

all the instructions.

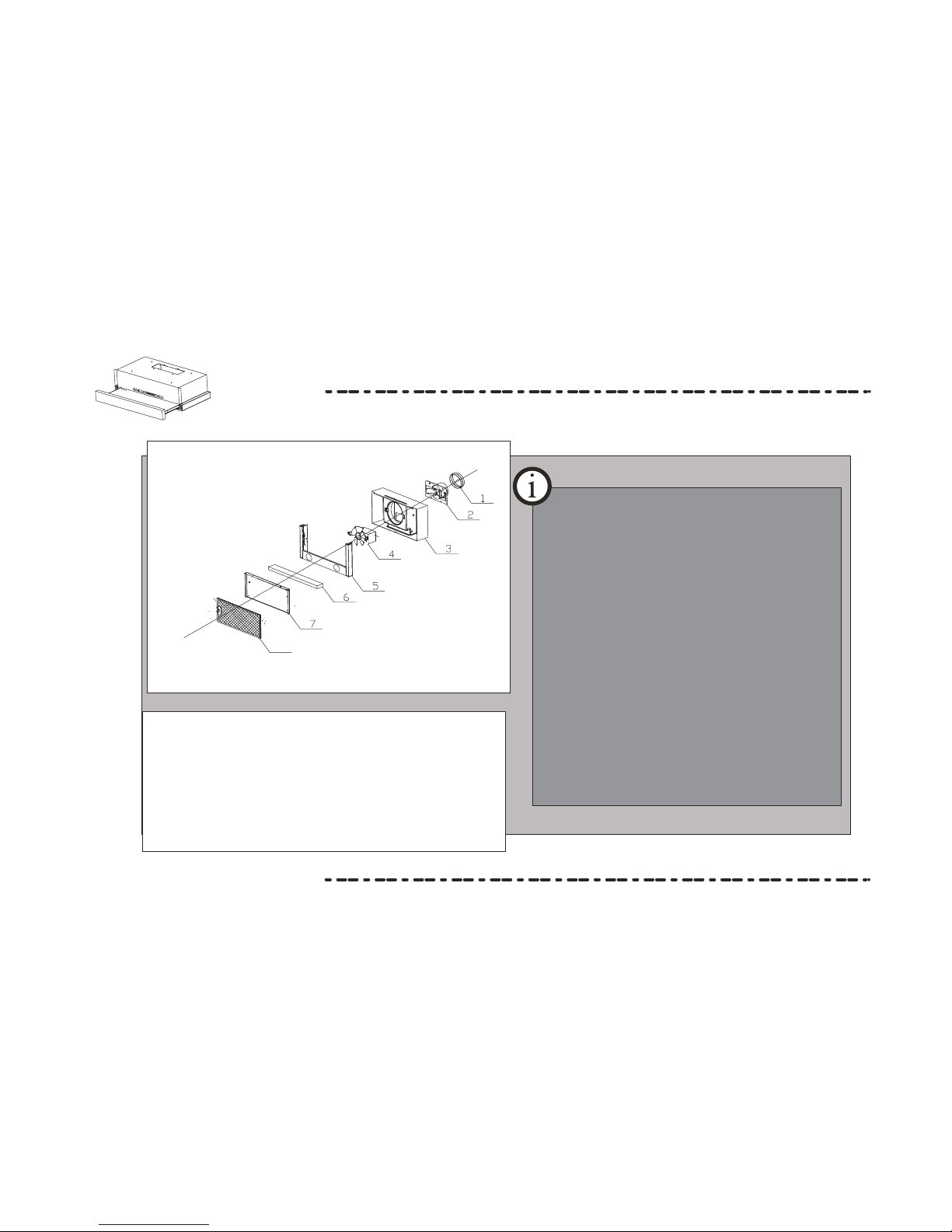

1.120mm to 125mm ducting adaptor

2.Outlet connection 3.Main body assembly

4.Motor assembly 5.Outside frame

6.Front panel 7.Telescopic board

8.Filter

Connect

universal

hose, easy

selecting the

venting

direction

Installation

Ensure the power has been turned off before beginning this installation.

on the air outlet of the hoods.

Information

If you are using a duct. Please first push out the duct hole and fix the damper flap

When

drilling

into wall

or ceiling,

do not

damage

electrical

wiring or

other

hidden

utilities.

Information

SELF TAPPING SCREW

Hood installation:

Put the Hood at the correct

position, fix the self-tapping with

washer follow the middle four

holes on top board inside of the

hoods. Caution: Take care not to

damage parts inside the hood.

If you are installing the hood with

a duct you will need to provide

a hole for the duct. Please use

the template provided to locate

the hole.

Connect the hose (not supplied) with

the air duct.This hood comes with

The cooker hood is fully convertible for different venting options.

your kitchen has an attic space

above, the ducting may be

run up through the cupboard

and attic to a roof cap.

The air must

not be

discharged

into a flue

that is used

for

exhausting

fumes from

appliances

burning gas

or other

fuels.

Information

Vertical flue is the most common

method of installation.If

an adaptor to allow flexibility in

duct sizes, but should not be less than

125 mm diameter.

Controls:

Do not

touch the

light bulb

within half

an hour

after

appliance

use.

The lamp

shall not be

covered

with thermal

insulation or

other

material.

Information

Lamp switch Motor switch 10

The hood is turned on when you pull out the slide. The lamp

switch is located on the left side of the hood.

The fan switch is located on the right side .The

fan has 3 settings: off , low speed , high speed.

Information

There is a

fire risk if

cleaning is

not carried

out in

accordance

with the

instructions.

PIC-2

PIC-1

 

Replacing Lamp:

1. Switch off the hoods and remove the plug;

2.Pull out the telescopic board, take off the lamp and

remove the connection unit;

3.Replace new lamp, turning in a clockwise direction,

fit the connection unit.
