Smeg KCVB9SG Manuel utilisateur

Specific Instruction Manual

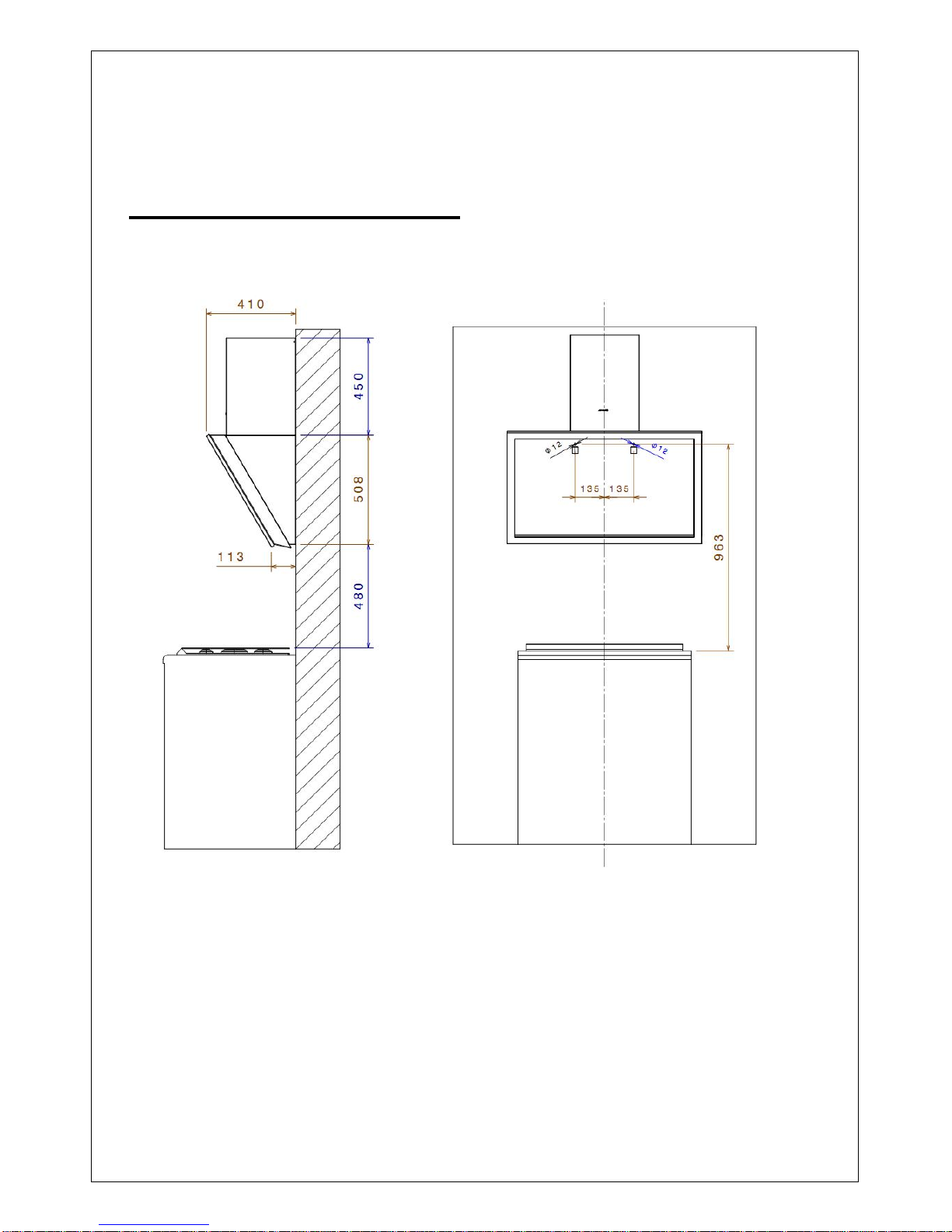

Installation instructions:

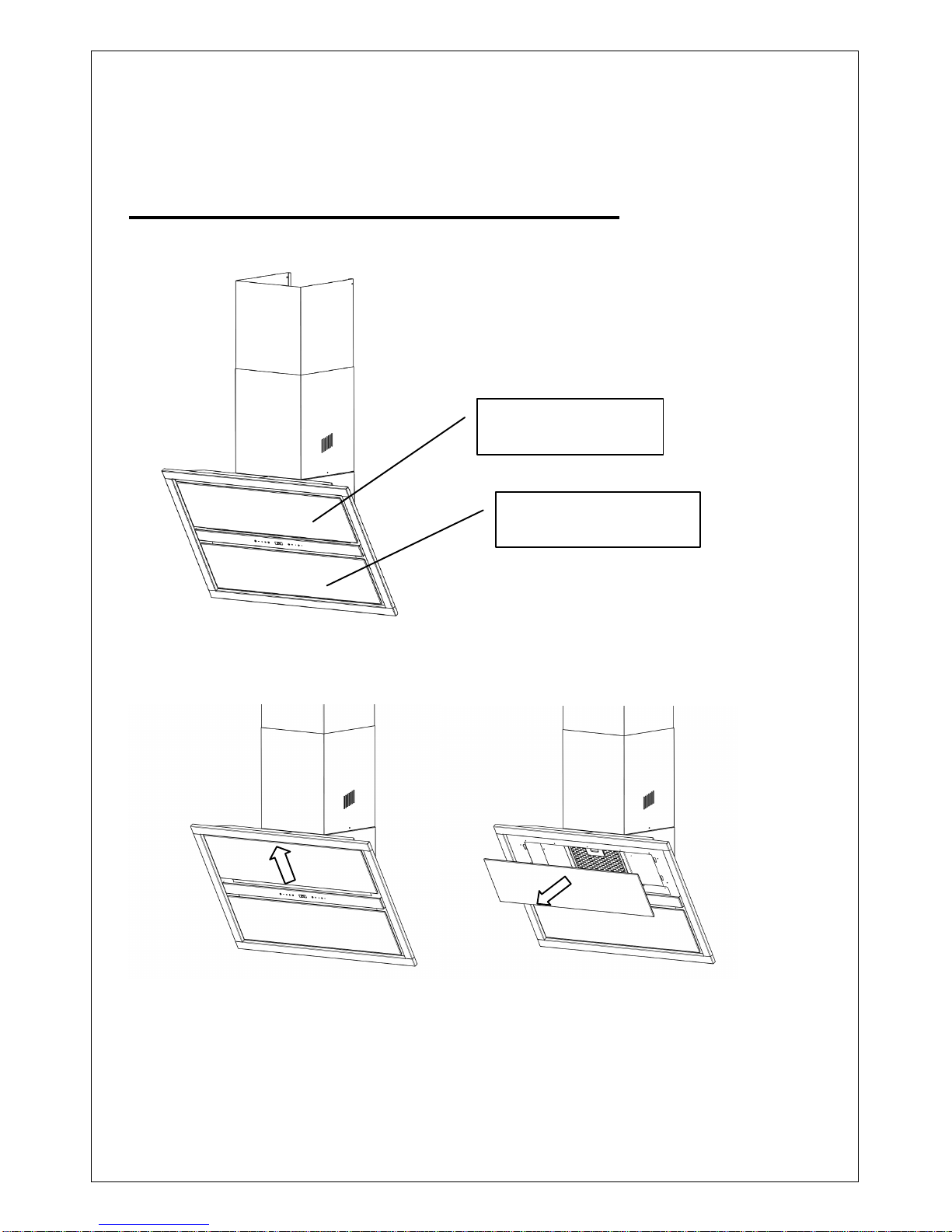

Grease filter extraction instructions.

1)Top glass extraction phases:

NB: Extract the bottom glass in the same manner.

Top removable glass

Bottom removable

glass

2) Grease filter extraction:

To remove the metal grease filter, follow the instructions carried in the

General Instruction Booklet.

Electronic control system instructions for use:

Technical Features:

• Power supply from mains: 230 VAC – 50/60 Hz

• Power consumption in standby: 20 mA

• Max. load applicable to LIGHTS connection: 150 W

• Max. load applicable to MOTOR connection: 400 W

(capacitor motors only)

• Microprocessor-controlled electronic control system.

• Loads managed by solid-state components, opto-isolated from the

mains.

• Hardware and software EMC filtering.

• Connection to electronic control board by flat cable (10 poles)

protected by flexible sheath (outside diameter 8 mm). Low voltage

circuits (5 V).

• Possibility of operating an optional load at mains voltage.

• Non-volatile internal memory (EEPROM) for storing system settings

and flags.

• Optional analog/digital input for sensor and/or external control.

• Phase-cutting motor control.

• SOFT-START light switch: turn the lights on gradually to guarantee

better performance of electronic components.

• Automatic sensing of mains frequency:

number 50 flashing on display = 230 VAC – 50 Hz mains,

number 60 flashing on display = 230 VAC – 60 Hz mains,

• Software-enabled reception of remote control commands: all the

hood's main functions can be controlled by an IR remote control

protected by a propriety code, operating at 24+1 bit and with an IR

carrier frequency of 36 KHz.

• Software set-up procedure for selecting and permanently storing

blower motor settings and enabling A.C. filter saturation alarm (for

filter hoods).

• FILTER saturation alarm and alarm reset control (hour TIMER

for hood work).

Operating Features

Keypad with 10 touch buttons + 2 digit display + IR-RX

Buttons from left to right:

• MOTOR ON/OFF

Starts and stops the blower motor. The display shows the current speed

setting.

• SPEED –

Reduces motor speed: V4 → V3 → V2 → V1

• SPEED +

Increases motor speed: V1 → V2 → V3 → V4

• BOOST-SPEED MODE

Enables BOOST-SPEED mode from any motor speed or when motor is

off. To disable BOOST-SPEED, press the button again and stop the motor.

BOOST-SPEED mode is set to operate for 10 minutes: during which the

display alternatively shows HI and the remaining time and the dot at the

bottom right flashes every second.

After 10 minutes the system automatically reverts to the previous speed

setting.

• 24H AIR CHANGE

Starts the blower motor at a speed that provides a flow rate of about 100

m3/h. When 24h AIR CHANGE is enabled the display shows 24. 24h AIR

CHANGE cannot be enabled when either BOOST-SPEED or DELAY -OFF

is enabled.

• DELAY

Enables and disables the hood’s complete shutdown (motor+lights) after

30 minutes: during which the display alternatively shows the motor speed

and the minutes remaining and the dot at the bottom right flashes every

second.

To disable the DELAY press the button again or stop the motor.

• RESET FILTRI:

Resets the filter saturation alarm if pressed for 2s when all the loads

(motor+lights) are off.

• If there is a metal Filter sat. alarm, FF appears on the display, after 100 h

of operation.

• If there is a CA filter alarm, EF appears on the display after 200h of

operation.

• REDUCE LIGHT INTENSITY

• LIGHTS ON/OFF

Turns the hood lights on and off at maximum intensity. The

increase/reduce buttons adjust the lights’ intensity by 4 steps, excluding

max. intensity.

• INCREASE LIGHT INTENSITY

Keypad lock:

Locks keyboard functions (for example, when cleaning the glass surface)

when all the loads are off and no alarm is on. To enable/disable this

function, press the BOOST-SPEED button for about 5s until the two

central segments of every digit on the display light up.

FILTER SATURATION ALARM;

RESETTING THE HOOD WORKING HOURS COUNTER

• After the hood has been running for 100 hours the display shows FF,

meaning that the GREASE FILTERS should be cleaned;

• After 200 hours of running, the display shows EF, meaning that the

GREASE FILTERS should be cleaned and the A.C. filter cartridges

replaced (the latter warning appears only if the A.C. FILTER alarm

function has been enabled).

NOTE: The warnings appear on the display only when the blower

motor is off.

Direct procedure for enabling/disabling remote control

Turn off the motor and the lights and make sure that no alarms are on

(filter saturation). Press and hold the DELAY button for about 5s, until:

• “tc” flashes twice on the display, meaning that the remote control has

been enabled;

• “tc” flashes once on the display, meaning that the remote control has

been disabled.

SET-UP procedure

The default configuration is as follows:

• 400W motor powered by 230 VAC – 50/60 Hz;

• A.C. FILTER saturation alarm disabled;

• remote control disabled.

ACCESSING THE SET-UP PROCEDURE:

1) To access the set-up procedure press button 24 for about 5s, until

an animation appears on the display; when the animation starts you have

about 5 seconds to perform the set-up:

• Press V- to enable/disable the A.C. filter saturation alarm EF flashes

twice when enabled and once when disabled

• Press button 24 to enable/disable the remote control receiver;

“tc” flashes twice on the display when the remote has been enabled and

once when the remote control has been disabled.
