Smeg PI764BS Manuel utilisateur

Contents

1 Instructions 24

1.1 General safety instructions 24

1.2 Manufacturer’s liability 25

1.3 Appliance purpose 25

1.4 Disposal 26

1.5 Identification plate 26

1.6 This user manual 26

1.7 How to read the user manual 27

2 Description 28

2.1 General description 28

2.2 Symbols 29

3 Use 30

3.1 Instructions 30

3.2 Preliminary operations 31

3.3 Using the hob 31

4 Cleaning and maintenance 36

4.1 Instructions 36

4.2 Cleaning the surfaces 36

4.3 Ordinary weekly cleaning 36

4.4 Food stains or residues 36

4.5 What to do if... 37

5 Installation 38

5.1 Electrical connection 38

5.2 Safety instructions 39

5.3 Section cut from the work surface 40

5.4 Mounting 40

5.5 Fixing brackets 41

5.6 Instructions for the installer 42

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance's aesthetic and functional qualities.

For further information on the product: www.smeg.com

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

• Never touch the heating elements

during use.

• Keep children under the age of

eight at a safe distance unless they

are constantly supervised.

• Children must not play with the

appliance.

• Never rest metallic objects such

as knives, forks, spoons and lids

on the appliance during use.

• Switch off the appliance

immediately after use.

• Never try to put out a fire or

flames with water: Turn off the

appliance and smother the flames

with a fire blanket or other

appropriate cover.

• Cleaning and maintenance must

not be carried out by

unsupervised children.

• Have qualified personnel carry

out installation and assistance

interventions according to the

standards in force.

• Do not modify this appliance.

• Do not insert pointed metal

objects (cutlery or utensils) into the

slots in the appliance.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• If the power cable is damaged,

contact technical support

immediately to have it replaced.

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

• Do not seat on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils could

be released.

Instructions

• Never leave objects on the

cooking surface.

• Do not use the appliance to heat

rooms for any reason.

For this appliance

• If your hob has a cookware

detector, do not rely on it

exclusively.

• If cracks or fissures form, or if the

glass ceramic cooking surface

breaks, turn off the appliance

immediately. Disconnect the

power supply and call Technical

Support.

• People who have pacemakers or

other similar devices fitted must

make sure that the operation of

these devices is not jeopardised

by the inductive field, whose

frequency range is between 20

and 50 kHz.

• In conformity with the provisions

regarding electromagnetic

compatibility, the electromagnetic

induction cooking hob comes

under group 2 and class B (EN

55011).

1.2 Manufacturer’s liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• Use of the appliance other than

that specified

• Failure to comply with the

instructions in the user manual

• Tampering with any part of the

appliance

• The use of non-original spare

parts.

1.3 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, provided

that they are supervised or

instructed by adults who are

responsible for their safety.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

Instructions

1.4 Disposal

This appliance must be

disposed of separately from

other waste (Directives

2002/95/EC, 2002/96/EC,

2003/108/EC). The appliance

does not contain substances in

quantities sufficient to be considered

hazardous to health and the

environment, in accordance with

current European directives.

To dispose of the appliance:

• Cut the power supply cable and

remove it along with the plug.

• Consign the appliance to the

appropriate selective collection

centres for electrical and

electronic equipment waste, or

deliver it back to the retailer when

purchasing an equivalent product,

on a one for one basis.

Our appliances are packed in non-

polluting and recyclable materials.

• Consign the packing materials to

the appropriate selective

collection centres.

1.5 Identification plate

The identification plate bears the

technical data, serial number and

brand name of the appliance. Do not

remove the identification plate for

any reason.

1.6 This user manual

This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and in an

accessible place for the whole

working life of the appliance.

Read this user manual carefully

before using the appliance.

Power voltage

Danger of electrocution

• Disconnect the main power supply.

• Disconnect the power cable from the

electrical system.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the

packaging plastic bags.

Instructions

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Use instruction sequence.

• Single use instruction.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

2.1 General description

* power levels are indicative and can vary according to the pan used or the settings made.

Advantages of induction cooking • Energy saving thanks to the direct

transmission of energy to the pan

(suitable magnetisable cookware is

required) compared to traditional

electric cooking.

• Improved safety as the energy is only

transmitted to the pan placed on the hob.

• High level of energy transmitted from the

induction cooking zone to the base of

the pan.

• Rapid heating.

• Reduced danger of burns as the cooking

surface is only heated under the base of

the pan; foods which overflow do not

stick.

Zone Outer diameter

(mm)

Max. power consumed

(W)*

Consumed power in

Booster function (W)*

1 160 1300 1400

2 200 2300 3000

The hob is equipped with an

induction generator for each

cooking zone. Each generator

located under the glass ceramic

cooking surface creates an

electromagnetic field which

induces a thermal current in the

base of the saucepan. This means

the heat is no longer transmitted

from the hob to the pan but

created directly inside the pan by

the inductive current.

Description

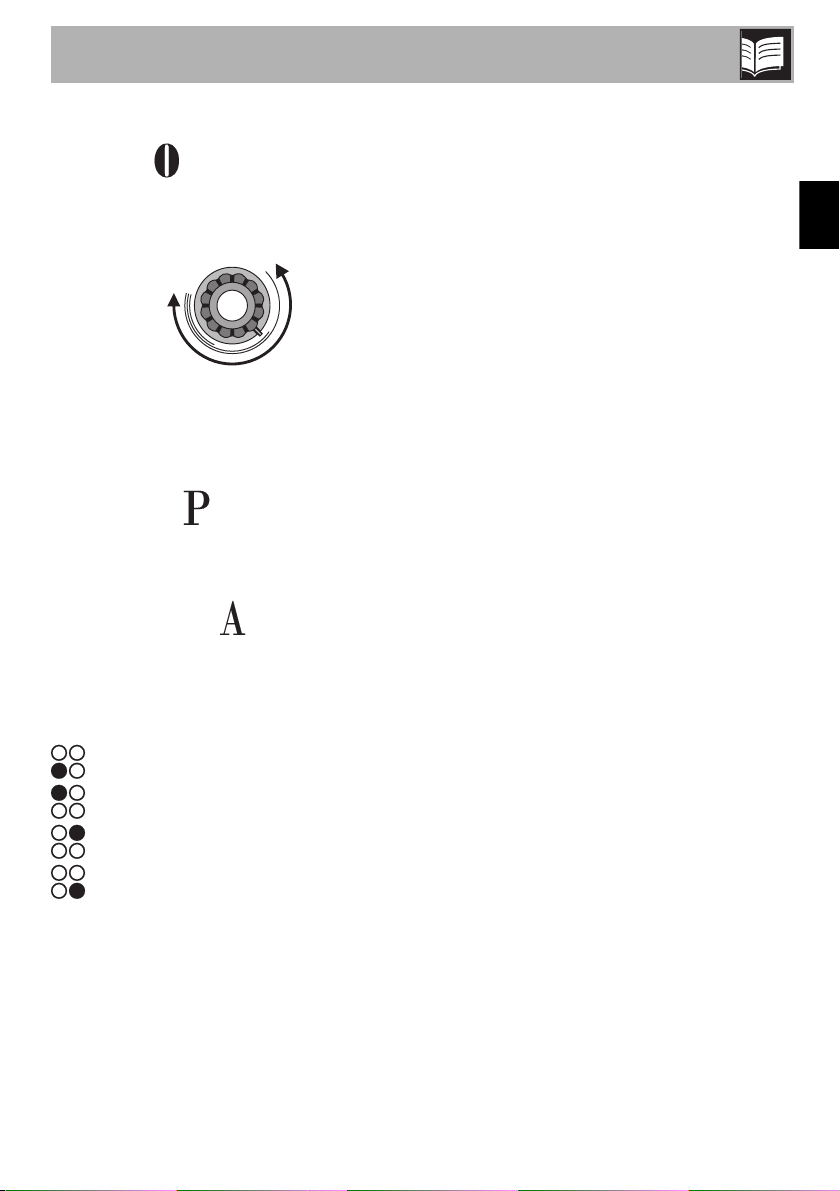

2.2 Symbols

OFF setting

The cooking zone is OFF.

Increase/decrease setting

Turn the knob clockwise or anti-clockwise to

increase or decrease the power for the

cooking zone whose value is shown on the

displays.

Booster setting

Using this setting the Booster function of the

cooking zone activates.

Accelerator setting

Using this setting the accelerator function of

the cooking zone activates.

Cooking zones

Front left

Rear left

Rear right

Front right

Use

3 Use

3.1 Instructions

High temperature

Danger of burns

• Protect your hands wearing heat-proof

gloves during use.

• Do not touch or clean the hob surface

during operation or when the residual

heat indicator lights are still on.

• Do not put empty saucepans or frying

pans on switched on cooking zones.

• Do not allow children younger than 8

years old to get near the appliance

during its operation.

• Activate the key lock when you have

children or pets which could reach the

hob.

• After use the cooking zones remain hot

for a certain period of time after they

have been turned off. Do not touch the

hob surfaces.

High temperature

Danger of fire or explosion

• Do not use or leave flammable materials

near the appliance or directly

underneath the hob.

• Do not cook using closed tins or

containers, plastic kitchenware or

containers.

• Do not leave the appliance unattended

during cooking operations where fats or

oils could be released.

• In case you notice cracks or fissures or

you cannot turn the appliance off,

disconnect the power supply and

contact the Assistance Centre.

Improper use

Risk of damage to surfaces

• Do not use the hob if pyrolysis is taking

place inside any oven installed below.

• Never place saucepans with bases

which are not perfectly flat and smooth.

• Avoid hard, solid objects falling on the

cooking surface.

• In case you notice cracks or fissures, turn

off the appliance immediately,

disconnect the power supply and

contact the Assistance Centre.

• Do not use as a support surface.

Use

3.2 Preliminary operations

In order to remove any moisture that could

have accumulated during the manufacturing

process and for the electronic circuits and

control keypad to work properly:

1. Remove the protective films from the

external surfaces of the appliance and

accessories.

2. Remove any labels (apart from the

technical data plate).

3. Place a pan full of water on each of the

front cooking zones and switch them on

to the maximum power setting for at least

30 minutes.

4. After 30 minutes, switch off the front

cooking zones and repeat this operation

for the rear cooking zones and any

central cooking zone.

5. If after carrying out the above operations

the controls do not work properly, it

might be necessary to extend the

operations until the moisture has

completely evaporated.

3.3 Using the hob

All the appliance's control and monitoring

devices are located together on the front

panel. The relevant cooking zone is

indicated next to each knob.

Just turn the knob clockwise to the required

power setting.

Cookware suitable for use in induction

cooking

Cookware used on the induction cooking

surface must be made of metal, with

magnetic properties and a sufficiently large

base.

Suitable cookware:

• Enamelled steel cookware with thick

bases.

• Cast iron cookware with an enamelled

base.

• Cookware in multilayer stainless steel,

ferritic stainless steel and aluminium with

a special base.

On first connection to the electrical

mains, an automatic check will be

carried out that will switch on all

indicator lights for a few seconds.

Use

Unsuitable cookware:

• Copper, stainless steel, aluminium,

fireproof glass, wood, ceramic and

terracotta cookware.

To see whether the pan is suitable, bring a

magnet close to the bottom: if it is attracted,

the pan is suitable for induction cooking. If

you do not have a magnet, you can put a

small amount of water in the pan, place it

on a cooking zone and start the hot plate. If

the symbol appears on the display, it

means the pan is not suitable.

Limiting the cooking duration

The hob has an automatic device which

limits the duration of use.

If the cooking zone settings are not

changed, the maximum duration of

operation of each zone depends on the

power level selected.

When the device for limiting the duration of

use is activated, the cooking zone turns off,

a short alert sounds and, if the zone is hot,

the symbol appears on the display.

Protection from overheating

If the hob is used on full power for a long

period, the electronics will have trouble

cooling down if the room temperature is

high.

To avoid excessively high temperatures

forming in the electronics, the power to the

cooking zone is reduced automatically.

Use only cookware with a

perfectly flat bottom and suitable

for induction hot plates. Using

cookware with an irregular bottom

could jeopardise the efficiency of

the heating system so that

cookware is not detected on the

hot plate.

Set power level Maximum cooking

duration in hours

1 - 2 8

3 - 4 6

5 - 6 5

91½

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Plaque

Smeg

Smeg SE232TD Manuel utilisateur

Smeg

Smeg SIB2741D Manuel utilisateur

Smeg

Smeg Hob Mode d’emploi

Smeg

Smeg SE2842ID2 Manuel utilisateur

Smeg

Smeg GCS90XG Manuel utilisateur

Smeg

Smeg SI641ID2 Manuel utilisateur

Smeg

Smeg PV695LCNR Manuel utilisateur

Smeg

Smeg NKT335EEU Manuel utilisateur

Smeg

Smeg SE2842ID2 Manuel utilisateur

Smeg

Smeg SE 62CX Manuel utilisateur

Smeg

Smeg PGFA95F Manuel utilisateur

Smeg

Smeg Hob Manuel utilisateur

Smeg

Smeg Glass Ceramic Induction Hob 225678 N71 Mode d’emploi

Smeg

Smeg Universale Aesthetic SI4742D Manuel utilisateur

Smeg

Smeg SI2M7953DW Manuel utilisateur

Smeg

Smeg SE2641TD2 Manuel utilisateur

Smeg

Smeg PM6721WLDX Manuel utilisateur

Smeg

Smeg Genuine Apell Gas Hob AP704S3 Manuel utilisateur

Smeg

Smeg 3EM-374B Manuel utilisateur

Smeg

Smeg PX7502 Manuel utilisateur

Smeg

Smeg SRV864AVOGH Manuel utilisateur

Smeg

Smeg SAR64XLP Manuel utilisateur

Smeg

Smeg PVA750A Manuel utilisateur

Smeg

Smeg CIR34XS Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
