Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE________________ 4

2. POSITIONING OF HOB ____________________________________ 6

3. ELECTRICAL CONNECTION _______________________________ 8

4. GAS CONNECTION_______________________________________ 9

5. ADAPTATION TO DIFFERENT TYPES OF GAS _______________ 11

6. FINAL OPERATIONS_____________________________________ 14

7. USING THE HOB ________________________________________ 16

8. LEANING AND MAINTENANCE ____________________________ 18

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE

IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

INSTRUCTIONS FOR THE INSTALLER: these are for the qualified

technician who must carry out a suitable check of the gas system,

install the appliance, set it functioning and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE COOKING HOB. WE

ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN

BEFORE USING THE COOKING HOB. ALSO KEEP THE SERIES OF NOZZLES

SUPPLIED. INSTALLATION MUST BE CARRIED OUT BY QUALIFIED

PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. THIS

APPLIANCE IS INTENDED FOR DOMESTIC USES AND CONFORMS TO

CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO

CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND HEATING-UP

OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE SOCKET

MUST BE THE SAME TYPE AND MUST CONFORM TO CURRENT

REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE COOKING HOB, FOLLOWING THE INSTRUCTIONS BELOW.

SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE

SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

"ZERO" (OFF) WHEN YOU FINISH USING THE HOB.

Introduction

THE IDENTIFICATION PLATE, WITH TECHNICAL DATA, SERIAL NUMBER

AND MARKING IS CLEARLY VISIBLE UNDER THE CASING.

THE PLATE ON THE CASING MUST NOT BE REMOVED.

BEFORE CONNECTING THE DEVICE, MAKE SURE THAT IT HAS BEEN

REGULATED FOR THE TYPE OF GAS THAT WILL FEED IT, CHECKING THE

LABEL UNDER THE CASING.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE COOKING HOB GRIDS.

DO NOT USE RECIPIENTS OR GRIDDLE PLATES THAT EXTEND BEYOND

THE EXTERNAL PERIMETER OF THE HOB.

THE HOB IS TO BE USED BY ADULTS ONLY. DO NOT LET UNSUPERVISED

CHILDREN PLAY WITH THE HOB.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. POSITIONING OF HOB

The following operation requires building and/or carpentry work so must

be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood as long as they are heat

resistant (T 90°C).

Never use silicone or other insulating products when installing the

appliance; use only the rubber gasket provided.

2.1.1 Attachment to support structure

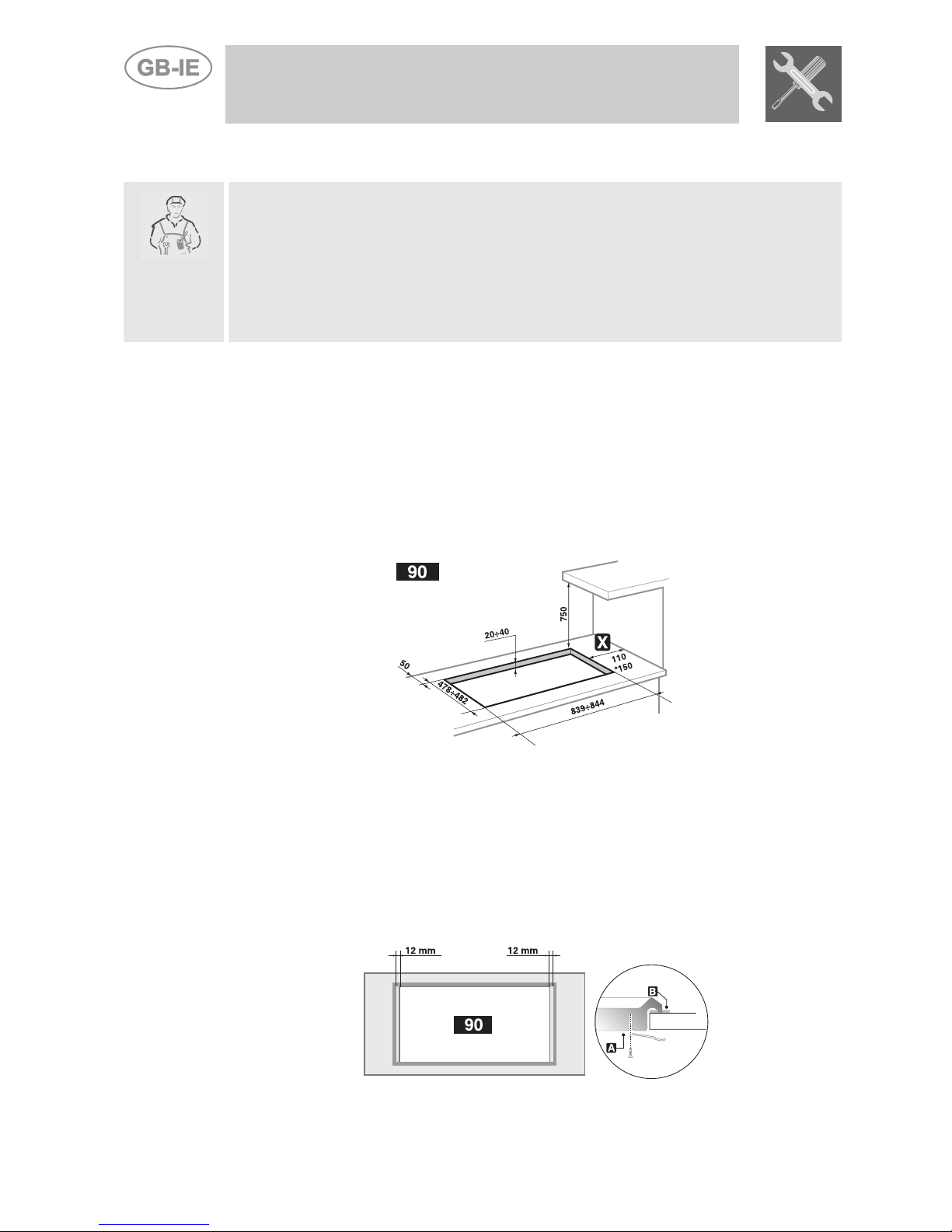

Create an opening with the dimensions shown in the figure in the top

surface of the counter, keeping a minimum distance of 50 mm from the

rear border.

This appliance can therefore be mounted against walls higher than the

work surface on condition that a certain distance “X” be kept between the

appliance and the wall as shown in the figure so as to avoid damage from

overheating.

Make sure there is a minimum of 750 mm between the hot plate flames

and any shelf that may be installed directly above them.

Accurately position the gasket provided all around the outer edge of the

hole in the top surface as shown in the figures below, pressing it down so

as to make it adhere properly. For measurements, refer to the figure

depending on the hob model to be installed, bearing in mind that in both

models the front and rear sides must skim the hole. Secure the hob to the

counter with brackets A(supplied). Carefully trim any excess from border

Bof the gasket. The distances in the following drawing refer to the hole

on the inner side of the gasket.

Instructions for the installer

In case of installation on a hollow compartment with doors, a separating

panel has to be placed under the hob. Keep a minimum distance of 10

mm between the bottom of the unit and the panel surface. The panel

has to be easily removable to allow access in the event of technical

service.

Instructions for the installer

3. ELECTRICAL CONNECTION

Make sure that the voltage and capacity of the power line conform to the

data shown on the plate located under the casing. Do not remove this

plate for any reason.

The plug on the end of the supply cable and the wall socket must be the

same type and conform to the current electrical system regulations.

Check that the power line is adequately grounded.

On the power line, install an omnipolar cut-off device with contact cut-off

distance greater than or equal to 3 mm, located in an easily accessible

position near the unit.

Do not use reducers, adapters or shunts.

If the power cable is replaced, the wire section on the new cable must

not be less than 1.5 mm2(3 x 1.5 cable), keeping in mind that the end to

be connected to the hob must have the ground wire (yellow-green)

longer by at least 20 mm. Use only H05V2V2-F cable or similar which has

a maximum temperature of 90°C. Any replacement needed should be

carried out by a specialised technician who should make the mains

connections according to the following diagram.

L= brown

N= blue

= yellow-green

The manufacturer will not be liable for any damage to persons or

property caused by non-observance of the above instructions or deriving

from the tampering of even a single part of the hob.

Instructions for the installer

4. GAS CONNECTION

Connection to the gas mains may be made with a rigid copper pipe or

with a flexible pipe and conforming to the provisions defined by standard

regulations in force.

To facilitate connection, fitting Aon the rear of the appliance may be

adjusted laterally. For this purpose, loosen hexagon nut B, turn fitting A

to the desired position, and retighten hexagon nut B(tightness is ensured

by a biconical brass ring). Use a soapy solution to check for proper

tightness. Never use a free flame.

The hob has been inspected for G20 (2H) natural gas at a pressure of

20 mbar. For use with other types of gases, see Section “5.

ADAPTATION TO DIFFERENT TYPES OF GAS”. The gas intake fitting

is ½” gas external threaded (ISO 228-1).

Connection with rigid copper pipe:

the connection to the gas mains must

not provoke stress of any kind on the

hob.

Connection may be made by using

biconical adapter Dwith insertion of

gasket C(supplied).

Connection with flexible pipe: use

only flexible pipes conforming to

standard regulations in force, inserting

gasket C(supplied) between fitting A

and flexible pipe E.

The flexible pipe has to be installed so that pipe length does not exceed

1.5 meters of maximum extension. Make sure that the pipes do not touch

any moving parts or become damaged.

Instructions for the installer

4.1 Connection to LPG

Use a pressure regulator and make the connection to the tank according

to the provisions of standards regulations in force. Make sure that feed

pressure conforms to the levels shown in the table in paragraph “5.2

Regulation for LPG”.

4.2 Ventilation of rooms

The hob may be installed only in rooms with permanent ventilation, as

required by standards regulations in force. The room in which the hob is

installed must have sufficient air flow to satisfy the requirements of

normal gas combustion and of necessary air exchange in the room. The

air intakes, protected by screens, must be appropriately sized

(regulations in force) and placed so as not to be blocked in any way.

The room where the oven is installed should be suitably ventilated to

avoid overheating or excess humidity produced by cooking, and in the

case of lengthy use a window should be opened or the speed of any

ventilators should be increased.

4.3 Discharge of combustion products

Discharge of combustion products must be guaranteed by means of

hoods connected to a natural draught flue with certain efficiency, or by

means of forced aspiration.

An efficient aspiration system requires careful planning by a specialist

capable of installing it, respecting the positions and distances prescribed

by standards. After installation, the installer must issue a certificate of

conformity.

Instructions for the installer

5. ADAPTATION TO DIFFERENT TYPES OF GAS

Before performing any cleaning or maintenance work, detach the

appliance from the electrical socket.

The hob has been inspected for G20 (2H) natural gas at a pressure of

20 mbar. For functioning with other types of gas the nozzles must be

replaced and the primary air adjusted.

To replace the nozzles and regulate the burners, you have to remove the

top as described in the following paragraph.

5.1 Removing the hob

1. Remove all the knobs, the grids, the burner caps and the flame-caps;

2. remove the screws and the nuts Athat secure the burner supports;

3. remove plates B;

4. lift the hob from its seat;

5. replace the burner nozzles in accordance with the reference gas

chart;

6. regulate the primary air as described in paragraph “5.2 Regulation

for LPG”.

Instructions for the installer

5.2 Regulation for LPG

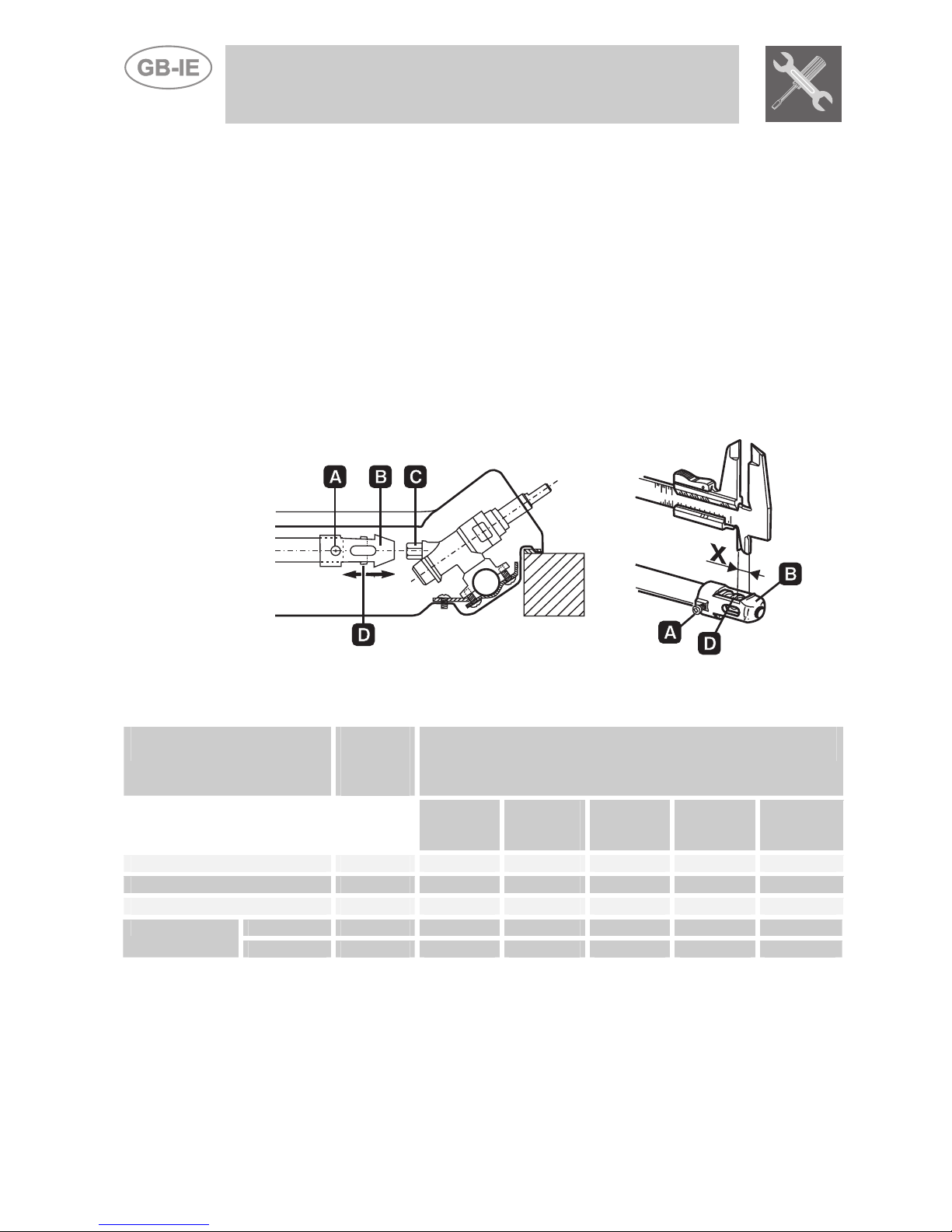

Loosen screw Aand push support Ball the way. Use a double head

wrench to remove nozzle Cand assemble the suitable one, following the

instructions indicated in the reference charts, with respect to the type of

gas to use. The screwing torque of the nozzle should never exceed

3 Nm. Reposition support Bso that nozzle Cis covered perfectly.

Move the Venturi tube Dto regulate the air flow until distance "X" is

reached indicated in the chart in paragraph "5.4 Regulation of primary air”

and then secure the tube by means of screw A. After the regulations

have been carried out, restore the seals with sealing wax or equivalent

material.

Burner Rated

heating

capacity

(kW)

LPG – G30/G31 28/37 mbar

Nozzle

diameter

1/100 mm

By-pass

1/100

Reduced

flowrate

(W)

Flowrate

g/h G30 Flowrate

g/h G31

Auxiliary (1) 1.05 48 30 380 76 75

Semi-rapid (2) 1.65 62 30 380 120 118

Rapid (3) 3.1 85 43 750 225 222

internal (5) 1.15 42 26 380 84 82Double crown

external (5) 3.8 95 55 1200 276 271

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Plaque

Smeg

Smeg SAI3963B Manuel utilisateur

Smeg

Smeg Electric Built-in Hob Unit SE2755PS Manuel d'utilisation

Smeg

Smeg PV695LCNR Manuel utilisateur

Smeg

Smeg SE2664ID Manuel utilisateur

Smeg

Smeg SI2M7643DW Manuel utilisateur

Smeg

Smeg GKC755 Manuel utilisateur

Smeg

Smeg SI1M7643B Manuel utilisateur

Smeg

Smeg P775PO Manuel utilisateur

Smeg

Smeg SE2542 Manuel utilisateur

Smeg

Smeg SI5741D Manuel utilisateur

Smeg

Smeg P64XGHUE Manuel utilisateur

Smeg

Smeg PV175CN2AU Manuel utilisateur

Smeg

Smeg P864P-9 Manuel utilisateur

Smeg

Smeg ET 52250 Manuel utilisateur

Smeg

Smeg SI4641CB Guide de démarrage rapide

Smeg

Smeg S135 Manuel utilisateur

Smeg

Smeg SI1M7733B Manuel utilisateur

Smeg

Smeg NCT685BHK Manuel utilisateur

Smeg

Smeg T2740N1NL Manuel utilisateur

Smeg

Smeg Universale SAI3643B Manuel utilisateur

Smeg

Smeg PGF95-2 Manuel utilisateur

Smeg

Smeg SRV864PO Manuel utilisateur

Smeg

Smeg P1752XBN Manuel utilisateur

Smeg

Smeg PGF32GNL Manuel utilisateur

Manuels Plaque populaires d'autres marques

Siemens

Siemens EX875KYV1E Fiche technique

AEG

AEG CERAMIC HOB 6010 K Manuel utilisateur

VALERA

VALERA CT 70A Manuel utilisateur

Zanussi

Zanussi ZGF 6420 Manuel utilisateur

Gaggenau

Gaggenau CI 273 Manuel utilisateur

G3 Ferrari

G3 Ferrari Energy Manuel utilisateur

Pkm

Pkm IN4B Manuel utilisateur

Award

Award H903BG Manuel utilisateur

Zanussi

Zanussi VCH 5005 RZ Manuel utilisateur

Miele

Miele KM 523 Manuel utilisateur

Hotpoint

Hotpoint IS67V8CCXT/E Manuel utilisateur

AEG

AEG HK854870XB Manuel utilisateur

Cookology

Cookology SEP600BK Manuel utilisateur

Bauknecht

Bauknecht Hob Manuel utilisateur

Zanussi

Zanussi ZGM 782 Manuel utilisateur

dipo INDUCTION

dipo INDUCTION DIBK218S Manuel utilisateur

Miele

Miele KM 5987 Manuel utilisateur

Miele

Miele KM 360 G Manuel utilisateur
