Contents

1 Instructions 46

1.1 General safety instructions 46

1.2 Manufacturer liability 51

1.3 Appliance purpose 51

1.4 Disposal 51

1.5 Identification plate 52

1.6 This user manual 52

1.7 How to read the user manual 52

2 Description 53

2.1 General Description 53

2.2 Cooking hob 54

2.3 Control panel 55

2.4 Other parts 56

2.5 Available accessories 56

3 Use 58

3.1 Instructions 58

3.2 First use 59

3.3 Using the accessories 59

3.4 Using the hob 60

3.5 Using the ovens 66

3.6 Cooking advice 67

3.7 Programmer clock 69

4 Cleaning and maintenance 74

4.1 Instructions 74

4.2 Cleaning the appliance 74

4.3 Removing the door 76

4.4 Extraordinary maintenance 80

5 Installation 82

5.1 Positioning 82

5.2 Electrical connection 85

5.3 Instructions for the installer 86

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven

• Never try to put out a fire or

flames with water: Turn off the

appliance and smother the flames

with a fire blanket or other

appropriate cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, provided

that they are supervised or

instructed by adults who are

responsible for their safety.

• Children must not play with the

appliance.

• Keep children under the age of

eight at a safe distance unless

they are constantly supervised.

• Keep children under the age of 8

away from the appliance when it

is in use.

• Cleaning and maintenance must

not be carried out by

unsupervised children.

• Be aware of how rapidly the

cooking zones heat up. Do not

place empty pans on the heat.

Danger of overheating.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid

on the pan and turn off the

relevant cooking zone.

Instructions

• The cooking process must always

be monitored. A short cooking

process must be continuously

monitored.

• Do not place metal objects, such

as dishes or cutlery, on the hob

surface during use as they may

overheat.

• Do not insert pointed metal

objects (cutlery or utensils) into the

slots in the appliance.

• Do not pour water directly onto

very hot trays.

• Keep the oven door closed

during cooking.

• If you need to move food or at the

end of cooking, open the door 5

cm for a few seconds, let the

steam come out, then open it fully.

• Do not open the storage

compartment (where present)

when the oven is on and still hot.

• The items inside the storage

compartment could be very hot

after using the oven.

• Do not use or store flammable

materials in the storage

compartment (where applicable)

or near the appliance.

• Do not use aerosols in the vicinity

of this appliance whilst it is in use.

• Switch off the appliance

immediately after use.

• Do not modify this appliance.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any work on

the appliance, switch off the

power supply.

• Have qualified personnel carry

out installation and assistance

interventions according to the

standards in force.

• Do not try to repair the appliance

yourself or without the intervention

of a qualified technician.

• Do not pull the cable to remove

the plug.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Instructions

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

• Racks and trays should be

inserted as far as they will go into

the side guides. The mechanical

safety locks that prevent them from

being removed must face

downwards and towards the

back of the oven

• Do not seat on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils

could be released, as these could

then heat up and catch fire. Be

very careful.

• Never leave objects on the

cooking surface: danger of fire.

• Do not use the appliance to heat

rooms for any reason.

• Do not spray any spray products

near the oven.

• Do not use plastic cookware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays

directly on the bottom of the oven

cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to rest

pans or trays on the internal glass

pane.

• Cooking vessels or griddle plates

should be placed inside the

perimeter of the hob.

• All pans must have smooth, flat

bottoms.

Instructions

• If any liquid does boil over or spill,

remove the excess from the hob.

• Take care not to spill acid

substances such as lemon juice or

vinegar on the hob.

• Do not put empty pans or frying

pans on switched on cooking

zones.

• Do not use steam jets to clean the

appliance.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on parts made of steel or

that have metallic surface finishes

(e.g. anodizing, nickel- or

chromium-plating).

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

Installation

• This appliance must not be

installed in a boat or caravan.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cutout with the help of a

second person.

• To avoid potential overheating,

the appliance must not be

installed behind a decorative

door or a panel.

• Have the electrical connection

performed by authorised

technical personnel.

• The appliance must be connected

to earth in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90°C.

• The tightening torque of the

screws of the terminal supply

wires must be 1.5 - 2 Nm.

Instructions

For this appliance

• After use, turn off the hot plates

used by returning the appropriate

knob to the Oposition. Never rely

solely on the cookware detector.

• Supervise children carefully as

they cannot easily see the residual

heat indicator. The cooking zones

remain hot for a certain period of

time even after they have been

turned off. Make sure that children

never touch the hob.

• Avoid hard, solid objects falling

on the surface of the hob.

• Do not use the hob as a support

surface.

• Use only hob guards designed by

the manufacturer of the cooking

appliance or indicated by the

manufacturer of the appliance in

the instructions for use as suitable

or hob guards incorporated in the

appliance. The use of

inappropriate guards can cause

accidents.

• If cracks or fissures form, or if the

glass ceramic cooking surface

breaks, turn off the appliance

immediately. Disconnect the

power supply and call Technical

Support.

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on

the open door of the appliance.

• Take care that no objects are

stuck in the doors.

• People who have pacemakers or

other similar devices fitted must

make sure that the operation of

these devices is not jeopardised

by the inductive field, whose

frequency range is between 20

and 50 kHz.

• In conformity with the provisions

regarding electromagnetic

compatibility, the electromagnetic

induction cooking hob comes

under group 2 and class B

(EN 55011).

Instructions

1.2 Manufacturer liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• use of the appliance other than

that specified;

• failure to comply with the

instructions in the user manual;

• Tampering with any part of the

appliance;

• the use of non-original spare

parts.

1.3 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered inappropriate.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.4 Disposal

This appliance must be disposed of

separately from other waste

(Directives 2002/95/EC,

2002/96/EC, 2003/108/EC). The

appliance does not contain substances in

quantities sufficient to be considered

hazardous to health and the environment, in

accordance with current European

directives.

To dispose of the appliance:

• Cut the power supply cable and remove

it along with the plug.

• Deliver the appliance to the appropriate

recycling centre for electrical and

electronic equipment waste, or return it to

the retailer when purchasing an

equivalent product, on a one for one

basis.

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

Instructions

Our appliances are packaged in non-

polluting and recyclable materials.

• Deliver the packing materials to the

appropriate recycling centre.

1.5 Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

1.6 This user manual

This user manual is an integral part of the

appliance and must therefore be kept in its

entirety and within the user’s reach for the

whole working life of the appliance.

Read this user manual carefully before using

the appliance.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instruction.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the plastic

bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

2 Description

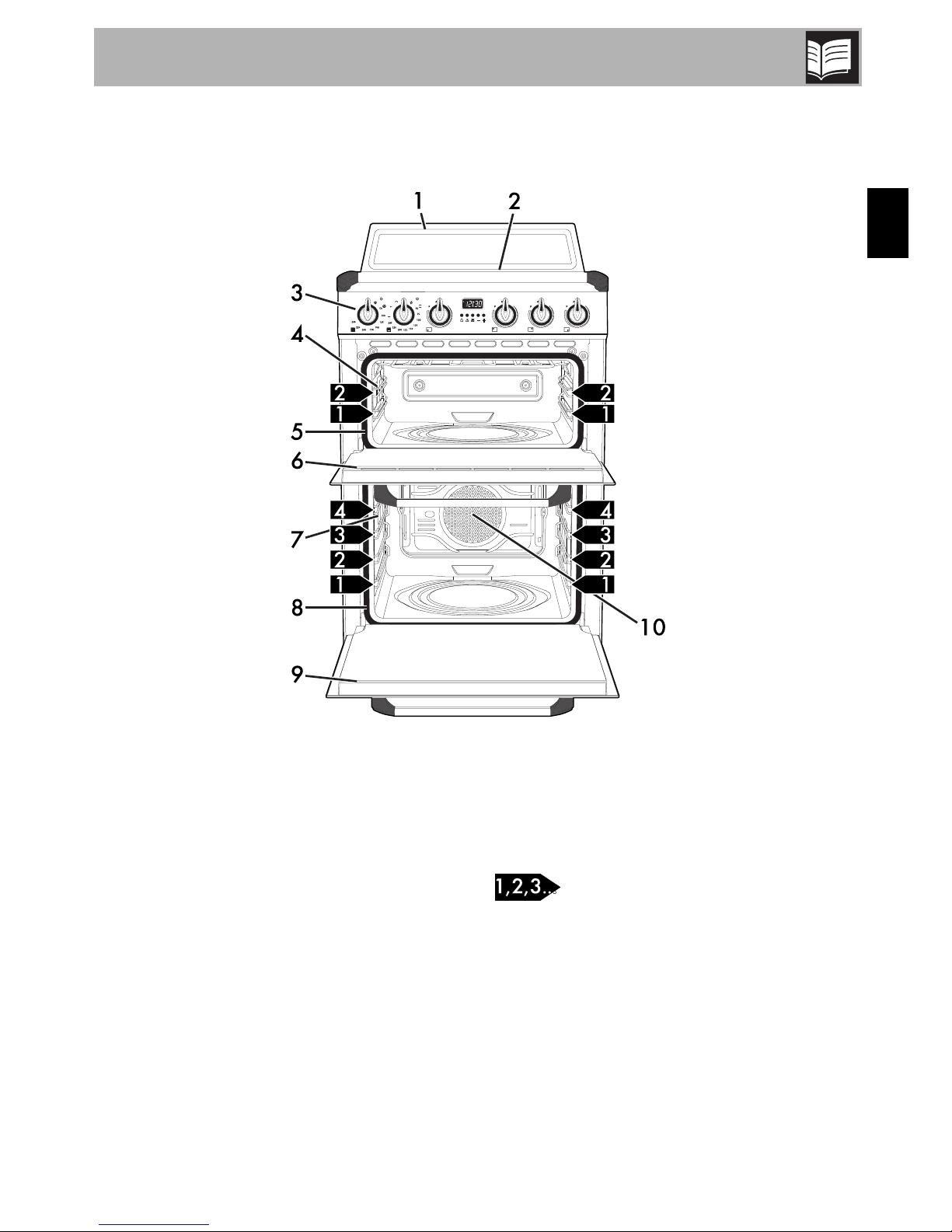

2.1 General Description

1 Upstand

2 Cooking hob

3 Control panel

4 Auxiliary oven light

5 Auxiliary oven seal

6 Auxiliary oven door

7 Main oven light

8 Main oven seal

9 Main oven door

10 Fan

Rack/tray support frame shelf

Description

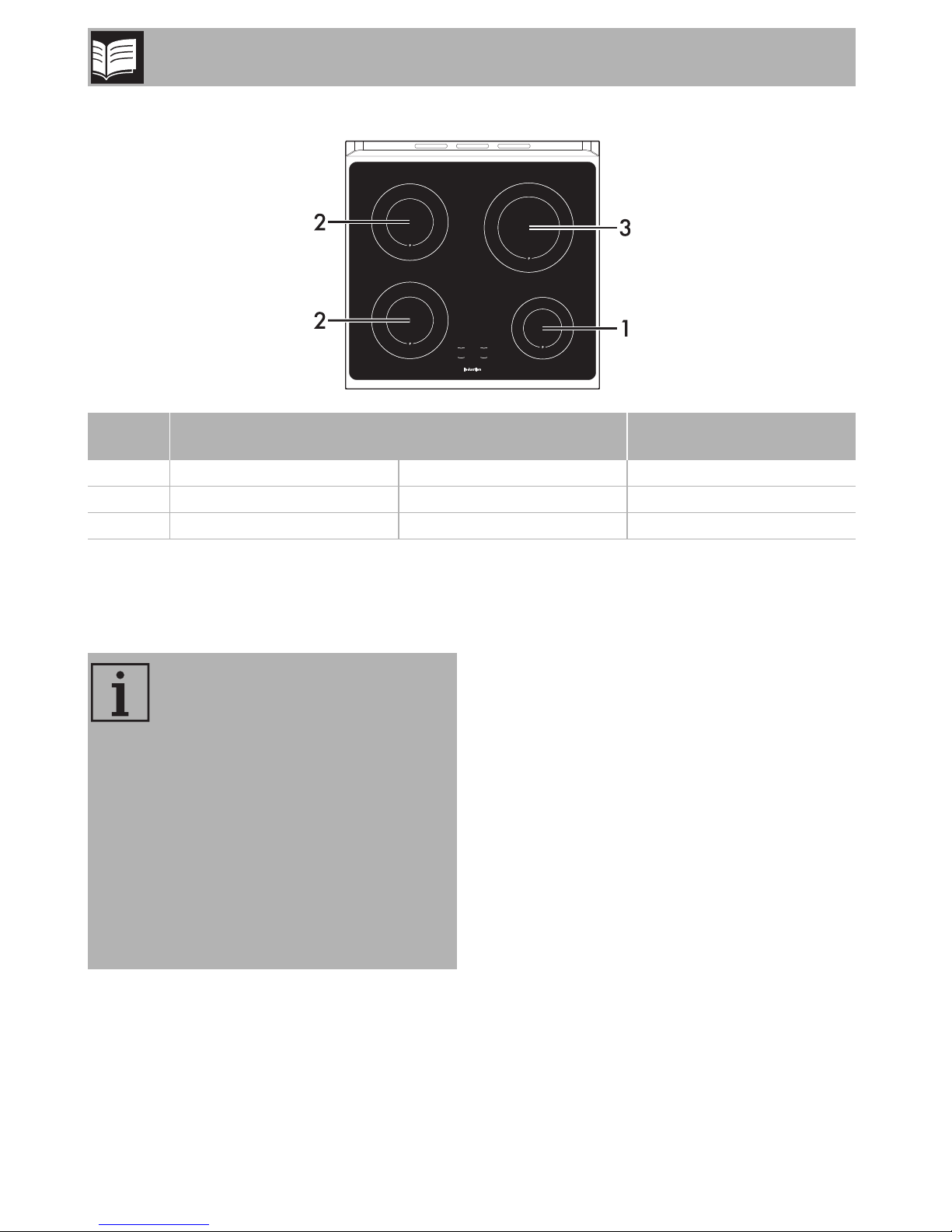

2.2 Cooking hob

* Power levels are approximate and can vary according to the pan used or the settings made.

Advantages of induction cooking • Energy saving thanks to the direct

transmission of energy to the pan

(suitable magnetisable cookware is

required) compared to traditional

electric cooking.

• Improved safety as the energy is only

transmitted to the pan placed on the hob.

• High level of energy transmitted from the

induction cooking zone to the base of

the pan.

• Rapid heating speed.

• Reduced danger of burns as the cooking

surface is only heated under the base of

the pan; foods which overflow do not

stick.

Zone Outside diameter (mm) Max. power draw (W)* Power draw in

booster function (W) *

1 145 1400 2200

2 180 1850 3000

3 210 2300 3700

The hob is equipped with an

induction generator for each

cooking zone. Each generator

located under the glass ceramic

cooking surface creates an

electromagnetic field which

induces a thermal current in the

base of the pan. This means the

heat is no longer transmitted from

the hob to the pan but created

directly inside the pan by the

inductive current.

Table des matières

Autres manuels Smeg Cuisinière

Smeg

Smeg Portofino CPF92IMA Manuel utilisateur

Smeg

Smeg SA9066CER Manuel utilisateur

Smeg

Smeg CS95GMBNA Manuel utilisateur

Smeg

Smeg Mista CS95GMNNA1 Manuel utilisateur

Smeg

Smeg CSA19ID Manuel utilisateur

Smeg

Smeg Mista Aesthetic B901GMXI9 Manuel utilisateur

Smeg

Smeg Victoria TR62P Manuel utilisateur

Smeg

Smeg C6GMX Manuel utilisateur

Smeg

Smeg BU93BL Manuel utilisateur

Smeg

Smeg A11A-6 Manuel utilisateur

Smeg

Smeg CBE66MF Guide de démarrage rapide

Smeg

Smeg TR4110BL Manuel utilisateur

Smeg

Smeg SCB91MCX9 Manuel utilisateur

Smeg

Smeg Classica SF6381XC Manuel utilisateur

Smeg

Smeg SA9066XS Manuel utilisateur

Smeg

Smeg C92DBL9 Manuel utilisateur

Smeg

Smeg Portofino Manuel utilisateur

Smeg

Smeg CS19ID-5 Guide de l'utilisateur

Smeg

Smeg CSP9GMXA-1 Manuel utilisateur

Smeg

Smeg Classica CX60GP Manuel utilisateur

Smeg

Smeg Victoria TR4110IGR Manuel utilisateur

Smeg

Smeg FS60XNG Manuel utilisateur

Smeg

Smeg Classica CG90IANT9 Manuel utilisateur

Smeg

Smeg CB61VES Manuel utilisateur

Manuels Cuisinière populaires d'autres marques

Modena

Modena FC 7645 SGM Manuel du propriétaire

Electrolux

Electrolux Insight EKG6049 Manuel utilisateur

Stanley

Stanley Donard 60 Manuel utilisateur

Bartscher

Bartscher 201TC Manuel utilisateur

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuel utilisateur

Siemens

Siemens HK9P00020U Manuel utilisateur

Creda

Creda S150E Mode d’emploi

Creda

Creda HB48309 Manuel utilisateur

Bosch

Bosch HCE743220F Manuel utilisateur

Tricity Bendix

Tricity Bendix SE545P Manuel utilisateur

NEFF

NEFF E1461A2/01 Manuel utilisateur

Zanussi

Zanussi ZCM 700 X Manuel utilisateur

RiverGrille

RiverGrille TF2002501-RG Manuel utilisateur

Vollrath

Vollrath 69504F Manuel utilisateur

Tricity Bendix

Tricity Bendix CSIE500 Manuel utilisateur

AEG

AEG Competence 5731 V Manuel utilisateur

Euromaid

Euromaid ES60 Manuel utilisateur

Hotpoint

Hotpoint HUI 62 TP Manuel utilisateur
