Smeg A42C-2 Manuel utilisateur

Contents

1. INSTRUCTIONS FOR SAFE AND PROPER USE _____________________ 31

2. INSTALLATION OF THE APPLIANCE ______________________________ 33

3. DESCRIPTION OF CONTROLS___________________________________ 36

4. USE OF THE COOKING HOB ____________________________________ 43

5. USE OF THE OVENS ___________________________________________ 45

6. AVAILABLE ACCESSORIES _____________________________________ 46

7. COOKING HINTS ______________________________________________ 47

8. CLEANING AND MAINTENANCE _________________________________ 52

9. EXTRAORDINARY MAINTENANCE _______________________________ 55

THESE INSTRUCTIONS ARE VALID ONLY FOR END USER COUNTRIES WHOSE

IDENTIFICATION SYMBOLS APPEAR ON THE COVER OF THIS MANUAL.

INSTRUCTIONS FOR THE INSTALLER: these are intended for the

qualified technician who must install the appliance, set it functioning

and carry out an inspection test.

INSTRUCTIONS FOR THE USER: these contain user advice,

description of the commands and the correct procedures for cleaning

and maintenance of the appliance.

Further information about the products can be found at www.smeg.com

Introduction

1. INSTRUCTIONS FOR SAFE AND PROPER USE

THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND

THEREFORE MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE

PLACE FOR THE WHOLE WORKING LIFE OF THE COOKER. WE ADVISE

READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE

USING THE COOKER. INSTALLATION MUST BE CARRIED OUT BY

QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN

FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USES AND

CONFORMS TO CURRENT REGULATIONS IN FORCE. THE APPLIANCE HAS

BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING AND

HEATING-UP OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER

USE.

DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE

THE VARIOUS WASTE MATERIALS AND TAKE THEM TO THE NEAREST

SPECIAL GARBAGE COLLECTION CENTRE.

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED

ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.

THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE SOCKET

MUST BE THE SAME TYPE AND MUST CONFORM TO CURRENT

REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN

BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION

TEST OF THE APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW.

SHOULD THE APPLIANCE NOT FUNCTION, DISCONNECT IT FROM THE

SUPPLY AND CALL THE NEAREST TECHNICAL ASSISTANCE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

ALWAYS CHECK THAT THE CONTROL KNOBS ARE IN THE POSITION

(OFF) WHEN YOU FINISH USING THE HOB.

NEVER PUT INFLAMMABLE OBJECTS INTO AN OVEN: IF THEY CATCH FIRE

THEY COULD CAUSE A FIRE IN THE HOME.

Introduction

THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND

BRAND NAME IS VISIBLY POSITIONED ON THE REAR PROTECTIVE COVER

OF THE APPLIANCE. A COPY OF THE PLATE IS INCLUDED WITH THE

HANDBOOK AND YOU ARE ADVISED TO FIX IT IN THE APPROPRIATE

SPACE ON THE INSIDE COVER PAGE.

THE PLATE MUST NEVER BE REMOVED.

DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO

TOUCH THE HEATING ELEMENTS INSIDE THE OVEN.

DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS

ON THE COOKING HOB GRIDS.

DO NOT INSTALL THIS APPLIANCE ON A RAISED PLATFORM

ATTENTION: IN CASE OF A CRACK BEING DETECTED IN THE GLAZED

CERAMIC HOB, IMMEDIATELY DISCONNECT FROM MAINS AND CONTACT

THE NEAREST SERVICING CENTRE.

THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW

CHILDREN TO GO NEAR OR PLAY WITH IT.

WHILE COOKING WITH THE OVEN DOOR OPEN, A GREAT DEAL OF HEAT

WILL COME OUT: KEEP CHILDREN AWAY FROM THE OVEN.

THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE

2002/96/EC ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT

(WEEE).

THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF

RETURN AND RECYCLING ON WASTE ELECTRICAL AND ELECTRONIC

EQUIPMENT.

BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND

PROTECTIVE FILMS APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance or by the use of non-original

spares.

Instructions for the installer

2. INSTALLATION OF THE APPLIANCE

This unit is equipped with a type Y fire protection, and may be set

against walls that are higher than the hob.

Built-in appliance Free-standing installation

2.1 Electrical connection

Check that the voltage and dimensioning of the supply line correspond to

the characteristics shown on the plate fixed to the rear protective cover

of the appliance.

This plate must never be removed.

On the power line, install an omnipolar cut-off device with contact cut-off

distance greater than or equal to 3 mm, located in an easily accessible

position near the unit.

Instructions for the installer

The appliance is fitted with a terminal board at the rear for electrical

connections (see following diagram). To access, remove the rear cover.

For operation on 380-415V3N

∼

:use an

H05RR-F-type five-core cable (5 x 2.5 mm2).

For operation on 380-415V2N

∼

:use an

H05RR-F-type four-core cable (4 x 4 mm2).

For operation on 220-240V

∼

:use an

H05RR-F-type three-core cable (3 x 6 mm2).

The cable end to be connected to the

appliance must be provided with an ground

wire (yellow-green) at least 20 mm longer.

Instructions for the installer

Complete wiring up to power supply with an appropriately rated five-core

plug (see data plate) or, in case of operation from a 220-240V∼power

supply, with a three-core plug. Make sure that plug and wall socket are of

the same type and are in conformity with regulations in force. Make sure

that the appliance is properly earthed. Before powering, check that the

power line is properly earthed. Avoid using adapters or shunters.

The manufacturer declines all responsibility for damage to persons

or things caused by non-observance of the above prescriptions or by

interference with any part of the appliance.

2.2 Positioning and levelling of the appliance

Having carried out the electricity hook-up, level the appliance using the

four adjustable legs.

2.3 Instruction for wall fixing (only on some models)

1) Fix the screw to the wall and hook the chain (B);

2) Hook the chain to the hole positioned at the rear of the cooker by

the gas pipe (A);

3) Once the chain is in position, push the cooker against the wall;

4) The height of the screw hole from floor level must not exceed 800

mm (C).

Instructions for the user

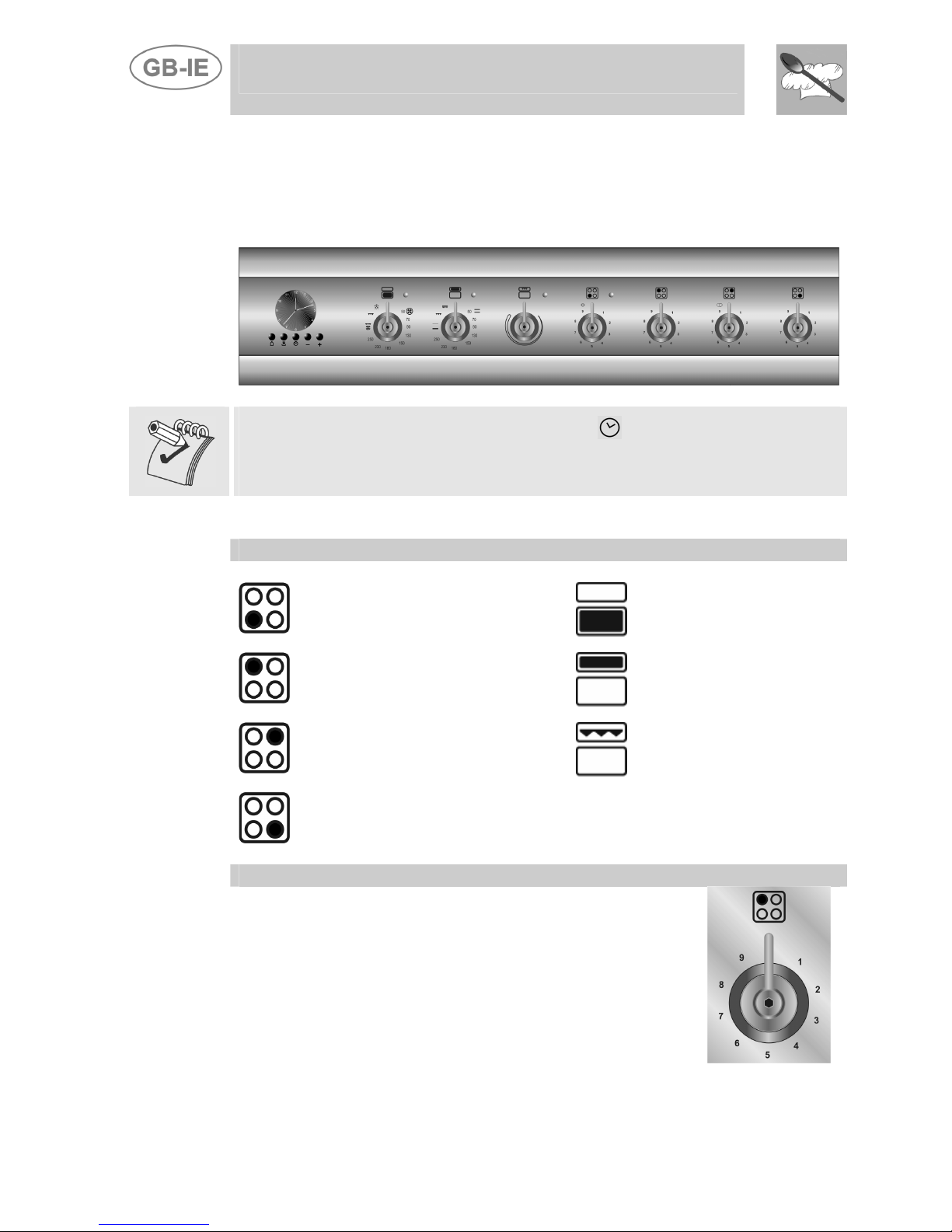

3. DESCRIPTION OF CONTROLS

3.1 Front control panel

All the cooker controls and commands are on the front panel.

The user has only to press the central key for 1/2 seconds to enable

use of the oven on first use or after a power blackout. (only for the main

oven)

DESCRIPTION OF SYMBOLS

FRONT LEFT-HAND

COOKING ZONE

MAIN OVEN

REAR LEFT-HAND

COOKING ZONE

AUXILIARY OVEN

GRILL

REAR RIGHT-HAND

COOKING ZONE

AUXILIARY OVEN

VARIABLE GRILL

FRONT RIGHT-HAND

COOKING ZONE

COOKING HOB CONTROL KNOB

Standard heating

The circle next to each knob indicates the cooking

zone it controls. To heat, push and turn the knob to the

desired position (1 to 9). Adjustment is continuous so

that the appliance also operates at any intermediate

value. To turn off, return the knob to 0.

Instructions for the user

Double heating

The circle next to each knob

indicates the cooking zone it

controls. To heat the inner cooking

zone, push and turn the knob to the

desired position (1 to 9).

To heat both the inner and outer cooking zones, turn the knob to or

; and then release. The knob will thus return to 9. To adjust heating

intensity, rotate the knob anticlockwise to the desired position. To return

to heating of the inner cooking zone only, set the knob back to 0 and then

turn to the desired position (1to 9). To switch off, return knob to 0.

MAIN OVEN THERMOSTAT KNOB

Selection of cooking temperature is carried out by

turning the knob clockwise to the required

temperature, between 50° and 250°C.

The tell-tale light comes on to indicate that the

oven is Warming up. When it goes out it means

that the required temperature has been reached..

Intermittent going on and off of the light means that oven temperature is

being constantly maintained at the programmed level.

The oven is switched on by turning the knob clockwise to any one of the

following functions:

NO FUNCTION SET GRILL ELEMENT (SPIT)

VENTILATED HEATING

ELEMENT + VENTILATION

50 ÷250°C

DEFROSTING

(NO HEATING ELEMENT

ENGAGED)

GRILL ELEMENT +

VENTILATION (SPIT)

Instructions for the user

AUXILIARY OVEN THERMOSTAT KNOB

Selection of cooking temperature is carried

out by turning the knob clockwise to the

required temperature, between 50° and

250°C.

The tell-tale light comes on to indicate that

the oven is warming up. When it goes out it

means that the required temperature has

been reached. Intermittent going on and off

of the light means that oven temperature is

being constantly maintained at the

programmed level.

The oven is switched on by turning the knob clockwise to any one of the

following functions except the oven light:

NO FUNCTION SET

GRILL ELEMENT

UPPER AND LOWER

HEATING ELEMENT

UPPER HEATING ELEMENT +

GRILL ELEMENT

LOWER HEATING

ELEMENT

AUXILIARY OVEN VARIABLE GRILL

KNOB

Position the auxiliary oven thermostat knob

on the symbol or .

Turn the variable grill knob clockwise to the

desired

position.

When the signal light comes on the grill is

engaged.

Instructions for the user

3.2 Electronic Analogue Clock

The instructions provided apply to the main oven only.

LIST OF FUNCTIONS

MINUTE-MINDER BUTTON

AUTOMATIC SWITCH-OFF TIMING BUTTON

TIME SETTING AND RESET

VALUE DECREASE BUTTON

VALUE INCREASE BUTTON

3.2.1 Setting the time

When the oven is used for the first time, or after a power blackout, the

display flashes on and off at regular intervals. Press the key for 1/2

seconds to stop the display flashing and start setting of the current time.

Press the value modification keys or to increase or decrease by

one minute for each time a key is pressed.

Press one of the two value modification keys until the current time

appears. The clock will start from the time set 6/7 seconds after the last

key is pressed.

At the end of each programmed cooking operation, the clock gives 8

beeps, repeated 3/4 times at intervals of about 1 and a half minutes.

The beeps can be stopped at any moment by pressing any key.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Cuisinière

Smeg

Smeg cooker Manuel utilisateur

Smeg

Smeg SCB80GX Manuel utilisateur

Smeg

Smeg C9IMMB2 Manuel utilisateur

Smeg

Smeg CSP9GMXA-1 Manuel utilisateur

Smeg

Smeg OPERA A31X Manuel d'instructions et de sécurité

Smeg

Smeg CE92IMX Manuel utilisateur

Smeg

Smeg C9GMN9 Manuel utilisateur

Smeg

Smeg FS9010CER-1 Manuel utilisateur

Smeg

Smeg SY92IPX9 Manuel utilisateur

Smeg

Smeg SA9066CER Manuel utilisateur

Smeg

Smeg CA61VM Manuel utilisateur

Smeg

Smeg BU93P Manuel utilisateur

Smeg

Smeg SA9065XS Manuel utilisateur

Smeg

Smeg Classica SF6381XC Manuel utilisateur

Smeg

Smeg A2PYID-81 Manuel utilisateur

Smeg

Smeg Dolce&Gabbana Divina Cucina TRA90DGM9 Manuel utilisateur

Smeg

Smeg FS67MFX Manuel utilisateur

Smeg

Smeg TR90DGM9 Manuel utilisateur

Smeg

Smeg C9GMX9 Manuel utilisateur

Smeg

Smeg Victoria TR90GR2 Manuel utilisateur

Smeg

Smeg Portofino CPF9IPYW Manuel utilisateur

Smeg

Smeg SY4110 Manuel utilisateur

Smeg

Smeg TR62IBL Manuel utilisateur

Smeg

Smeg CIX64MS Manuel utilisateur

Manuels Cuisinière populaires d'autres marques

Modena

Modena FC 7645 SGM Manuel du propriétaire

Electrolux

Electrolux Insight EKG6049 Manuel utilisateur

Stanley

Stanley Donard 60 Manuel utilisateur

Bartscher

Bartscher 201TC Manuel utilisateur

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuel utilisateur

Siemens

Siemens HK9P00020U Manuel utilisateur

Creda

Creda S150E Mode d’emploi

Creda

Creda HB48309 Manuel utilisateur

Bosch

Bosch HCE743220F Manuel utilisateur

Tricity Bendix

Tricity Bendix SE545P Manuel utilisateur

NEFF

NEFF E1461A2/01 Manuel utilisateur

Zanussi

Zanussi ZCM 700 X Manuel utilisateur

RiverGrille

RiverGrille TF2002501-RG Manuel utilisateur

Vollrath

Vollrath 69504F Manuel utilisateur

Tricity Bendix

Tricity Bendix CSIE500 Manuel utilisateur

AEG

AEG Competence 5731 V Manuel utilisateur

Euromaid

Euromaid ES60 Manuel utilisateur

Hotpoint

Hotpoint HUI 62 TP Manuel utilisateur
