Dear Customer,

Thank you for having chosen Divina Cucina, domestic appliances from the ‘Sicily is my

love’ collection by Smeg – Dolce&Gabbana.

By choosing this product, you have selected an appliance

that combines the quality and technology of Smeg products and the creativity and design of

Dolce&Gabbana.

The decorations are applied to the product through a combination of patented industrial

and manual process

so any irregularities in the processing should be considered as unique and distinctive

characteristics of the product.

Contents

ENEN

1 Instructions 60

1.1 General safety instructions 60

1.2 Manufacturer’s liability 64

1.3 Appliance purpose 65

1.4 Identification plate 65

1.5 This user manual 65

1.6 Disposal 65

1.7 How to read the user manual 66

2 Description 67

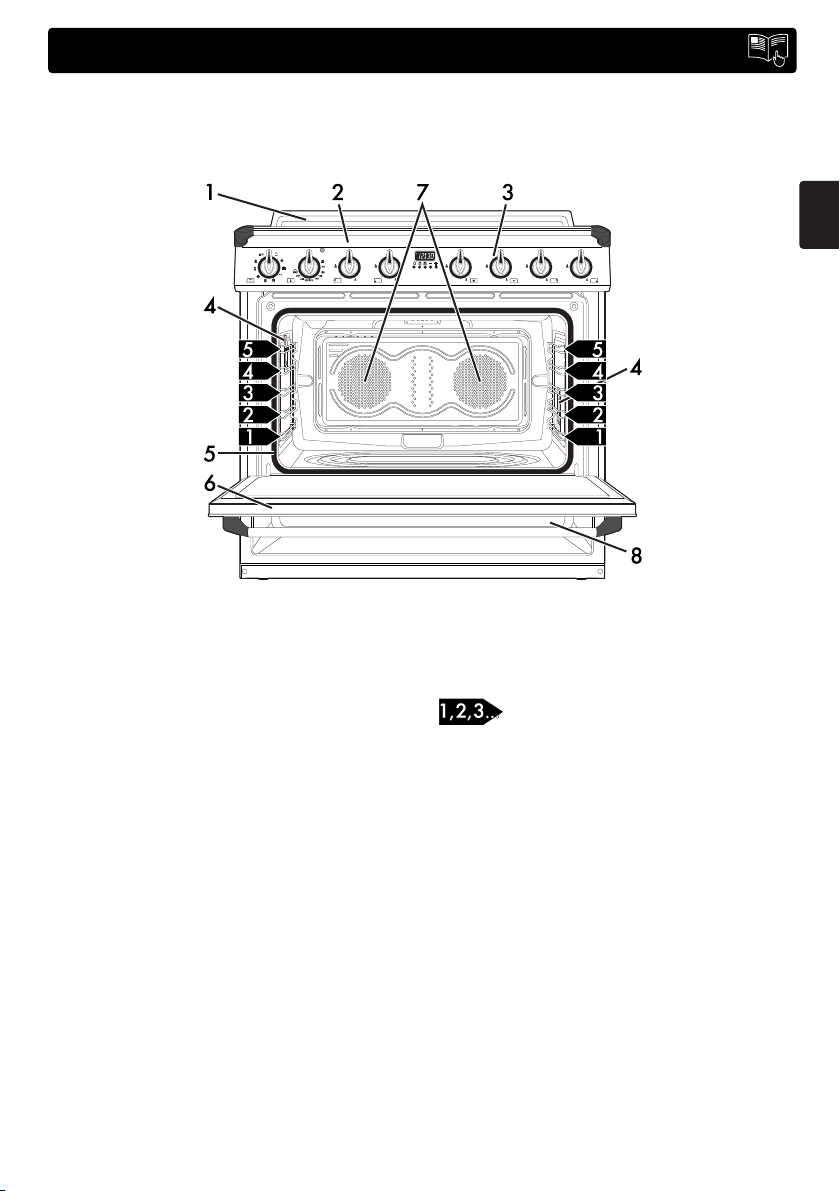

2.1 General Description 67

2.2 Hob 68

2.3 Control panel 68

2.4 Other parts 69

2.5 Available accessories 69

3 Use 71

3.1 To save energy 73

3.2 Using the accessories 73

3.3 Using the hob 76

3.4 Using the storage compartment 77

3.5 Using the oven 77

3.6 Cooking advice 80

3.7 Programmer clock 81

4 Cleaning and maintenance 86

4.1 Cleaning the hob 87

4.2 Cleaning the door 88

4.3 Cleaning the oven cavity 90

4.4 Vapor Clean 92

4.5 Extraordinary maintenance 94

5 Installation 96

5.1 Gas connection 96

5.2 Adaptation to different types of gas 99

5.3 Positioning 104

5.4 Electrical connection 110

5.5 Instructions for the installer 111

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions

1 Instructions

1.1 General safety instructions

Risk of personal injury

• During use the appliance and its

accessible parts become very hot.

Never touch the heating elements

during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven.

• Never try to put out a fire or flames

with water: Turn off the appliance

and smother the flames with a fire

blanket or other appropriate

cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use of

electrical appliances, provided

that they are supervised or

instructed by adults who are

responsible for their safety.

• Children must not play with the

appliance.

• Keep children under the age of

eight at a safe distance unless they

are constantly supervised.

• Keep children under the age of 8

away from the appliance when it

is in use.

• Cleaning and maintenance must

not be carried out by unsupervised

children.

• Make sure that the flame-spreader

crowns are correctly positioned in

their housings with their respective

burner caps.

• Be aware of how rapidly the

cooking zones heat up. Do not

place empty pans on the heat.

Danger of overheating.

• Fats and oils can catch fire if they

overheat. Do not leave the

appliance unattended while

preparing foods containing oils or

fats. If fats or oils catch fire, never

put water on them. Place the lid on

the pan and turn off the relevant

cooking zone.

• The cooking process must always

be monitored. A short cooking

process must be continuously

monitored.

Instructions

ENEN

• Do not place metal objects, such

as dishes or cutlery, on the hob

surface during use as they may

overheat.

• Do not insert pointed metal objects

(cutlery or utensils) into the slots in

the appliance.

• Do not pour water directly onto

very hot trays.

• Keep the oven door closed during

cooking.

• If you need to move food or at the

end of cooking, open the door 5 cm

for a few seconds, let the steam

come out, then open it fully.

• Do not open the storage

compartment (where present)

when the oven is on and still hot.

• The items inside the storage

compartment could be very hot

after using the oven.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS IN THE

STORAGE COMPARTMENT (IF

PRESENT) OR NEAR THE

APPLIANCE.

• DO NOT USE AEROSOLS IN

THE VICINITY OF THIS

APPLIANCE WHILST IT IS IN

USE.

• Switch off the appliance

immediately after use.

• DO NOT MODIFY THIS

APPLIANCE.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any work on

the appliance, switch off the

power supply.

• Installation and servicing should

be carried out by qualified

personnel in accordance with

current standards.

• Do not try to repair the appliance

yourself or without the assistance

of a qualified technician.

• Do not pull the cable to unplug the

appliance.

• If the power supply cable is

damaged, contact technical

support immediately and they will

replace it.

Instructions

Risk of damaging the appliance

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Use wooden or plastic utensils.

• Racks and trays should be inserted

as far as they will go into the side

guides. The mechanical safety

locks that prevent them from being

removed must face downwards

and towards the back of the oven

cavity.

• Do not sit on the appliance.

• Do not use steam jets to clean the

appliance.

• Do not obstruct ventilation

openings and heat dispersal slots.

• Never leave the appliance

unattended during cooking

operations where fats or oils could

be released, as these could then

heat up and catch fire. Be very

careful.

• Never leave objects on the

cooking surface.

• DO NOT FOR ANY REASON

USE THE APPLIANCE AS A

SPACE HEATER.

• Do not spray any spray products

near the oven.

• Do not use plastic cookware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks which

are not required during cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays directly

on the bottom of the oven cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air circulation

inside the oven.

• Do not use the open door to rest

pans or trays on the internal glass

pane.

• Cooking vessels or griddle plates

should be placed inside the

perimeter of the hob.

Instructions

ENEN

• All pans must have smooth, flat

bottoms.

• If any liquid does boil over or spill,

remove the excess from the hob.

• Take care not to spill acid

substances such as lemon juice or

vinegar on the hob.

• Do not put empty pans or frying

pans on switched on cooking

zones.

• Do not use steam jets to clean the

appliance.

• Do not use rough or abrasive

materials or sharp metal scrapers.

• Do not use cleaning products

containing chlorine, ammonia or

bleach on parts made of steel or

that have metallic surface finishes

(e.g. anodizing, nickel- or

chromium-plating).

• Do not use abrasive or corrosive

detergents (e.g. scouring

powders, stain removers and

metallic sponges) on glass parts.

• Do not wash removable parts such

as the hob pan support grids,

flame-spreader crowns and

burner caps in the dishwasher.

• Never use the oven door to lever

the appliance into place when

fitting.

• Avoid exerting too much pressure

on the oven door when open.

• Do not use the handle to lift or

move the appliance.

Installation

• THIS APPLIANCE MUST NOT BE

INSTALLED IN BOATS OR

CARAVANS.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cut-out with the help of a

second person.

• To avoid potential overheating, the

appliance must not be installed

behind a decorative door or a

panel.

• Have the gas connection

performed by authorised technical

personnel.

Instructions

• Installation using a hose must be

carried out so that the length of the

hose does not exceed 2 metres

when fully extended for steel hoses

and 1.5 metres for rubber hoses.

• The hoses should not come into

contact with moving parts and

should not be crushed in any way.

• If required, use a pressure

regulator that complies with

current regulations.

• After carrying out any operation,

check that the tightening torque of

gas connections is between

10 Nm and 15 Nm.

• At the end of the installation, check

for any leaks with a soapy

solution, never with a flame.

• Have the electrical connection

performed by authorised technical

personnel.

• The appliance must be connected

to earth in compliance with

electrical system safety standards.

• Use cables withstanding a

temperature of at least 90 °C.

• The tightening torque of the terminal

board screws for the power supply

wires must be 1.5 - 2 Nm.

For this appliance

• Ensure that the appliance is

switched off before replacing the

bulb.

• Do not rest any weight or sit on the

open door of the appliance.

• Take care that no objects are stuck

in the doors.

1.2 Manufacturer’s liability

The manufacturer declines all liability

for damage to persons or property

caused by:

• Use of the appliance other than

that specified

• Failure to comply with the

instructions in the user manual

• Tampering with any part of the

appliance

• The use of non-original spare

parts.

Instructions

ENEN

1.3 Appliance purpose

• This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper.

• The appliance is not designed to

operate with external timers or with

remote-control systems.

1.4 Identification plate

The identification plate bears the

technical data, serial number and

brand name of the appliance. Do not

remove the identification plate for

any reason.

1.5 This user manual

This user manual is an integral part of

the appliance and must therefore be

kept in its entirety and within the

user’s reach for the whole working

life of the appliance.

Read this user manual carefully

before using the appliance.

1.6 Disposal

This appliance must be

disposed of separately from

other waste (Directives

2002/95/EC, 2002/96/EC,

2003/108/EC). The appliance

does not contain substances in

quantities sufficient to be considered

hazardous to health and the

environment, in accordance with

current European directives.

To dispose of the appliance:

• Cut the power supply cable and

remove it along with the plug.

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

Instructions

• Deliver the appliance to the

appropriate recycling centre for

electrical and electronic

equipment waste, or return it to

the retailer when purchasing an

equivalent product, on a one for

one basis.

Our appliances are packaged in

non-polluting and recyclable

materials.

• Deliver the packing materials to

the appropriate recycling centre.

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1. Sequence of instructions for use.

• Standalone instructions.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or

any part of it unattended.

• Do not let children play with the

plastic bags.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information

Advice

Description

ENEN

2 Description

2.1 General Description

1 Upstand

2 Hob

3 Control panel

4 Oven light

5 Seal

6 Door

7 Fan

8 Storage compartment

Rack/tray support frames

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Smeg Cuisinière

Smeg

Smeg Selezione Concerto Series Manuel utilisateur

Smeg

Smeg CX51VE Manuel utilisateur

Smeg

Smeg CSP9GMXA-1 Manuel utilisateur

Smeg

Smeg SUK92CMX Manuel utilisateur

Smeg

Smeg SSA91MAX2 Manuel utilisateur

Smeg

Smeg C6GMXA Manuel utilisateur

Smeg

Smeg CX68M8-1 Manuel utilisateur

Smeg

Smeg AS5601 Manuel utilisateur

Smeg

Smeg Classica C6GMX9 Manuel utilisateur

Smeg

Smeg TR93GR Manuel utilisateur

Smeg

Smeg CO61CMP Manuel utilisateur

Smeg

Smeg Mista Aesthetic B601GMXI9 Manuel utilisateur

Smeg

Smeg CS18A Manuel utilisateur

Smeg

Smeg Classica CX60GP Manuel utilisateur

Smeg

Smeg SY92IPX9 Manuel utilisateur

Smeg

Smeg Classica Sinfonia Series Manuel utilisateur

Smeg

Smeg SSA60MX2 Manuel utilisateur

Smeg

Smeg BG91IX2 Manuel utilisateur

Smeg

Smeg A4BL-8 Manuel utilisateur

Smeg

Smeg Mista CS95GMNNA1 Manuel utilisateur

Smeg

Smeg Portofino CPF9IPYW Manuel utilisateur

Smeg

Smeg SCB80GX Manuel utilisateur

Smeg

Smeg BM93BL Manuel utilisateur

Smeg

Smeg Classica Concerto SSA92MAA9 Manuel utilisateur

Manuels Cuisinière populaires d'autres marques

Modena

Modena FC 7645 SGM Manuel du propriétaire

Electrolux

Electrolux Insight EKG6049 Manuel utilisateur

Stanley

Stanley Donard 60 Manuel utilisateur

Bartscher

Bartscher 201TC Manuel utilisateur

Parkinson Cowan

Parkinson Cowan 50 GR/BU Manuel utilisateur

Siemens

Siemens HK9P00020U Manuel utilisateur

Creda

Creda S150E Mode d’emploi

Creda

Creda HB48309 Manuel utilisateur

Bosch

Bosch HCE743220F Manuel utilisateur

Tricity Bendix

Tricity Bendix SE545P Manuel utilisateur

NEFF

NEFF E1461A2/01 Manuel utilisateur

Zanussi

Zanussi ZCM 700 X Manuel utilisateur

RiverGrille

RiverGrille TF2002501-RG Manuel utilisateur

Vollrath

Vollrath 69504F Manuel utilisateur

Tricity Bendix

Tricity Bendix CSIE500 Manuel utilisateur

AEG

AEG Competence 5731 V Manuel utilisateur

Euromaid

Euromaid ES60 Manuel utilisateur

Hotpoint

Hotpoint HUI 62 TP Manuel utilisateur
