SMC Networks TigerSwitch SMC6708L2 INT Manuel utilisateur

Managed Switch SMC6708L2 INT

TigerSwitchTM 10/100 Standalone 8-port 10/100 Managed Switch

www.smc.com

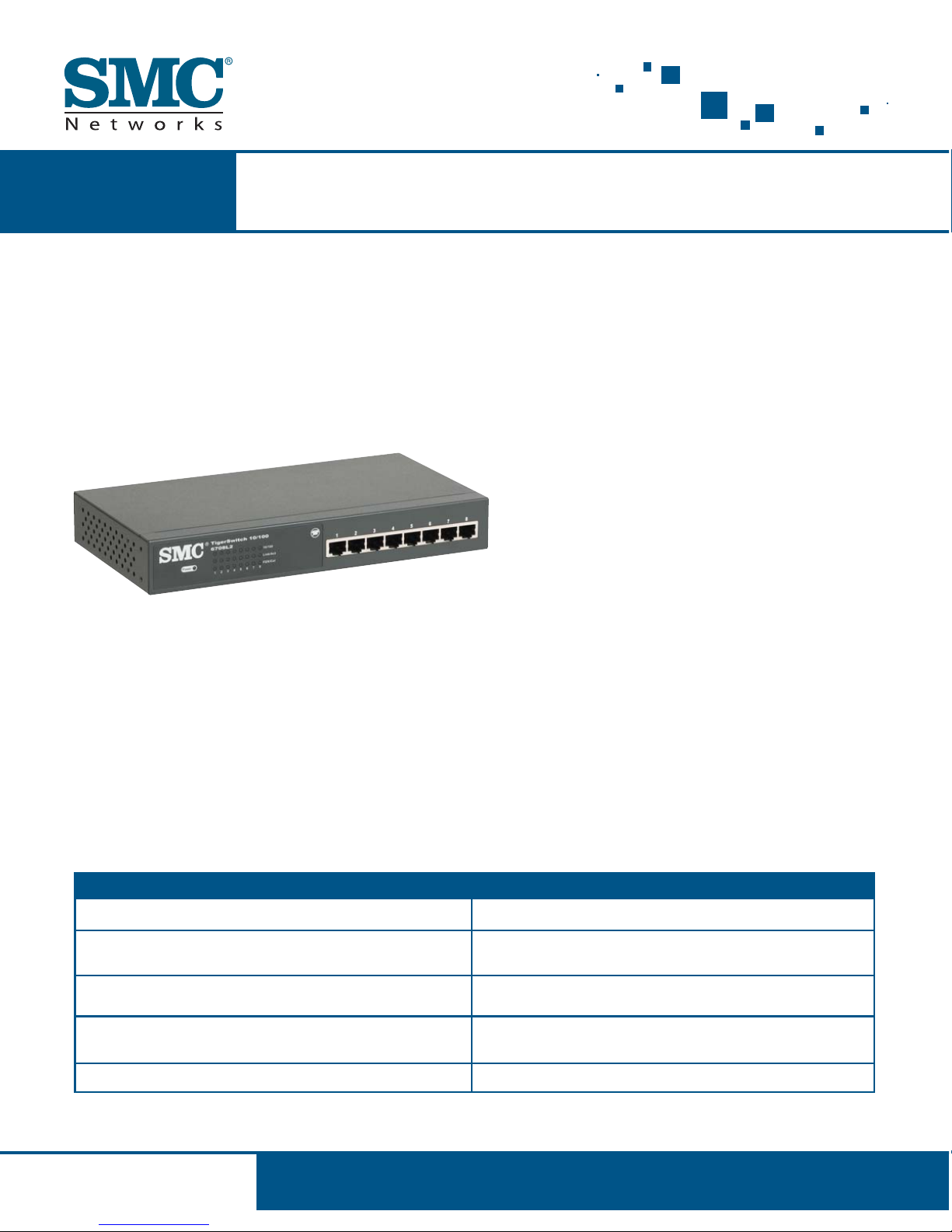

SMC6708L2 INT is an intelligent standalone Fast

Ethernet Switch with 8 auto-MDIX 10BASE-T/100BASE-TX

ports. With an aggregated bandwidth of up to 1.6Gbps, it

has a non-blocking switching architecture. As today’s

network has diverse needs such as multimedia

applications, QoS is also delivered on this TigerSwitch

through IEEE802.1Q VLAN’s, GVRP and priority queuing

that ensure the smooth delivery of mission critical data

and security of different multicast groups. SMC6708L2

INT is perfect for small or medium networks looking to

strengthen its network backbone connection, or fiber-to-

the-home applications for today’s newly planned

communities.

FEATURES

Easy to install and integrate: 8-port 10/100 auto-MDIX port

Link aggregation creates high-speed data paths to

servers or other switches

VLAN support provides port VLANs and GVRP for

auto-registration

IGMP snooping reduces multicast traffic for maximum

performance

Compacted 10” case for easy fitting into restrict spaces

GUI or Telnet options for easy network administration

4-group RMON support for detailed monitoring of

network management

MAC Address filtering for secure links

Spanning Tree Protocol creates resilient links for

increased stability

Limited Life Warranty

BENEFITS

OVERVIEW

TECHNICAL SPECIFICATIONS SMC6708L2 INT

PORTS

• 8 auto-MDIX 10BASE-T/100BASE-TX RJ-45 ports

• Built-in Network Management

NETWORK Interface

• 10BASE-T: RJ-45 UTP CAT. 3,4,5

• 100BASE-TX: RJ-45 UTP CAT. 5

LEDs

• System: Power

• Port: 10/100, Link/Activity, Duplex/Collision

DIMENSIONS

• 10 x 1.75 x 5.25 in

• 25x 38x 13.2 cm

WEIGHT

• 2 lbs / 6 oz

HUMIDITY

• Operating: 10% to 90% (non-condensing)

TEMPERATURE

• Operating: 32° to 113°F / 0° to 45°C

• Storage: -40° to 158°F / -40° to 70°C

WARRANTY

• Limited Lifetime

BUFFER ARCHITECTURE

• 2Mbits

SWITCH BANDWIDTH CAPACITY

• 1.6Gbps

AC INUT

•100 to 240V, 50 to 60Hz

POWER SUPPLY

• Internal, auto-ranging transformer:

100 to 240VAC, 47 to 63Hz

POWER CONSUMPTION

• 19W max. @ 100-240 VAC

MAXIMUM CURRENT

• 0.16A @ 110V

SWITCH FEATURES

• Spanning Tree Protocol

• Store-and-Forward

• Flow Control

• Full Duplex: IEEE802.3x

• Half Duplex: back pressure

• VLAN support

• Up to 128 groups; port-based or with 802.1Q

• VLAN tagging, GVRP for automatic VLAN learning

• Class of Service Supports two levels of priority

• Broadcast storm control

• Link Aggregation

• Port Mirroring

MANAGEMENT FEATURES

• In-Band Management

• Telnet, Web-based HTTP, or SNMP manager

• Out-of-Band Management

• RS-232 DB-9 console port Software Loading

• TFTP in-band or Xmodem out-of-band

• MIB Support

• MIB II (RFC 1213), Bridging MIB (RFC 1493), Ethernet-like

• MIB (RFC 1643), RMON MIB (RFC 1757)

RMON SUPPORT

• Groups 1, 2, 3, 9 (Statistics, History, Alarm, Event)

STANDARD

• IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet

• IEEE802.1D Spanning Tree Protocol

• IEEE802.1Q VLAN

• IEEE802.1P Priority Tags

• IEEE802.3x Full-Duplex, Flow Control

• SNMP (RFC 1157), RMON (RFC 1757), ARP (RFC 826), IGMP

(RFC 1112), MIB II (RFC 1213), Ethernet-like MIB (RFC 1643),

Bridge MIB (RFC 1493)

COMPLIANCES

CERTIFICATION

• CE Mark

EMISSIONS

• FCC Class A, CISPR Class A Immunity

• IEC 1000-4-2/3/4/6

SAFETY

• CSA/NRTL (CSA22.22950 & UL 1950), EN60950 (TUV/GS)

North America

38 Tesla

Irvine, CA 92618

1-800-SMC-4YOU

24/7 Technical Support

Europe/ Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despí

Barcelona, Spain

Check www.smc.com for your local

country contact information

www.smc.com
